Флексографская печатная машина для изготовления пакетов из пластика/нетканого материала 6 цветов
- Категории: Печатное устройство >>>
- Поставщик: Zhejiang,Bangtai,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Overview

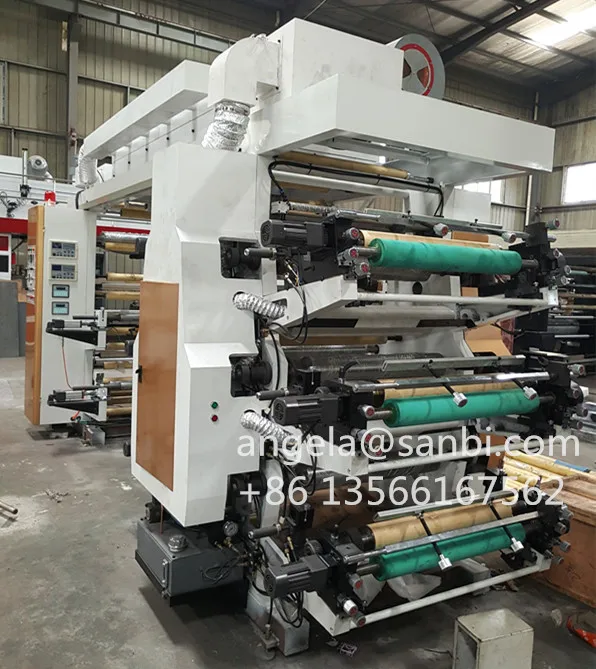

6 Color Flexo Printing Machine Price
it is a kind of ideal printing equipment for producing paper,non woven ,plastic film packing bag for food, supermarket handbag, vest bag and clothes bag and etc.
FEATURES AT A GLANCE
1.helical gear,
2.auto tension for unwinder and rewinder, EPC
3.hydraulic lift,alarm device when off material
4.Unwinder and rewinder roller with Air shafts.
2.auto tension for unwinder and rewinder, EPC
3.hydraulic lift,alarm device when off material
4.Unwinder and rewinder roller with Air shafts.
5. Ceramic anilox roller ,single doctor blade
PRODUCT SPECIFICATIONS
Model | HYT-6600 | HYT-6800 | HYT-61000 | HYT-61200 |
Printing color印刷色数 | 6 color. | 6 color. | 6 color. | 6 color. |
Printing width 印刷宽度 | 560mm | 760mm | 960mm | 1160mm |
Material width 材料宽度 | 600mm | 800mm | 1000mm | 1200mm |
Printing material 印刷材料 | PE ,BOPP, OPP PAPER ,PP | PE, BOPP, OPP PAPER ,PP | PE ,BOPP, OPP PAPER ,PP | PE ,BOPP, OPP PAPER ,PP |
Printing length （repeat） 印刷长度 | 190 ~ 1000mm (7.5"~ 39") | 190 ~ 1000mm (7.5"~ 39") | 190 ~ 1000mm (7.5"~ 39") | 190 ~ 1000mm (7.5"~ 39") |
Machine speed 机械速度 | 80 m/min | 80 m/min | 80 m/min | 80 m/min |
Printing speed 印刷速度 | 30-70 m/min | 30-70 m/min | 30-70 m/min | 30-70 m/min |
Anilxo roller 网纹辊 | 200-800 LPI Ceramic anilox roller（6pcs） | 200-800 LPI Ceramic anilox roller（6pcs） | 200-800 LPI Ceramic anilox roller（6pcs） | 200-800 LPI Ceramic anilox roller（6pcs） |
Inking Way 行墨方式 | Single Doctor blade 6PCS | Single Doctor blade 6PCS | Single Doctor blade 6PCS | Single Doctor blade 6PCS |
Machine running 机器转动 | Synchronous belt driving | Synchronous belt driving | Synchronous belt driving | Synchronous belt driving |
Register precision 套印精度 | Longitude 纵向套准：±0.20mm Transverse横向套准：±0.20mm | Longitude 纵向套准：±0.20mm Transverse横向套准：±0.20mm | Longitude 纵向套准：±0.20mm Transverse横向套准：±0.20mm | Longitude 纵向套准：±0.20mm Transverse横向套准：±0.20mm |
Rewind / Unwind Diameter 收放卷直径 | Φ800mm | Φ800mm | Φ800mm | Φ800mm |
Single unwinder and single rewinder | Include | Include | Include | Include |
Printing plate lifting system 起落版方式 | Automatic Hydraulic cylinder control printing roll up and down | Automatic Hydraulic cylinder control printing roll up and down | Automatic Hydraulic cylinder control printing roll up and down | Automatic Hydraulic cylinder control printing roll up and down |
EPC system 纠边系统 | Edge Position Controller 1 PC | Edge Position Controller 1 PC | Edge Position Controller 1 PC | Edge Position Controller 1 PC |
Tension controller | Automatic tension controller for unwinding 1pc, and rewinder 1pc | Automatic tension controller for unwinding 1pc, and rewinder 1pc | Automatic tension controller for unwinding 1pc, and rewinder 1pc | Automatic tension controller for unwinding 1pc, and rewinder 1pc |
PRODUCT CONFIGURATION
CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor
Product packaging

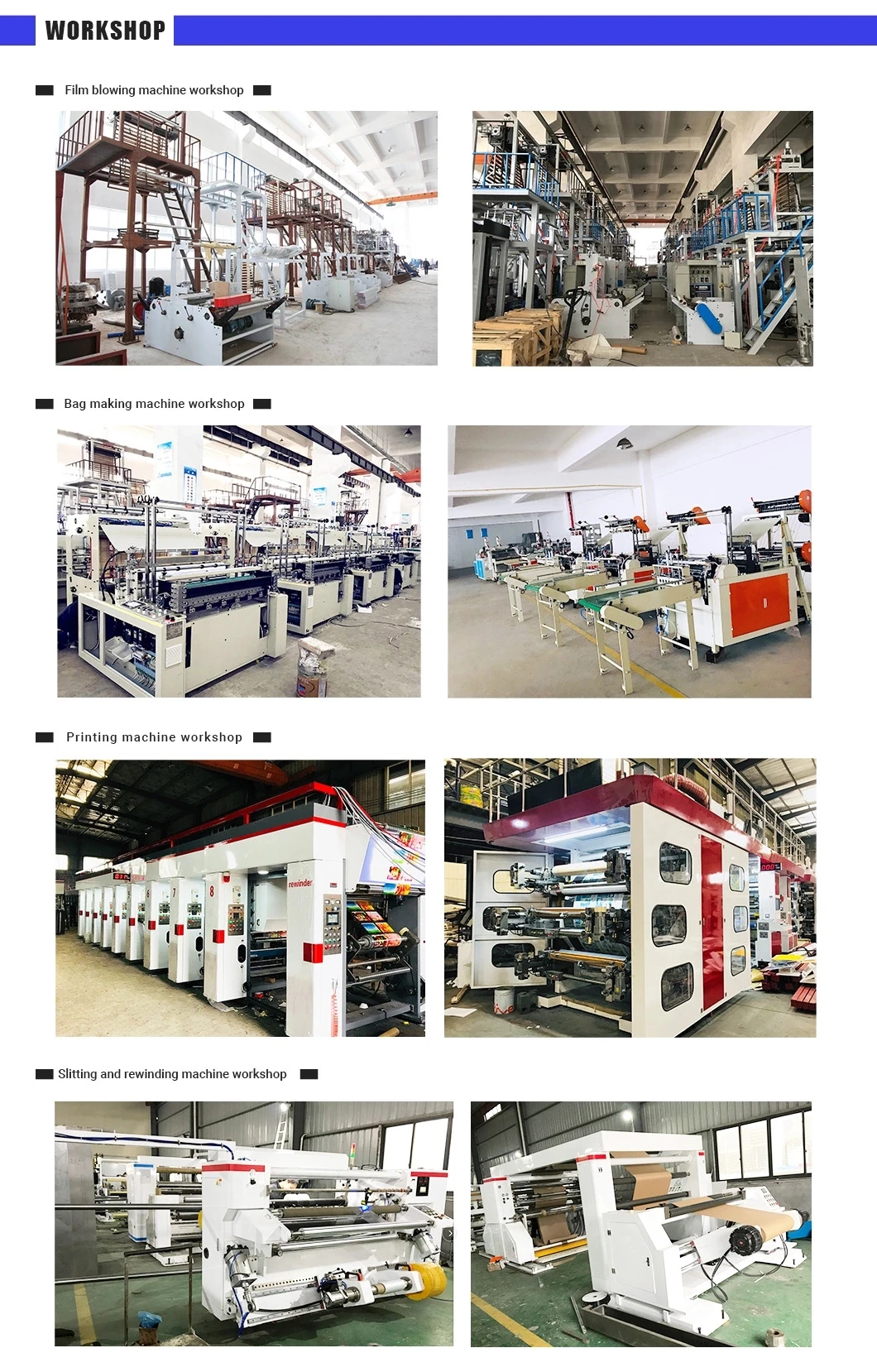

Company Profile

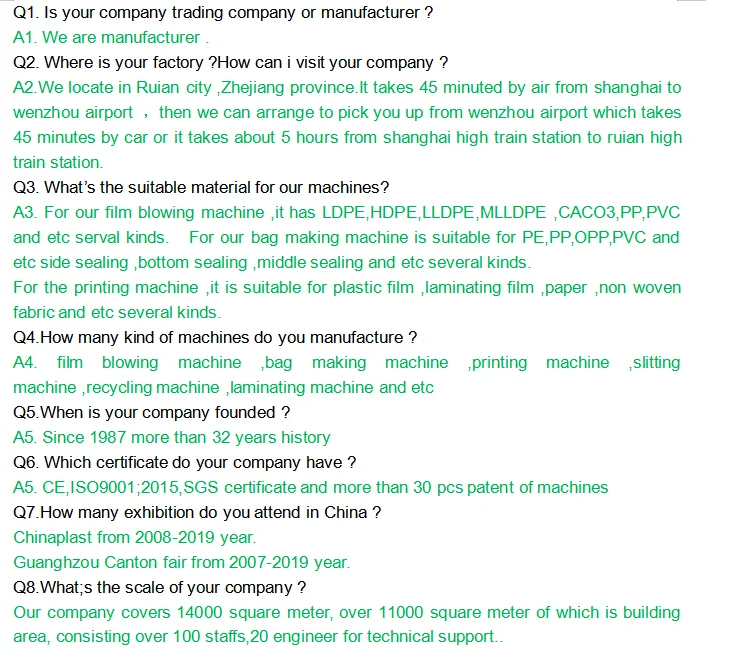

FAQ
Contact information
