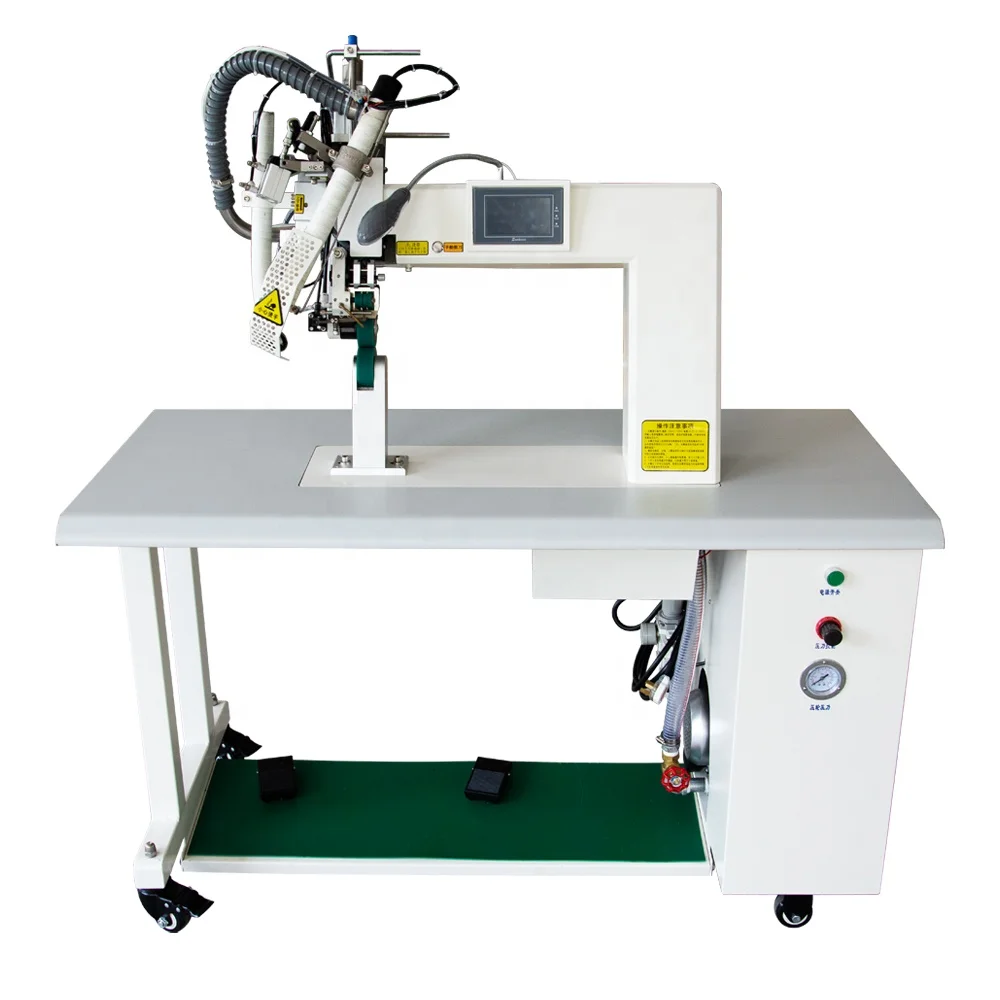

Машина для герметизации швов горячим
- Категории: Машины для украшения одежды >>>
- Поставщик: Changzhou,Futan,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Specification
==Features==
1-Controlled by programmable PLC with high definition display, English touch interface, process can be modified according to users' requirements.
2-Auto controllable temperature with high stability slightly varies between±2°C, Warning device for
temperature upper limit is installed to protect heating wire.
3-It has the functions of synchro drive of the upper and lower wheel chain, auto compensation, and auto reverse.
4-Double pedal control is designed according to human mechanics, simple and comfortable, suitable
for long-time operation.
5-It is possible to work 24 hours continuously with high efficiency.
6-Blowing-in wind can be filtrated without oil or water by unique heater tube.
7-Automatic tape loosen system can be added according to specific requirements.
8-The functions of auto tape clipping, sending and finishing reduce the wastage of raw material.
9-Super-thin lower column is suitable to sealing product with various sizes.
10-The newest model type in China
1-Controlled by programmable PLC with high definition display, English touch interface, process can be modified according to users' requirements.
2-Auto controllable temperature with high stability slightly varies between±2°C, Warning device for
temperature upper limit is installed to protect heating wire.
3-It has the functions of synchro drive of the upper and lower wheel chain, auto compensation, and auto reverse.
4-Double pedal control is designed according to human mechanics, simple and comfortable, suitable
for long-time operation.
5-It is possible to work 24 hours continuously with high efficiency.
6-Blowing-in wind can be filtrated without oil or water by unique heater tube.
7-Automatic tape loosen system can be added according to specific requirements.
8-The functions of auto tape clipping, sending and finishing reduce the wastage of raw material.
9-Super-thin lower column is suitable to sealing product with various sizes.
10-The newest model type in China
Power consumption: | 220V AC 50HZ |
Rating efficiency: | 1500W |
Compressed air: | 0.3-0.6MPa |
Upper roller lift: | 30mm |
Effective tape width: | 14-22mm |
Roller width | 25.4mm |
Working speed | 0-23m/min |
Temperature: | up to 700°C |
Exterior dimensions(L×W×H ): | 1,350x600×1,550mm |
Net weight: | 138kg |
Details Images
Company Profile
Changzhou Futan Machinery Co., Ltd. is located in Changzhou Xinbei District, Jiangsu, about 2 km to Changzhou North high speed railway and 17 km to Changzhou Airport. From our company to Shanghai Hongqiao Airport only one and half hour. Its origin can be tracked back to 2003, when it was founded as Changzhou Jitan Machinery Company, is China’s first factory specializes in producing ultrasonic equipment and pleating machines.
We bought and moved in a new place since Dec, 2019. Now our company covers an area of 33,000m plant, more than 50 experienced employees, among them, 15 are engineers with middle or senior professional titles. It’s a professional enterprise integrating the research, design, production, marketing and service together.
Our company is in full compliance with ISO9001 management system standard, and is well staffed with experienced and skilled personnel in respect of production, operation, research and development, management and service respectively. Besides maintaining good and close technical cooperation with many domestic colleges and universities, our company has been introducing advanced equipment and other items from abroad. In our plant, we produce the ultrasonic parts by ourself, we have developed a complete production system, include ultrasonic lace/sewing machine, ultrasonic quilting machine, ultrasonic welding machine, ultrasonic cutting machine,ultrasonic slitting machine, face mask machine, nonwoven bag making machine, shoe cover making machine, cap making machine and pleating machine,fabric pleating machine,automatic fabric pleating machine, multifunctional fabric pleating machine,computerized pleating machine, computer controlled pleating machine of more than 40 types in 8 series.
We bought and moved in a new place since Dec, 2019. Now our company covers an area of 33,000m plant, more than 50 experienced employees, among them, 15 are engineers with middle or senior professional titles. It’s a professional enterprise integrating the research, design, production, marketing and service together.
Our company is in full compliance with ISO9001 management system standard, and is well staffed with experienced and skilled personnel in respect of production, operation, research and development, management and service respectively. Besides maintaining good and close technical cooperation with many domestic colleges and universities, our company has been introducing advanced equipment and other items from abroad. In our plant, we produce the ultrasonic parts by ourself, we have developed a complete production system, include ultrasonic lace/sewing machine, ultrasonic quilting machine, ultrasonic welding machine, ultrasonic cutting machine,ultrasonic slitting machine, face mask machine, nonwoven bag making machine, shoe cover making machine, cap making machine and pleating machine,fabric pleating machine,automatic fabric pleating machine, multifunctional fabric pleating machine,computerized pleating machine, computer controlled pleating machine of more than 40 types in 8 series.
Our products are available in Singapore, India, Russia, Vietnam, Egypt, Bengal, Brazil, Turkey, Mexico, America, Spain, Argentina, Ukraine, Italy and Poland, etc. We enjoy a good reputation at home and abroad.
FAQ
1. Are you a factory?
We are factory, hope you have got it through above information
2. How about the delivery time?
If we have stock, we can ship out in 1-3 days after your payment, if not, 7-25 days according to different machines and buyer inquiries.
3. How about the quality and warranty?
Picked materials and experienced engineers&workers produce the reliable machines, 1 year warranty since delivered, engineers go abroad are available.
4. Can I choose the payment terms?
Usually we do the T/T 30% as the deposit, and 70% before shipping, if you have other ideas, please feel free to contact us.
5. Can I change something on your machine?
Please list your requests, so you can get complete solutions accordingly asap when we discussed.
2. How about the delivery time?
If we have stock, we can ship out in 1-3 days after your payment, if not, 7-25 days according to different machines and buyer inquiries.
3. How about the quality and warranty?
Picked materials and experienced engineers&workers produce the reliable machines, 1 year warranty since delivered, engineers go abroad are available.
4. Can I choose the payment terms?
Usually we do the T/T 30% as the deposit, and 70% before shipping, if you have other ideas, please feel free to contact us.
5. Can I change something on your machine?
Please list your requests, so you can get complete solutions accordingly asap when we discussed.
