Products Description


Capacity: Up to 100 m3/h
Working Pressure: Up to 25 Bar
RPM: Up to 3600 rpm
Viscosity: Up to 100000 est
Working Temperature: 130 't
Cooling and Heating Jacket Available




win screw pump feature no metal-to-metal contact between the pump screws and the housing.

This enables the conveyance of no-lubricating or corrosive and contaminated materials.

As the pump rotates, the intermeshing of two screws along with the pump housing from the chambers.

Theses chambers fill with the pumped fluid and move it from the suction side of the pump to the higher pressure discharge side of the pump.




Product Name:
juice transfer pump
Description:
Designed according to 3A standard, widely used for transfer viscous media in the food-processing, cosemtics industries.
Construction:
motor+base+pump head
Material:
SS304/SS316
Seal Material:
EPDM (Standard)
Max. Flow:
0-30t/h
Max.pressure:
10bar
Speed
1450rmp
Rotor Type:
double screw
Mechanical seal:
SIC/SiC/EPDM(Standard)
Motor power:
1.5kw, 2.2kw, 3kw, …15KW
Sealing option:
Sanitary single mechanical seal/Double mechanical seal with cooling system
Voltage:
220V, 380V(110-480v)
Motor:
ABB, Siemens,Our Domestic Brand,50hz/ 60hz
Surface treatment:
Inner polished and Sandblast outside
connection:
Clamp, Thread, weld, Flange
Availably standard:
DIN, SMS, 3A, RJT, ISO/IDF
Operated:
Electic
Application scope:
Dairy, food, beverage, cosmetic, etc
Packaging Details:
Plywood case
Delivery details:
Usually within15-20 days after receiving T/T down payment




Usage:
the lobe pump is used to transfer the liquid from one vessel to another vessel


Product Paramenters


Model
Flow (T/H)
Inlet/Outlet (mm)
Speed (rpm)
Outlet pressure (mpa)
Power (kw)
FSL-03-15
0-3
1.5''/1.25''
1480
≤1.0
1.5
FSL-05-22
0-5
2''
1480
≤1.5
2.2
FSL-10-40
0-10
2.5''
1480
≤1.5
4.0
FSL-15-55
0-15
3''
1480
≤1.5
5.5
FSL-20-75
0-20
3''
1480
≤1.5
7.5




Details Images

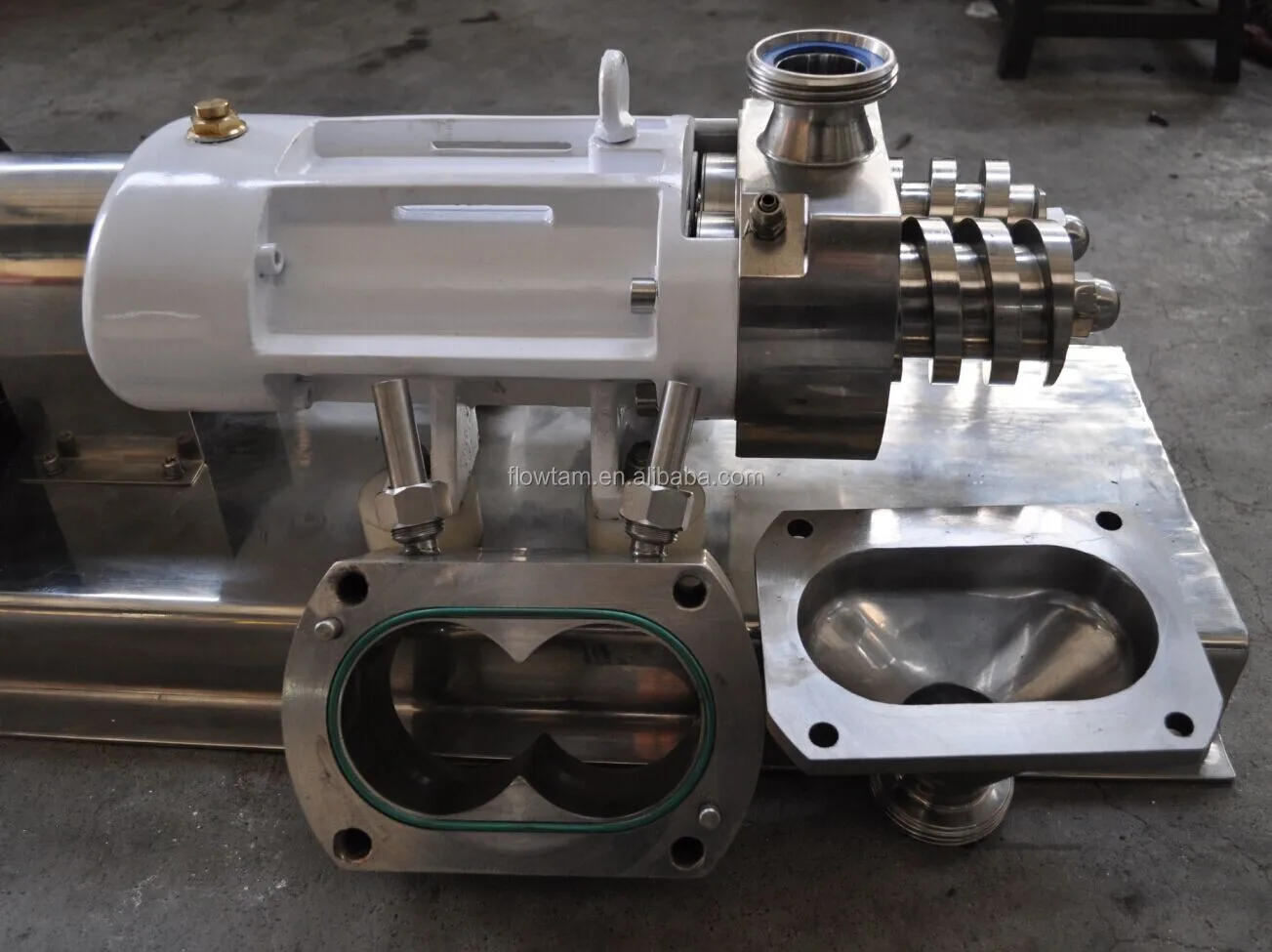

pump head with warm jacket

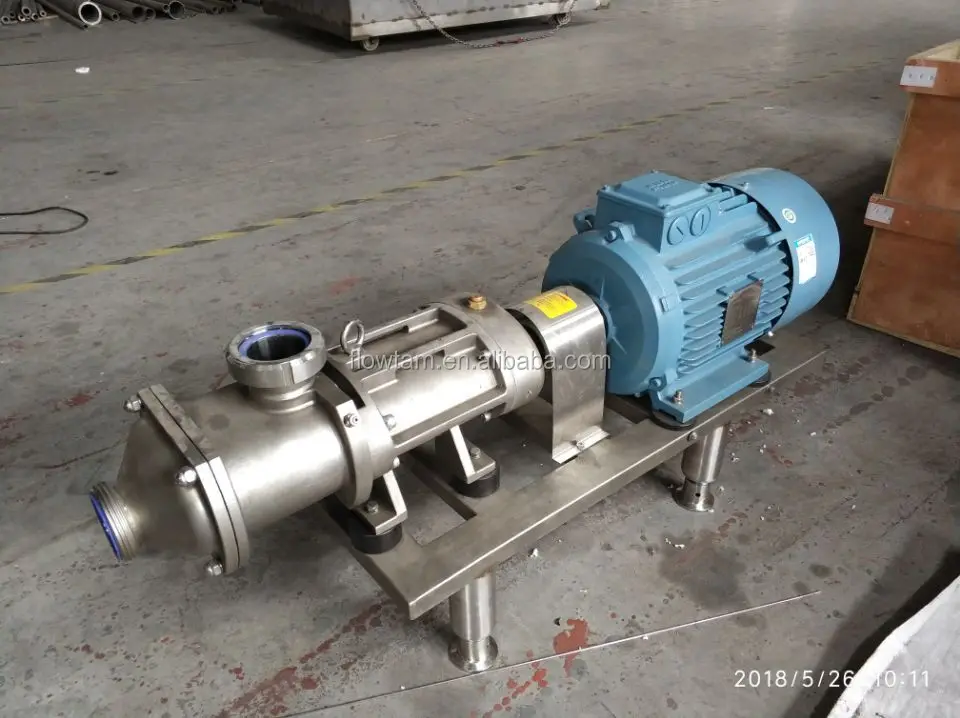

the standard one is without jacket

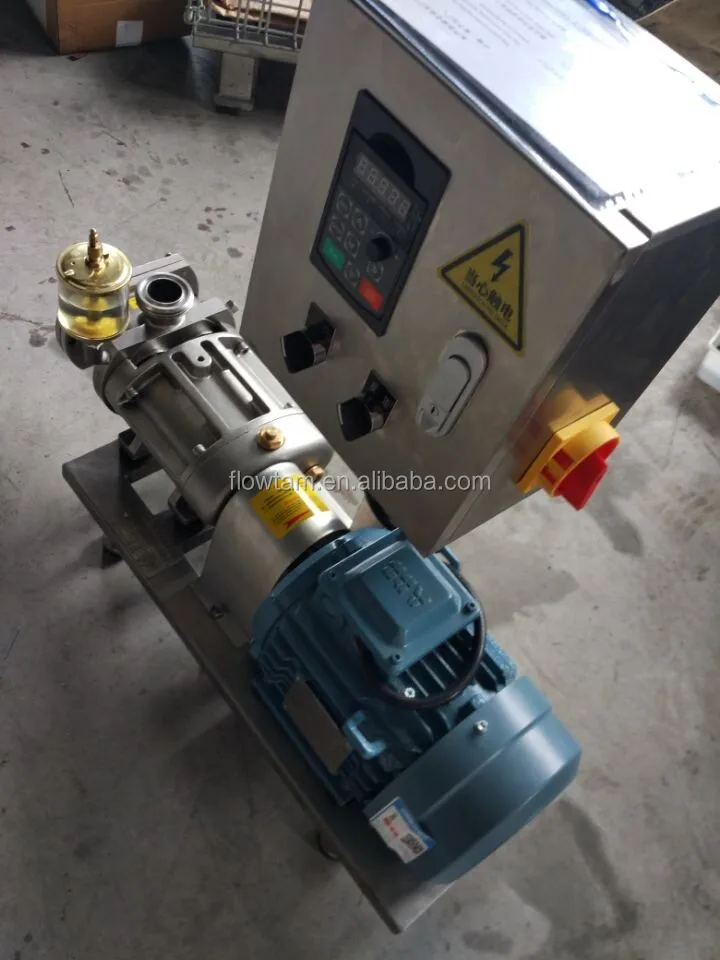

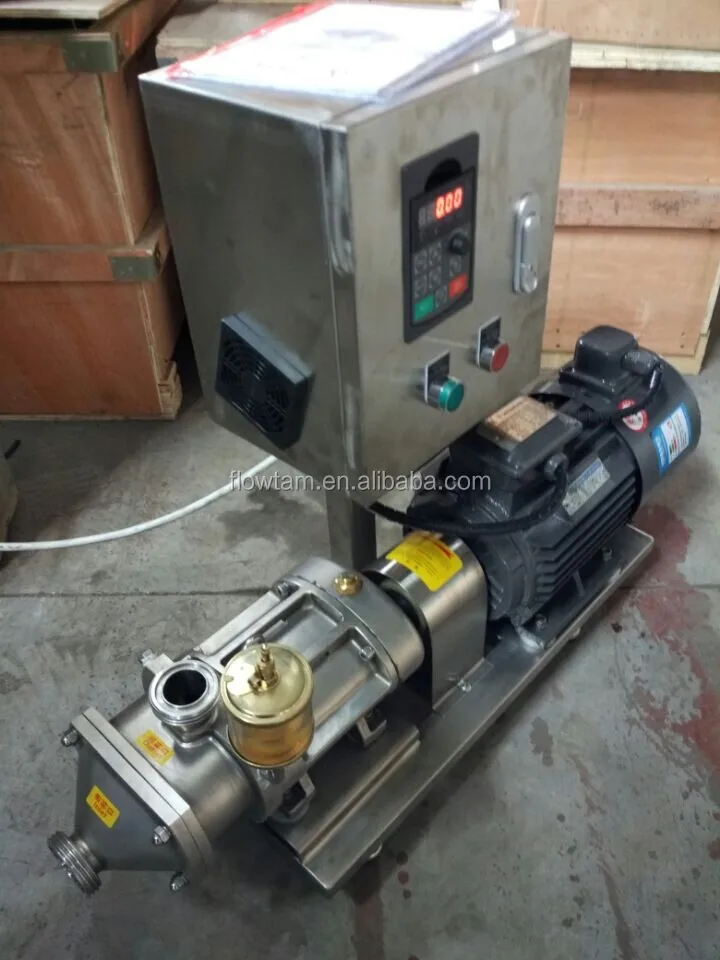

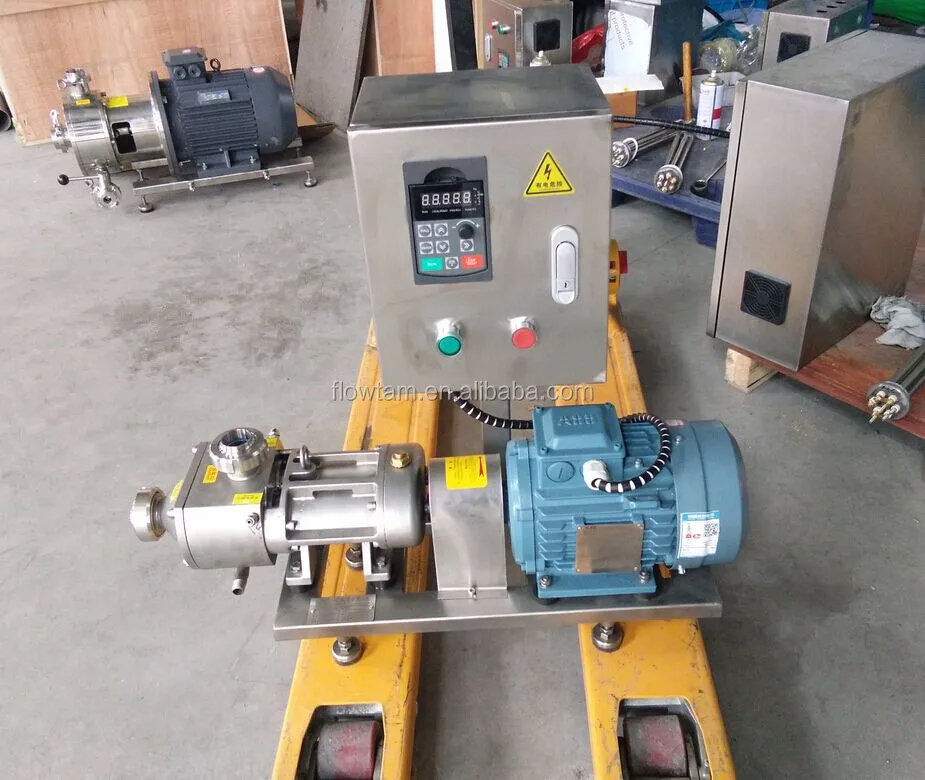

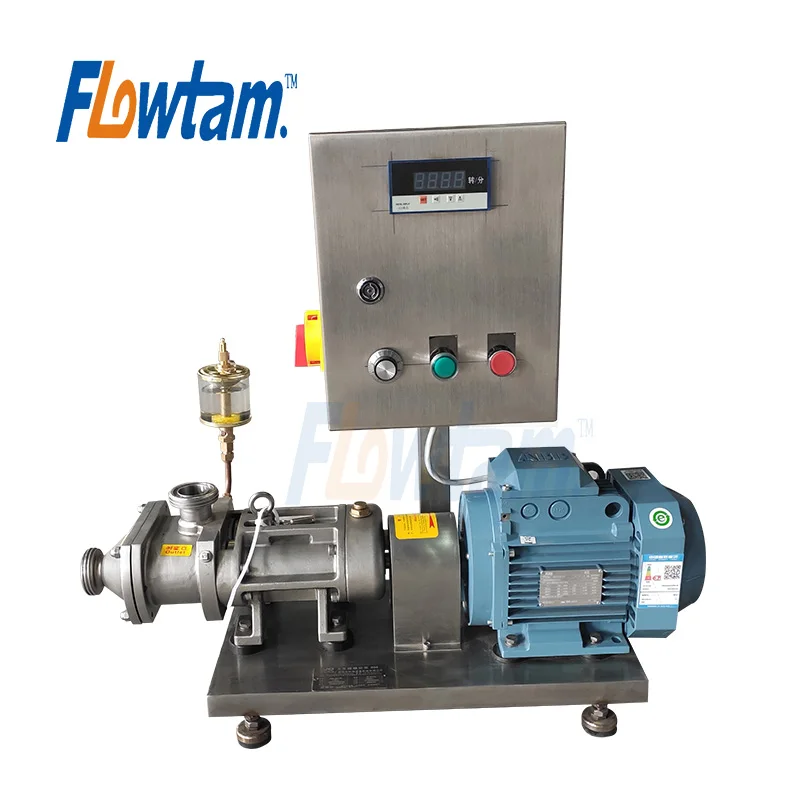

with stainless steel control cabinet
333

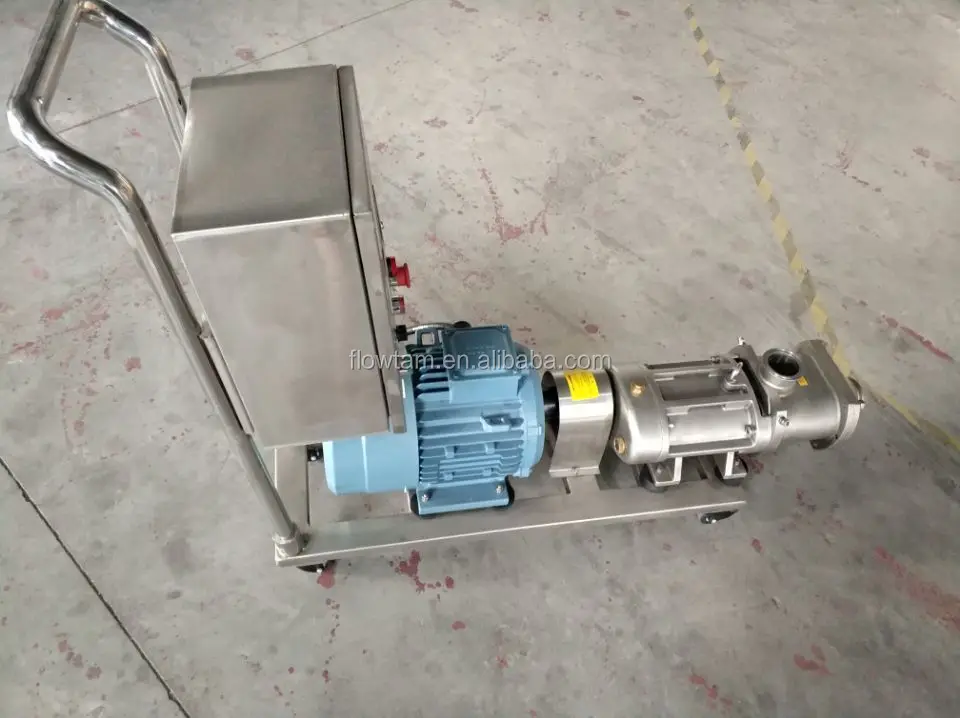

with trolley to move the pump easily
333

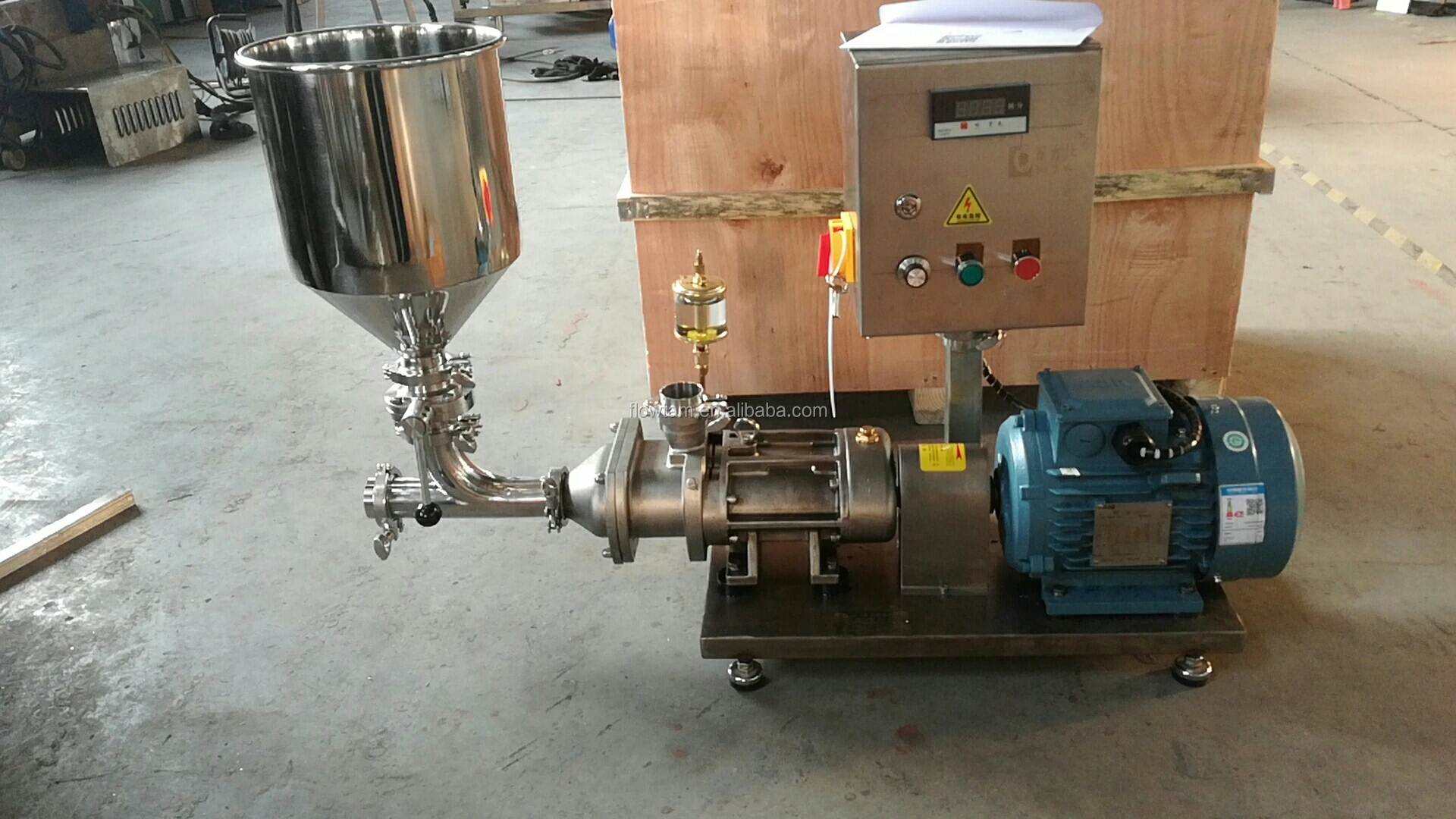

with hopper for your adding other materials

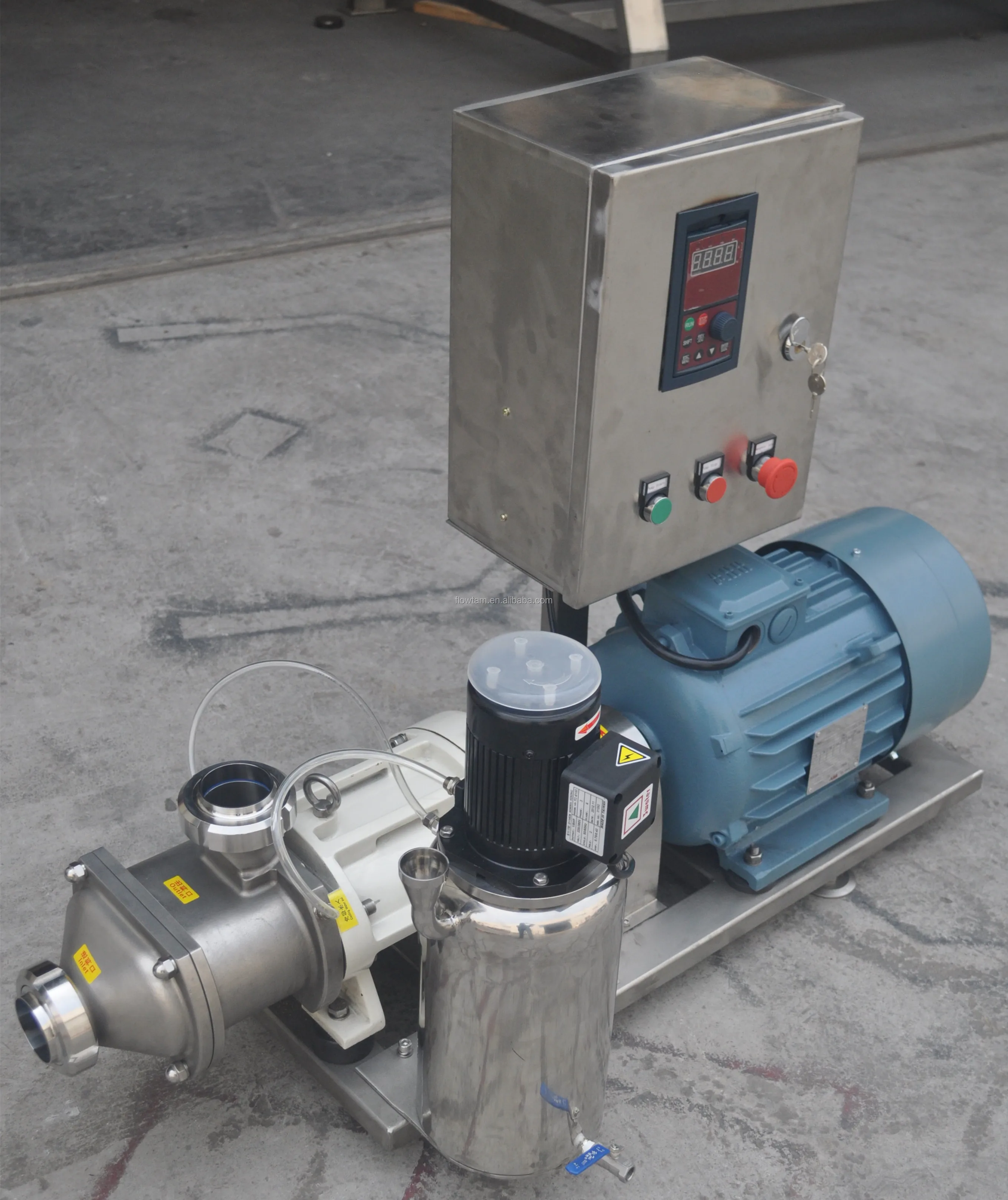

with cooling water unit for mechanical seal
333

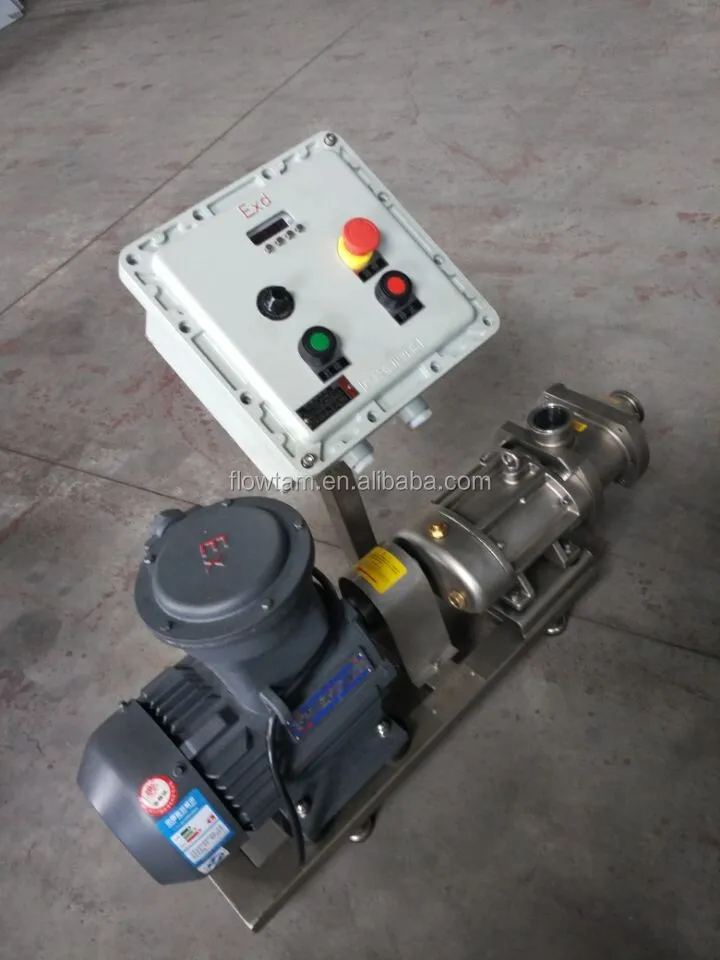

with explosion proof motor and control cabinet

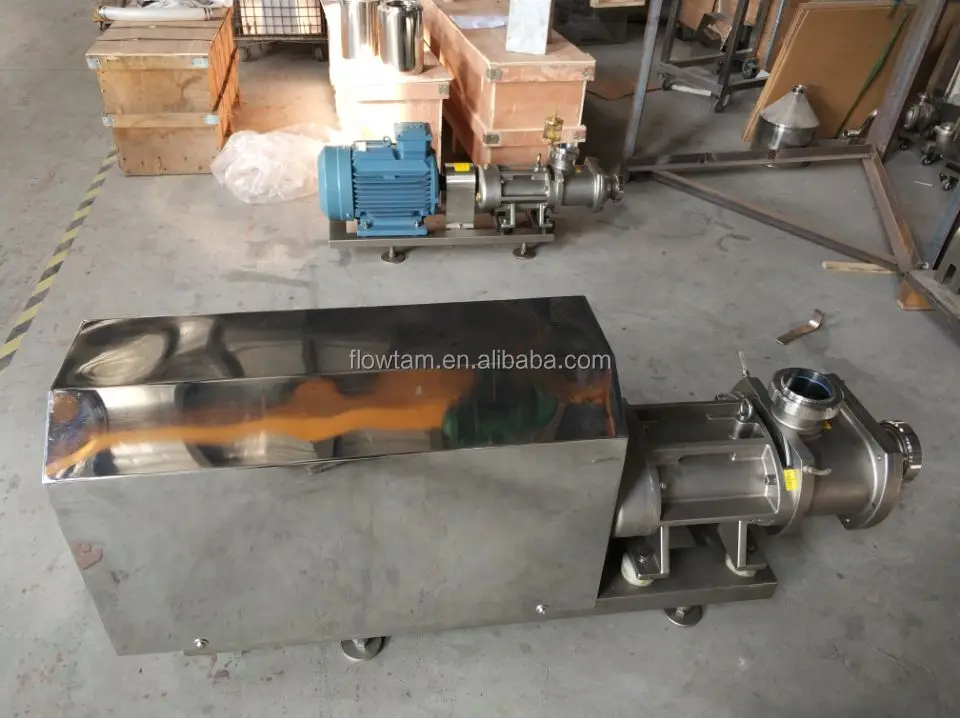

with stainless steel motor cover

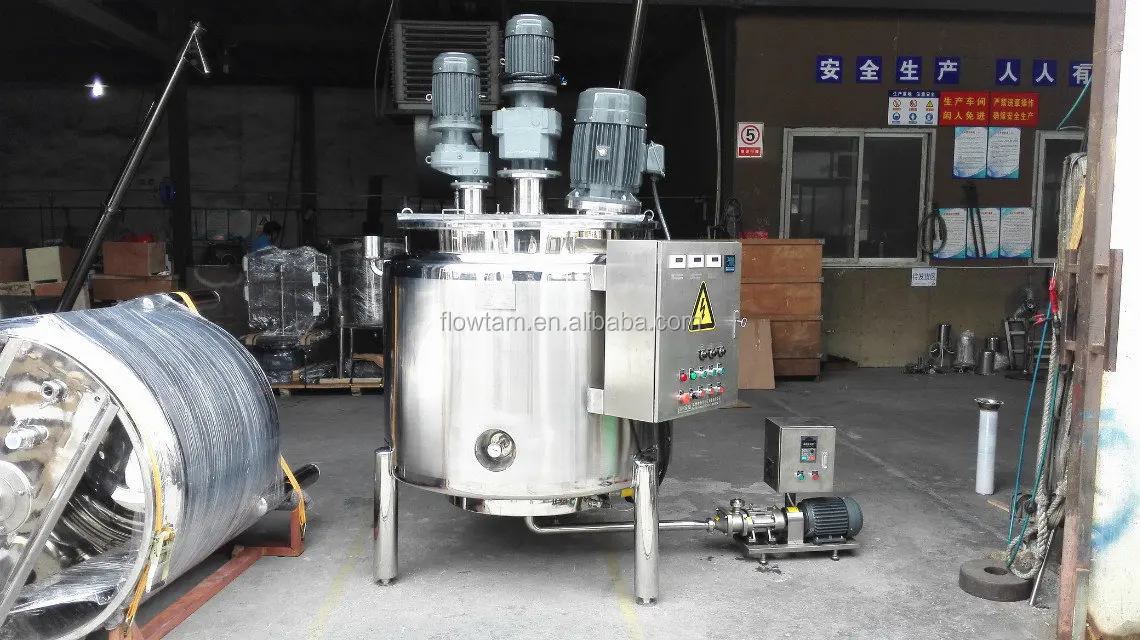

twin screw pump combine with the mixing tank to transfer the liquid to another tank
333




Our Company


Wenzhou Flowtam Light Industry Machinery Co.,Ltd established in 1995,Located in BinHai Industrial Zone. Wenzhou City.

Our main products including colloid mills,Stainless Steel Tank, high shear mixer,  Sanitary pumps etc.

Meanwhile we also accept customized stainless steel parts and components for all industries.

BLS products could applied in food, beverage, chemical, cosmetics industries etc

We now exports our goods to United States, Australia, Newzealand and Japan etc.















Our Office



Packing & Delivery






FAQ


1.What should I do if we do not know how to operate the machine when we receive it?
----we will shoot video to tell you how to operate the machine,and we are willings to solve all problems you put forward.

2.How could I get the spares on machines?
---- Non-artificial damaged spares will be sent freely and shipping free during 3 months' warranty.


3.How can I ensure that I get high-quality machine?
---As a manufacturer, we have a strict supervision and control of every manufacturing step from raw materials purchasing, brands choosing to parts processing, assembling and testing.Before send the machine to you,we will test it.

4.what's the delivery time?
---about two months after receive your payment,but i will follow up the production process.

5.what payment way?
---T/T ,L/C etc.
