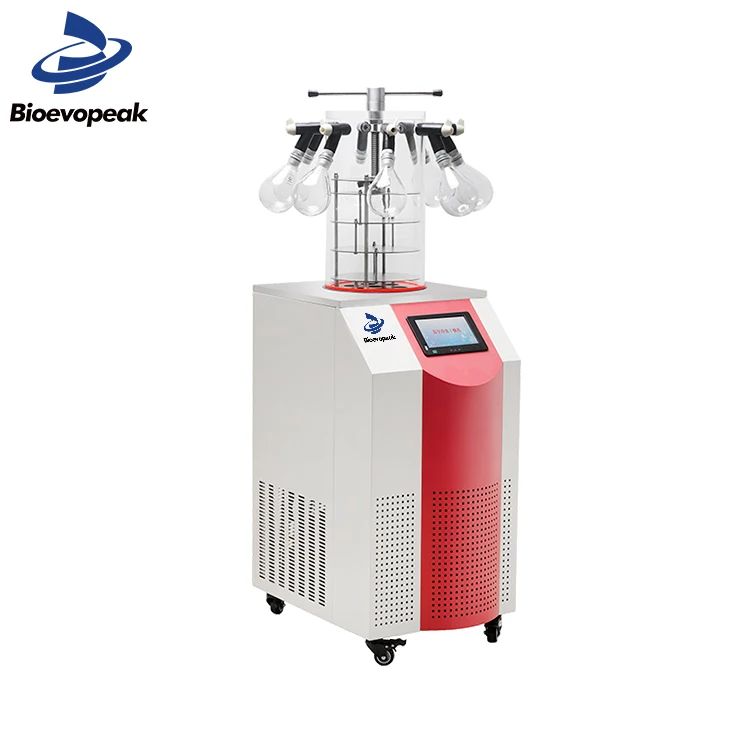

Bioevopeak LYO60B-1S Laboratory Benchtop mini Freeze Dryer/ lyophilizer
Features
Advantage:
1.Stainless steel cold trap
2.Adjustable product shelf
3.Pre-freezeing shelf
4.Touched screen with USB interface
5.Thermal insulation cover
6.SECOP compressor
7.High efficient cindenser
8.International standard vacuum port
Feature:
1.7’’ colorful touch panel can display the product sample’s temperature,cold trap temperature and vacuum etc in digital and curve.
2.Touch panel with the design conforms to ergonomics and operate more comfortably.
3.Optional for gas interface: can inject inert gas.
4.Optional for cold trap electrical heating defrost function.
5.Optional for rack heating which is help to test in production.
Eutectic point testing, it can have sublimation temperature.
Stopper chamber |
|
Standard stopper with 8 port manifolds |
|
Standard chamber with 8 manifolds |
|
Standard chamber |
|
Stainless steel with 8 port manifolds |
|
Valve and freeze drying bottle | |
Isolation valve |
|
24 EA drying shelf |
|
Stainless steel drying chamber | |
Specifications
| Model | LYO60B-1S | LYO60B-1T | LYO60B-1P | LYO60B-1PT |
| Type | Standard | Stoppering | Standard | standard |
| chamber | chamber | chamber with | stoppering | |
| 8port manifold | chamber with | |||
| 8port manifold | ||||
| Final condenser temp (C) | -55 | -55 | -55 | -55 |
| Vacuum Degree(Pa) | <10 | <10 | <10 | <10 |
| Condenser volume (L) | 9 | 9 | 9 | 9 |
| Freeze drying area(m2) | 0.12 | 0.09 | 0.12 | 0.09 |
| Ice condenser capacity (Kg/24h) | 3 | 3 | 3 | 3 |
| Qty of shelf | 4 | 3 | 4 | 3 |
| Material loading capacity/ shelf (ml) | 300 | 300 | 300 | 300 |
| Material loading capacity(ml) | 1200 | 900 | 1200 | 900 |
| Freeze drying time( h) | 24 | 24 | 24 | 24 |
| Manifold | / | / | 8pieces | 8pieces |
| USB Interface | Y | Y | Y | Y |
| Drying Chamber(standard) | transparent acrylic | |||
| Vacuum Pump | Speed:2L/s | |||
| Control System | microprocessor, touch screen | |||
| Power supply (MHz) | 220/50Hz/60Hz | |||
| Exterior dimension(W*D*H mm) | 582*541*374/684 | |||
| Penicillin bottle Φ22 | 260 | 195 | ||
| Penicillin bottleΦ16 | 480 | 360 | ||
| Penicillin bottleΦ12 | 920 | 690 | ||
Related Products

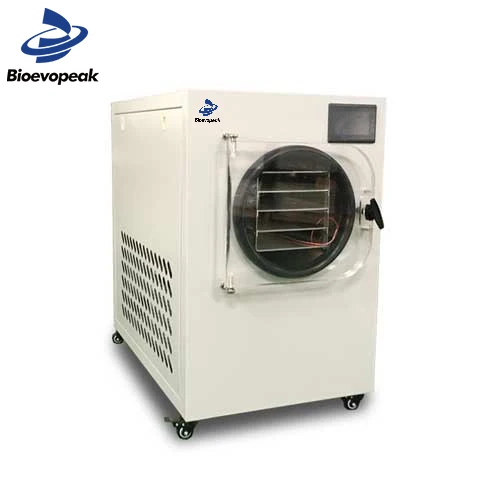

1.8L 1.4L Freeze Dryer Pilot Production Freeze Dryer In-Situ Mini Type Freeze Dryer
Packaging & Shipping
Certificates
About us
FAQ
Q: How about quality of the goods?
A:
l All the running products comply with CE standards.
l Independent quality inspection team, conducting multiple inspections and random inspections from parts supply to product dispatch.
l Well-known third-party testing service available, such as SGS, BV, and TUV, etc.
Q: What are your pre- and after-sales services?
A:
l Timely reply to pre-sales enquiries
l Real-time update of manufacturing and shipment status
l Contracted third-party maintenance company in over 60 countries
Assured availability of parts supply for 10 years at least
Q: Is OEM service available.
A: Most of the running products are available for OEM customization, including logo, package and function, if attainable, customization.
Q: How long is the lead time:
A: Generally, the lead time for most stocked products is about 7~15 days, vary by models and production schedule. For those non-stocked products, the manufacturing lead time is around 20 days.
