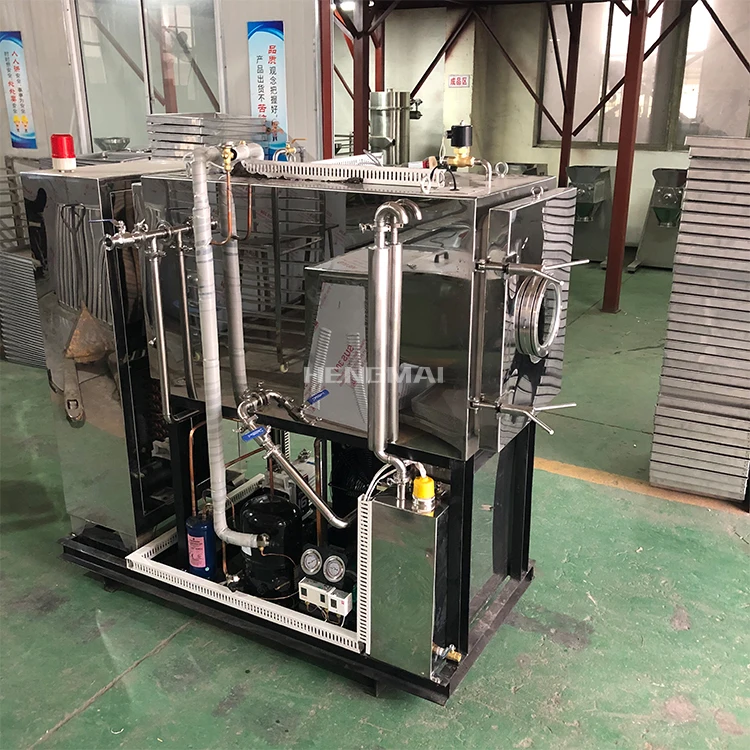

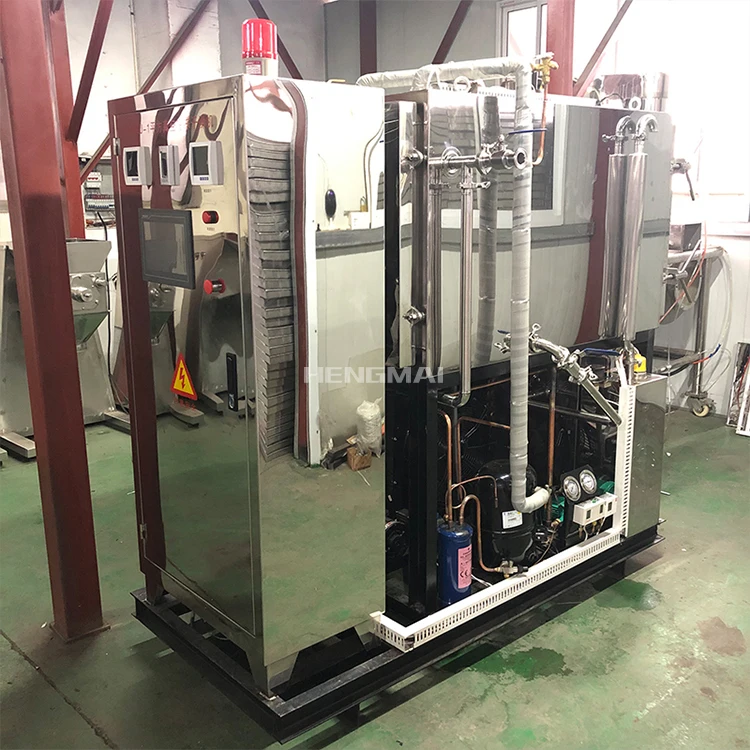

Product Overview
Freeze-drying method is to quickly freeze the liquid in the material into solid ice, make the water vaporize directly from the solid state under the premise of the ice does not melt, and remove the steam continuously, so as to achieve the purpose of drying the material. Freeze-drying is an excellent drying method. The dried products can be stored for a long time at room temperature without additives under sealed conditions. The structure of freeze-dried items is porous and crisp, and they are rehydrated quickly when used, while the color, aroma, taste, shape and activity of the items remain basically unchanged after rehydration.
Main Features
1. It is made by vacuum freeze-drying principle, with compact and reasonable structure, convenient maintenance, low cost, automatic control and simple operation.
2. It is fully functional and can work independently without auxiliary facilities (steam boiler, cooling tower, etc.) connected with three-phase power.
3. Unique design, low energy consumption. Freeze drying of low price materials has a great price advantage.
2. It is fully functional and can work independently without auxiliary facilities (steam boiler, cooling tower, etc.) connected with three-phase power.
3. Unique design, low energy consumption. Freeze drying of low price materials has a great price advantage.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
1. Freeze dryer(experiment machine) less than 1 square meter, can hold 10 kg materials.
2. 3-10 square meters (small, medium) can hold 30 to 100kg materials.
3. Over 50 square meters (mainframe) can hold more than 500kg materials.
2. 3-10 square meters (small, medium) can hold 30 to 100kg materials.
3. Over 50 square meters (mainframe) can hold more than 500kg materials.
Vacuum Freeze Drying Equipment (the following datas only for reference) | ||||||||||||
Model | FD-1 | FD-5 | FD-10 | FD-20 | FD-30 | FD-50 | ||||||
Control mode | PLC+HMI | PLC+HMI | PLC+HMI | PLC+HMI | Microcomputer automatic, freeze-drying curve self-tuning, color LCD display, recording | |||||||
Operation mode | Freeze-dried(Quick-frozen) | Freeze-dried(Quick-frozen) | Freeze-dried(Quick-frozen) | Freeze-dried(Quick-frozen) | Freeze-dried | |||||||
Body material | SUS304 | SUS304 | SUS304 | SUS304 | ||||||||
Dry area(m2) | 1 | 5 | 10 | 20 | 30 | 50 | ||||||
Loading capacity(kg) | 10 | 50 | 100 | 200 | 300 | 500 | ||||||
Tray size(mm) | 300*800*25 | 600*800*25 | 600*1000*25 | 600*1000*25 | 600*1000*25 | 600*1000*25 | ||||||
Tray number | 7 | 12 | 17 | 34 | 50 | 84 | ||||||
Tray form | Plate or mesh plate | Plate or mesh plate | Plate or mesh plate | Plate or mesh plate | Stainless steel plate or stainless steel mesh plate | |||||||
Shelf number(pcs) | 8 | 13 | 18 | 36 | ||||||||
Shelf temperature(℃） | -55~120 | -55~120 | -55~120 | -55~120 | 0~120 | |||||||
Shelf medium | Low temperature silicone oil | Low temperature silicone oil | Low temperature silicone oil | Low temperature silicone oil | silicone oil | |||||||
Water discharge 12 hours（kg） | 10 | 50 | 100 | 200 | ≥300 | ≥500 | ||||||
Vacuum pump | Rotary vane pump | Rotary vane pump | Rotary vane pump | Rotary vane pump | Combined pump | |||||||
Working vacuum | ≤130Pa | |||||||||||
Ultimate vacuum | ≤10Pa | ＜10Pa | ||||||||||
Defrosting method | Hot water spray | |||||||||||
Compressor | Entrance full closure | Valley wheel semi closed | Copeland | Copeland | ||||||||
Steam, air pump, etc | No need | |||||||||||
Energy | Single or three phase | Three phase electricity | Three phase electricity | Three phase electricity | ||||||||
Working environment temperature | ≤40℃ | |||||||||||
Rated power | 6kw | 16kw | 28kw | 45kw | 20kw（Heat pump heating or steam heating）60kw（Electric heating） | 30kw（Heat pump heating or steam heating）90kw（Electric heating） | ||||||
Working dimensions(mm) | 1300*700*1700 | 3000*1500*1800 | 3200*1600*2000 | 5000*2200*2500 | Split machine：2000*2500*3000/1800*1500*2500; 1 set | Split machine：4000*2500*3000/1800*1500*2500;2 sets | ||||||
Different product parameters, freight cost different, please consult before ordering.Support non-standard customization.

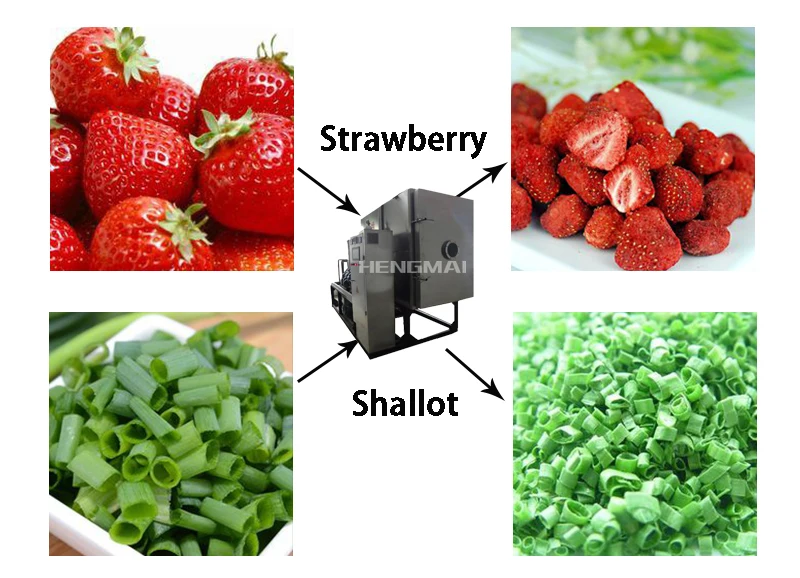

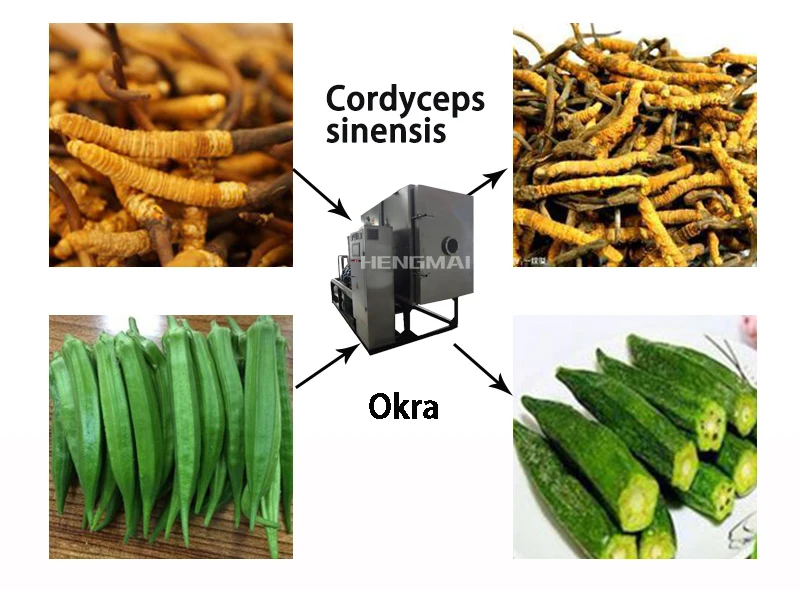

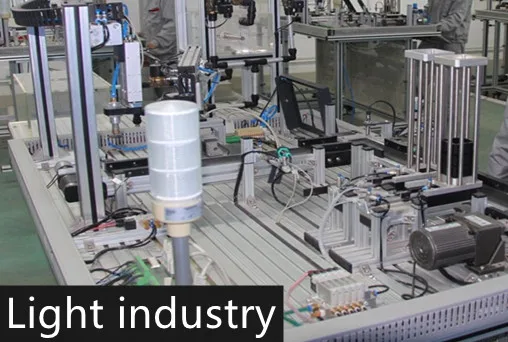

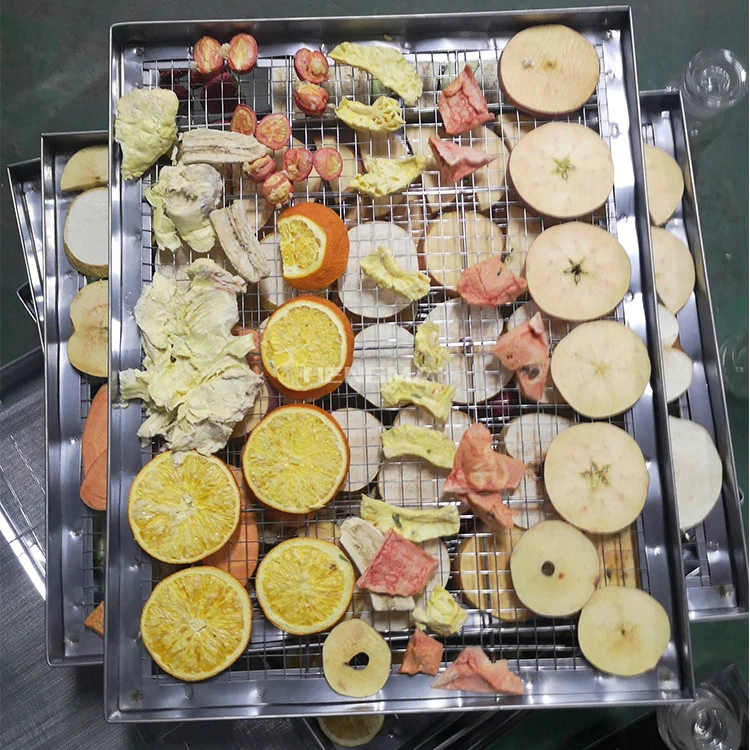

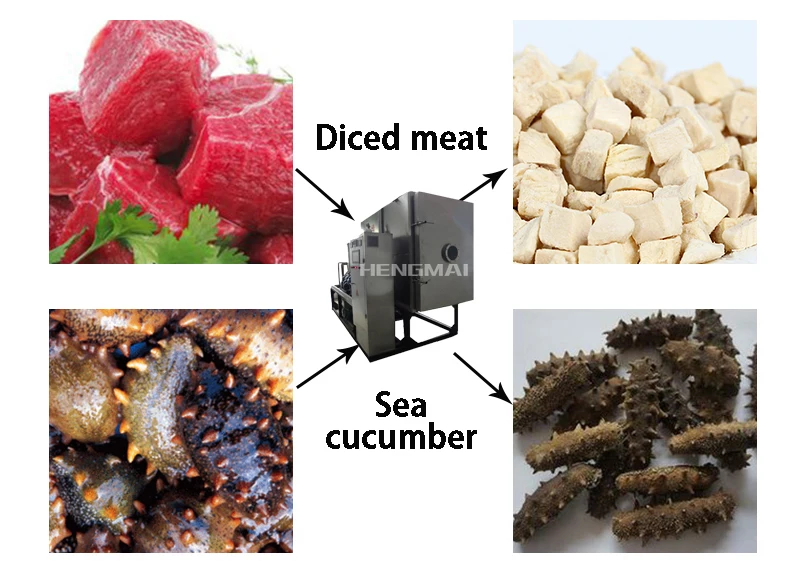

Applications
Company Profile

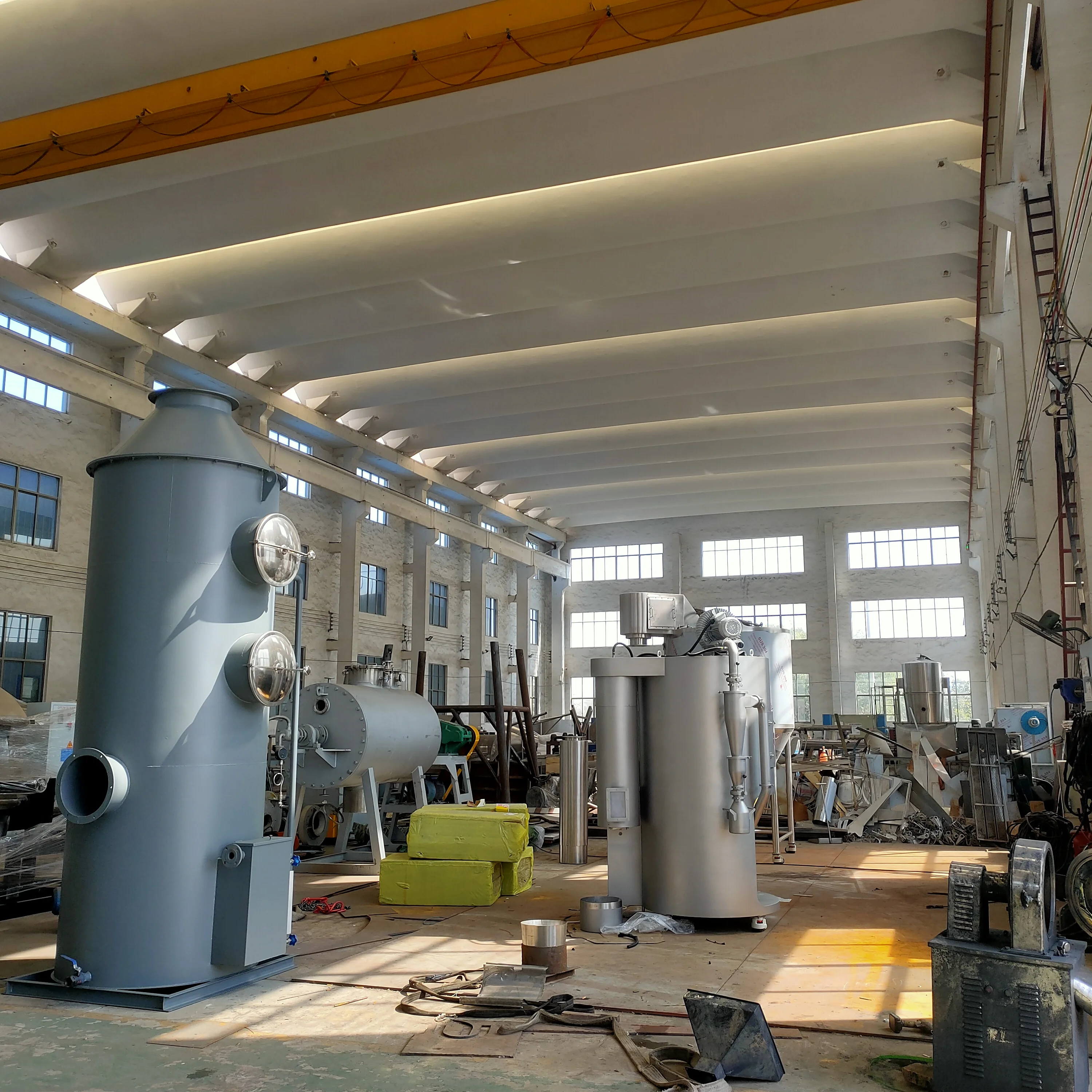

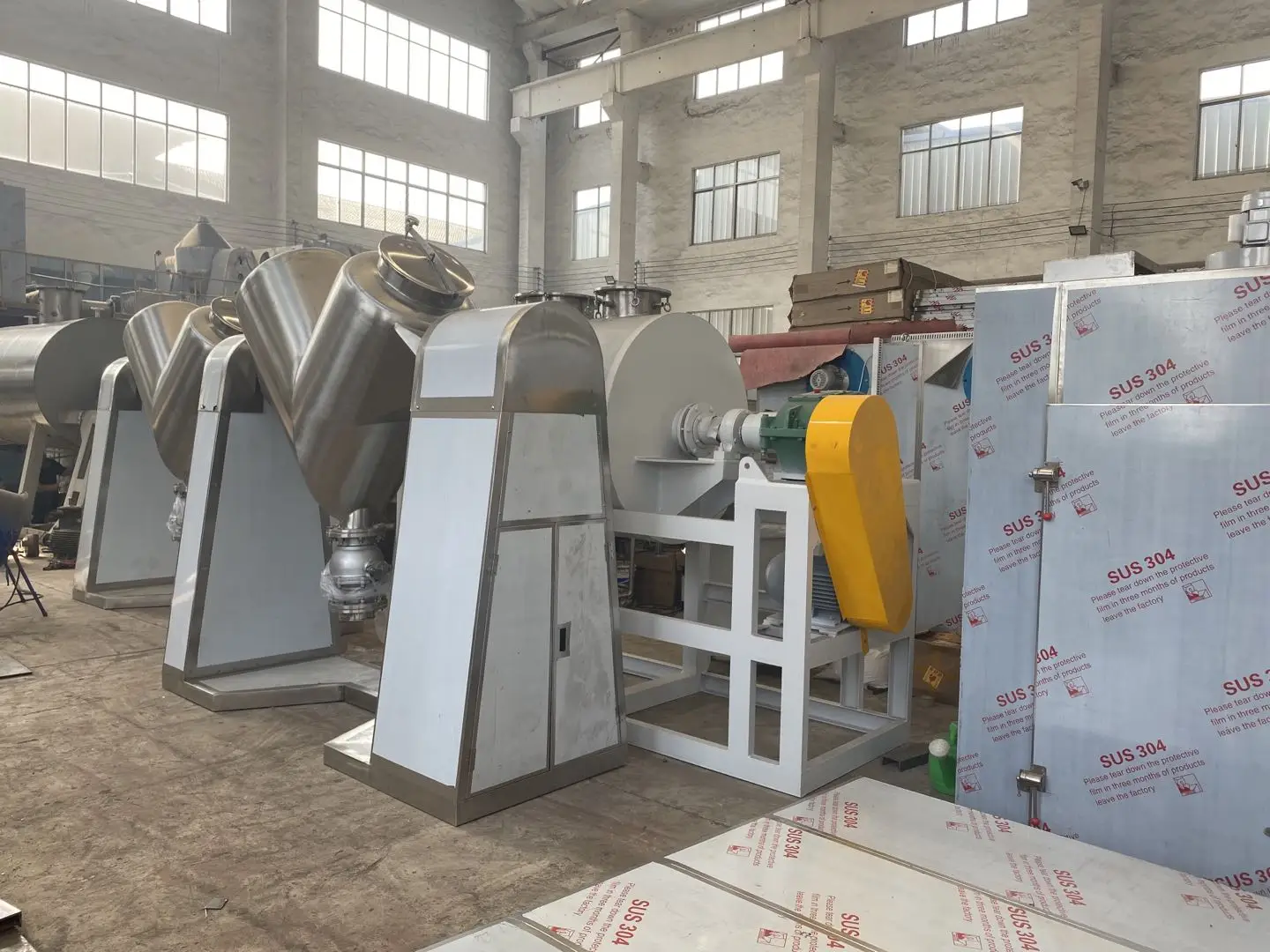

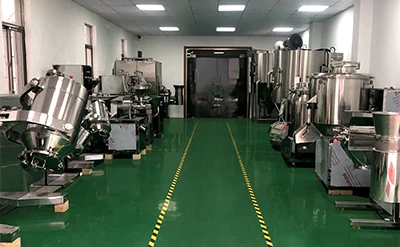

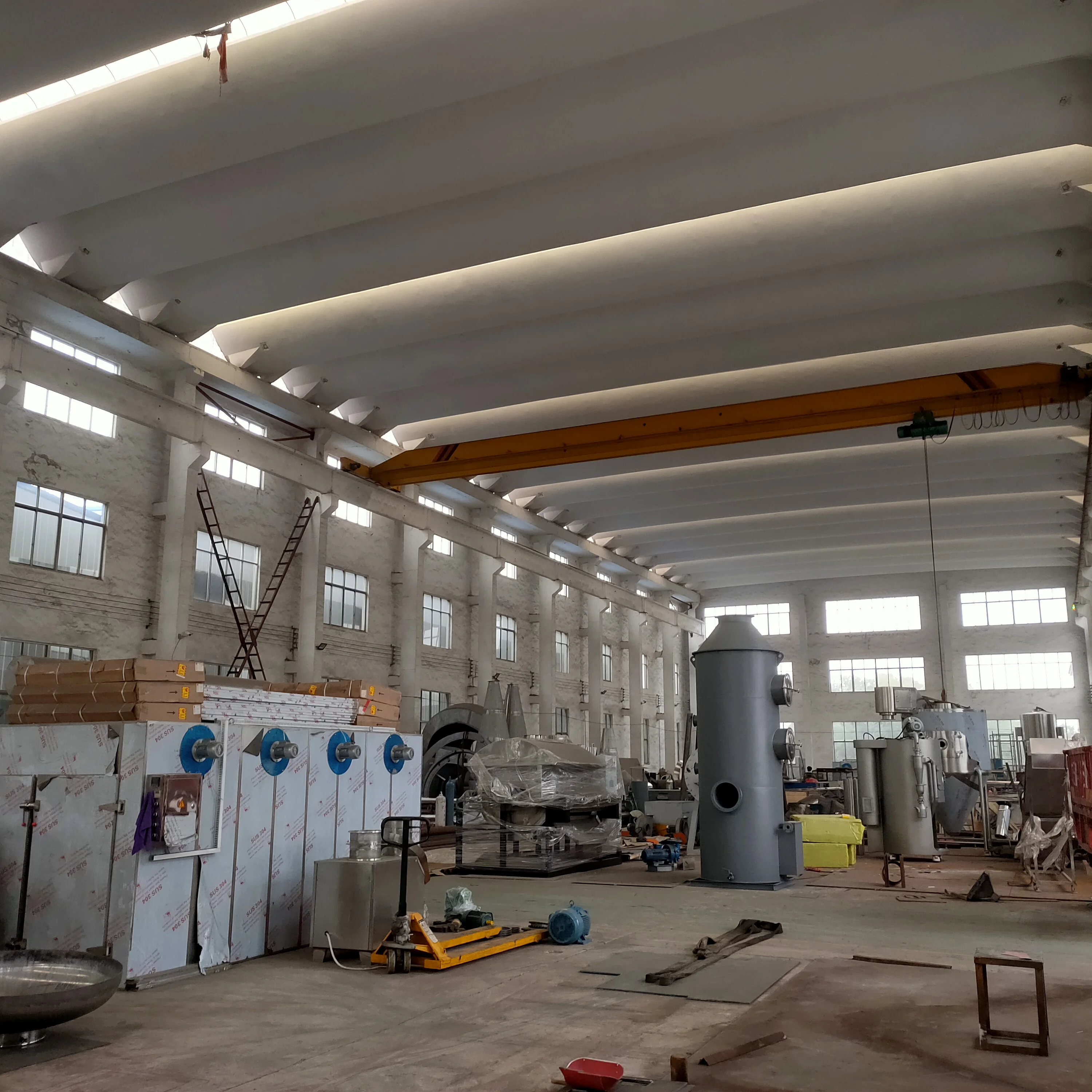

Changzhou Hengmai Drying Equipment Co., Ltd. located in Changzhou, an industrial star city and a beautiful water town in the south of the Yangtze River, covering total area of 5000sqm. With strong technical force, perfect test system, precision processing equipment and strict management system. We have 10 years of customization experience and excellent R&D team. W specializing in the production of oven, belt dryer, vacuum drying machine, vacuum rotary dryer, drying machine, centrifugal spray dryer, drum scraper dryer, hollow leaf dryer, drum scraper dryer, three dimensional mixing machine, high efficiency wet granulation machine, two dimensional mixer, trough mixer, twin screw mixer, rotary granulator, V mixer, swing system Granulator, high efficiency granulator, hot blast stove, pulverizer, etc. We support non-standard customization and have a great advantage in the quality of price, devoted to creating a set of product design and development, processing and manufacturing, engineering installation and after-sales service in one integrated enterprise.
Raise requirement
Customer drawings, samples, ideas
Provide design scheme
Give solutions as required and confirm quotation
Sign contract
Confirm cooperation, sign contract, pay advance payment
Production
Arrange production and delivery inspection
Delivery
Pay the balance and deliver the goods
After-sale service
One year warranty, video service, on-site solution

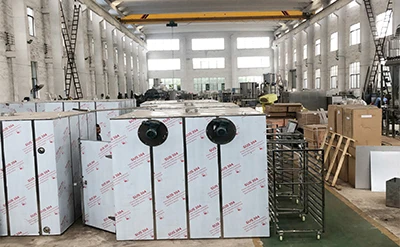

Product packaging and delivery
Recommend Products
FAQ
Q: How to choose suitable equipment?
A: Tell us your work flow and requirements, then we will recommend you suitable equipments.
Q: What is your minimum order quantity?
A: 1 set.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai. We can provide CIF quote upon request.
Q: How long is your delivery time?
A: We make machines after receiving the payment, the production cycle is usually around 15-35 days, depending on which kind ofmachine.
Q: What’s the quality control procedure?
A:We have an experienced technical team to support and provide solutions to meet the project requirements of our clients. We are certified with ISO9001 quality management system. We are following a strict quality control procedure to ensure the product quality.
Q: What is the warranty period?
A: 24 hours timely response. The warranty period for non-artificial damage is 1 year after delivery of goods.
Q: How to solve the equipment trouble during using?
A: Please email us about problem with pictures or a small video will be better, we will find the problem and solve it. We suggest ordering more consumable parts in advance.
Q: What is your minimum order quantity?
A: 1 set.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai. We can provide CIF quote upon request.
Q: How long is your delivery time?
A: We make machines after receiving the payment, the production cycle is usually around 15-35 days, depending on which kind ofmachine.
Q: What’s the quality control procedure?
A:We have an experienced technical team to support and provide solutions to meet the project requirements of our clients. We are certified with ISO9001 quality management system. We are following a strict quality control procedure to ensure the product quality.
Q: What is the warranty period?
A: 24 hours timely response. The warranty period for non-artificial damage is 1 year after delivery of goods.
Q: How to solve the equipment trouble during using?
A: Please email us about problem with pictures or a small video will be better, we will find the problem and solve it. We suggest ordering more consumable parts in advance.
