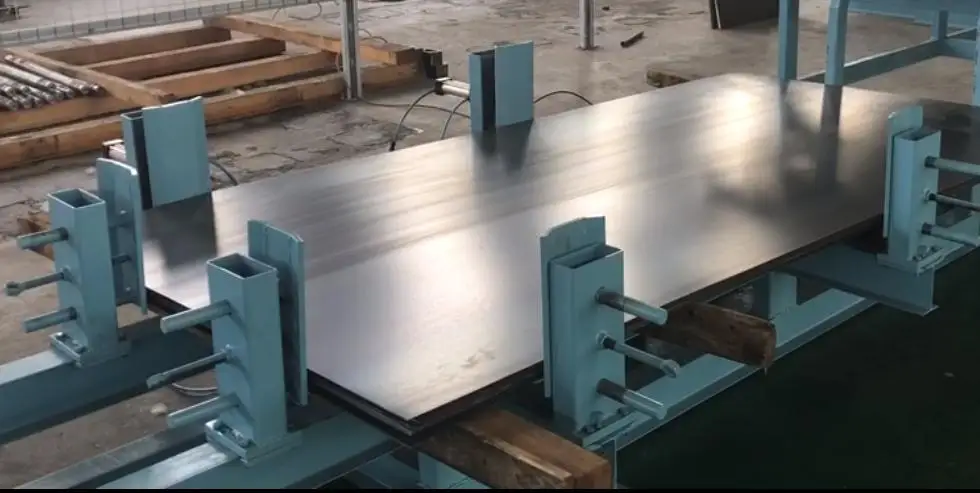

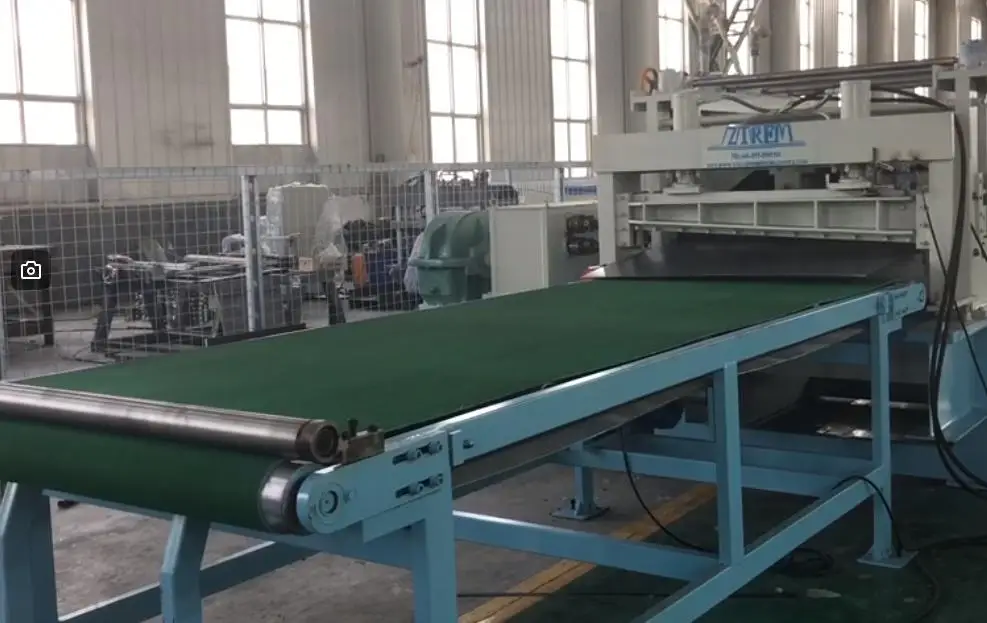

Стальной катушки сократилась для резки листового металла по длине производственная линия производству стальной пластины режа

Supported width

500-1250mm

Supported material thickness

0.4-3.0mm (cold rolled material and hot rolled material)

Supported Max weight

7 T

Coil inner diameter

508-650mm

Outside diameter

≤1250mm

Working speed

15 to 20m/min

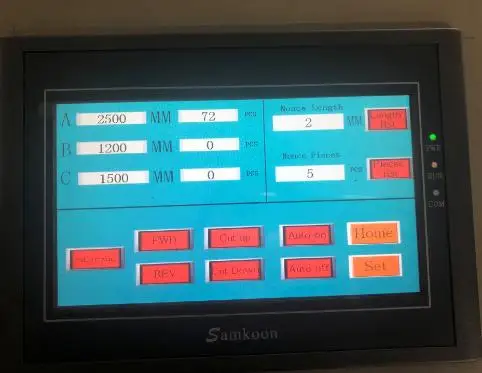

Cutting frequency

12-13 pieces per minutes (standard 1000×2000mm)

Length range

500-4000mm

Length tolerance

±0.5/mm

Diagonal accuracy

±0.5/mm

Total power

≈40kw(normally speaking is 37kw)

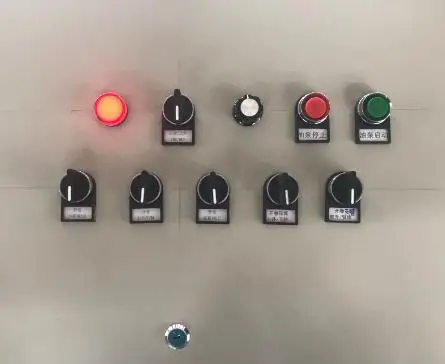

Decoiler direction

From the right to left facing the control PLC

Size

≈21m×5.7m

Power Supply

380v/50hz/3 Phrase

S/N

Item

Parameters

1

Main shaft

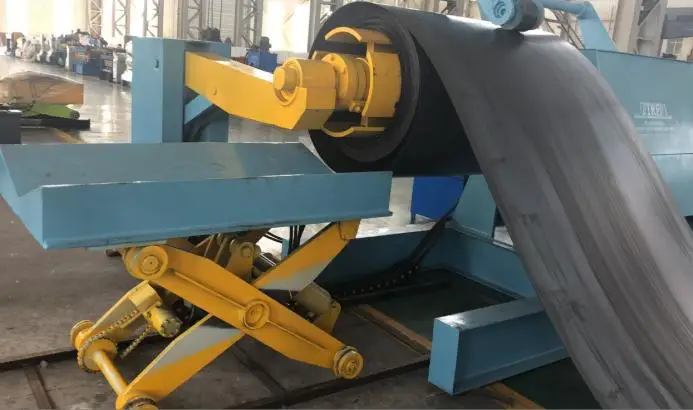

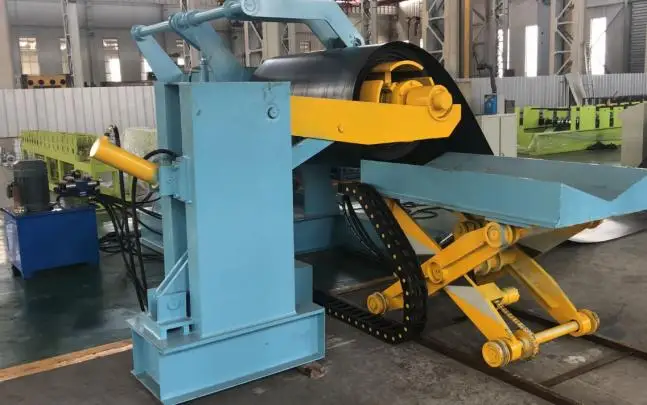

This is the core part of the decoiler. It has four fan parts, By adjusting the fan expansion or not, we can finish loading coil to big or small part.

2

Position roller at back

This shaft or roll is used for positioning the coil and make it steady when it works. Meanwhile it also fixes coil in case of loosing.

3

Transmission

Transmission part in external frame, the motor, reducer through the chain driven reel spindle rotation, and also achieve positive and negative uncoiling and coiling.

4

ID

508-650-mm

5

Max loading weight :7 T

S/N

Item

Parameters

1

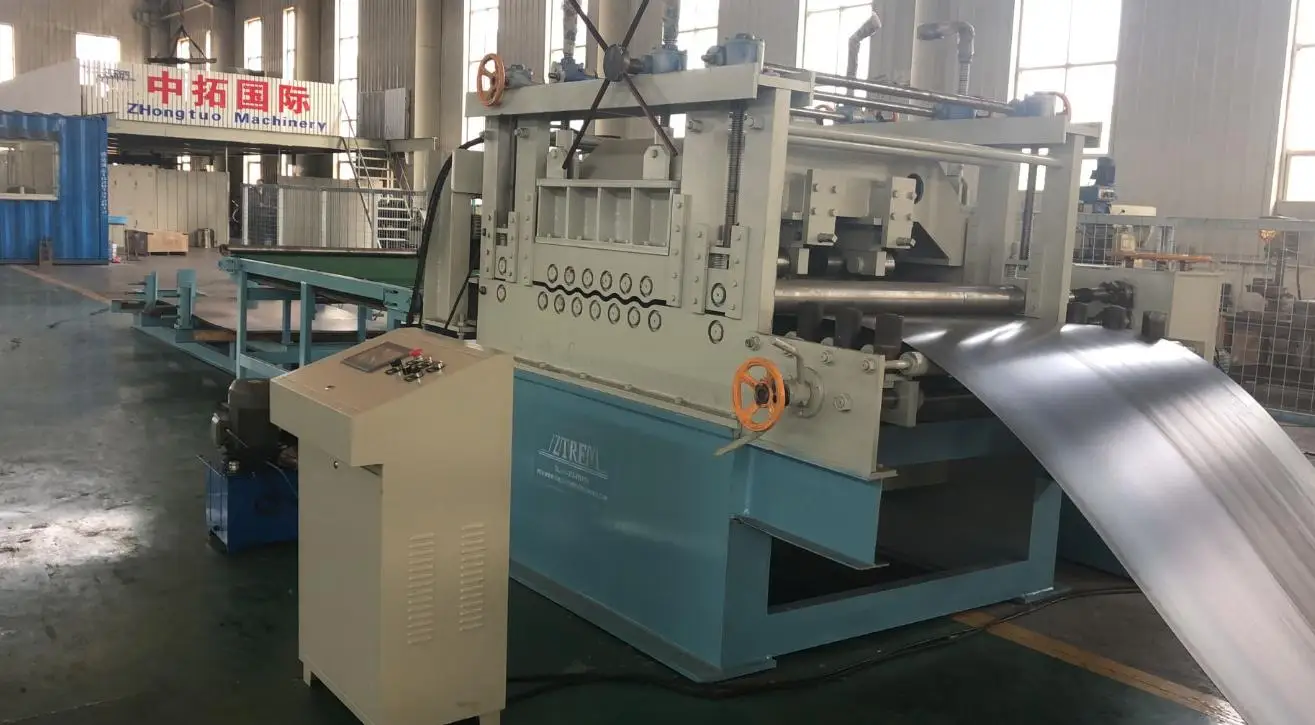

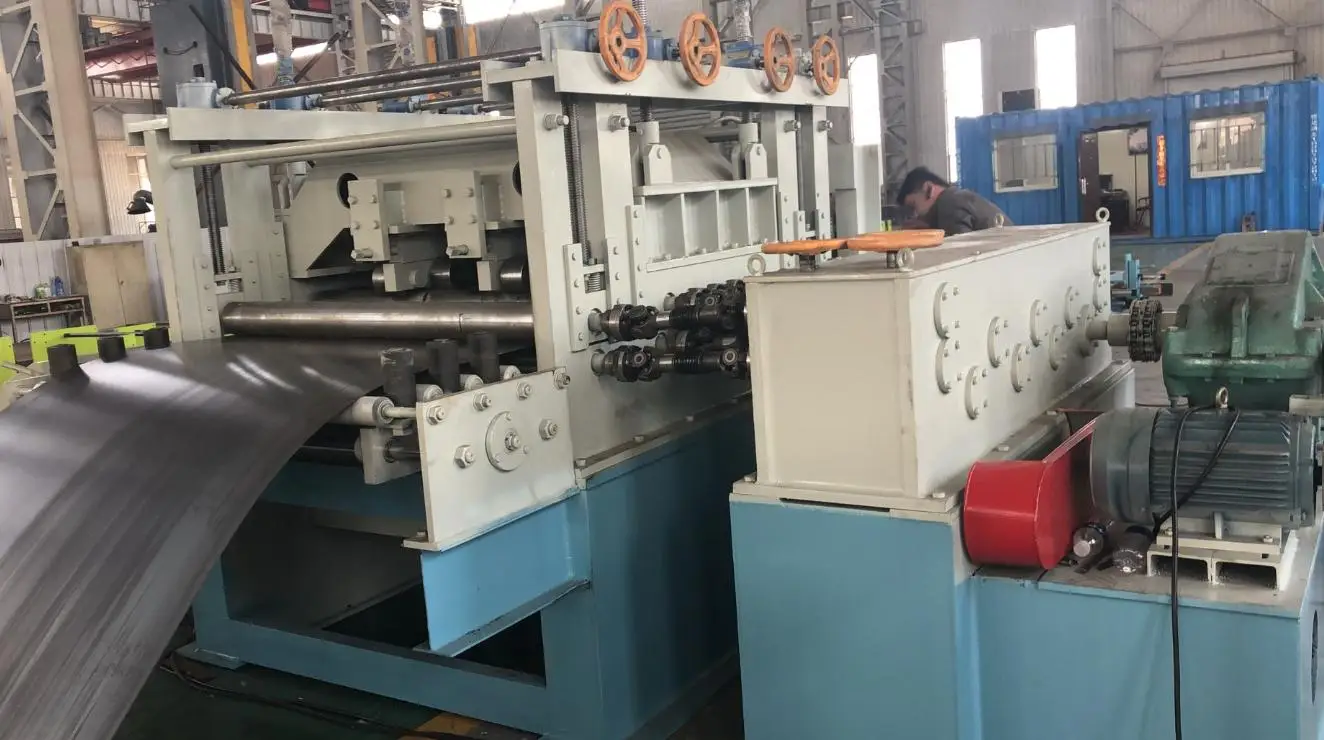

Leveling roller number

15 stations

2

Roller diameter

120mm

3

Roller material

Hardness: 45Cr by HRC58-62 (straightening quenching, grinding.)

4

Main power

15 kw

5

Double type.

Fixed size roller pack.

6

Leveling roller

Roller surface hardness of HRC58-62, surface finishing Ra1.6mm. On two rows of rollers, the upper work roller move vertical by lifting motor. The work roller of the bearing uses rolling bearing.

7

By adjusting the iron plate to adjust the input coil width
