Danfoss KP36 PE 17 Бар G1/4A контроль давления на природном
- Категории: Pressure Switches >>>
- Поставщик: Shenzhen,Jate,Burners,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Danfoss KP36 PE 17BAR G1/4A Natural Gas High Burner Control Compressor Pressure Switch Adjust Air Monitor

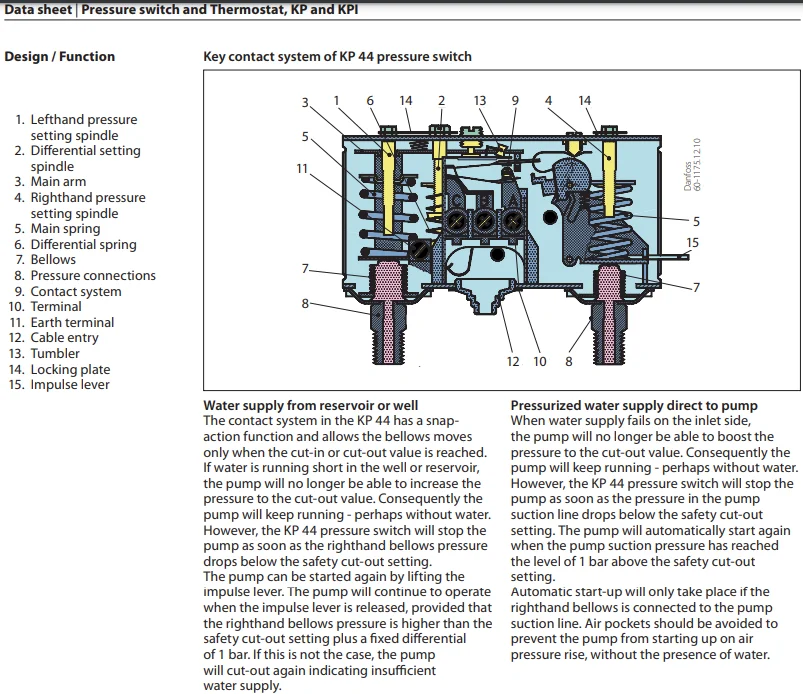

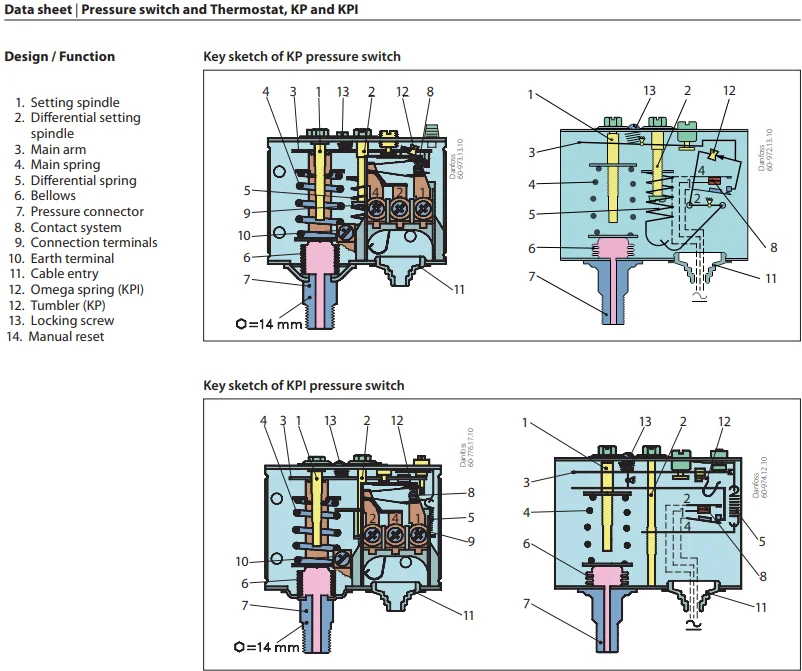

The KP and KPI pressure switches and thermostats are used for control, monitoring and alarm systems in a wide variety of industry applications. KP pressure switches are mainly used for gaseous fluid whereas KPI pressure switches are more for liquid and gaseous fluid. The KP pressure range include special designed pressure switches and limiters for steam boilers and other heating applications. For water pump control and protection (dry run) the dual pressure switch KP44 is suitable and secure improved life time of the water pump.
Features
• Wide setting range
• Shock and impact resistant
• Snap action electrical contacts minimize chatter, bounce, and wear,
and ensure long term electrical and mechanical reliability

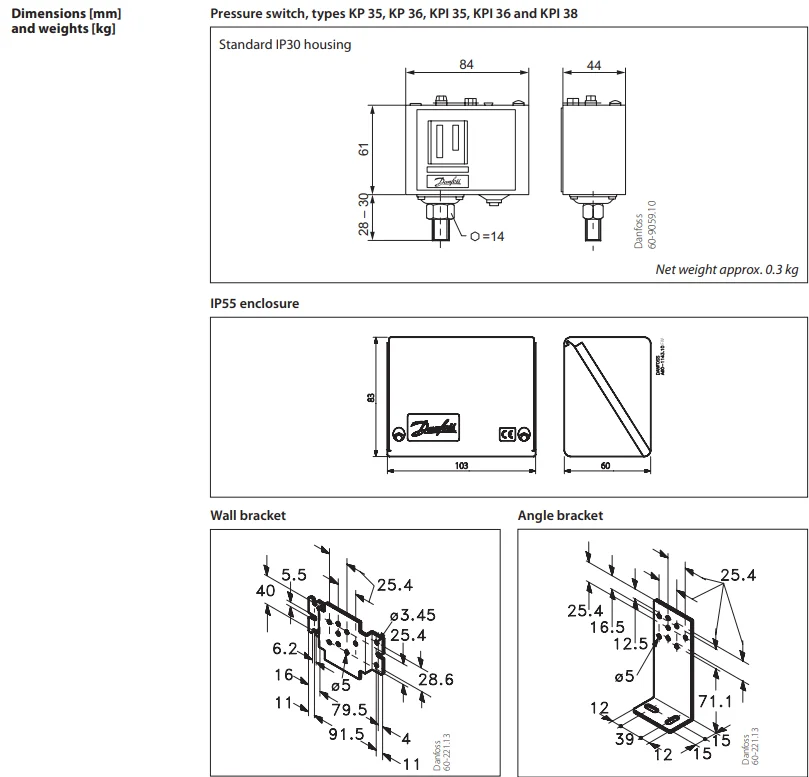

• Small dimensions. Space saving – easy to install in panels
•Electrical connection from front of the unit makes rack mounting easier and also saves space
• Suitable for alternating current and direct current

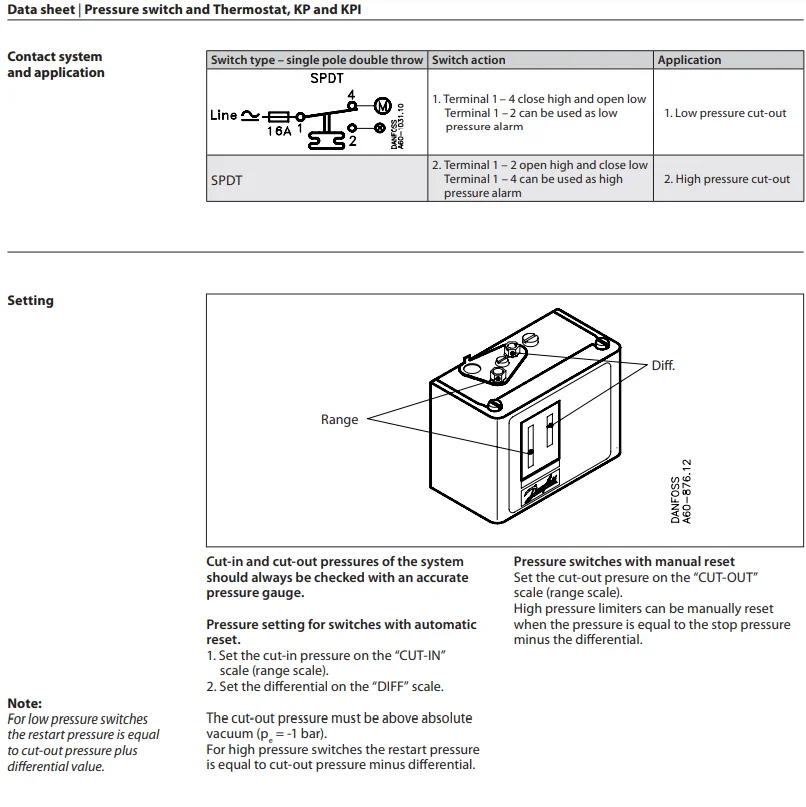

• Single pressure switches and thermostats are fitted with a single pole double throw contact system (SPDT)
•Can be used for both liquids and gases (KPI)
• Manual trip function enables electrical connections verification without any tools or pressure changes in the application
• Versions with automatic and manual reset available.
Approvals
CE-marked in accordance with LVD 2014/35/EU: EN 60947-1, EN 60947-4-1, EN 60947-5-1 Underwriters Laboratories Inc., UL China Compulsory Certificate, CCC (excluding boiler versions) GOST (excluding KPI)
Manual reset
A unit with manual reset can only be restored to operational mode by activation of the external reset button. Min. reset units will restart after the pressure has risen by a value greater than that of the fixed differential. Max. reset units
will restart after the pressure has fallen by a value greater than that of the fixed differential.
will restart after the pressure has fallen by a value greater than that of the fixed differential.
Permissible operating pressure
The highest permissible constant pressure or pressure variation the unit can be exposed
Maximum working pressure
The maximum permissible pressure for safe functioning of a heating system or any of its parts.

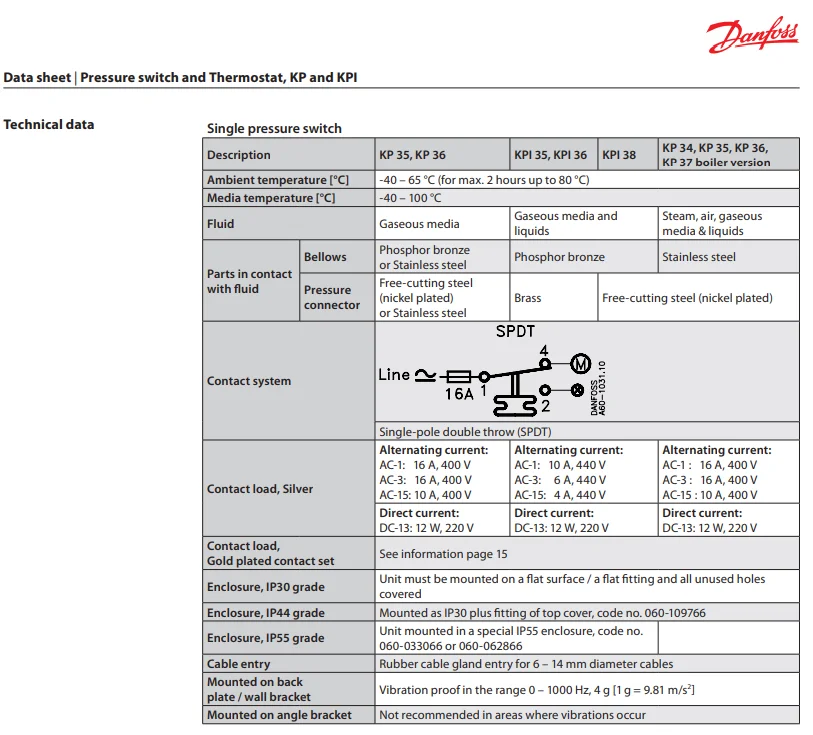

Specification
item | value |
Warranty | 1.5 years |
Customized support | OEM |
Place of Origin | Germany |
Brand Name | Danfoss |
Model Number | Denmark |
Type | Gas Burner |
Feature | High Performance |
Power Source | Electric |
Application | Industrial Gas Burner |

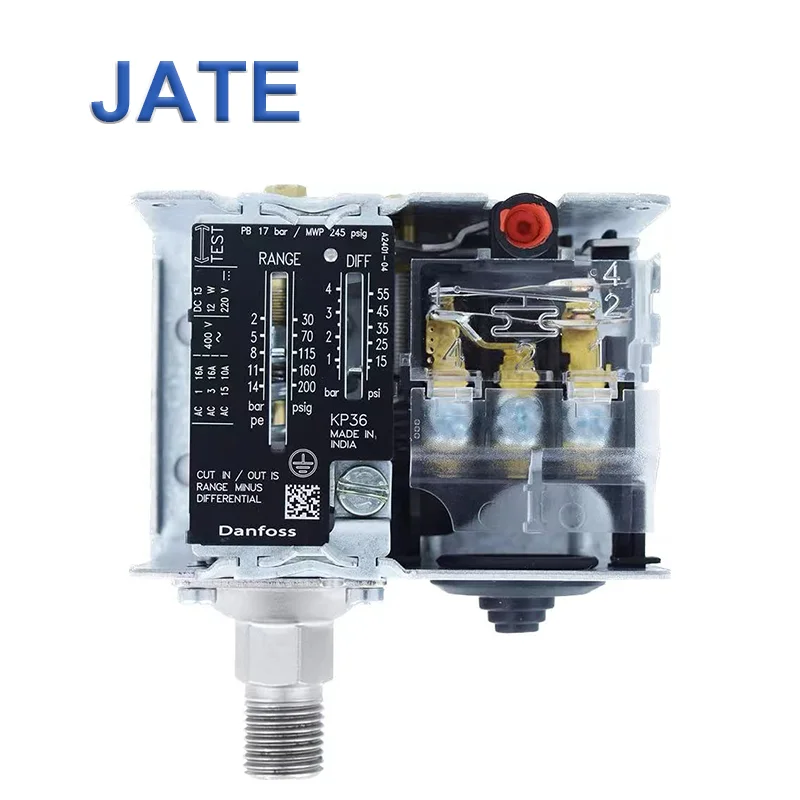

Product Name | Danfoss KP36 PE 17BAR G1/4A Pressure Switch |
Model | KP36 |
Brand | KP36 |
Power Supply | 220v 12W |
Max. operating pressure | 17bar |
Ambient temperature | 40 – 65 °C |
Degree of protection | IP 30 |
Fluid | Gaseous media |
Usage | Industrial Gas Burner Accessories |
After Warranty Service | Video technical support |
Packing & Delivery
Carton Box Packing
