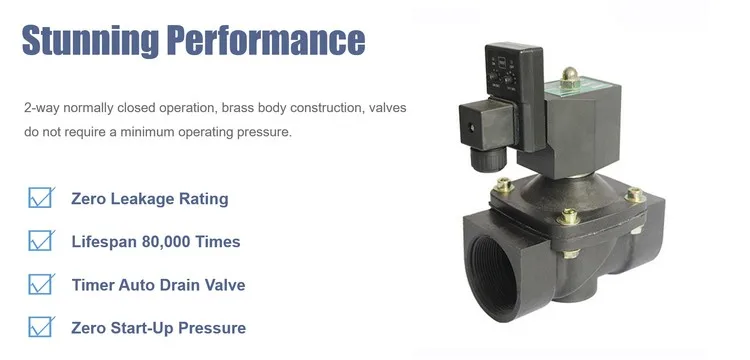

1 дюймовый пластиковый ПВХ автоматический электромагнитный клапан для слива воды с
- Категории: Solenoid Valves >>>
- Поставщик: COVNA,Industry,Automation,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Details
Item | 1 inch Plastic PVC Automatic Water Drain Solenoid Valve with Timer |
Size Range | 1/2"~2" |
Medium | Water, Air, Steam, Civil Gas, Oil, etc |
Temperature | NBR: -5℃~80℃; EPDM: -5℃~120℃; VITON: -5℃~120℃ |
Pressure | 0~1.0MPa |
Port Thread | BSPP, BSPT, NPT |
Voltage | DC-12V, 24V AC-24V, 120V, 240V/60Hz; 110V, 220v/50Hz |
Tolerance | ±10% |
Material | Body: Plastic or Brass or Stainless Steel Seal: VITON, NBR, EPDM Armature Tube: Stainless Steel304 Stop: SS403F Springs: SS304 Shading Rings: SS304 |
Application | Filter Machine, Separator, Air Tank, Dripping Feet and Other Air Compressor System Parts |

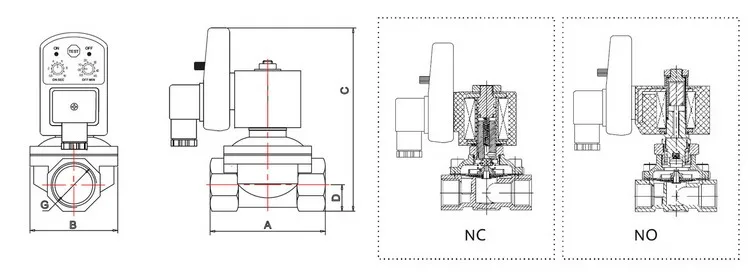

Dimension:

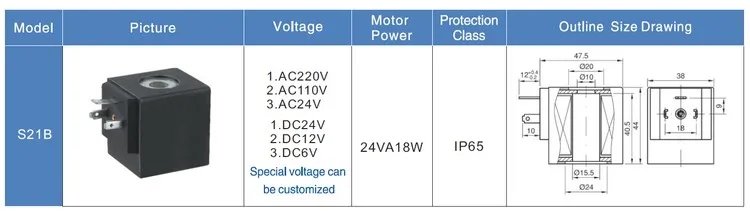

Coils Parameters:

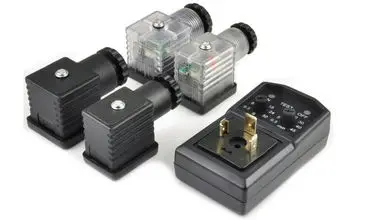

Specification of Timer:
Timer
Voltage: 24V~240V AC/DC, 50Hz/60Hz
Absorption Current: 4mA Max
Working Temperature: -10°C~50°C
Switch Capacity: 1A
Duty Cycle: 100%ED
IP Rating: IP65
Time ON: 0.5 to 10s
Time OFF: 0.5 to 45min
Connector: DIN43650A
Installation
Make sure that the pipe is free of impurities.
It is recommended to install the solenoid in vertical position with the coil facing upwards.
Application
Production Flow
Related Products
Company Profile
Certification
Exhibition
Cooperation Customers
Finished Project
Packaging & Delivery
FAQ
Q:Which voltage of the electric actuator?
A: DC24V, AC24V, AC110V, AC220V
AC380V can be customized and DC12V is available for some smaller torque of actuator.
Q: What is the actuation time for electric actuator?
A: It depends on the torque of actuator.
The detailed timing would be as the following:
* COVNA-05(50Nm)-20 seconds
* COVNA-10(100Nm)/COVNA-16(160Nm)-25 seconds
* COVNA-30(300Nm)/COVNA-60(600Nm)-60 seconds
* COVNA-125(125Nm)/COVNA-250(2500Nm)/COVNA-400(4000Nm)-100 seconds.
Q: Can the actuation time be faster?
A: Electric actuator can be customized the quick actuation gear,
the soonest actuation time can be reach 10 seconds to open and close.
Q: What type of electric actuator you provide?
A: ON/OFF type, Regulation type and Intelligent type.
Q: What is the difference from ON/OFF type, Regulation type and Intelligent type?
A: 1)ON/OFF type
ON/OFF type is fully open and fully closed.
2)Regulation type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
3)Intelligent type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
4.With display screen to acheieve site control.
Q: Can this electric valve be resettable (normally open / closed) automatically when power is removed?
A: Our regular electric actuator can't be resettable automatically while power-off.
But it can go to the multiturn electric actuator model with the extra electrical storage device along,
which acheieve the valves can be automatic reset(normally closed) while power failure.
Q: Have the electric actuator had the presence of limit switches (contact about the position of the cut-off device)?
A: Yes, there is the position indicator on the top of actuator.
The open/closed status can be checked visually.
Q: Which type of protection class of this electric actuator?
A: IP65, IP68, Explosion proof.
Q. Is there any manual override of electric valve?
A: Yes, every electric valve includes the manual override.
You can open/close
Q:Have the electric valve had the limiting operating time?
A: Electric haven't had the limiting operating time.
It can be working for 99 hours continually without getting heating.
A: DC24V, AC24V, AC110V, AC220V
AC380V can be customized and DC12V is available for some smaller torque of actuator.
Q: What is the actuation time for electric actuator?
A: It depends on the torque of actuator.
The detailed timing would be as the following:
* COVNA-05(50Nm)-20 seconds
* COVNA-10(100Nm)/COVNA-16(160Nm)-25 seconds
* COVNA-30(300Nm)/COVNA-60(600Nm)-60 seconds
* COVNA-125(125Nm)/COVNA-250(2500Nm)/COVNA-400(4000Nm)-100 seconds.
Q: Can the actuation time be faster?
A: Electric actuator can be customized the quick actuation gear,
the soonest actuation time can be reach 10 seconds to open and close.
Q: What type of electric actuator you provide?
A: ON/OFF type, Regulation type and Intelligent type.
Q: What is the difference from ON/OFF type, Regulation type and Intelligent type?
A: 1)ON/OFF type
ON/OFF type is fully open and fully closed.
2)Regulation type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
3)Intelligent type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
4.With display screen to acheieve site control.
Q: Can this electric valve be resettable (normally open / closed) automatically when power is removed?
A: Our regular electric actuator can't be resettable automatically while power-off.
But it can go to the multiturn electric actuator model with the extra electrical storage device along,
which acheieve the valves can be automatic reset(normally closed) while power failure.
Q: Have the electric actuator had the presence of limit switches (contact about the position of the cut-off device)?
A: Yes, there is the position indicator on the top of actuator.
The open/closed status can be checked visually.
Q: Which type of protection class of this electric actuator?
A: IP65, IP68, Explosion proof.
Q. Is there any manual override of electric valve?
A: Yes, every electric valve includes the manual override.
You can open/close
Q:Have the electric valve had the limiting operating time?
A: Electric haven't had the limiting operating time.
It can be working for 99 hours continually without getting heating.
