Промышленный музыкальный фонтан 2 Вт 250-25 1 дюйм DN25 12 В нормально открытый Электрический водонепроницаемый электромагнитный
- Категории: Solenoid Valves >>>
- Поставщик: Ningbo,Vpc,Pneumatic,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
VPC Pneumatic——Alibaba Quality Supplier
*Welcome to customized manufacturing with materials, designs or samples.
2W 250-25 industry music fountain 1inch DN25 12v normally open electric waterproof solenoid valve
Feature
2W series small oriffice Fluid Control Valve, also known zero-pressure solenoid valve, the initial state for normally closed,normally open only available for below 3/8", thread size range from 1/8" to 3/8", Din connector type and flying leads type,anti-explosion and anti-water coil are available. With the stalbe quality and wide application, 2W valve is popular with customers, especially in the water treatment system, the 2W valve is used widely.

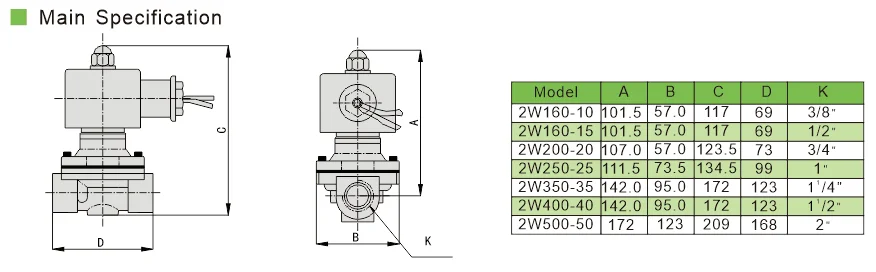

Model | 2W160-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | 2W500-50 | ||||||
Working Medium | Air、Water、Oil、Gas | ||||||||||||
Acting Type | Direc Acting Type | ||||||||||||
Control Style | Normal Close/Normal Open | ||||||||||||
Orifice | 16mm | 20mm | 25mm | 35mm | 40mm | 50mm | |||||||
CV Value | 4.8 | 7.6 | 12 | 24 | 29 | 48 | |||||||
Joint Size | G3/8" | G1/2" | G3/4" | G1" | G11/4" | G11/2" | G2" | ||||||
Working Pressure | Air:0~0.7Mpa ; Water:0~0.5Mpa ; Oil:0~0.5Mpa; Gas:0~0.7Mpa | Air、Water、Oil:0~2.0Mpa | |||||||||||
Max.Pressure | 1.05Mpa | 3.5Mpa | |||||||||||
Working Temperature | -5~80℃（The temperature can reach -5~150℃ if change the seal） | ||||||||||||
Valve Body | Brass | ||||||||||||
Seal material | NBR、Fluororubber | ||||||||||||
Ordering Code 2W(UW) Series 2/2 Direct Acting Solenoid Valve(Big Orifice)
2W 160 - 15 F D □ AC110V
2W→Type Code
2W:Direction
Solenoid Valve
Solenoid Valve
160→Orifice
160:16mm 200:20mm
250:25mm 300:30mm
350:35mm 400:40mm
500:50mm
250:25mm 300:30mm
350:35mm 400:40mm
500:50mm
15→Joint Size
10:3/8" 15:1/2"
10:3/8" 15:1/2"
20:3/4" 25:1"
35:11/4" 40:11/2"
50:2"
F→Mounting Type
Blank:Standard
F:With Flange
D→Coil Type
F:With Flange
D→Coil Type
Blank:Flying leads
D:DIN Type
E:Anti-explosion Coil
G:Water-Proof Coil
D:DIN Type
E:Anti-explosion Coil
G:Water-Proof Coil
□→Control Style
Blank:Normal Close
T:Normal Open
AC110V→Standard Voltage
DC12V
DC24V
AC24V 50/60HZ
AC110V 50/60HZ
AC220V 50/60HZ
AC380V 50/60HZ
AC24V 50/60HZ
AC110V 50/60HZ
AC220V 50/60HZ
AC380V 50/60HZ
Note:Only 2W160、2W200、2W250 valve can make normal open type
