Прямая продажа большая промышленная барабанная машина 3-8 т/ч для
- Категории: Forestry Machinery >>>
- Поставщик: Jiangsu,Kingwood,International,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Specification
Parameter | BX218 |
Diameter of the knife roller （mm） | 800 |
Number of knife（pcs） | 2 |
Feed opening Dimensions（mm） | 225×680 |
Speed of Knife roller（Rpm） | 650 |
Feeding Speeds（m/min） | 37 |
Maximum diameter of processed raw material（mm） | 160 |
The length of the wood chip （mm） | 30 |
Production capacity（m³/h） | 15-20 |
Power of main motor（kw） | 110 |
Power of feeding roller motor （kw） | 4×2 |
G.W(KG) | 7000 |
Dimension(mm) | 4670×2150×1500 |

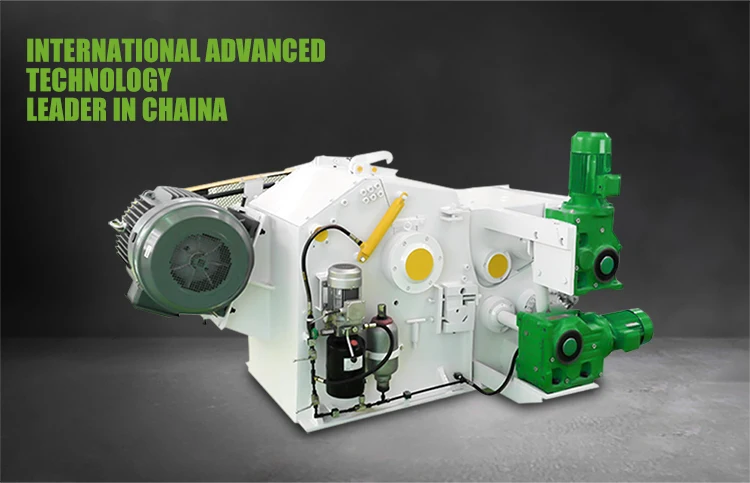

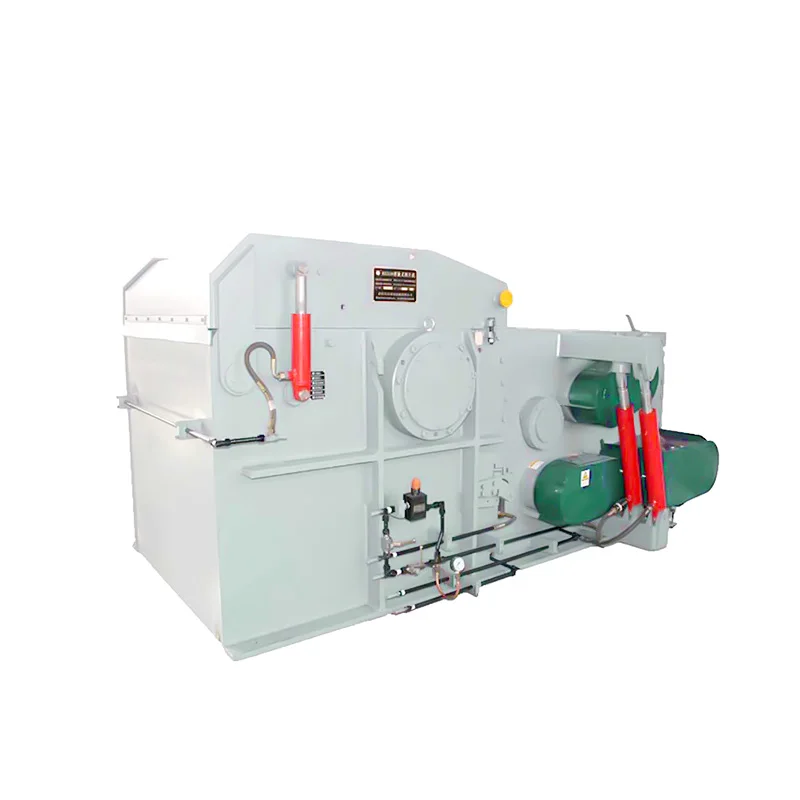

Drum wood chipper
Drum wood chipper
Wood chipping machine is designed to process wood logs or tree branches or other materials into small wood chips for various wood products industries and plants.
Wood chipping machine features a large, motor-powered drum located at the center of the machine. It is a dedicated device producing quality wood chips for energy generation and wood pulp industry. That’s why it is popular in places where wood chips used as the starting material for further production like wood pellet plant, particleboard mill, fiberboard factory, biomass power plant, etc.
Raw materials of the Chipper are mainly undersized wood logs, wood harvesting residues (branches, branches, etc.), wood processing residues (slats, slabs, garden wood cores, waste veneers, etc.). The machine is compact and reasonable in structure, easy to operate, high in production capacity, safe and reliable, and easy to maintain.
Wood chipping machine features a large, motor-powered drum located at the center of the machine. It is a dedicated device producing quality wood chips for energy generation and wood pulp industry. That’s why it is popular in places where wood chips used as the starting material for further production like wood pellet plant, particleboard mill, fiberboard factory, biomass power plant, etc.
Raw materials of the Chipper are mainly undersized wood logs, wood harvesting residues (branches, branches, etc.), wood processing residues (slats, slabs, garden wood cores, waste veneers, etc.). The machine is compact and reasonable in structure, easy to operate, high in production capacity, safe and reliable, and easy to maintain.
Raw materials of the Chipper are mainly undersized wood logs, wood harvesting residues (branches, branches, etc.), wood processing residues (slats, slabs, garden wood cores, waste veneers, etc.). The machine is compact and reasonable in structure, easy to
operate, high in production capacity, safe and reliable, and easy to maintain.
operate, high in production capacity, safe and reliable, and easy to maintain.
Parameter | BX216 | BX218 | BX218D | BX2110 | BX2113 | BX2113/13 |
Diameter of the knife roller （mm） | 650 | 800 | 800 | 1000 | 1300 | 1300 |
Number of knife（pcs） | 2 | 2 | 2 | 2×2 | 2 | 4×2 |
Feed opening Dimensions（mm） | 180×500 | 225×680 | 240×750 | 330×1050 | 400×700 | 400×1250 |
Speed of Knife roller（Rpm） | 590 | 650 | 650 | 550 | 500 | 375 |
Feeding Speeds（m/min） | 37 | 37 | 38 | 38 | 38 | 44 |
Maximum diameter of processed raw material（mm） | 120 | 160 | 160 | 210 | 230 | 250 |
The length of the wood chip （mm） | 30 | 30 | 30 | 30 | 38 | 30 |
Production capacity（m³/h） | 10 | 15-20 | 38 | 75 | 34-64 | 90-132 |
Power of main motor（kw） | 55 | 110 | 132 | 220 | 200-250 | 450-600 |
Power of feeding roller motor （kw） | 3×2 | 4×2 | 4×2 | 7.5×2 | 7.5×2 | 11×2 |
G.W(KG) | 4070 | 7000 | 12500 | 118400 | 11840 | 20000 |
Dimension(mm) | 4348*1730*1258 | 4670*2150*1500 | 4340*3550*1500 | 3670*2517*2050 | 3670*2517*2050 | 5484*5400*1860 |

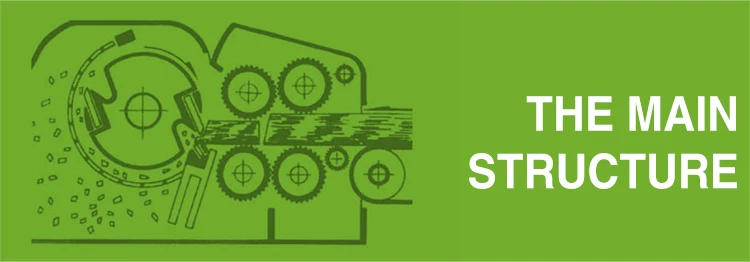

Structure and Working Principles of Wood /log Chipper

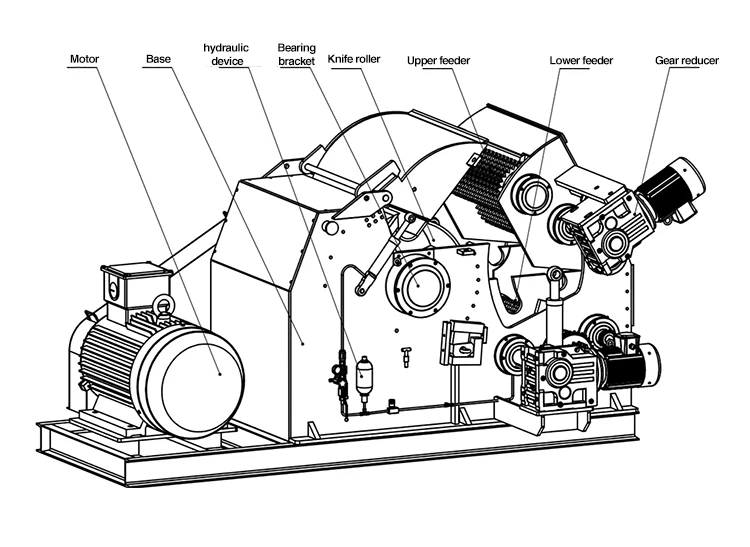

▲It consists engine base, cutter roller, feeding roller, conveyor and hydraulic system and so on. The engine base is welded by high strength steel plate,
▲It's the supporting base of the whole machine. On the cutter roller, there installs two or three flying cutter. Through the professional bolt, fixed the flying cutters on the roller.
▲According to the thickness of the raw materials, the feeding roller can moves up and down through the helping of hydraulic system. The satisfied chips can be discharged at the bottom of the machine through the screen.
▲The bigger chips will be cut again in the chamber of machine.
▲It's the supporting base of the whole machine. On the cutter roller, there installs two or three flying cutter. Through the professional bolt, fixed the flying cutters on the roller.
▲According to the thickness of the raw materials, the feeding roller can moves up and down through the helping of hydraulic system. The satisfied chips can be discharged at the bottom of the machine through the screen.
▲The bigger chips will be cut again in the chamber of machine.
Company Profile
ABOUT US

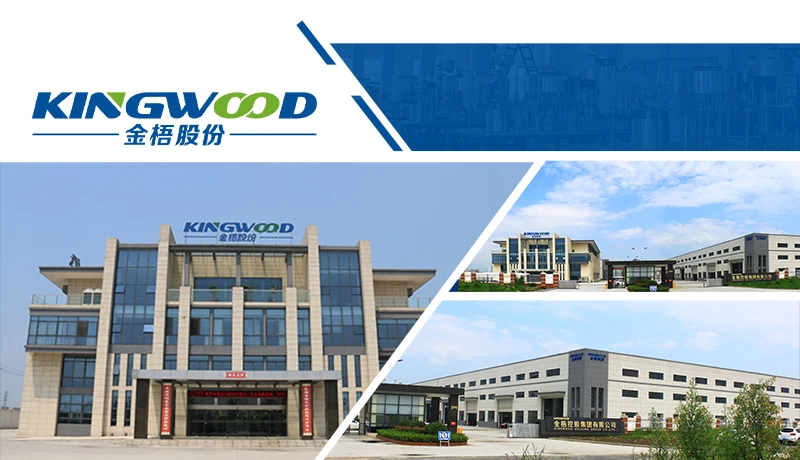

Jiangsu Kingwood Industrial Co., Ltd. (listed in National Equities Exchange and Quotations, stock code: 871765), located in Zhongguancun Industrial Park of Liyang City, Jiangsu Province, China. The company covers an area of more than 35,000㎡, with 30 million USD existing fixed assets. It is a high-tech enterprise which is dedicated to develop low-carbon, and renewable energy equipment and advanced feed mill industry. Established in 1999, Kingwood has been dedicated in providing one stop solution in biomass engineering, animal feed engineering and spare parts business for our valued customers, and these services are including: consultation, design, manufacture, logistic, installation, commissioning, training, and after-sales service for biomass/feed production line.
Jiangsu Kingwood Industrial Co., Ltd. (listed in National Equities Exchange and Quotations, stock code: 871765), located in Zhongguancun Industrial Park of Liyang City, Jiangsu Province, China. The company covers an area of more than 35,000㎡, with 30 million USD existing fixed assets. It is a high-tech enterprise which is dedicated to develop low-carbon, and renewable energy equipment and advanced feed mill industry. Established in 1999, Kingwood has been dedicated in providing one stop solution in biomass engineering, animal feed engineering and spare parts business for our valued customers, and these services are including: consultation, design, manufacture, logistic, installation, commissioning, training, and after-sales service for biomass/feed production line.
Core value:
Use "customer and supplier win-win" as the management principle, and "long-term development" as the business purpose, work with domestic and foreign customers to promote each other and create a win-win situation.
Our mission:
A"blue" innovative company researching future energy/feed technology, creating a "green" responsible company with low-carbon recycling and environmental protection.
Spirit:
Pioneering spirit of "Exploring and Enterprising" Inovative spirit of "Daring to be the first mover" Striving spirit of "Honest and Hard-working"
Q1: Are you a factory or trading company?
Q2: How you guarantee your product quality?
A1: We are special trading company owned by our factory. And our factory located in Changzhou, China, with nearly 100 workers in total. We have over 20 years’ experience in industries.
Q2: How you guarantee your product quality?
A2: Kingwood is always pay attention to the production quality and quality improvement, in order to achieve the high quality to meet high demand, we build the most advanced manufacturing equipment and strictly control every production point, not only from the procurement of the raw material, spare parts processing, welding, but also the assembly to finished product delivery. All quality controls in key production process is implemented strictly in Kingwood
Q3: How about the delivery date?
Q3: How about the delivery date?
A3: We build no storage management system, so before you place orders, please contact our sales team, they will give you professional delivery solution according to the product / production line lead time
Q4: How about the technical support from Kingwood?
Q4: How about the technical support from Kingwood?
A4: Kingwood has built the full service system from pre-sales, installation & commissioning and aftersales service including preventive maintenance, corrective maintenance and training process. According to customer’s requirement, we can provide service both online and in customer’s jobsite. And we also have oversea engineers in some countries in South East Asia / CIS/ East Europe and Latin America area that are available to service you at any time.
Q5: How about the guarantee period?
Q5: How about the guarantee period?
A5: One year after our product arrives customer’s jobsite but no longer than 18month from BL date.
