SC TREE CUTTER/ TREE SAW
SC tree saw is a hydraulic-driven device with a rotating cutting head for excavator. According to different working enviroment, we design different swing types, it can be 180-degree swing 180 degree horizontally and vertically which offers precision and control to make quick and clean work of trimming and limbing.
PRODUCT SPECIFICATIONS
Specification/Model | SC600 | SC1000 | SC1500 | SC2000 |
Excavator range(Ton) | 5-12 | 8-20 | 15-22 | 25-36 |

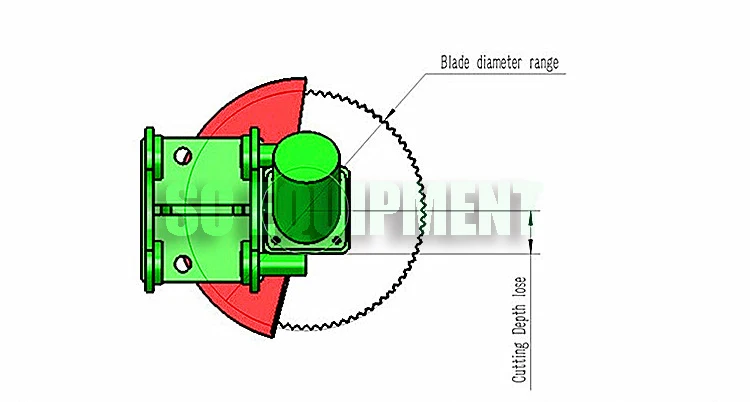

Blade diameter range(mm) | 600-1200 | 900-1500 | 1500-2200 | 2000-3200 |
Flow-max.continuous(Lpm) | 80-120 | 100-150 | 120-180 | 150-230 |
Torque-max.continuous(Nm) | 500 | 630 | 4300 | 7300 |
Pressure-max.continuous(Mpa) | 25 | 25 | 25 | 25 |
Pressure-return line back pressure max(Mpa) | 20 | 20 | 20 | 20 |
Power-max.continuous(Kw) | 12.5 | 30 | 59 | 100 |
Spindel speed-max.continuous(Rpm) | 2400 | 2200 | 750 | 420 |
Cutting depth lose(mm) | 90 | 150 | 210 | 265 |
Operating weight(kg) | 125 | 460 | 1250 | 1950 |
Advantages:
The product is designed with two rotation axes, which are horizontal ± 90 ° rotation, and the cutting range can be expanded without moving the host machine in the horizontal range; the vertical ± 90 ° direction adjustment can cut the vertical branches on both sides of the tree.
The motor is hidden which to avoid accidental damage . A convection hole is left on the side and the oil pipe is stored in the hanging wall.
Three blades can be installed. The maximum effective cutting width is 1430 mm, the maximum cutting diameter is 110 mm, and the maintenance cost is low.
The original Rexroth motor brings higher reliability and the limit speed reaches 8800 rpm. The high rigid drive box design can resist most of the impact, thus prolonging the service life of the motor.
Photo galary
FAQ
Q: HOW CAN I CHOOSE THE SUITABLE MODEL?
1, Choose model by your excavator weight.
2, According to the cutting range and height, choose fix type or long arm swing type.
Just contact us ,we will recommand a suitable model for you.
