Автомобильная камера заднего вида с экраном 4,3 дюйма
US $3.99-$12.99
10 1 дюймовый четырехраздельный монитор заднего вида 4-канальный видеосигнал HD вход 1080P AHD 360 Автомобильная камера заднего/переднего/бокового видеорегистратор ночного
- Категории: Car Reversing Aid >>>
- Поставщик: Jiangxi,Jeavox,Development,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
4 Channels Video HD Input Camera Monitor System (Support DVR) 10.1 Inch AHD Quad Monitor System With 1080P Front / Rear / Side View Camera (x4) | Camera Mirror System (CMS) 12.3 Inch E-Mirror Split View with Arm-design Dual Lens Camera | |
Item | RCS-1010HQ(CM-1010HQ+CH307FE+AC-389+AC-301+Cable) | |

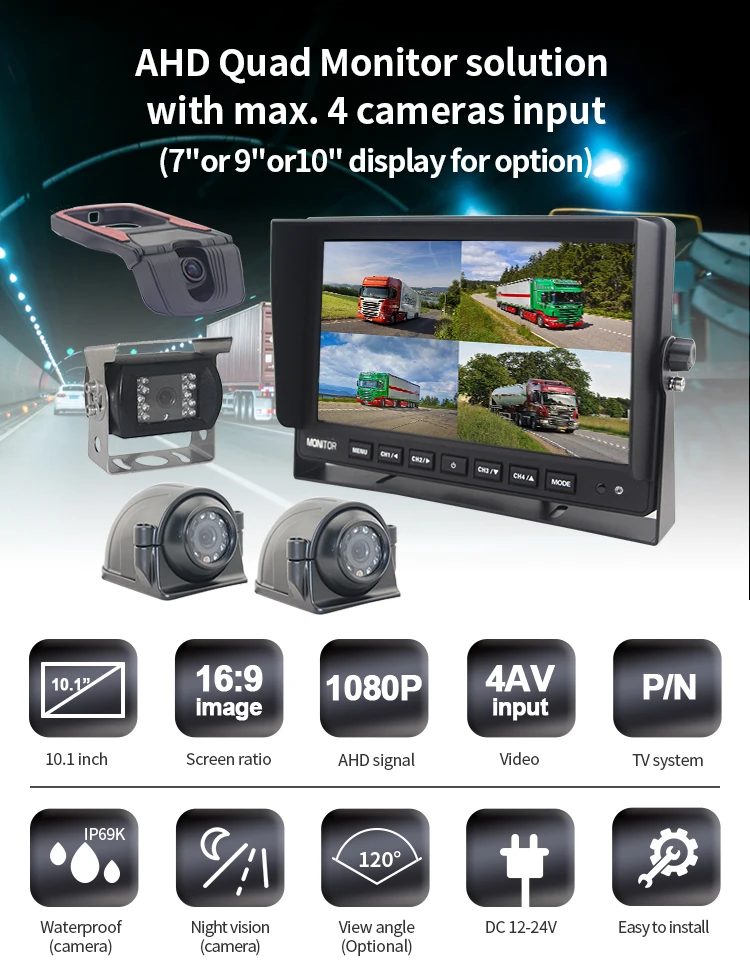

10.1 Inch Quad Split Monitor With 4 Channels Video HD Signal Input | ||
Item | CM-1010HQ | |
Screen Size | 10.1 Inch IPS HD Panel ; 16:9 Ratio | |
Screen Resolution | 1024*600 | |
TV System | PAL NTSC Automatically | |
Operation | Big Button + Remote Control | |
DVR Function | Support HD Car Recording | |
Video input | 4 AV inputs; HD Images 720p/1080p ;(Max 4 Cameras) 1 Channel full screen display; | |
Menu setting | OSD Menu, brightness, contrast, color, volume, flip down(mirror or non-mirror) etc; parking line | |
Power supply | DC12V-24V | |
Trigger | 4 trigger wires | |
Remote control | Yes, with remote control window | |
Installation | Standard with U Type Bracket | |
1080P AHD Car Rear View Camera | ||
Item | AC-301 | |
Waterproof level | IP69K | |
Night vision | With 18pcs LED Lights | |
Image sensor | SONY CCD | |
Resolution | HD 1080P | |
Power supply | DC12V | |
View angle | 120°(D) in diagonal | |
Connection plug(connector) | Aviation 4PIN female | |
Material of housing | Aluminum Alloy | |
Operating temperature | -20 degree~+70 degree(RH0%-RH90%) | |
Storage temperature | -30 degree~+80 degree(RH0%-RH90%) | |
1080P Front Windshield Mounting Front View Car Camera | ||
Item | CH307FE | |
Waterproof level | Inside mounting, non-waterproof | |
Night Vision | Yes !with built-in light sensor | |
Image sensor | SONY CCD | |
Resolution | HD 1080P | |
Features | WDR(wide dynamic range) | |
Power supply | DC12V | |
View Angle | 130° (D) Diagonal / 75°(V) Vertical / 110° (H) Horizontal | |
TV System | PAL or NTSC, standard is with PAL system | |
Connection plug(connector) | Aviation Female Connector | |
Operating temperature | -20 degree~+70 degree(RH0%-RH90%) | |
Storage temperature | -30 degree~+80 degree(RH0%-RH90%) | |
AHD 1080P Hemispherical Side View Car Camera | ||
Item | AC-389 | |
Waterproof level | IP69K | |
Night vision | With 10pcs LED Lights, light sensor | |
Image sensor | SONY CCD | |
Resolution | HD 1080P | |
Power supply | DC12V | |
View angle | 120°（D) in diagonal | |
TV System | PAL or NTSC, standard is with PAL system | |
Connection plug(connector) | Aviation 4PIN female | |
Material of housing | Allumimum alloy | |
Operating temperature | -20 degree~+70 degree(RH0%-RH90%) | |
Storage temperature | -30 degree~+80 degree(RH0%-RH90%) | |
Products Description

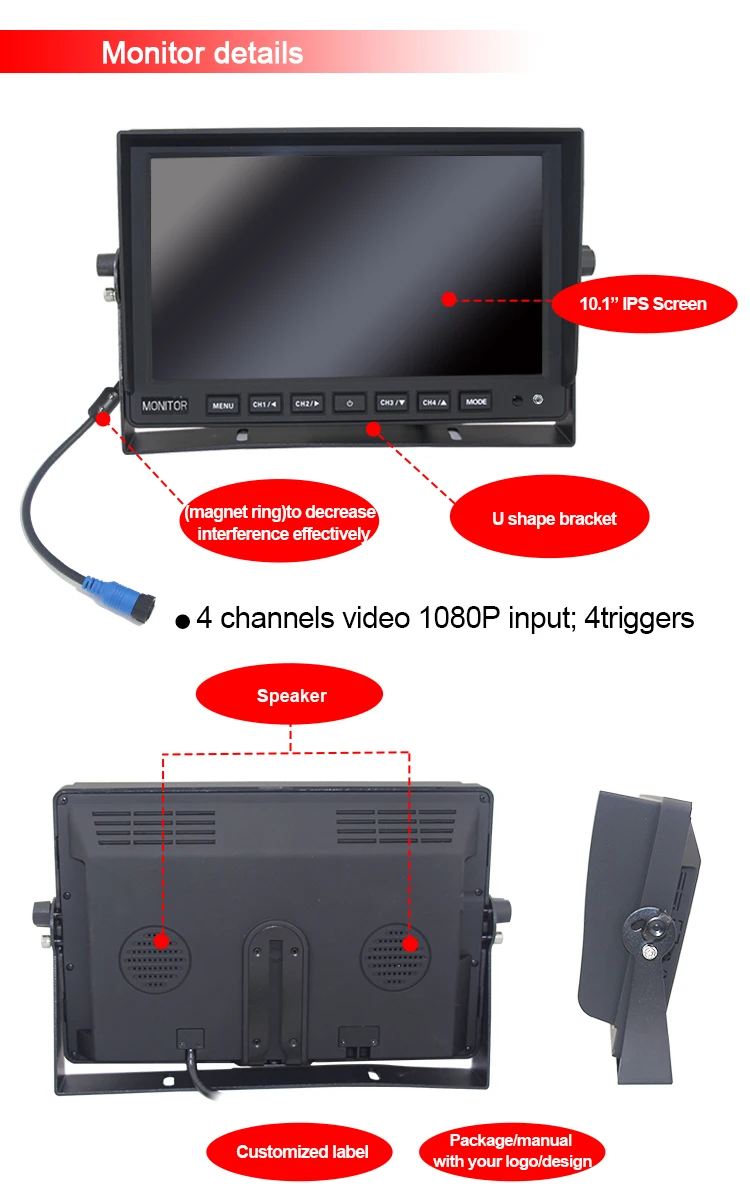

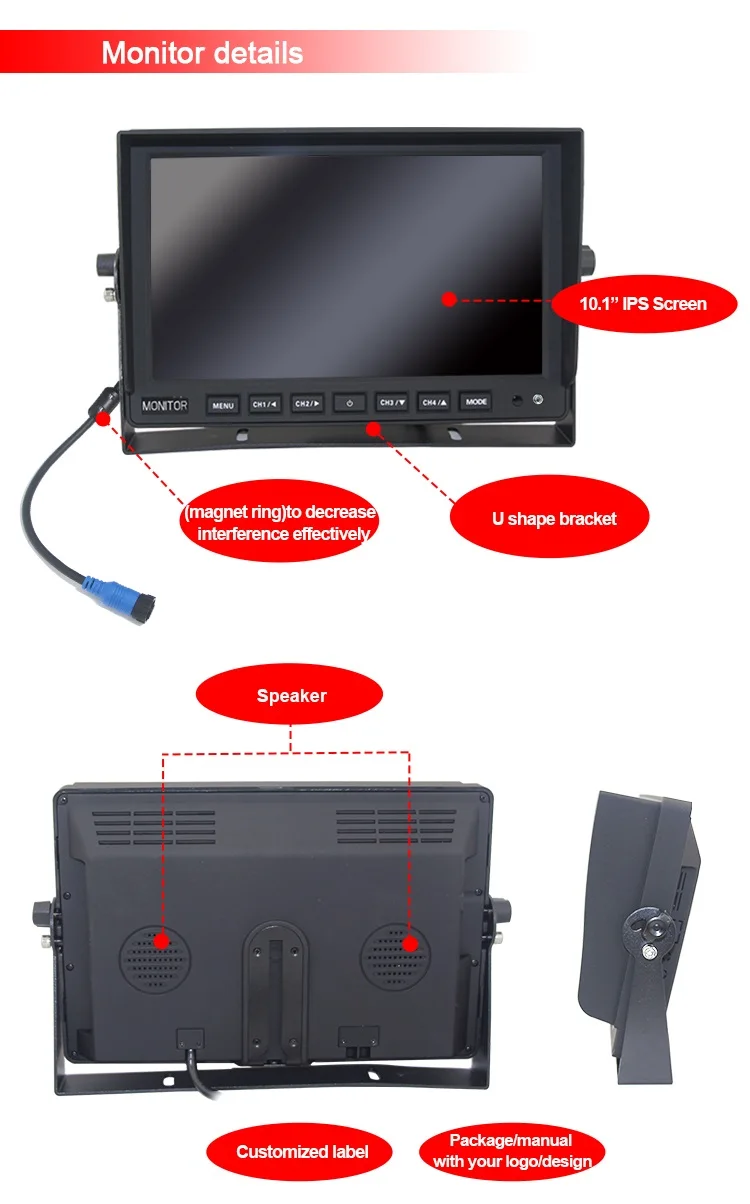

Monitor Details
10.1'' IPS Screen Quad Split Monitor With U Shape Bracket
4 （Triggers）Channels Video 720P/1080P AHD Input
Add Magnet Ring , To Decrease Interference Effectively
Built-in Speaker / Support Customized LOGO And Label

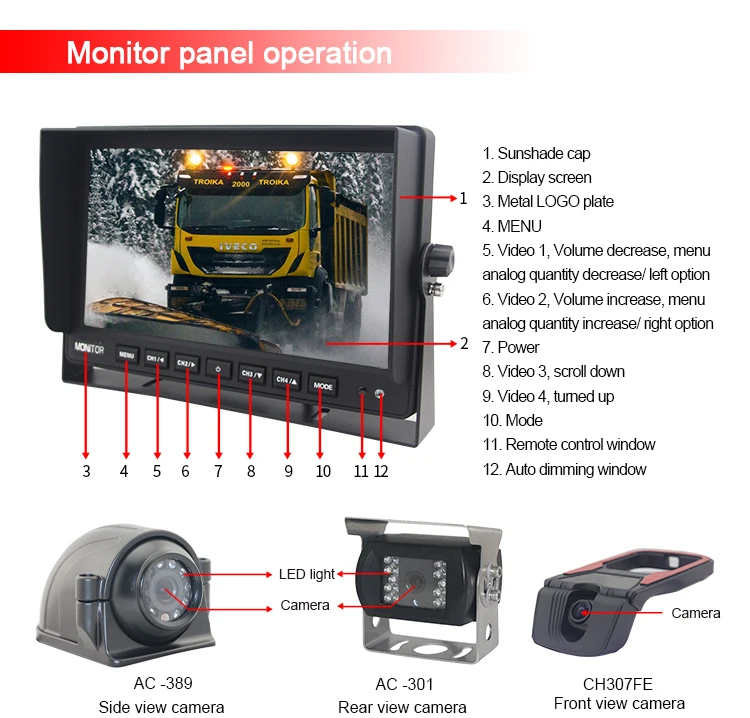

Monitor Panel Operation
Monitor
1.Sunshade Cap
2.Display Screen
3.Metal LOGO Plate
4.MENU
5.Video 1 , Volume Decrease , Menu Analog Quantity Decrease / Left Option
6.Video 2 , Volume Increase , Menu Analog Quantity Increase / Right Option
7.Power
7.Power
8.Video 3 , Scroll Down
9.Video 4 , Scroll Up
10.Mode
11.Remote Control Window
12.Auto Dimming Window
AC-389 AC-301 CH307FE
Side View Camera Rear View Camera Front View Camera
Night Vision With 10pcs led light Night Vision With 18pcs led light Night Vision

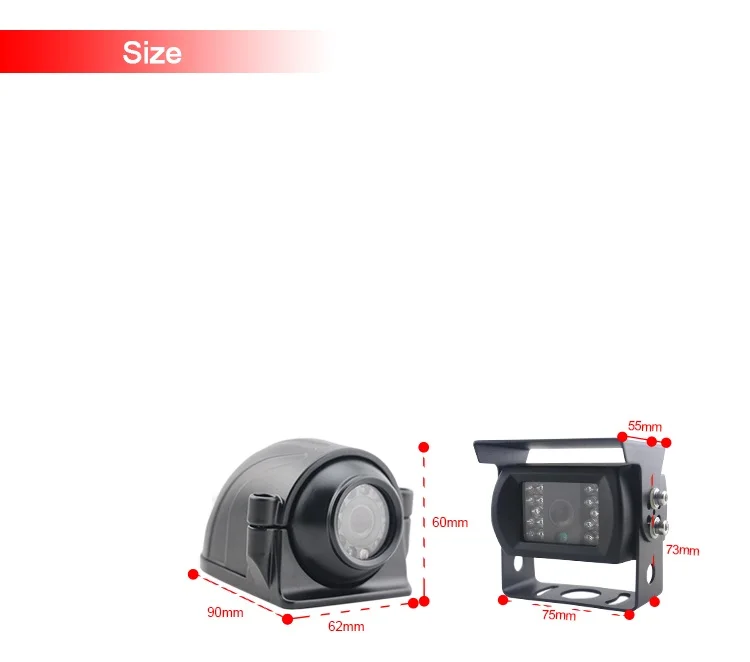

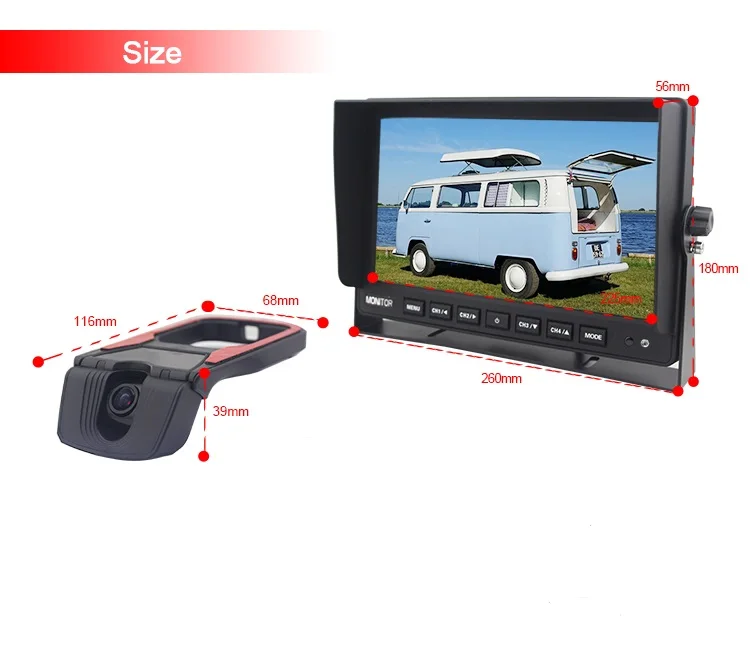

Product Size
(CM-1010HQ)Front View Camera (CM-1010HQ)Rear View Monitor
11.6x6.8x3.9 CM 26.0x5.6x18.0 CM
≈ 4.57x2.68x1.53 Inch ≈ 10.24x2.2x7.09 Inch
(AC-389)Side View Camera (AC-301)Rear View Camera
9.0x6.2x6.0 CM 7.5x5.5x7.3 CM
≈ 3.54x2.44x2.36 Inch ≈ 2.95x2.16x2.87 Inch

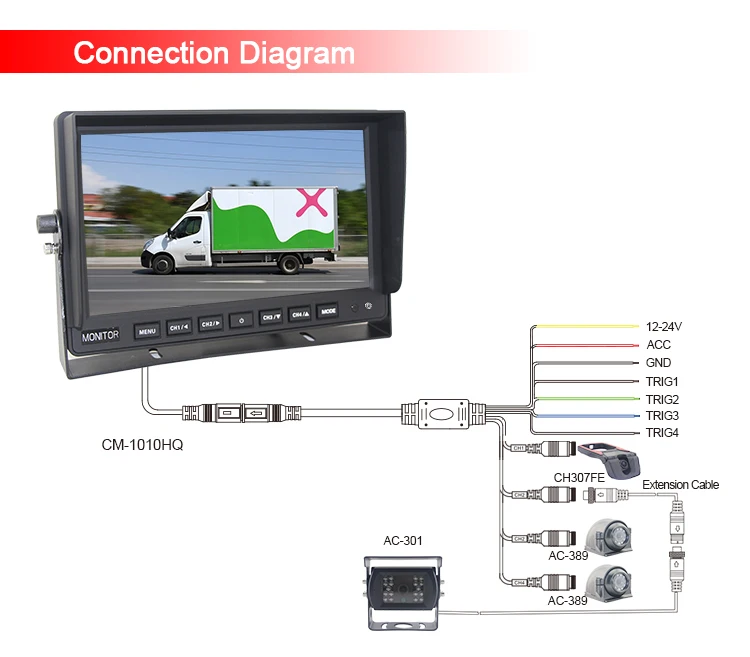

Connection Diagram

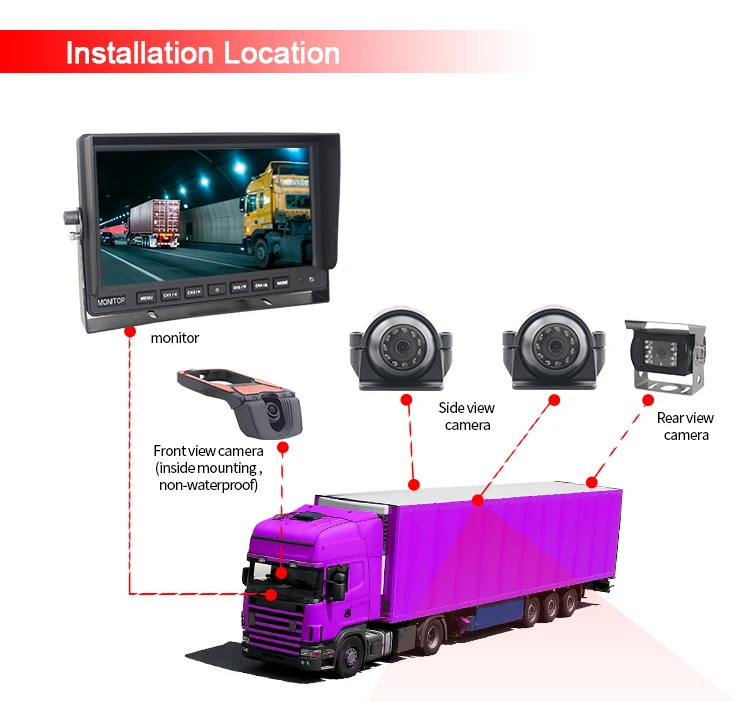

Installation Location

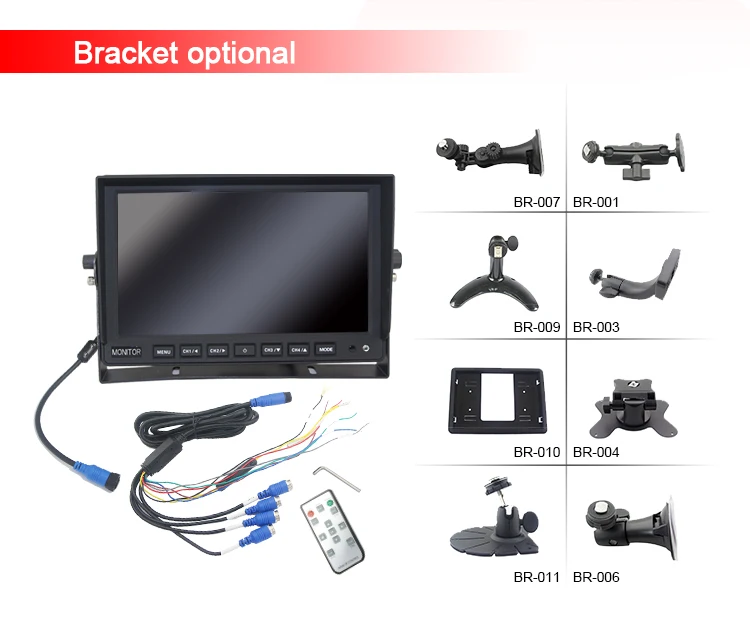

Bracket Optional

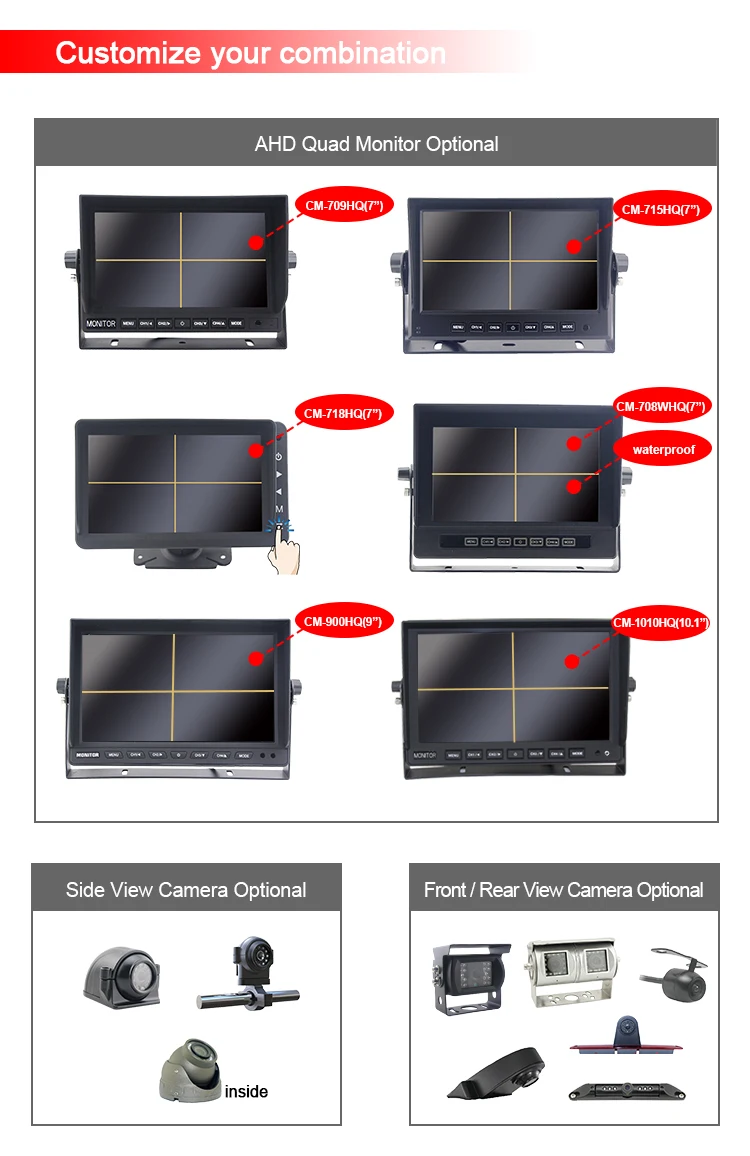

Customize Your Combination
Multiple AHD Quad Monitor Models Optional
————Contact Customer Service
Side View Camera Optional Front / Rear View Camera Optioanl
Applicable To Various Vehicle
