Автомобильная камера заднего вида с экраном 4,3 дюйма
US $3.99-$12.99
Автомобильная камера 360 градусов Full HD с круглым обзором для Passat Magotan Sagitar
- Категории: Car Reversing Aid >>>
- Поставщик: Guangzhou,Kingteng,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
TV Line | 900TVL/AHD 720P | View Angle | 360Degree | Parking Line Yes |
TV System | PAL | Function | DVR Recording | Work Voltage 12V |
Waterproof | IP68 | Effective Pixel | 976x496/976x582 | Warranty 12Month |
Image Sensor | CMOS/AHD SONY 225 | Mini Illumination | 30.01Lux | Real 3D Seamless |
Product Features:
1.3D/2D View Mode Option
2.Wireless Knob Remote Control
3.After Car Start, Automatically Circular Display, Also Can Adjust Angle By Remote(Full Front,Front,Full Rear, Rear,Top View ,Narrow,Limit)
2.Wireless Knob Remote Control
3.After Car Start, Automatically Circular Display, Also Can Adjust Angle By Remote(Full Front,Front,Full Rear, Rear,Top View ,Narrow,Limit)
4.Four 180 degrees ultra wide fish-eye cameras, Waterproof and dust-proof.can adjust the angle of multi-direction.

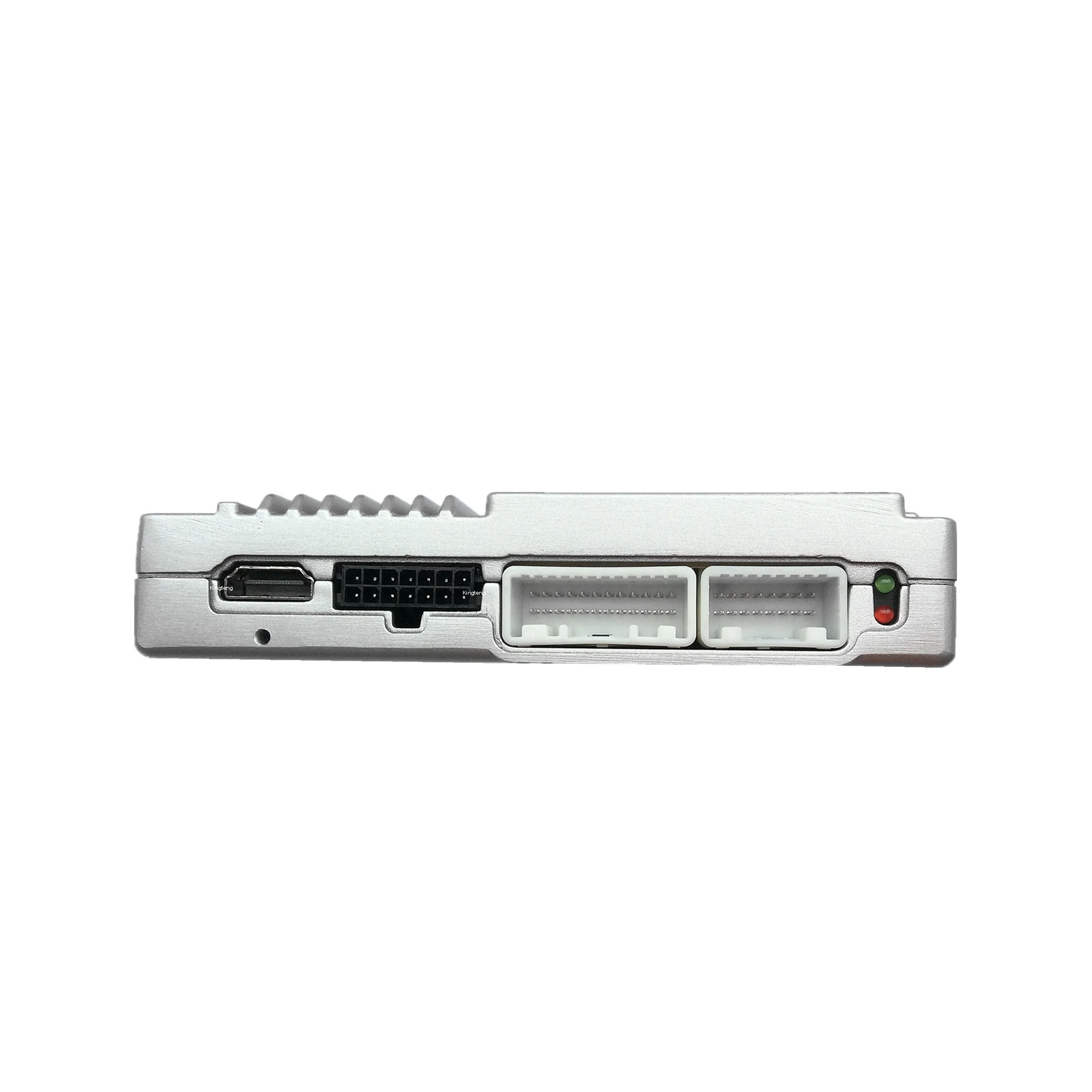

5. 360 Bird View System Support VGA AHD CVBS Connector and Support Interface box with HDMI Port
6. Recorder Resolution: 1920x1080P
7. Support Full-automatic calibration, seamless calibrate, no blind spot
8. 4 Way Video Recording And Playback, AVI Video File.
9. Parking monitoring, can set 2-24 hours
10. circular recording, new file automatically cover old file after U Disk memory full.
11. Support some of car type original car intelligent parking assist system(IPAS)
12. Support U disk 16G-512G (3.0-3.5 flash, FAT32 format)
13.Real 3D AHD 720P Bird View system,base on your Android player or Car Monitor support 720P AHD channel,the effective will be very high clear,the remote control different (see our attached photos )
5. 360 Bird View System Support VGA AHD CVBS Connector and Support Interface box with HDMI Port
6. Recorder Resolution: 1920x1080P
7. Support Full-automatic calibration, seamless calibrate, no blind spot
8. 4 Way Video Recording And Playback, AVI Video File.
9. Parking monitoring, can set 2-24 hours
10. circular recording, new file automatically cover old file after U Disk memory full.
11. Support some of car type original car intelligent parking assist system(IPAS)
12. Support U disk 16G-512G (3.0-3.5 flash, FAT32 format)
13.Real 3D AHD 720P Bird View system,base on your Android player or Car Monitor support 720P AHD channel,the effective will be very high clear,the remote control different (see our attached photos )
14.Arbitrary and dynamic 3D mode view angle switching for better surrounding environment observation
15.If you need interface box work with car factory screen monitor,our Interface box most support VGA Channel Input,work with our 360degree bird view dvr camera system very high clear photo,and easy install,no need connecting left/right turn lights trigger line,reversing trigger line and RCA connectors,etc,only need connecting our interface box VGA input wire to 360degree box VGA wire
16.OSD language: English
Specifications:
Effective Pixels:1920(H)*1080(V) Video
Video output:CVBS/VGA/HDMI
Vide Resolution: 720*480 1280*720
Video Standard: NTSC/PAL
Recording Channel: 4 channels (1-4 channels optional)
Records Playback: Available
Software Upgrade: Support U-disk upgrade
Working Voltage: 9-16V DC
Working Current: <=7mA
Working Temperature(Deg.C):-30+75(RH95% Max.)
Storage Temperature(Deg.C) :-40+85(RH95% Max.)
Effective Pixels:1920(H)*1080(V) Video
Video output:CVBS/VGA/HDMI
Vide Resolution: 720*480 1280*720
Video Standard: NTSC/PAL
Recording Channel: 4 channels (1-4 channels optional)
Records Playback: Available
Software Upgrade: Support U-disk upgrade
Working Voltage: 9-16V DC
Working Current: <=7mA
Working Temperature(Deg.C):-30+75(RH95% Max.)
Storage Temperature(Deg.C) :-40+85(RH95% Max.)
Main Function:

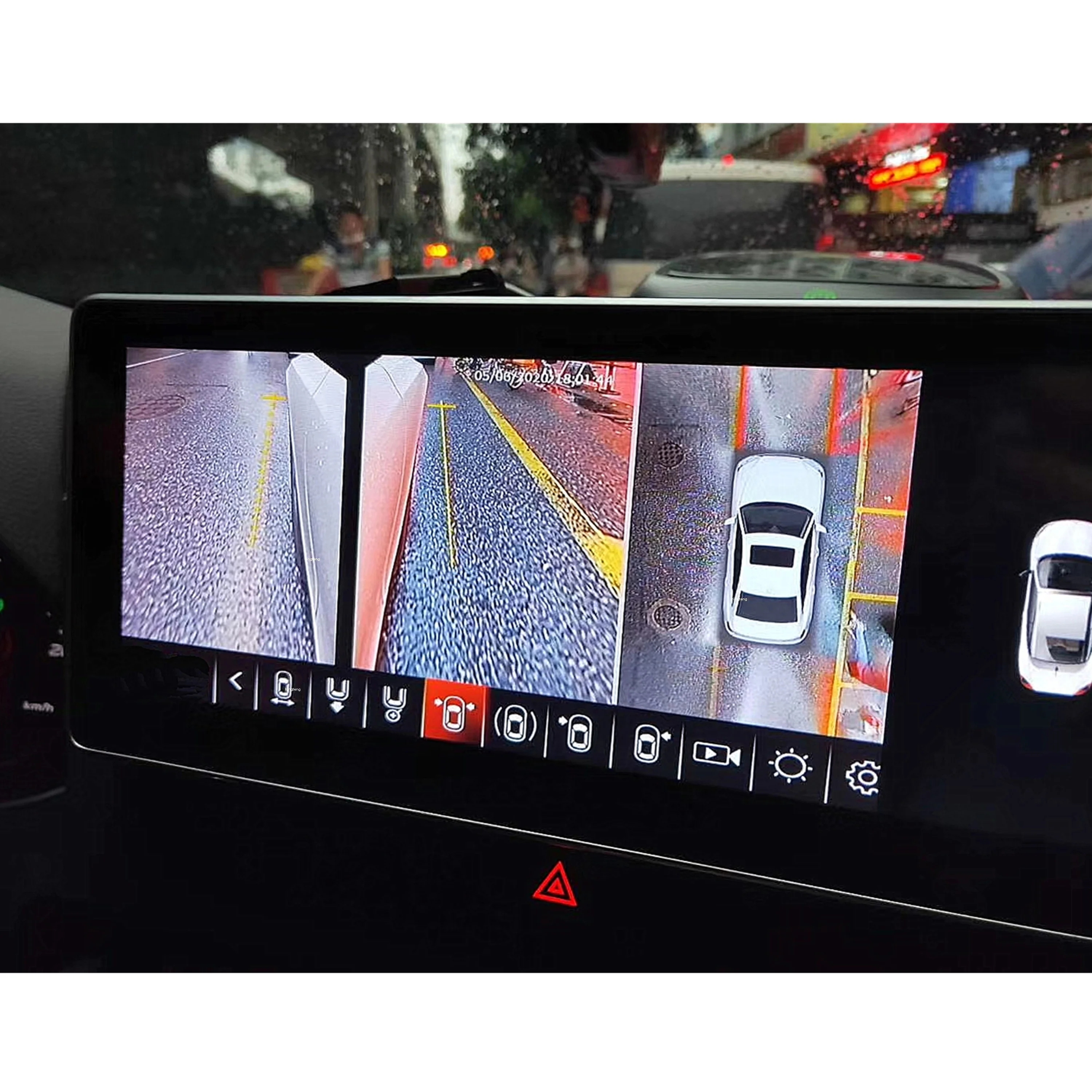

When Car Reverse, turn Left or Right, 360 system trigger by lamp signal, car screen will automatically switch to Back, Left, Right view, then show Front view after trigger.With Parking monitoring function,and DVR recorder
How to open 360 bird view:
1. Press remote control
2. Double press car Hazard emergency light button
3. Trigger by lamp signal
How to 360 Camera 3D Calibrate：
Buy below calibration cloth (2PCS U type cloth(the cloth have distance for 0.8M,1.0M,1.2M,1.4M,1.6M,1.8M,2.0M,2.3M,you can choose the distance according to your demand) and Horizontal cloth) and you can finish calibration in 10 second so easy and simple(calibrating,please wait about 10 seconds,after calibration finish will be automatic start the car 360 dvr box ).
1. Press remote control
2. Double press car Hazard emergency light button
3. Trigger by lamp signal
How to 360 Camera 3D Calibrate：
Buy below calibration cloth (2PCS U type cloth(the cloth have distance for 0.8M,1.0M,1.2M,1.4M,1.6M,1.8M,2.0M,2.3M,you can choose the distance according to your demand) and Horizontal cloth) and you can finish calibration in 10 second so easy and simple(calibrating,please wait about 10 seconds,after calibration finish will be automatic start the car 360 dvr box ).
Applicable Car models Color(our video have color setting and choose) and IPAS for following Cars nowdays,we can make the car type according to your demand car type if you can order 10sets per time,
For Audi A6L
For Honda Accord
For Toyota Avalon
For Mercedes Benz E Class
For Ford Exploer
For Buick GLE
For Toyota Highlander
For Honda Jade
For Volkswagen Passat
For Toyota prado
For Audi Q7
For Volkswagen Touareg
For Cadillac XT5
For Honda Accord
For Toyota Avalon
For Mercedes Benz E Class
For Ford Exploer
For Buick GLE
For Toyota Highlander
For Honda Jade
For Volkswagen Passat
For Toyota prado
For Audi Q7
For Volkswagen Touareg
For Cadillac XT5
Attention Before Ordering
1. 360 Camera Bird view have 2D/3D/Super 3D AHD720P/AHD1080P Choose,standard price quoted for Super 3D AHD720P
2.Buy 10sets give 1pcs 3D calibration cloth,not include shipping cost
3.All product Video for Super 3D AHD720P
4.Price quoted Standard with 32G U disk card(the memory continue recording about100 hours)
5.Standard we use for AHD Sony 225 sensor,if use other sensor can discuss before order
Company Profile
We are the professional manufacturer of car rearview camera security system.We only produce and sell high level products .All our products need to serious test and must do 100% test before shipment .More than 12years factory for car rearview security system, and our factory have more than 200employees and more than 30engineers,we always honest and trust do business with all overseas. Welcome to visit our factory and face on face do business. OEM/ODM/Custom order Welcome.
Our Advantages
1.100% Factory,have more than 20engineers for R&D department
2.Offer OEM/ODM/Custom order
3.More than 10 years of export experience
4.Every month put new products on market
Why Choose Us
1.On time delivery
2.After shipping goods,we track the goods till our clients receive it
3.Within 24hours answer clients question for products installation
4.High quality products with competitive price most help our clients win more and more fastidious clients
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
