Use gas type: LPG
(Liquid Petroleum Gas)Gas pressure (LPG): 2800 Pa
Heat output power: 32 KW Hot water output: 16 L/min
Rubber Gas Hose(Outer diameter): 20 mm (0.79 inch)
Suitable Water Pressure: Min.: 0.02 MPa Max.: 0.8 MPa
Starting Pressure: 0.015 MPa
Thermal efficiency: ≥80.8%
Water Pipeline Specification
Cold water pipeline: Short pipeline equipped or G1/2" steel tube
Warm water pipeline: Long pipeline equipped or G1/2" steel tube
Smoke Exhaust Pipe Output Diameter: 9 cm (3.54 inch) (Smoke exhaust pipe not included )
Exhaust way: Open & Force flue exhaust type
Discharge ways: Flue automatic gas discharge
Fire catching ways: Electricity pulse automatic fire catching
Ignition mode: Automatic electrical pulse ignition by two qualified 1.5V batteries (No included batteries)

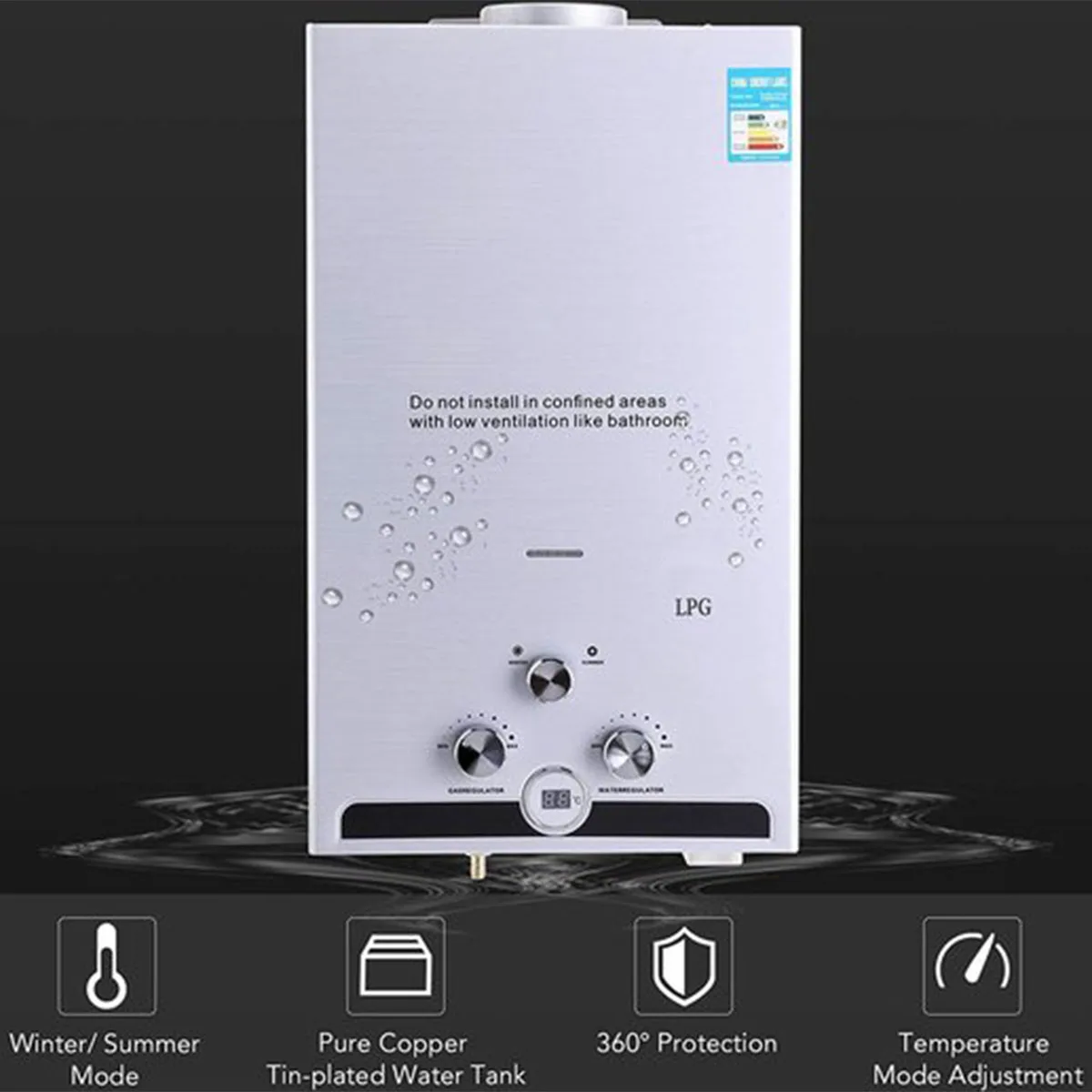

Real Life Photo
