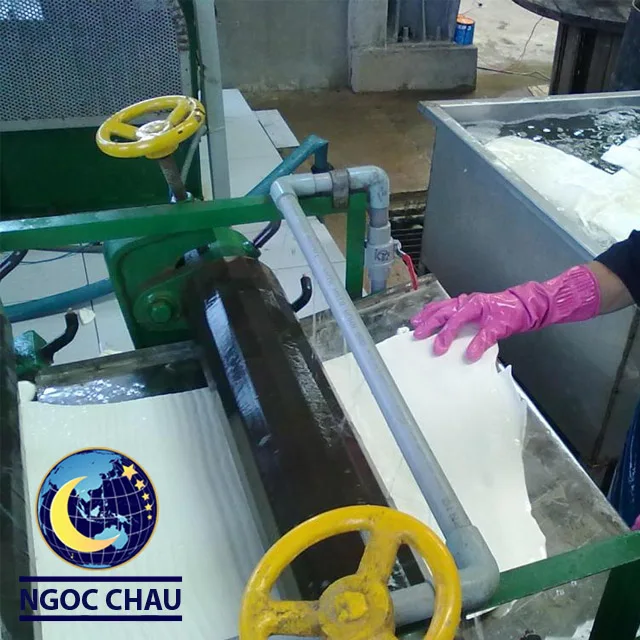

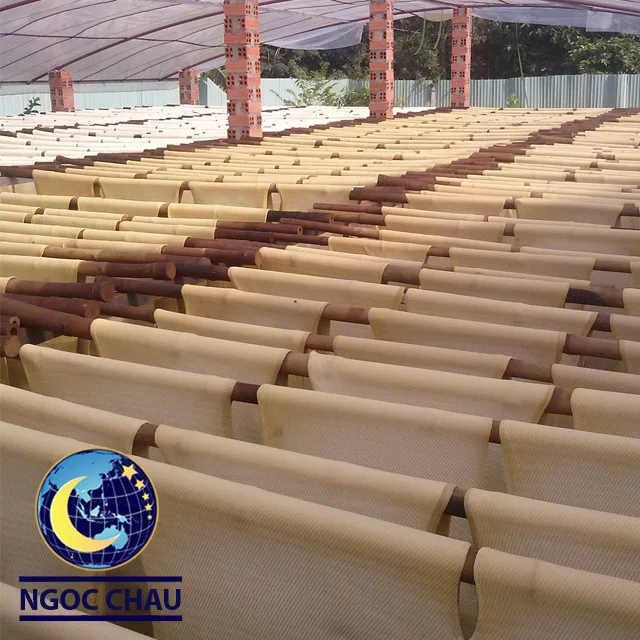

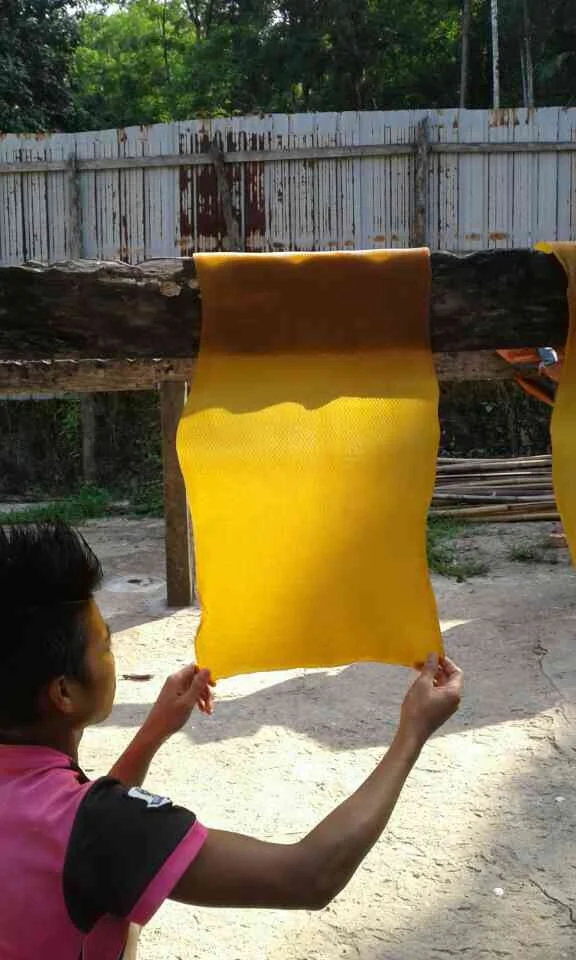

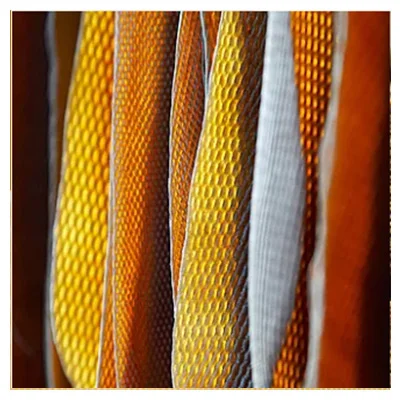

- Ribbed Smoked Sheets Grade 1 refers to Ribbed Smoked Sheets, produced from natural rubber latex as ribbed sheets, by coagulation with acids andsheeting,properly air dried and smoked, and visually graded.
- Ribbed smoked sheets1 (RSS1) are graded based on visual assessment of quality. The International Rubber Quality and PackingConference (IRQPC) have specified the grade descriptions, to establish acceptable grades for commercial usage.
Property | Index | Standard |
1. Dirt (retained on 45µ aperture (%wt) | 0.029 | TCVN 6089-2004 (ISO 249: 1995) |
2. Ash (%Wt) | 0.240 | TCVN 6087:2010 (ISO 247: 1990) |
3. Volatile matter (% Wt) | 0.44 | TCVN 6088: 2010 (ISO 248: 1991) |
4. Nitrogen (% Wt) | 0.45 | TCVN 6091:2004 (ISO 1656: 1996) |
5. Initial wallace plasticity (Po) | 49.1 | TCVN 8493:2010 |
6. PRI (P30/Po)x100 | 85.1 | TCVN 8494:2010 |
7. Rheometric cure (160oC, 1o arc 100 rpm ACS 1) |
| TCVN 6094:2010 |
-Torque Min (dNm) | 6.12 |
|
-Torque Max(dNm) | 22.42 |
|
8. Tensile stress strain properties |
| TCVN 4509:2006 |
Tensile strength at break (Mpa) | 17.84 |
|
Stress at module 100 (Mpa) | 0.67 |
|
Stress at module 300 (Mpa) | 1.38 |
|
9. Elongation at break | 800 |
|
Oxidized spots or streaks, weak, heated, under cured, over-smoked, opaque and burnt sheets are not permissible in this grade. The rubber must be dry, clean, strong, sound and evenly smoked, and free from blemishes, specks, resinous matter (rust), blisters, sand, dirty packing and any other foreign matter, except slight specks. Small pinhead bubbles, if scattered, will not be objected to.

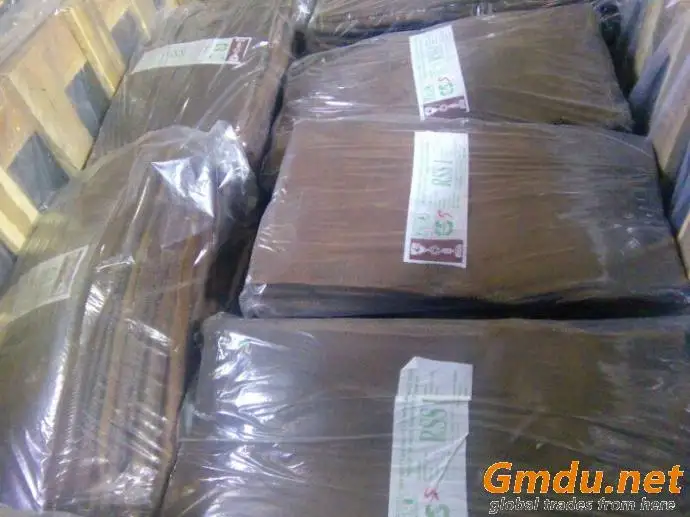

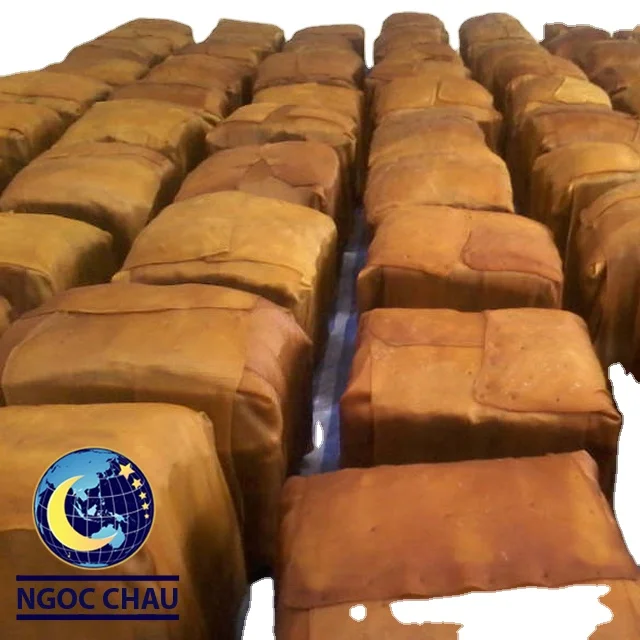

Ribbed Smoked Sheets Grade 1 is packed carefuly in bale.
33.33 kg/ bales, 36 bales/1.2MTs/wooden pallet, 16 pallets/20.16MTs.container 20DC

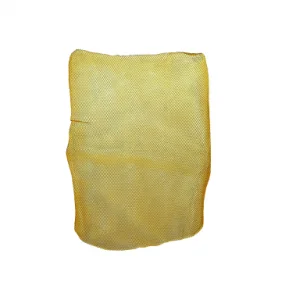

Bale Packaging Normal 0.03 mm PE bag with melting temperature under 109oC.
Thick (0.13 mm) PE bag
Due to characteristic conditions and manufacturing method, RSS rubber is widely used in engineerings such as

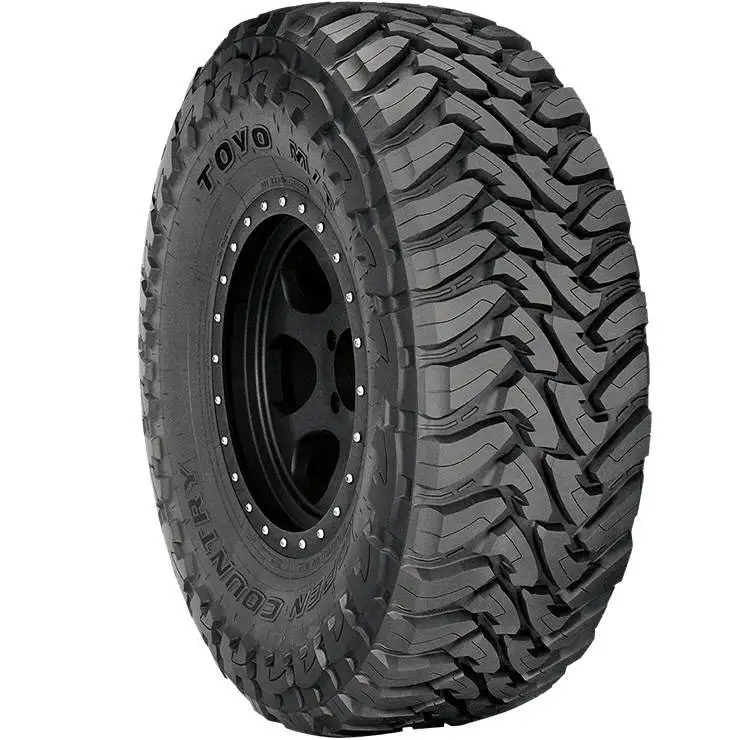

manufacturing tire surface; RSS rubber is formed into sheets so the rubber is of high tensile force and less aging than granulated rubber. Therefore, this rubber is suitable for producing products which require high tear resistance, wear resistance and hardness.
