         china glass polishing machine





Function:





1.1 Complete the coarse grinding, accurate grinding, and polishing of straight-line hemline and corner angle, at a time with different size and thickness of flat glass.
1.2 When adjusting the thickness of the different processing, the pre-chamfering grinding head can be moved synchronously as fore beam.
1.3 Simple to operate and maintain.
1.4 An ideal for the complete processing of glass.
1.5 With 9 spindles, PLC controller if needed.





Technical Parameters:





1. Processing glass thickness:	3~28mm
2. Min. size of glass:	120mmX120mm
3. Processing speed:	1.0~5.0 m/min
4. Installed power:	18.5KW
5. Occupation:	6900×1100mm
6. The dimension of the main machine:	3900×900×1500mm
7.Weight:	3200KGS









  Features





1.This machine is suitable for processing straight-line edge & 45°arrises of glass sheet with various size and thickness.



2. The main base is made of cast iron.



3.Glass thicknesses is adjusted by a servomotor and showed on PLC



4. A special design of the in-feed section for controlling the desired amount of glass removal without adjusting



each spindle individually.



5. Independent felt wheel and the cerium water recirculation system make the flat edge more shining.



6.Input and output conveyor adopt timing belt which can improve the transmission precision.



7.It is the first choice for processing the glass of wall and furniture .








Payment and Shipment:







Payment:



Delivery Time: During 10-40 days after we receive your first payment.

Telex Transfer (T/T), 30% be paid after confirming the order and the rest 70% is effected while delivering the goods.



Package: Each PC in wooden cases.



Port of Loading: Qingdao, China





Shipment: Usually by sea,  the machine is dismountable, so it can be packed in a small container.

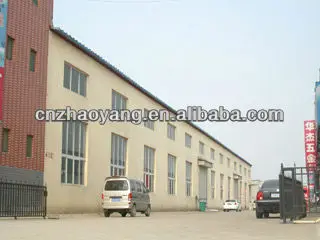

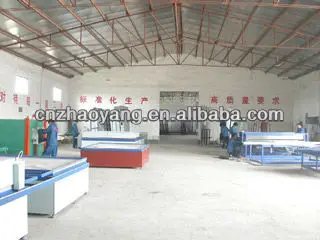

Our factory:
