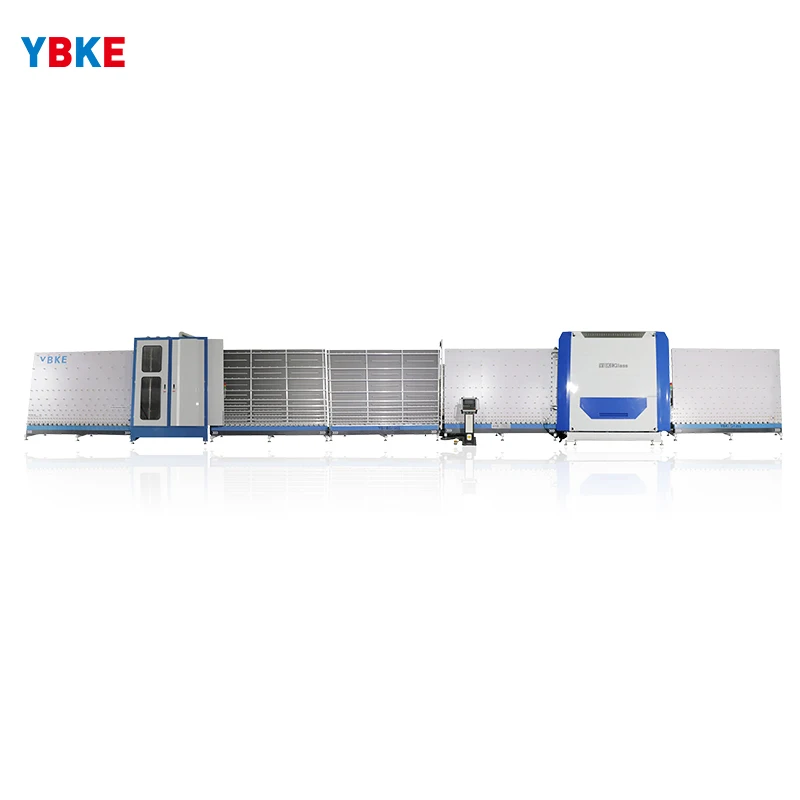

YB-LINE-2500 Automatic Insulating glass production line with online gas filling

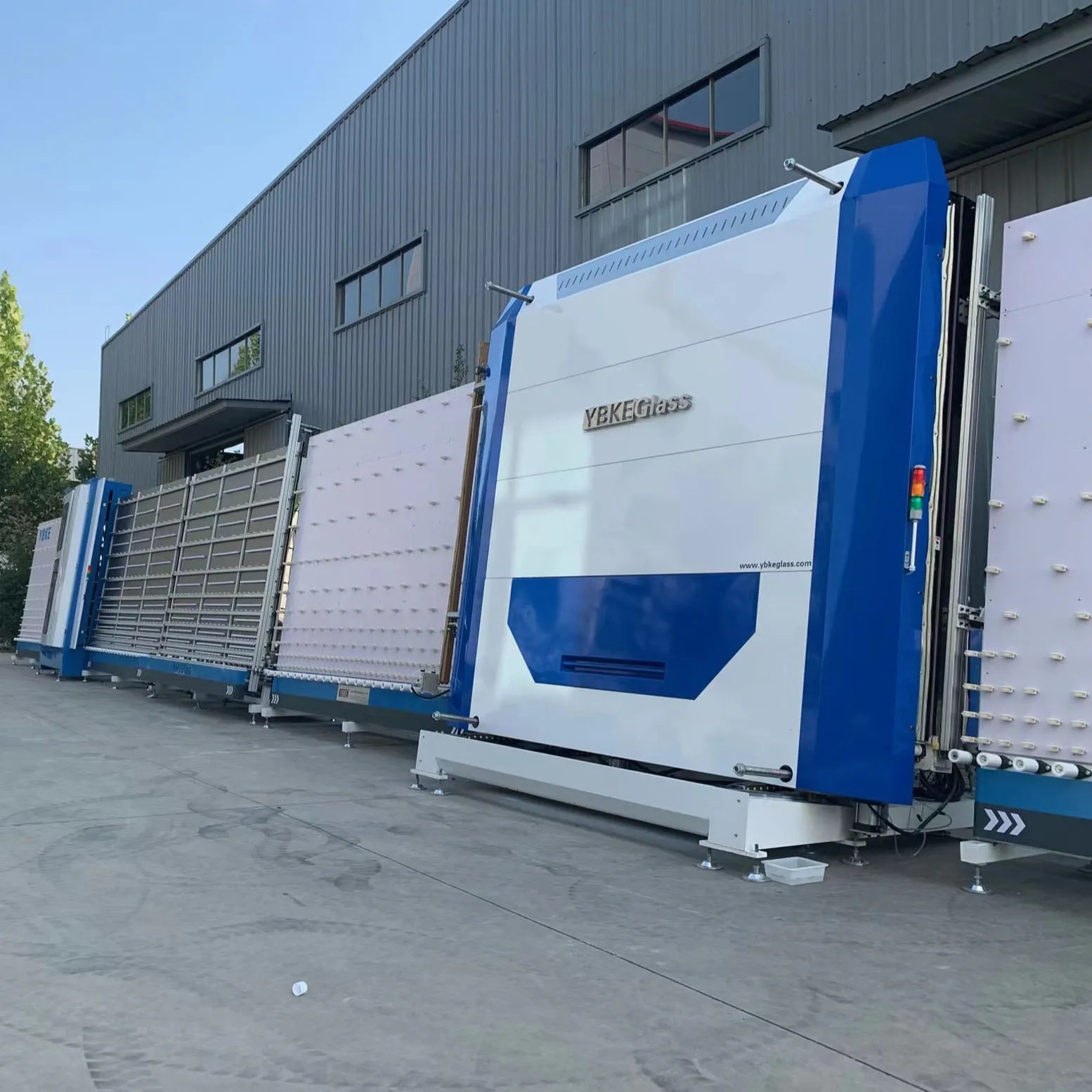

Product display
1、 Transmission wheel: The special design structure makes transmission wheel more durable (making the consumables as durable as possible)
3、 The back plate is made of special material, durable, good moisture resistance (made waterproof test)
4、 The large frame uses 50mm × 100mm square steel tube, the equipment is more stable, enhance the stability of equipment operation
5、The whole cleaning section are made of stainless steel, built-in 3 pairs of brushes, 6 pairs of rubber roller design, a motor independently drives a brush, and all use frequency conversion,
flexible and free to adjust the brush speed, cleaning coating film, better performance in LOW-E insulating glass.
6、 The upper part of the cleaning box is connected by a bevel gear, which has stable performance and long service life.
7、 All air knifes are made of 304 stainless steel, which change and adjust according to the size of the glass.
8、 The gear driven bellows runs more stable and faster cleaning speed during processing small glass.
9、 The light tubes are distributed reasonably, segmented control, better detection of glass cleanliness
10、The aluminum spacer positioning adopts unique design, accurate positioning, reduced labor, automatically accurate detection of glass height and thickness to provide accurate data for in- panel inflation.
11、External glass lamination speed is fast and it can do three glass and two chambers , it runs stable and assures safety of man-machine with unique weight balancing system when make big glass size.
12、All the plate press opening part adapts ball screw. The opening and closing part runs more stable and smooth with servo system and speed reducer with straight and rigid connection.
3、 The back plate is made of special material, durable, good moisture resistance (made waterproof test)
4、 The large frame uses 50mm × 100mm square steel tube, the equipment is more stable, enhance the stability of equipment operation
5、The whole cleaning section are made of stainless steel, built-in 3 pairs of brushes, 6 pairs of rubber roller design, a motor independently drives a brush, and all use frequency conversion,
flexible and free to adjust the brush speed, cleaning coating film, better performance in LOW-E insulating glass.
6、 The upper part of the cleaning box is connected by a bevel gear, which has stable performance and long service life.
7、 All air knifes are made of 304 stainless steel, which change and adjust according to the size of the glass.
8、 The gear driven bellows runs more stable and faster cleaning speed during processing small glass.
9、 The light tubes are distributed reasonably, segmented control, better detection of glass cleanliness
10、The aluminum spacer positioning adopts unique design, accurate positioning, reduced labor, automatically accurate detection of glass height and thickness to provide accurate data for in- panel inflation.
11、External glass lamination speed is fast and it can do three glass and two chambers , it runs stable and assures safety of man-machine with unique weight balancing system when make big glass size.
12、All the plate press opening part adapts ball screw. The opening and closing part runs more stable and smooth with servo system and speed reducer with straight and rigid connection.
A. Low-voltage electrical appliances adopt the French Schneider brand
B. Photoelectric switch adopts French Schneider brand
C.The main electrical switch is ABB Switzerland
B. Photoelectric switch adopts French Schneider brand
C.The main electrical switch is ABB Switzerland
A. The inverter adopts theJapan panasonic brand
B.PLC adopts theJapan panasonic brand
A. The detection section is used to facilitate the detection of the cleanliness of the hollow glass product.
B. Convenient positioning of aluminum spacers.
B. Convenient positioning of aluminum spacers.
Specification
item | value |
Warranty of core components | 1 Year |
Core Components | PLC |
Condition | New |
Brand Name | YBKE |
Dimension(L*W*H) | 23000*2500*3500mm |
Weight | 5600kg |
Warranty | 1 Year |
Power Supply | 380V/50HZ 42KW |
Insulating Glass Thickness | 10-54mm |
Washing Glass Thickness | 3-21mm |
Transmission Glass Speed | 45m/min |
Washing Glass Speed | 0-15m/min |
Compressed Air | 0.8m³/min |
Max Glass Size | 2500 mm *3500 mm |
Min Glass Size | 350 mm * 450 mm |
Air Pressure | 1Mpa |
Company Profile
Advantages
Top quality and best price we have strict quality control system,so the high quality and best price will make great profit for you
Professional service your design,your brand,your ideas will be made within our cooperation to satisfy your need
Quick response if we receive your any requests about our products or company, we will give you reply with 10 hours
Friendly relationship we believe good relationship always relate great service,and good suggestions will be appreciated
Packing & Delivery
Before payment
* Free contact for the most suitable machine
* Free professional design for each customer especially.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
YBKE always looking for long term cooperaion, not one time deal.
Our Customer
Related Product
Our Certificate
FAQ
1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.
2.After an order is placed, when to deliver?
♦ Generally about 15 days, If we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;
♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.
♦ And all machines meet ISO and CE certification.
5. We don’t know the machine operation,what should we do?
♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
