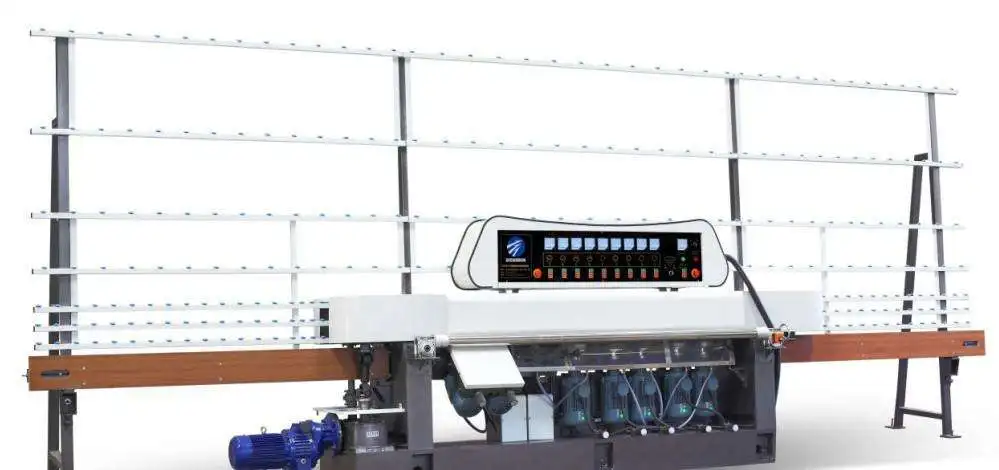

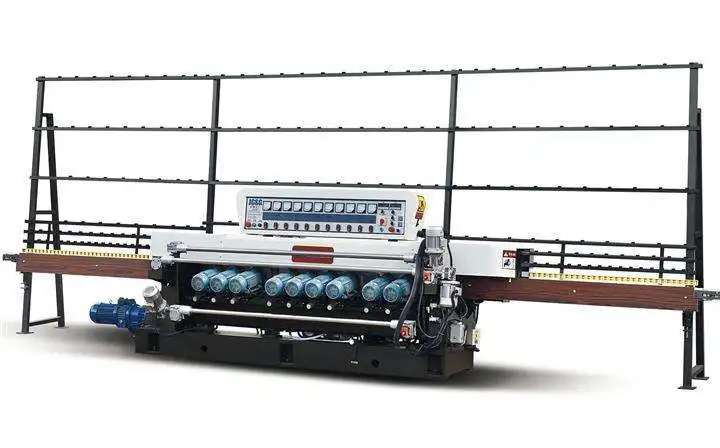

 China Supplier Rectilinear Edging Machine for Glass



Rectilinear Edging Machine for Glass is mainly suitable for furniture glass and architectural glass and process glass processing, is one of the important processing equipment in deep processing of glass. Mainly used for ordinary flat glass bottom edge grinding and chamfering, polishing. Generally, there are manual, digital control and the PLC computer control for the machine.



1.1 Complete the coarse grinding, accurate grinding, and polishing of straight-line  hemline  and  corner angle,  at a time with different size and thickness of flat glass.

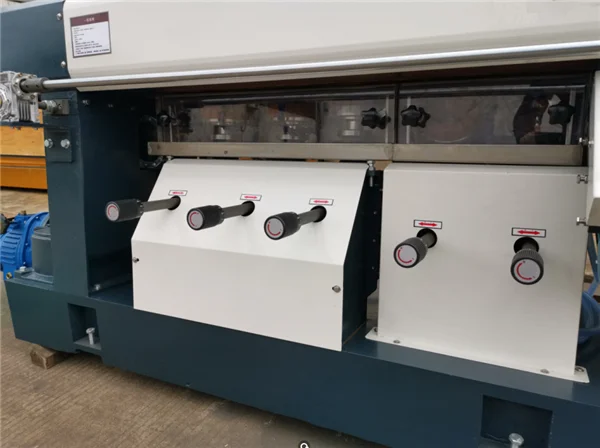

1.2 When adjusting the thickness of the different processing, the pre-chamfering  grinding head  can be  moved synchronously as fore beam.

1.3 Simple to operate and maintain.

1.4 An ideal for the complete processing of glass.

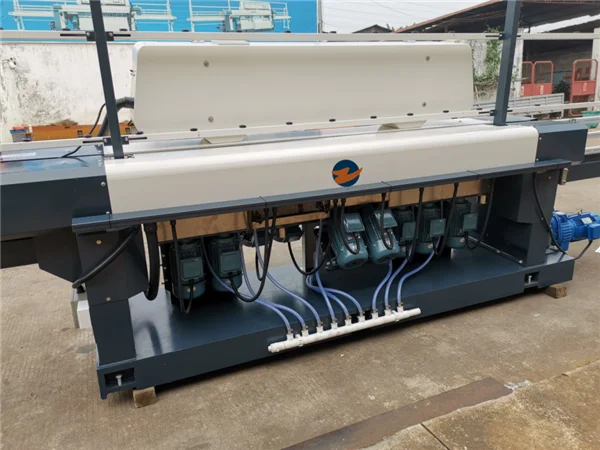

1.5 With 9 spindles, PLC controller if needed.





Technical Parameters:



1. Processing glass thickness	3~28mm
2. Min. size of glass	120mmX120mm
3. Processing speed	1.0~5.0 m/min
4. Installed power	18.5KW
5. Occupation	6900×1100mm
6. The dimension of the main machine	3900×900×1500mm
7.Weight	3200KGS



  Features:

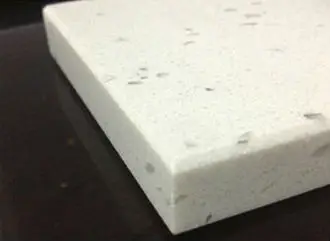

1. Rectilinear Edging Machine for Glass is suitable for processing straight-line  edge & 45° arrises of glass  sheet with various  size  and thickness.



2. The main base is made of cast iron.

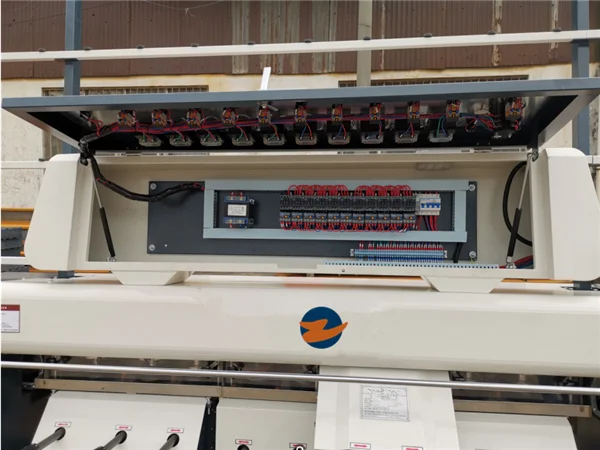

3.Glass thicknesses is adjusted by a servomotor and showed on PLC



4. A special design of the in-feed section for controlling the desired amount of glass removal without adjusting



each spindle individually.

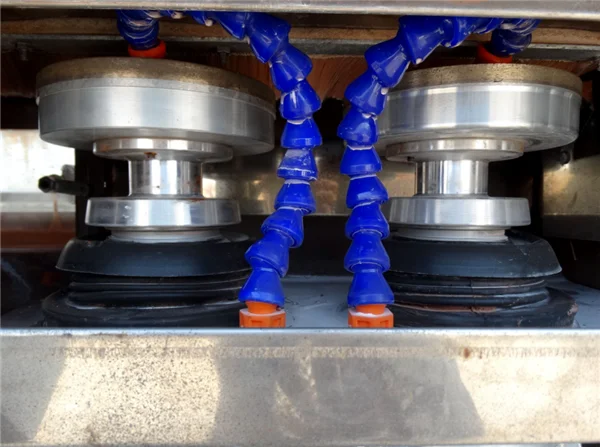

5. Independent felt wheel and the cerium water recirculation system make the flat edge more shining.

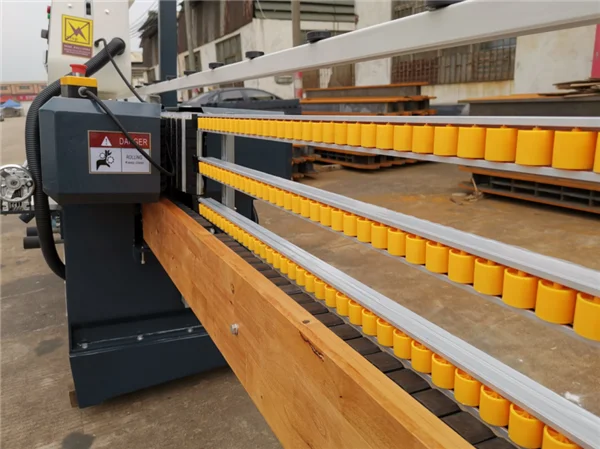

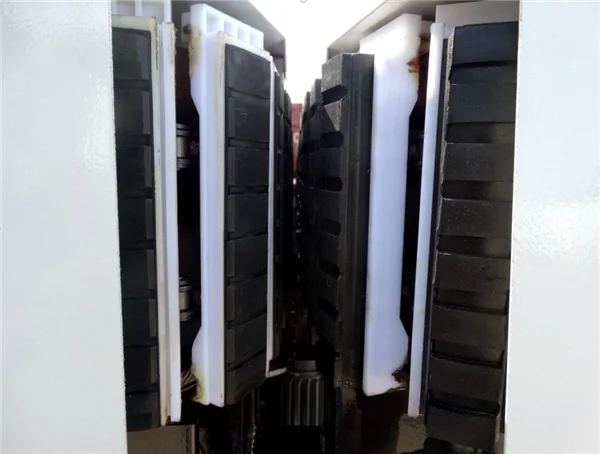

6.Input and output conveyor adopt timing belt which can improve the transmission precision.



7. Rectilinear Edging Machine for Glass is the first choice for processing the glass of wall and furniture .





Payment and Shipment:



Payment:



Delivery Time: During 10-40 days after we receive your first payment.

Telex Transfer (T/T), 30% be paid after confirming the order and the rest 70% is effected while delivering the goods.

Package: Each PC in wooden cases.

Port of Loading: Qingdao, China



Shipment: Usually by sea, Rectilinear Edging Machine for Glass is dismountable, so it can be packed in a small container.
