E-ink Display 4 inch USB 416x240 SPI E ink Display for ESL
\t\t\t\t\t\t\t\t\tGeneral Description \t\t\t\t\t\t\t

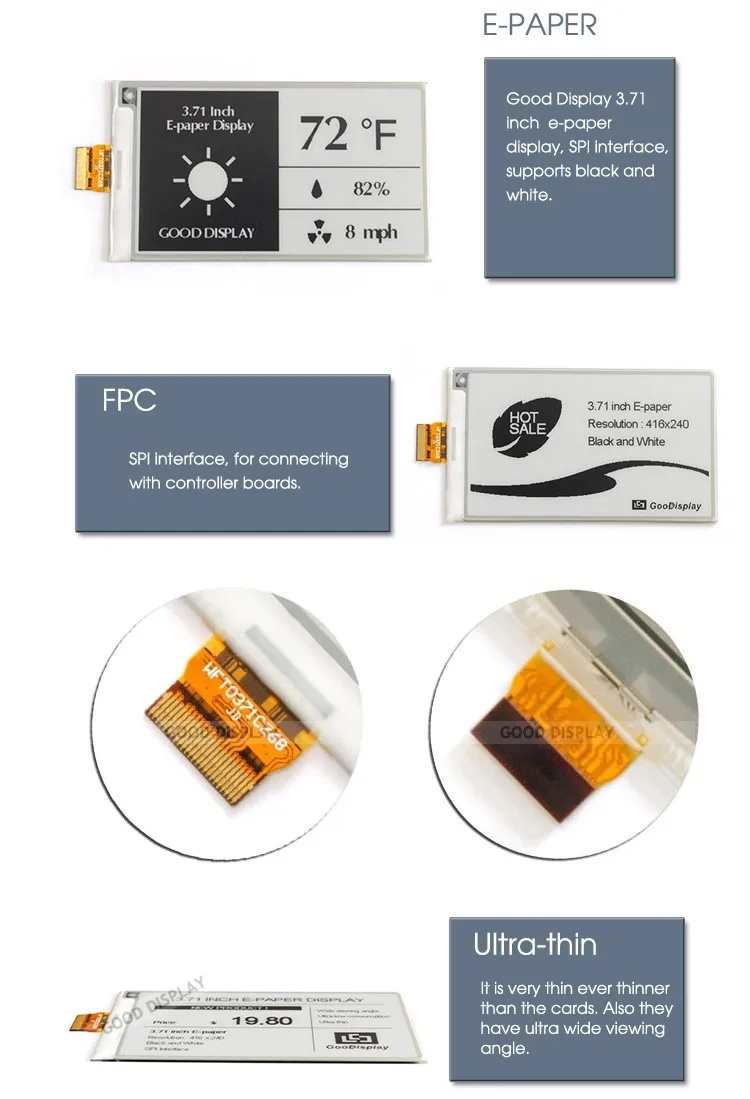

This is a E-ink Display 4 inch USB 416x240 E ink Display for ESL, 24 pins FPC connection, communicating via SPI interface. The refresh rate is 4s/frame. The I2C signal master interface to read built-in temperature sensor. Its IC is UC8171. We also have black-white-red for you to choose.
In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEW0371W7 is a very good choice for applications like shelf label, smart tags, smart home application, industrial instrument, smart cards and other related products.
If you need any electronic paper display accessories, such as touch panel, back light, electronic label shell, please contact us, we could provide the customized services for you.
If you need any electronic paper display accessories, such as touch panel, back light, electronic label shell, please contact us, we could provide the customized services for you.
What's included in the package
No. | Standard Accessory Name | Qty |
1 | E-ink Display 4 inch USB 416x240 SPI E ink Display for ESL | 1 |
2 | FPC Connector | 1 |
3 | Come with helpful development demo kit with resources and manual (Please contact our sales, we will send the you the documents by email, thanks) | 1 |
Main Parameters
Part Number | GDEW0371W7 |
Size | 3.71'' |
Type | Dot Matrix |
Resolution | 416x240(DPI:130) |

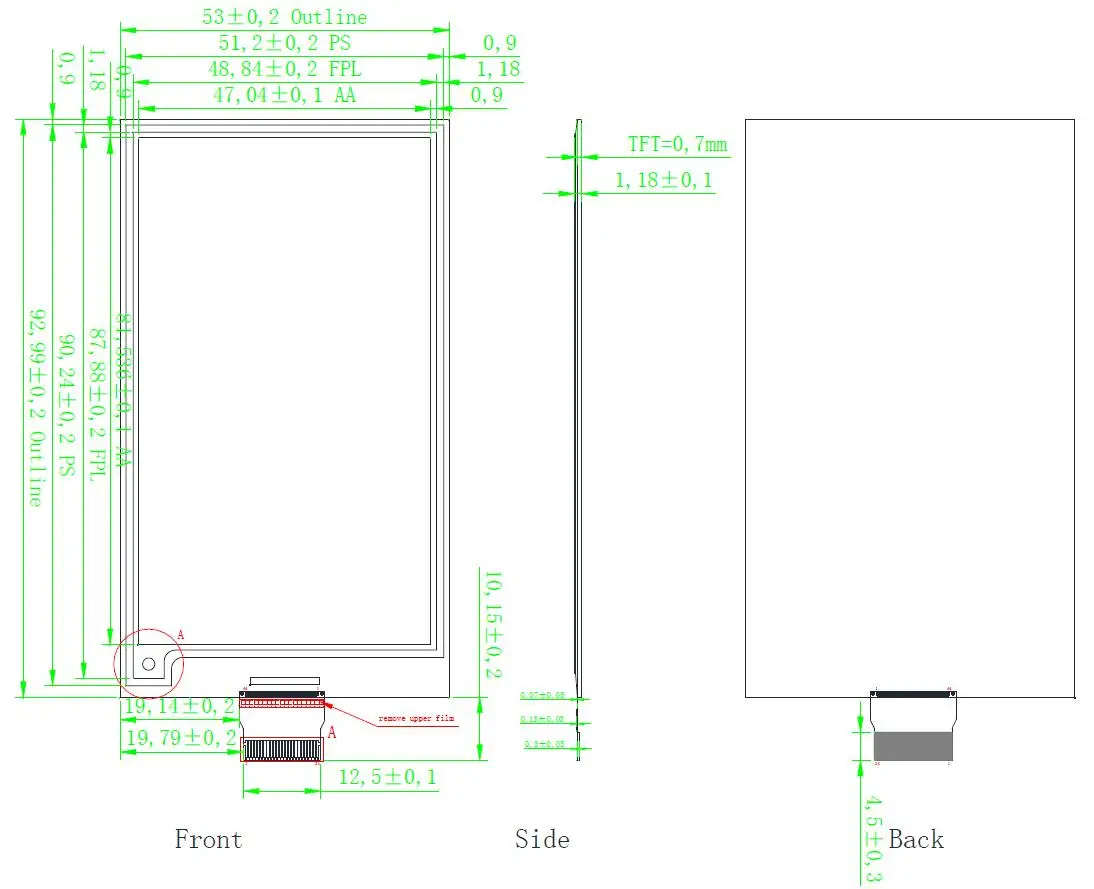

Outline Size(mm) | 92.99x53x1.18 |
Active Size(mm) | 81.536x47.04 |
Pixel Pitch(mm) | 0.196x0.196 |
Operating Temp. | 0℃~50℃ |
Storage Temp. | -25℃~+70℃ |
Connector | 24 Pin FPC |
Max Grayscale | 4 |
Color | SPI |
Refresh Time(s) | 4 |
Power Consumption(mW) | 26.4 |
Standby Power Consumption(mW) | 0.09 |
Particulars
\t\t\t\t\t\t\t\t\tOther Products \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tFeatures \t\t\t\t\t\t\t
● SPI Interface
● 416x240 Resolution
● The full refresh time is 4s/frame
● Color Optional. We also have black-white-red for you to choose
● 416x240 Resolution
● The full refresh time is 4s/frame
● Color Optional. We also have black-white-red for you to choose
About Us
Matched Demo Kit
We can provide you demo kit and technical support.
Please click the picture for more details.
*Notice that the above price does not include the Demo Kit.
Please click the picture for more details.
*Notice that the above price does not include the Demo Kit.
Development Kit for SPI interface dot matrix e- ink Display on STM32 Platform.
Development Kit for SPI interface dot matrix e- ink Display on Arduino platform.
Development Kit for SPI interface dot matrix e- ink Display on Raspberry Pi.Also it can driving our e-paper display with touch panel and frontlight.
The ESP8266 for EPD development kit supports Wi-Fi, users need to develop by themselves.
The ESP32-02 development kit supports Wi-Fi and Bluetooth, users need to develop by themselves.
