Products Descreption

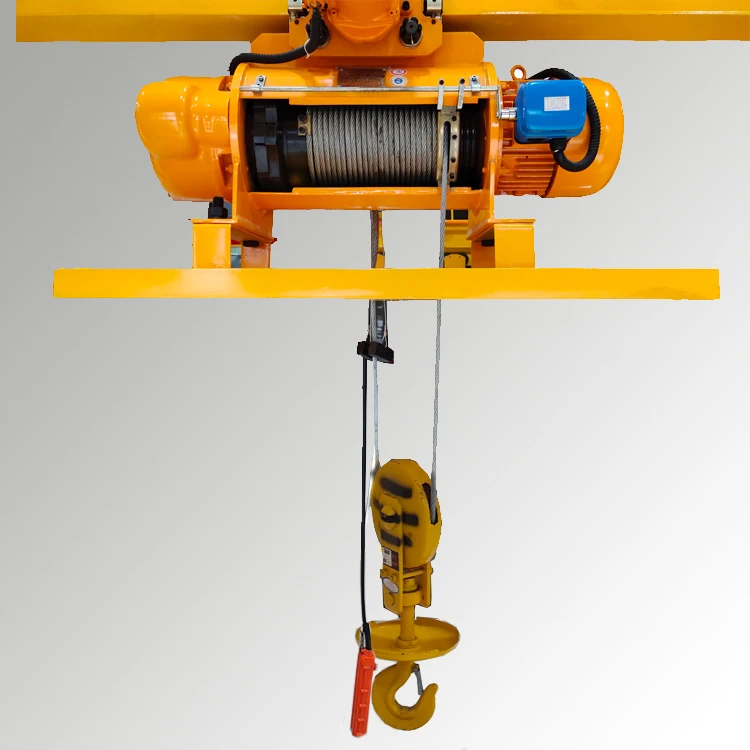

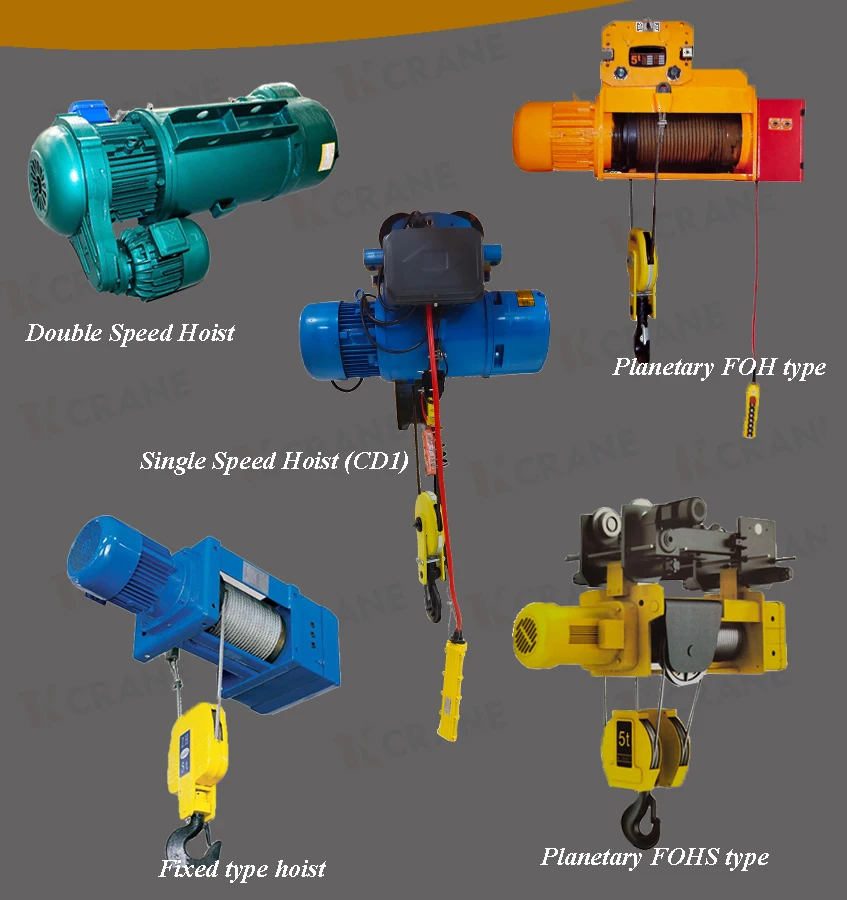

CD,MD Electric Wire rope Hoist is a small-sized lifting equipment, which can be mounted on single beam bridge crane and single beam gantry crane and jib crane. With Light weight, small size, compact structure, stable operation, etc. It can also be used as a winch.
It is widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions. CD Electric Wire rope Hoist has only one normal speed, which can satisfy normal application. MD Electric Wire rope Hoist provides two speeds: normal speed and low speed. At a low speed,it can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc.
It is widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions. CD Electric Wire rope Hoist has only one normal speed, which can satisfy normal application. MD Electric Wire rope Hoist provides two speeds: normal speed and low speed. At a low speed,it can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc.

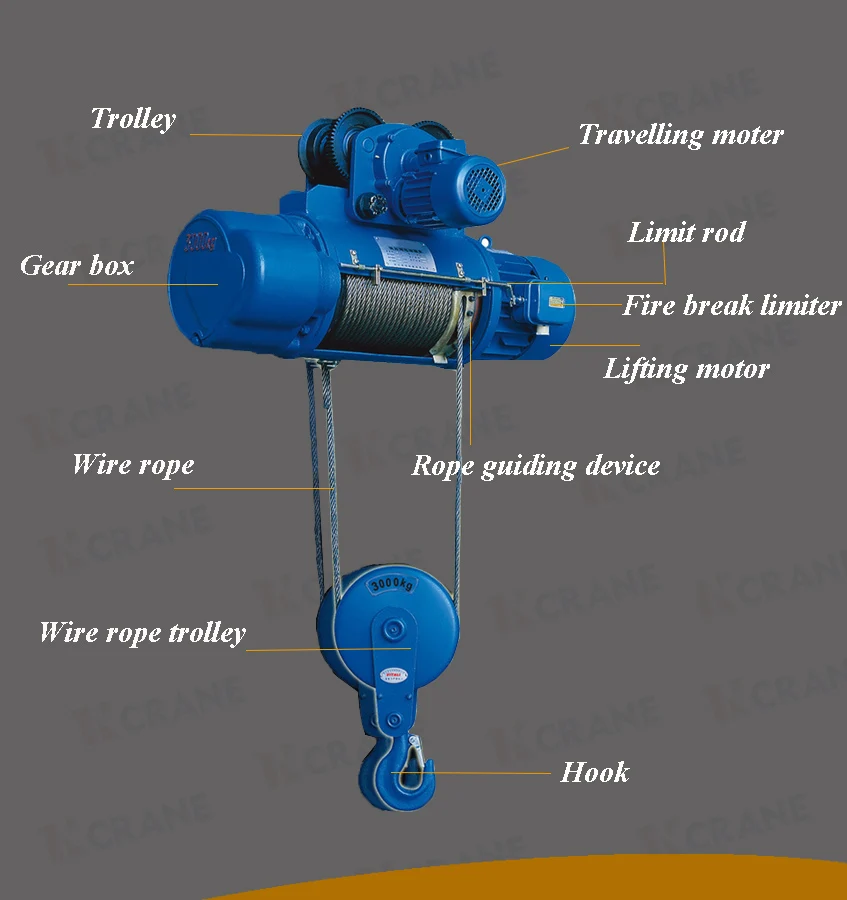

PRODUCTS SHOW
Pure Copper Motor
Hook
Wire Rope
Rope Guide Device
Limiter
Electrical Control Box
SPECIFICATION
Technical Parameters for CD1 Electric Wire Rope Hoist | ||||||||||||||||
Model | Unit | CD1-0.5T | CD1-1T | CD1-2T | CD1-3T | CD1-5T | CD1-10T | CD1-16T | ||||||||
Lifting capacity | Ton | 0.5 | 1 | 2 | 3 | 5 | 10 | 16 | ||||||||
Lifting speed | m/min | 8 | 8 | 8 | 8 | 8 | 7 | 3.5 | ||||||||
Lifting height | m | 6 / 9 / 12 | 6/9/12/18/24/30 | 9/12/18/24/30 | ||||||||||||
Running speed | m/min | 20 | 20 | 20 | 20 | 20 | 20 | 18 | ||||||||
Min. radius of curvature | m | 1.8 / 2 | 2 / 2.5 / 3.0 | 3.5 / 4 / 9 | ||||||||||||
Power supply | V | 380V 50Hz 3Phase | ||||||||||||||
Rail I-beam model | / | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-45c | 32b-63c | 45a-63c | ||||||||
Technical Parameters for MD1 Electric Wire Rope Hoist | ||||||||||||||||
Model | Unit | MD1-0.5T | MD1-1T | MD1-2T | MD1-3T | MD1-5T | MD1-10T | MD1-16T | ||||||||
Lifting capacity | Ton | 0.5 | 1 | 2 | 3 | 5 | 10 | 16 | ||||||||
Lifting speed | m/min | 0.8 / 8 | 0.7 / 7 | 0.35 / 3.5 | ||||||||||||
Lifting height | m | 6 / 9 / 12 | 6/9/12/18/24/30 | 9/12/18/24/30 | ||||||||||||
Running speed | m/min | 20 | 20 | 20 | 20 | 20 | 20 | 18 | ||||||||
Min. radius of curvature | m | 1.8 / 2 | 2 / 2.5 / 3.0 | 2 / 2.5 / 3.0 | 2 / 2.5 / 3.0 | 2 / 2.5 / 3.0 | 2 / 2.5 / 3.0 | 3.5 / 4 / 9 | ||||||||
Power supply | V | 380V 50Hz 3Phase | ||||||||||||||
Rail I-beam model | / | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-45c | 32b-63c | 45a-63c | ||||||||

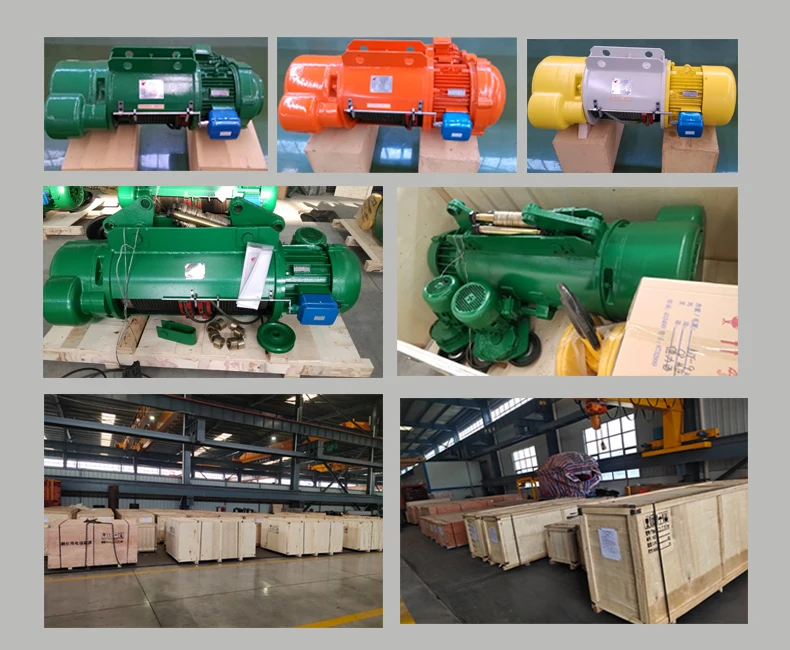

PRODUCTS STOCK
PACKING & SHIPPING
Our Services
1. 18Months warranty when products leave the factory, or 12 months warranty after installation and commissioning in addition to the human damage factors.
2. Two years spare-parts provided for better maintenance.
3. Professional technical staffs provide installation, commissioning and training services.
4. Delivery with English user manual, parts manual, product certification and other relevant certificates.
5. Technical advisory for any time.
2. Two years spare-parts provided for better maintenance.
3. Professional technical staffs provide installation, commissioning and training services.
4. Delivery with English user manual, parts manual, product certification and other relevant certificates.
5. Technical advisory for any time.

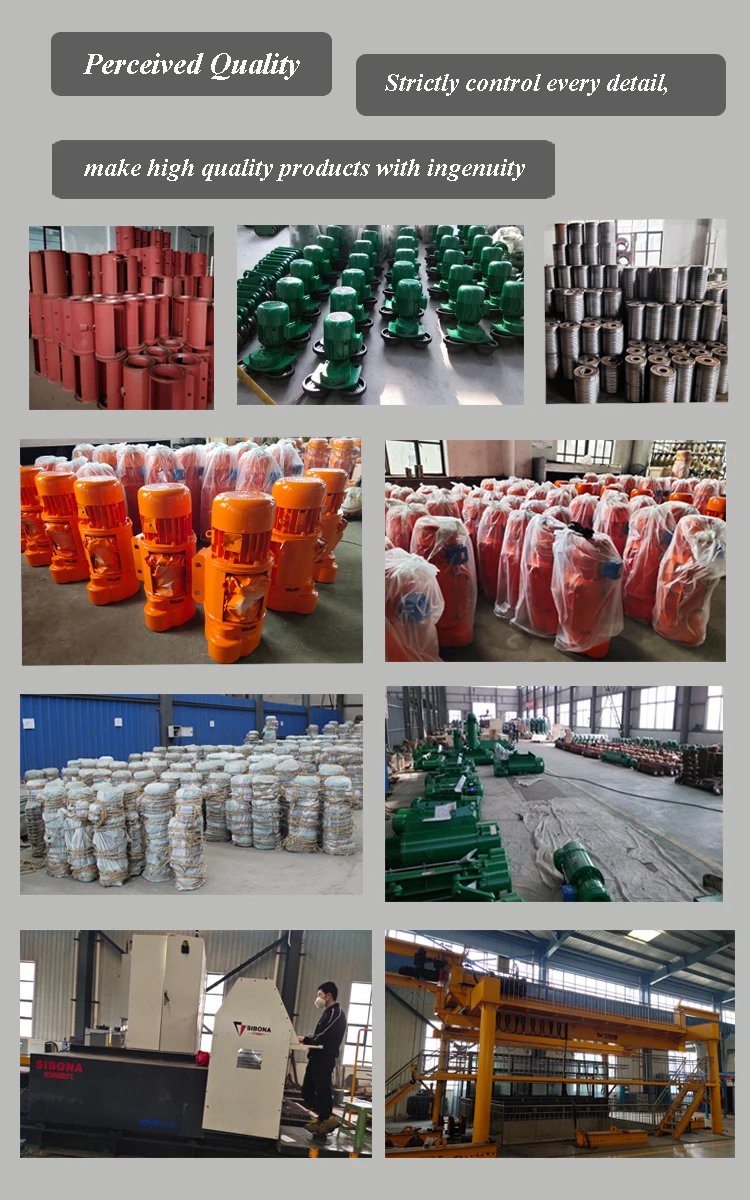

COMPANY EXHIBITION
