MiMA 1.5 ton-5 ton 4 wheel Electric Balance Forklift Truck with Lifting Height 6meters
Features
1. Maintenance free AC driving motor 2. The low gravity design provide good stablity. 3. With low engergy cost, it can meet the
common working time.
4. Three sets braking system: hand brake, foot brake, AC driving regenerative brake
5. It is comfortable with
big operate space
6. Hydraulic mechanical safety protection: fast cut off valve, lowering speed valve, locked tilting valve, overloading valve
7. Electric system safety protection: limited tilting speed function at high position, undervoltage protection function, relay
fuse assembly, natural cooling and fan cooling
common working time.
4. Three sets braking system: hand brake, foot brake, AC driving regenerative brake
5. It is comfortable with
big operate space
6. Hydraulic mechanical safety protection: fast cut off valve, lowering speed valve, locked tilting valve, overloading valve
7. Electric system safety protection: limited tilting speed function at high position, undervoltage protection function, relay
fuse assembly, natural cooling and fan cooling
Brand | MiMA | MiMA | MiMA | MiMA | MiMA | MiMA | |
Model | MK15 | MK20 | MK25 | MK30 | MK35 | MK40 | |
Power Type | Battery | Battery | Battery | Battery | Battery | Battery | |
Operation Type | Seated | Seated | Seated | Seated | Seated | Seated | |
Rated Capacity | Q(kg) | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 |
Load Center | C(mm) | 500 | 500 | 500 | 500 | 500 | 500 |
Lift height | h3(mm) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
Mast closed height | h1(mm) | 1995 | 1995 | 1995 | 2110 | 2110 | 2110 |
Max. mast extended height with load-backrest | h4(mm) | 4030 | 4030 | 4030 | 4256 | 4256 | 4256 |
Overall length | L1(mm) | 3205 | 3410 | 3415 | 3620 | 3770 | 3770 |
Overall width | b1(mm) | 1110 | 1160 | 1160 | 1200 | 1330 | 1330 |
Forks size | l/e/s(mm) | 1070/100/35 | 1070/100/40 | 1070/100/45 | 1070/125/45 | 1070/125/50 | 1070/125/50 |
Turning radius | Wa(mm) | 2000 | 2100 | 2100 | 2300 | 2450 | 2450 |
Driving speed(load/unload) | km/h | 10/12 | 10/12 | 10/12 | 10/12 | 10/12 | 10/12 |
Lifting speed(load/unload) | mm/s | 300/480 | 230/400 | 230/440 | 200/340 | 200/300 | 200/300 |
Lowering speed(load/unload) | mm/s | 380/360 | 420/480 | 390/480 | 300/460 | 300/460 | 300/460 |
Remarks:Above data is based on the lift height 3000mm
Option:
1. import brand battery,
2. lithium battery,
3. enclosed cabin ,
4. side shifter,
5. air conditioner,
6. suspension seat,
7. full AC system,
8. all kinds of attachment and customized solutions.
1.Are you factory or trading company?

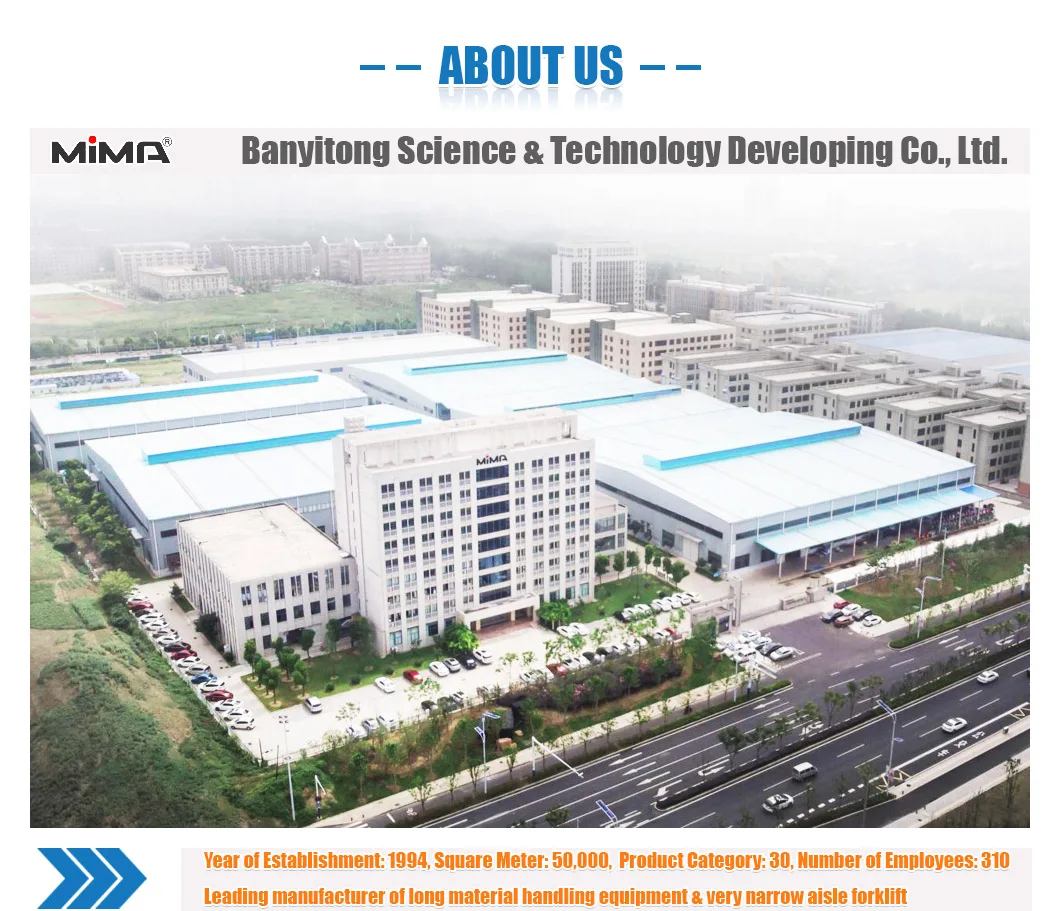

We are the factory which have been manufacture electric forklift for more than 20 years.
2.What is the delivery time?
Generally it is can delivery immediately if the goods are in stock. Or it is 15-30 days if the goods are out of stock.
3.What is the Payment?
TT(bank transfer), LC at sight or Alibaba , all will be accepted.
4.Is OEM & ODM available?
1). We can do the product according your design
2). We can provide customized solutions according your requirments.
5.Can you provide training for the customer?
Yeah. We can provide training for our customer.
6.What certification do you have?
Our company has passed ISO 9001:2008 and all of the forklift have CE certification.
7.How can I get the best price?
Price is the most concerning problem of every customer,if you want to know the price.We need to know your detailed requirements.
