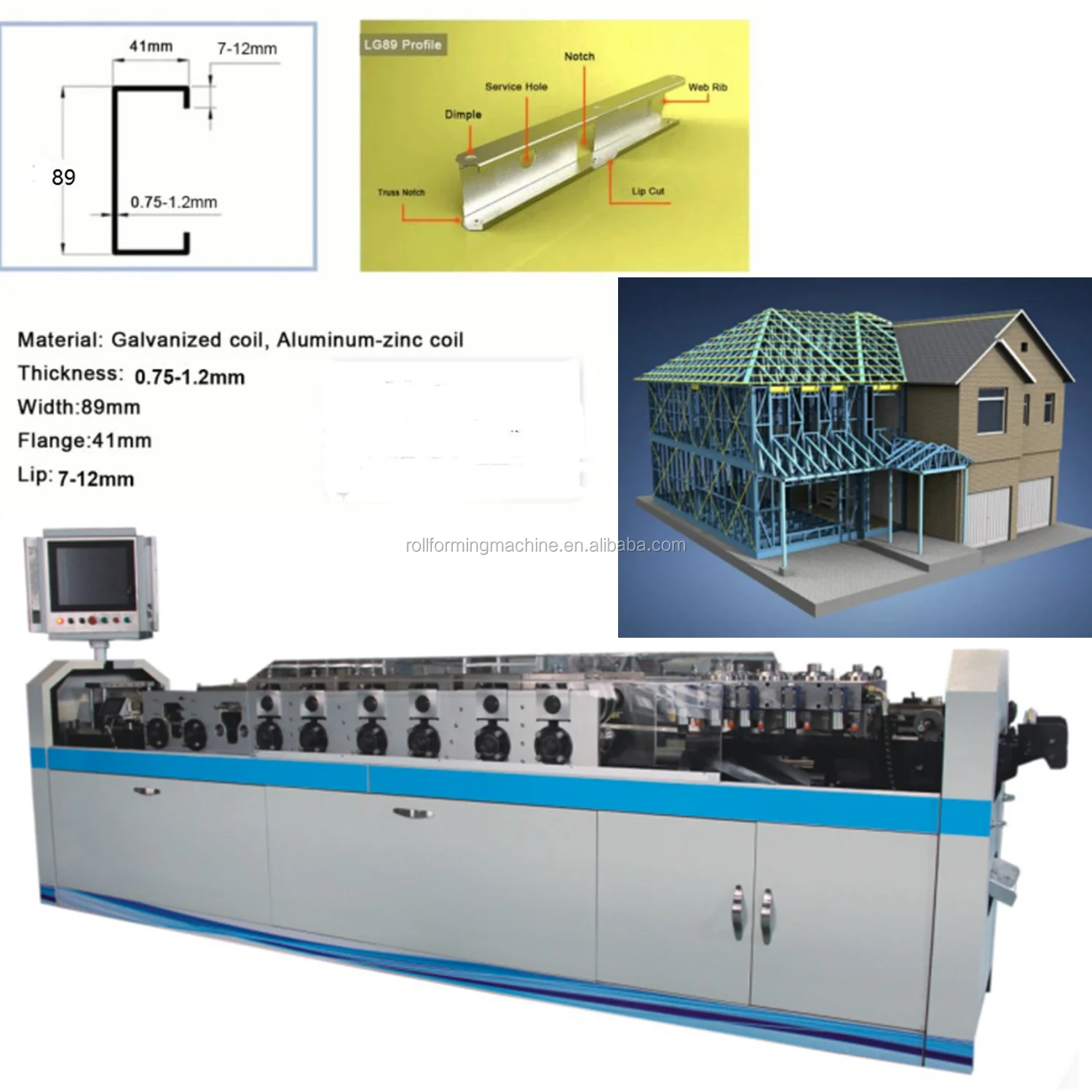

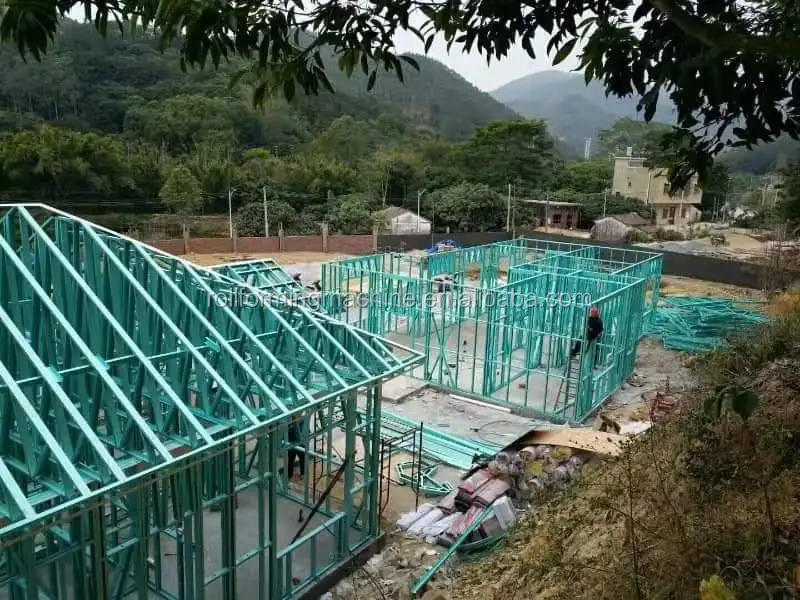

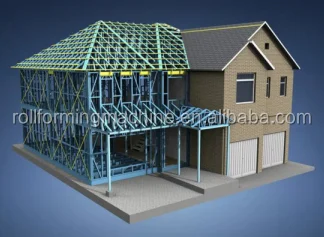

Машина для производства легких стальных домов

Light Gauge Steel House Frames

Roll Forming Machine

Model:ZDLGS

Size:89*41*10

Driving Method

Servo Motor

Specification

1

Main roll forming machine

Feeding device

With four guiding rollers

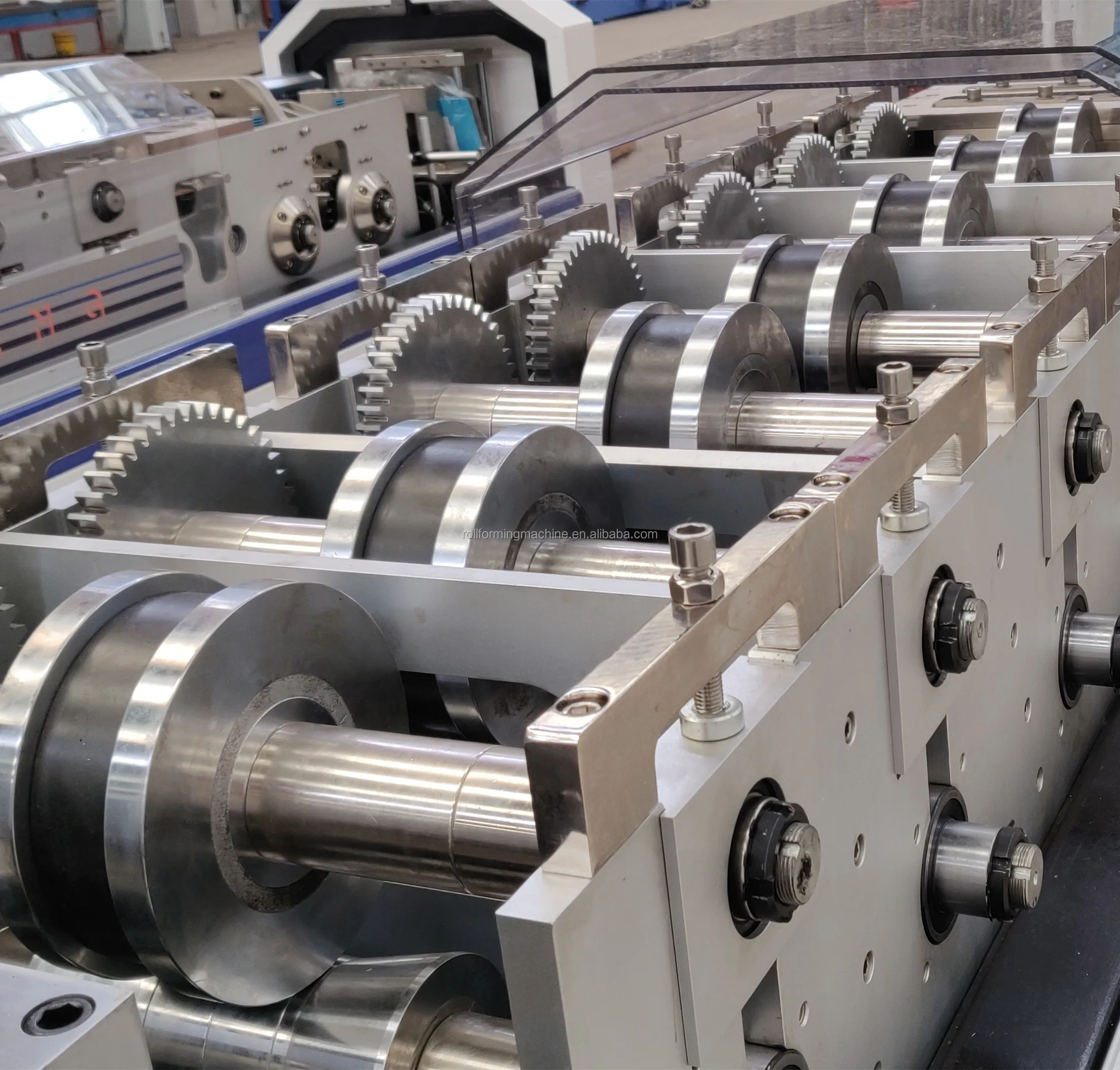

Roll forming device

12 roller stations, one is to form and adjust the angle ( from 87 to 95) degree of bottom and web

Straightening device

With one pair of horizontal shafts and two dangling rollers

Profile leading device

With one set of leading rollers

Punching holes

Also have three holes at the end of profile

Cutting device

3 pieces of blades to keep and cut the shape of profile

2

Control system

Main control system

One Lenovo laptop and a control box inside of based frames of the machine

Producing  software

Special designed to match with the designing software Vertext

Leaser Printing Device

USA Matthews Leaser Printing Device for painting spray logo and installation indicating number

Remote-control device

Wireless remote-controller controls machine to go forward or backward or stop

Brands of main components

PLC(self-developed),Relay (French Schneider), proximity switch(French Schneider), Encoder(Japanese Omron), Servo Motor(invet)

All those components takes with Internation Warranty Service.

3

Servo System and Hydraulic System

Servo motor

7.5kw, taking with precision planetary gear reducer

Hydraulic Station

5.5KW

Hydraulic oil injection 200 litre

Brands of main components

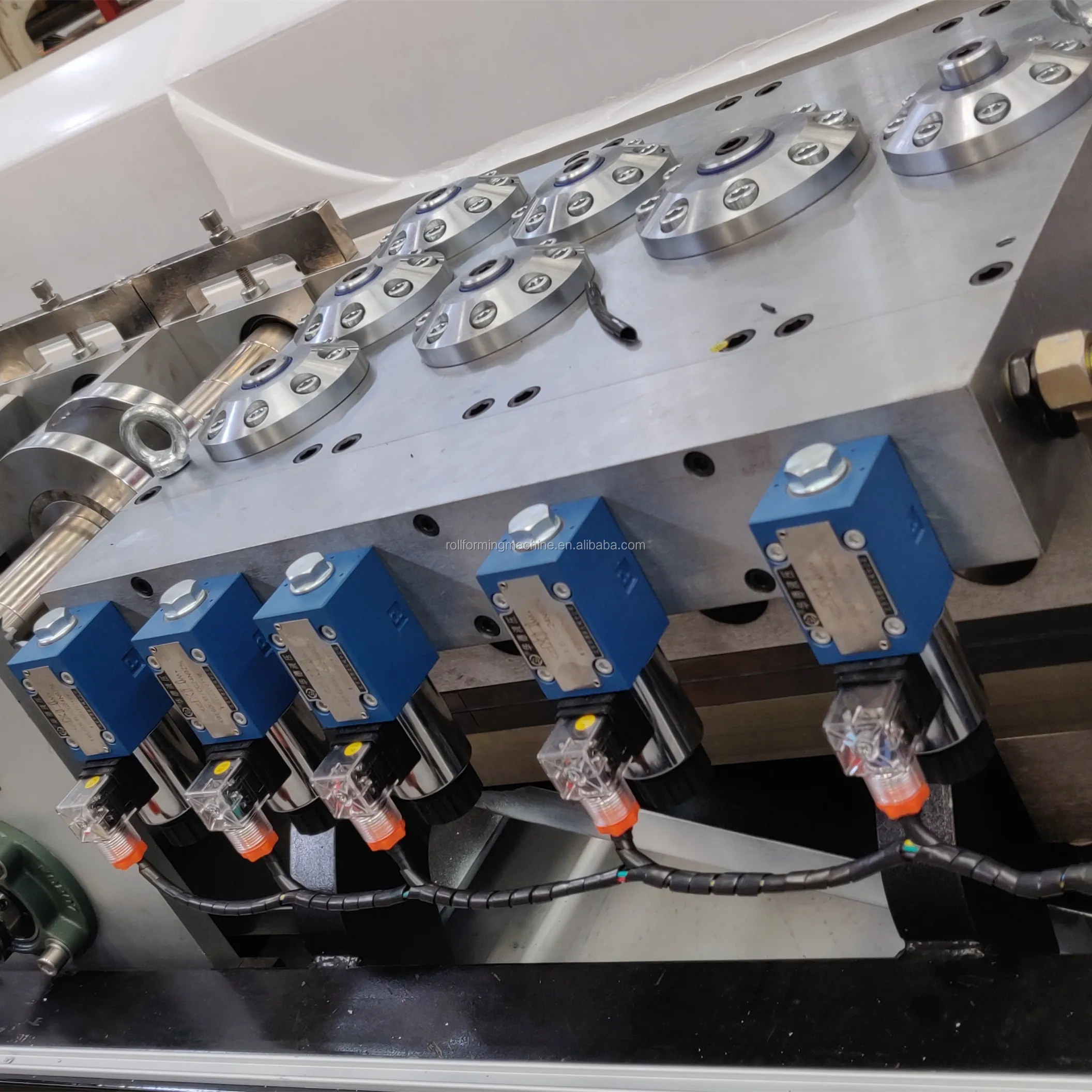

solenoid valve

(huade

4

Electric decoiler

bearing capacity

3 ton

Expending or shrinking method

Operate the handle to more the four connection rods to away from or close up to the cored shaft

brake

Cored shaft is double hold tightly

Driving method

Decoil raw material automatically

5

Production receiving  System

length

4m

Receiving method

Receive formed profiles and sideslip them pneumatically to saving table

6

Parameters of roll forming part

roller

Material: CR12

processing technic:CNC machining, heat treatment HRC58-60,then processed by CNC lathe, plating finally

shaft

Material: 40Cr

processing technic:CNC machining, quenching and tempering HRC28-32,then processed by CNC lathe, plating and polishing finally

weight

About 3.5 ton

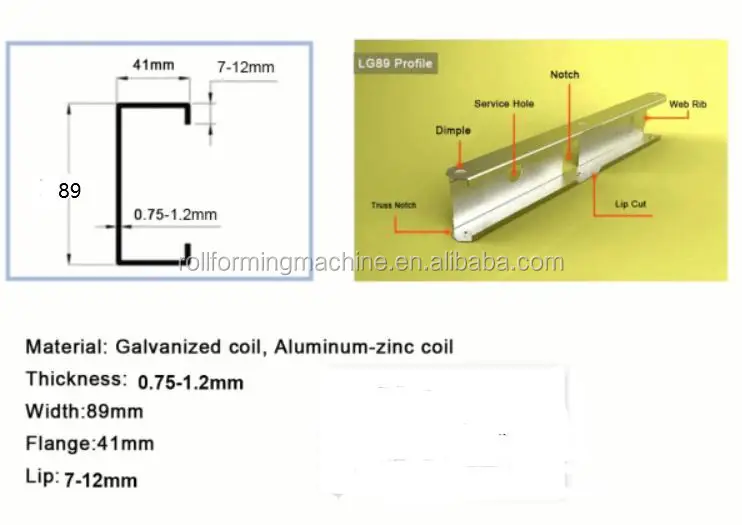

parameters of formed profiles

1

Sizes

1,Width 89mm;2,web 41mm;3,lip 10-12mm;4,thickness 0.75-1.2mm;

2

Forming speed

The max speed 35m/min, normally 0.5-0.6tons per hour

3

material

Q345,G550 galvanized steel strip

,attached components and spare parts

Spare parts

2 sets of punching poles and down moulds

tools

One set

Manual operation

One copy

Protective cover

totally-enclosed type

Machine color

As per machine photos or your demand
