Product Description

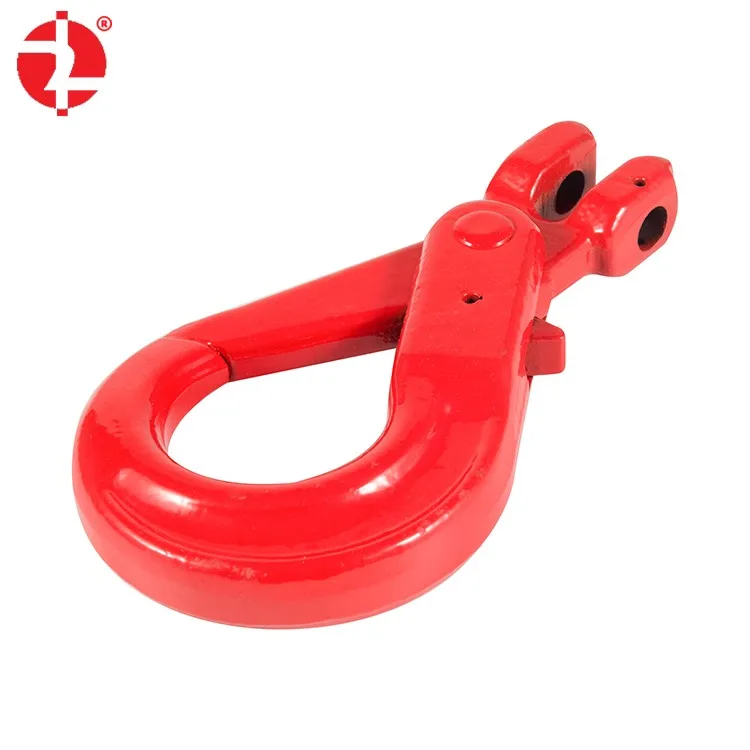

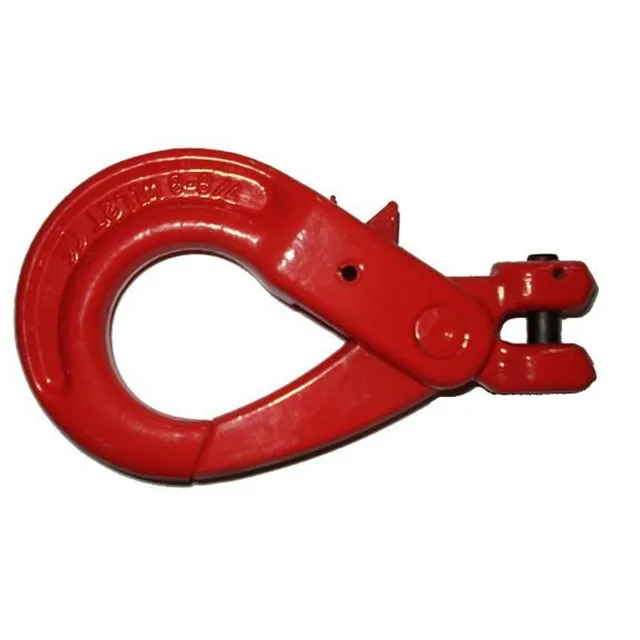

*The clevis self-locking hook is suitable for all kinds of overhead lifting applications.
*The unique locking mechanism prevents accidental slipping.
*This type of chain component is used with a grade 80 alloy chain for lifting applications.
*The clevis hook fits directly onto the chain for ease of use.
*The lock closes either with one hand or automatically when a load is engaged.
*The clevis self-locking hook will not open under load, even if the load is set down momentarily.
*The unique locking mechanism prevents accidental slipping.
*This type of chain component is used with a grade 80 alloy chain for lifting applications.
*The clevis hook fits directly onto the chain for ease of use.
*The lock closes either with one hand or automatically when a load is engaged.
*The clevis self-locking hook will not open under load, even if the load is set down momentarily.

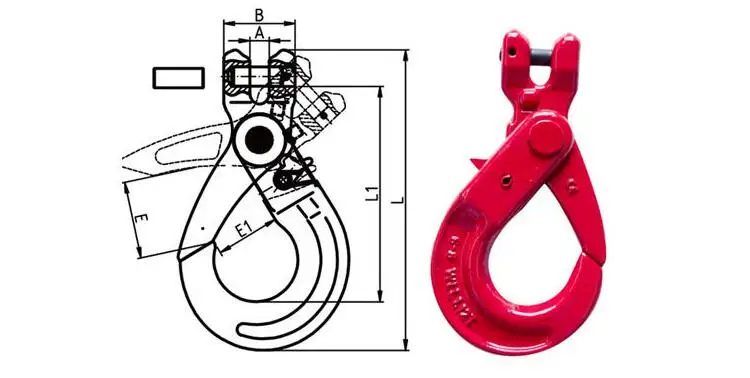

Type | WLL (T) | A (mm) | B (mm) | C (mm) | E (mm) | L1 (mm) | L (mm) | Weight (kg) |
6-8 | 1.12 | 8 | 32 | 32 | 28 | 96 | 134 | 0.44 |
7/8-8 | 2 | 9.5 | 38.5 | 39 | 35 | 119.3 | 161.8 | 0.8 |
10-8 | 3.15 | 12.5 | 48 | 48 | 45 | 142 | 195 | 1.385 |
13-8 | 5.3 | 15 | 59 | 65 | 52.5 | 179 | 249 | 2.81 |
16-8 | 8 | 18.5 | 77 | 65 | 63.3 | 224.8 | 310 | 6 |
18/20 | 12.5 | 24 | 77 | 85 | 86 | 238 | 350 | 7.25 |
22-8 | 15 | 25 | 97.5 | 80 | 76 | 270 | 392 | 12.8 |
26-8 | 21.2 | 30 | 118 | 97.6 | 96 | 312 | 449 | 21.8 |
32-8 | 31.5 | 35 | 150 | 99 | 135 | 416 | 589.6 | 49.6 |
Detailed Images

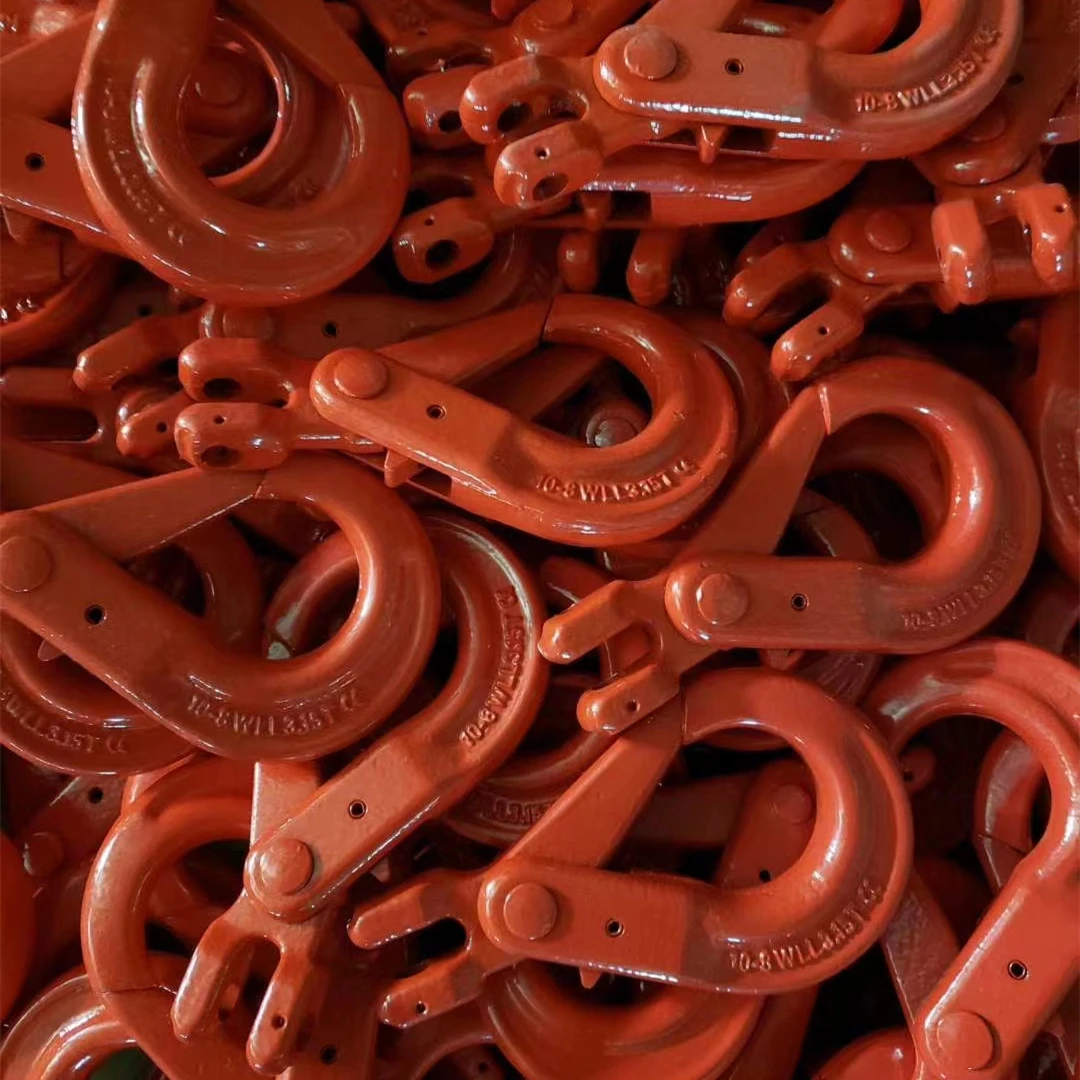

The hook body is manufactured with high-quality alloy steel by die forging.
Minimum Ultimate Load is 4 times of the Working Load Limit.
Proof Load Tested to 2.5 x WLL

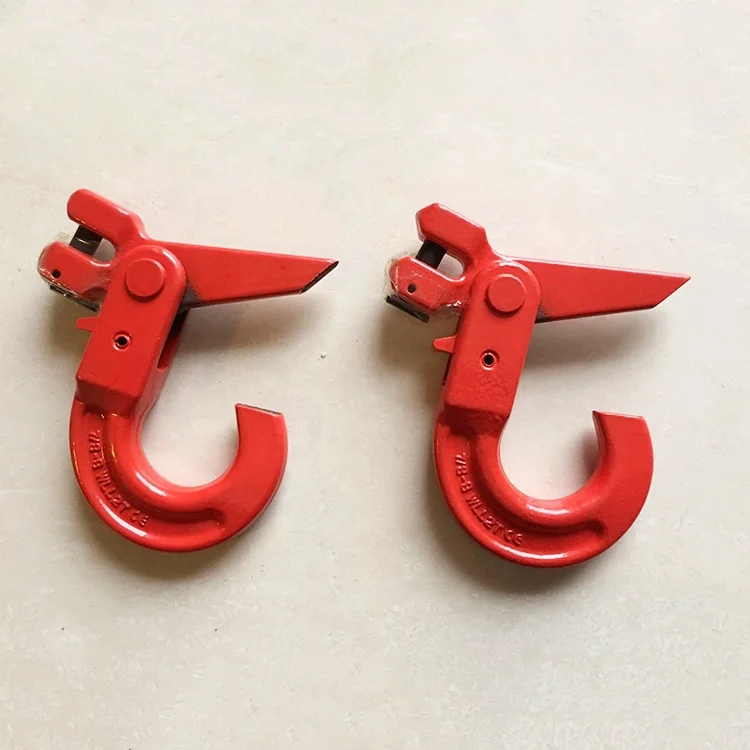

To open the hook and release the load you simply press the release trigger. The hook also stays open to make hookups easy.
Company Profile
Jiangsu Gostern Rigging Co., Ltd. was established in the year of 2001 in China. The company covers an area of 33000 square meters, more than 600 employees. It is a specialized slings company that can design, manufacture and market. The company has a strong technical ability, scientific technology procedures, testing equipment, and a perfect quality system. The company has achieved the ISO9001-2000 quality system certification. The quality of the products has been insured by the Chinese people and property insurance companies.
Our main products are wire rope slings, webbing slings, braided ropes, ratchet straps, tow straps, chain slings, steel plate lifting clamps, hanging beams, rigging accessories. The products are widely used in machinery, metallurgy, petroleum, chemical industrial, ports, shipbuilding and other fields.
The mission of Gostern: Our goal is to keep our customers satisfied with the quality products and services. We will continue to uphold the "quality first, the credibility of the first, the price is reasonable" service concept.
Why Choose Us
Quality first, customer uppermost.
1. Any inquiries will be replied within 12 hours.
1. Any inquiries will be replied within 12 hours.
2. Our price is competitive because we are the original manufacturer.
3. OEM/ODM are acceptable.
3. OEM/ODM are acceptable.
4. We have strict test and QC system to guarantee the quality.
5. Your business relationship with us will be confidential to any third party.
6. Good after-sale service, all products have one year warranty.
FAQ
Jiangsu Gostern Rigging Co., Ltd.
Q: Are you trading company or manufacturer ?
A: We are a manufacturer with nearly 20 years of experience.
Q: Why choose us?
A: Jiangsu Gostern Rigging Co., Ltd. is a factory specializing in producing the lifting sling, lifting clamp and lifting beams. We have over 20 years of experience in producing the products, and the operator of us are all with operation certification. Besides, we purchase the material from the best suppliers in China.
Q: Do you accept the drawing we supply and OEM?
A: Yes, we can design the lifting beams and lifting clamps according to your requirements, and we can produce the product according to your drawing. We also supply OEM service.
Q: What are your advantages in all these manufacturers?
A: We have a target that we will supply you products and service of high quality and reasonable price.
Q: How long is your delivery time?
A: According to the quantity and products you order, normally 5~30days, Generally it is 5~10 days if the goods are in stock.
Q: What is your terms of payment ?
A: Payment≤1000USD, 100% T/T in advance. Payment＞1000USD, 30% T/T in advance ,balance before shipment. Irrepealably L/C at sight.
Q: Do you offer free samples?
A: We can provide you with free samples if the value is not too high, but you need to pay the freight charge.
Q: How can you guarantee the quality of the products we order?
A: We have matching test machines and can do the test for all of the products you order, and we can provide you with the quality certificate.
Q: Can we have a visit to your factory?
A: Welcome to our factory, and we will arrange the pick-up.
A: We are a manufacturer with nearly 20 years of experience.
Q: Why choose us?
A: Jiangsu Gostern Rigging Co., Ltd. is a factory specializing in producing the lifting sling, lifting clamp and lifting beams. We have over 20 years of experience in producing the products, and the operator of us are all with operation certification. Besides, we purchase the material from the best suppliers in China.
Q: Do you accept the drawing we supply and OEM?
A: Yes, we can design the lifting beams and lifting clamps according to your requirements, and we can produce the product according to your drawing. We also supply OEM service.
Q: What are your advantages in all these manufacturers?
A: We have a target that we will supply you products and service of high quality and reasonable price.
Q: How long is your delivery time?
A: According to the quantity and products you order, normally 5~30days, Generally it is 5~10 days if the goods are in stock.
Q: What is your terms of payment ?
A: Payment≤1000USD, 100% T/T in advance. Payment＞1000USD, 30% T/T in advance ,balance before shipment. Irrepealably L/C at sight.
Q: Do you offer free samples?
A: We can provide you with free samples if the value is not too high, but you need to pay the freight charge.
Q: How can you guarantee the quality of the products we order?
A: We have matching test machines and can do the test for all of the products you order, and we can provide you with the quality certificate.
Q: Can we have a visit to your factory?
A: Welcome to our factory, and we will arrange the pick-up.
