Недорогой новый Электрический вилочный погрузчик с литиевым аккумулятором на 1500 тонн
- Категории: Material Handling Equipment >>>
- Поставщик: Ningbo,Everlift,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Customer evaluation

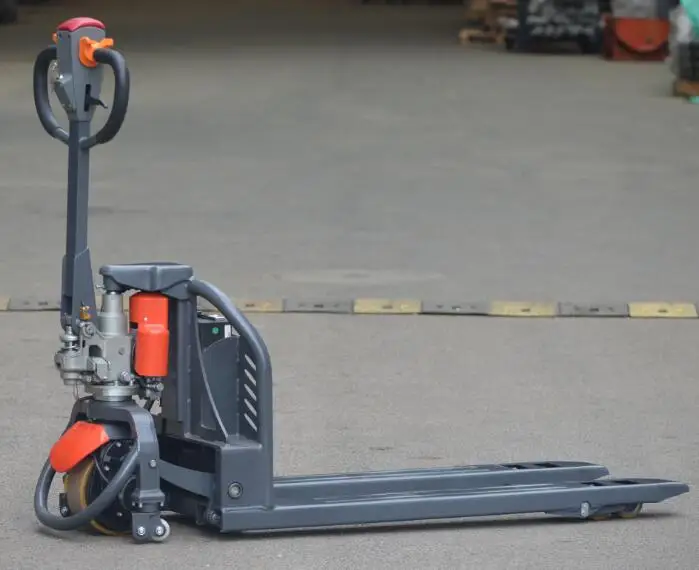

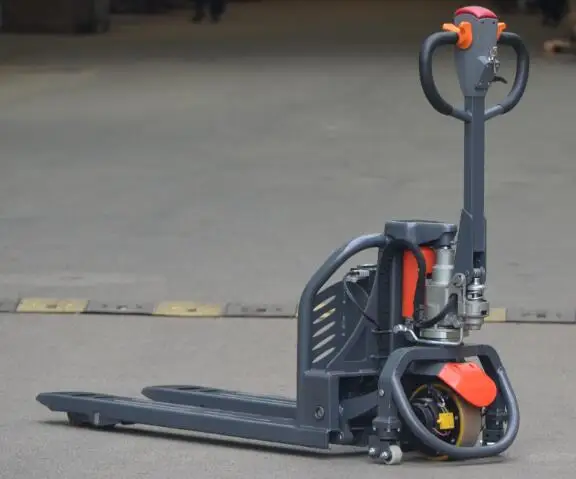

Details Images
Product advantages
1. Simple, flexible, light weight and small turning radius make the truck suitable use
in extremely narrow aisle. 2. Strong structure and open layout make the maintenance easy
3. Same hydraulic pump with the hand pallet, simple and reliable
4. Integrated handle integrates key and meter make the operation easy and confortable.
in extremely narrow aisle. 2. Strong structure and open layout make the maintenance easy
3. Same hydraulic pump with the hand pallet, simple and reliable
4. Integrated handle integrates key and meter make the operation easy and confortable.
5. Portable Iron-lithium-battery pack provides easy and speedy battery change.
6. Emergency reversing device ensure safety operation.
7. Auxiliary wheels on two sides provide well stability.
8. Manual lift is available as option.
6. Emergency reversing device ensure safety operation.
7. Auxiliary wheels on two sides provide well stability.
8. Manual lift is available as option.
Product Description
特性 Feature | ||||||
型号 Model | 单位unit | ELEP-15LI | ||||
配置号 Configuraton No. | 190 | |||||
额定载重 Load Capacity | kg | 1500 | ||||
载荷中心距 Load center | mm | 600 | ||||
轴距 Wheel base | mm | 1160 | ||||
操作类型 Operating type | 步行式(Walkie) | |||||
车轮 Wheels | ||||||
轮子类型(前后) Wheels type | 聚氨酯(PU) | |||||
驱动轮尺寸 Dring wheel size | mm | Φ210X70 | ||||
平衡轮尺寸 Balance wheel size | mm | Φ80X30 | ||||
承重轮尺寸 Bearing wheel size | mm | Φ80X60 | ||||
驱动轮/平衡轮/承重轮数量 Wheel quantity Driving wheel / Balance wheel / Boaring wheel | 1/2/4 | |||||
尺寸 Dimension | ||||||
贷叉最低离地高度 Min.Lowered fork height | mm | 85 | ||||
货叉最大起升高度 Max.fork lifting height | mm | 205 | ||||
最大起升行程 Max.lifting height | mm | 120 | ||||
贷叉外侧间距 Outside width between forks | mm | 560/685 | ||||
货叉内侧问距 Inside width between forks | mm | 240 | ||||
货叉长度 Fork length | mm | 900/1150/1200 | ||||
货叉宽度 Fork Width | mm | 160 | ||||
货叉厚度 Fork thickness | mm | 73 | ||||
整车全长 Overall length | mm | 1450/1700 | ||||
车体宽度 Overall with | mm | 560 | ||||
整车高度(含手柄) Overall height (With handle) | mm | 1160 | ||||
整车高度(不含手辆) Overall heigh (Without handle) | mm | 700 | ||||
最小转弯半径 Min.Turning radius | mm | 1405 | ||||
最小直角堆垛通道宽度 (托盘800x1200, 1200沿货又放置) Min.Aisle width for pallets 800x1200 | mm | 1815 | ||||
最小直角堆垛通道宽度 (托盘1000x1200, 1200沿贷叉放置) Min.Aisle width for pallets 1000x1200 | mm | 1865 | ||||
性能 Performance | ||||||
最大行驶速度，满载/空载 Travel speed, load/unload | km/h | 4.2/4.5 | ||||
最大起升速度，满载/空载 Lift speed, load/unload | mm/s | 25/40 | ||||
最大下降速度，满载/空载 Lowering speed, load/unload | mm/s | 80/55 | ||||
爬坡度，满载/空载 Gradeablty, load/unload | % | 5/8 | ||||
电气配置 Electricalconfiguration | ||||||
驱动电机起开电机 Drivemotor/Liftmotor | KW | DCO.60DC0.80 | ||||
曹电池电压Btteryvoltage | V | 24 | ||||
置电池容量Batterycapacity | Ah | 20 | ||||
制动Brake | 电磁再生Electromagnetic/Regenerative | |||||
控制器型号Cortroler | HEL | |||||
重量 Weight | ||||||
营电池重盟Batteryweight | Kg | 7 | ||||
自重(包含蓄电池)Sericeweightwithbattery | Kg | 118 | ||||
Company Profile
Certifications
Customers Visiting
Packaging &Shipping
Related Products
F&Q
Q1: How long is the Warranty for EVERLIFT product?
A1: EverLIFT provides 12 months or 1000 hours for the whole machine from on board time.
Q2: How about the delivery time?
A2: Usually EverLIFT producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q3: How about the continuous working time for the electric series forklifts ? And How long time to charge the battery full ?
A3: EverLIFT battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 8 - 12 hours to charge the battery, EverLIFT's charger is automatic, after the battery is full, it will stop working automatically.
Q4: Can EverLIFT provide customized products? OEM products or ODM products?
A4: Yes, EverLIFT can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special reqeust.
Q5: What’s the specification of the chargers?
A5: Our chargers voltage could be 110V 220V 240 380V 415V ( 1 phase or 3 phases,50/60HZ). Power plug could be
USA/UK/AUSTRALIA/EUPROPEAN standard.
Q6: Could we request our own color for the products?
A6: Yes, of course, you just need to offer us the RAL code.
A1: EverLIFT provides 12 months or 1000 hours for the whole machine from on board time.
Q2: How about the delivery time?
A2: Usually EverLIFT producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q3: How about the continuous working time for the electric series forklifts ? And How long time to charge the battery full ?
A3: EverLIFT battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 8 - 12 hours to charge the battery, EverLIFT's charger is automatic, after the battery is full, it will stop working automatically.
Q4: Can EverLIFT provide customized products? OEM products or ODM products?
A4: Yes, EverLIFT can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special reqeust.
Q5: What’s the specification of the chargers?
A5: Our chargers voltage could be 110V 220V 240 380V 415V ( 1 phase or 3 phases,50/60HZ). Power plug could be
USA/UK/AUSTRALIA/EUPROPEAN standard.
Q6: Could we request our own color for the products?
A6: Yes, of course, you just need to offer us the RAL code.
