Маленький размер 0 96 дюйма 128x64 точек высокая производительность oled-дисплей

Описание и отзывы

Характеристики

Small size 0.96 inch 128x64 dots oled display panel with high performance









LCD type	oled
Display type	0.96 inch Oled
Driver element	oled

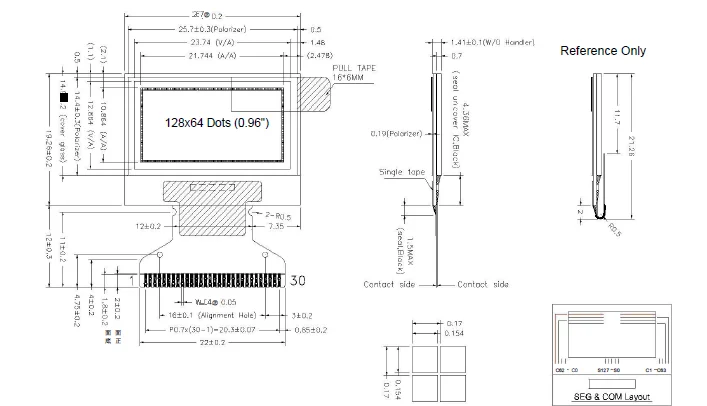

Outline Dimension(mm)	26.7(W)x19.26(H)x1.41(D)
A.A.(mm)	21.744(W) x10.864(H)
Driver IC	SSD1306BZ
Item	oled 0.92 inch
Resolution(dots)_	128*64
Viewing Direction	12H
Operating temperature(°C)	-20-70
Storage temperature(°C)	-30-80
Number of Pixel(pixels)	64*48
Dots Pitch	0.18x0.18
Operating Volatge	3.2v
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally white
Surface treatment	Antiglare, Hard-Coating(3H)
Weight(g)	TBD
Backlight	White
Weight(g)	TBD
Interface	6800/8080 interface, 4 wire serial interface, I2C
Module lifetime(Hours)	50,000-100,000











Small size 0.92 128*64 dots oled display panel with high performance

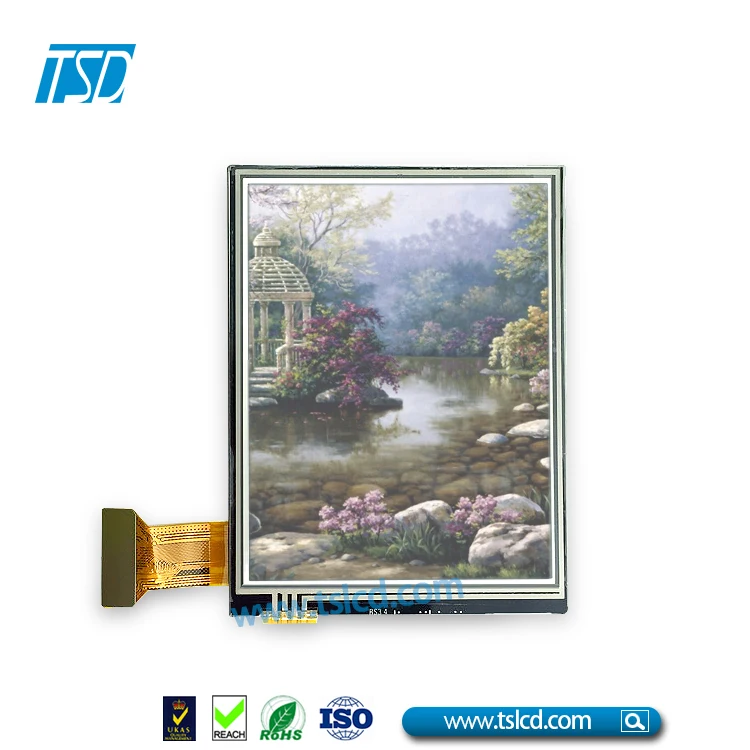

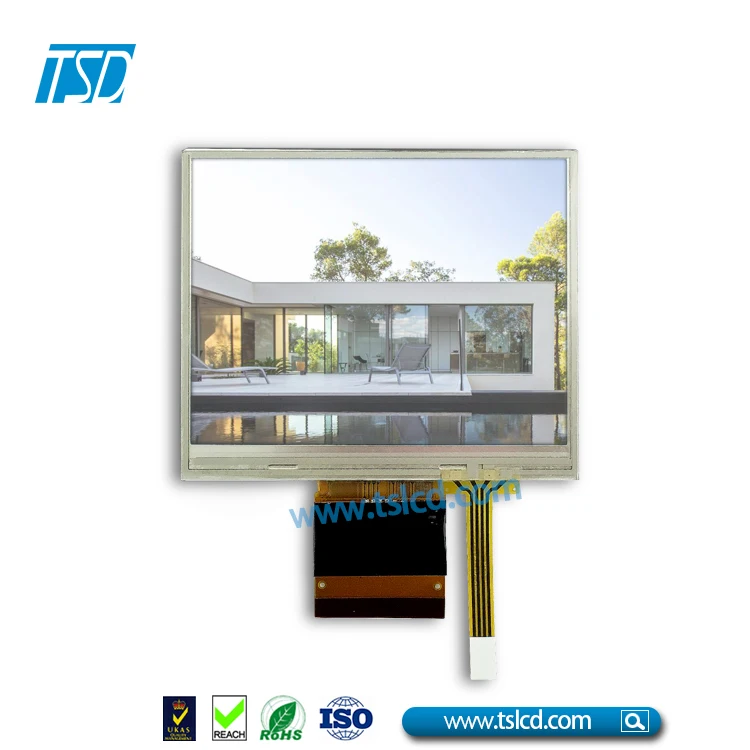

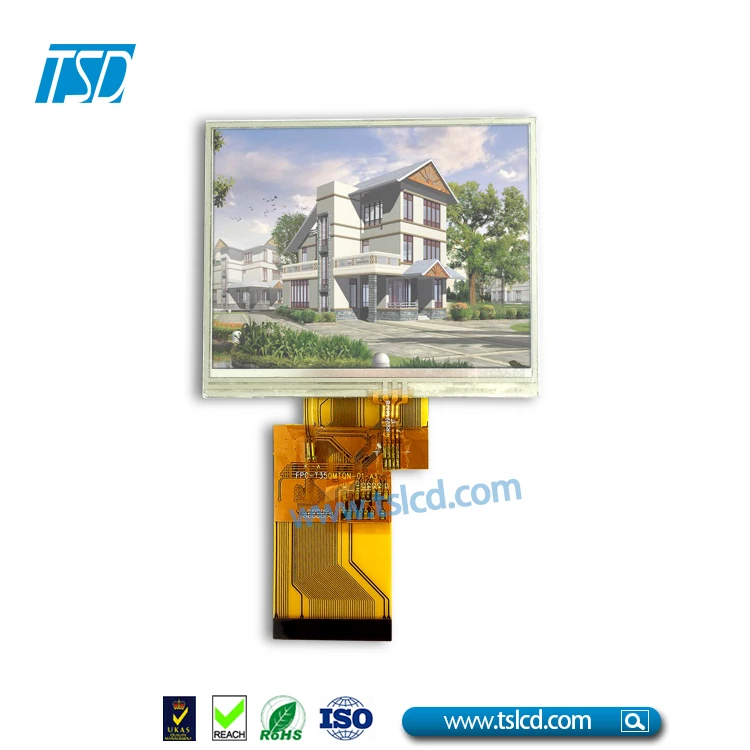

3.5 inch QVGA TFT LCD	3.5 inch Reflective sunreadable	3.5 inch with SSD2119



1.We are professional LCD module manufacture in China with precise and advanced equipments.

 2.High quality Control with CE,ROHS and so on approved.

 3.More than 10 years of industry experience and involved main markets all over the world

 4.Dedicated and professional sales team will offer you 24 hours online and immediate service

 5.OEM and ODM support,12 months warranty for all of our products

 6.Our mission is to help our customers achieve success, then fulfill our both dreams



Pre-sales service :

1.Our team design and make solutions based on different requirements from different customers.

 2.We provide 24-hours service,and every message you quote inquiry will be replied within 12 hours.



After-sales services:

1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.

 2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.

 3. We have professional engineer  customer to keep fastly reply.
