New Developed Unloading Flow Meter for Station

Product Description

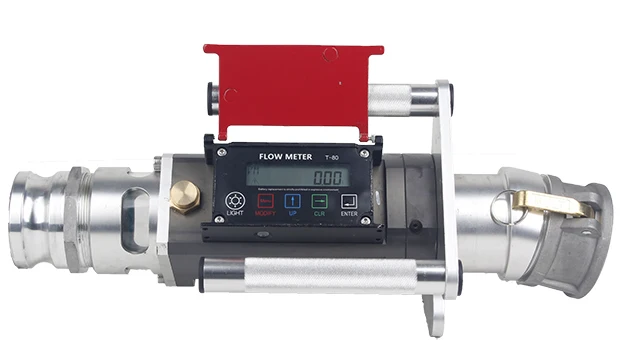

The portable flowmeter is mainly used for the gravity flow unloading of the tanker

at the gas station, and can also be used for pipelines InstalL measurement. It can

be used to measure various oil products except water. Simply and flexiblely

installation, operation, measurement

High Percision and long service life. It can be used by connecting to the outlet

of the tank without the pump

Features

High precision:

· High precision and high reliability:

· Measurement accuracy: +/- 0.1%

·Repeatability accuracy: +/- 0.02%

·Temperature accuracy: +/- 0.1 ℃

·Automatic calculation of temperature compensation volume (V20)

·Automatic measurement of oil temperature

Easy to use:

·The equipment weight 6kg, easy to carry

·Quick coupling, easy to install

·Can be connected to the unloading pipeline without affecting the unloading

·No oil residue

· One flow meter can be applied to many kinds of

oil products

The measurement data is safe and reliable:

·The portable flowmeter realized the whole process of oil unloading automation,

eliminating human factors interference

·The measurement data can be stored and recorded, ensuring the reliability and

security of the data

·Can be connected to Bluetooth, use standard explosion-proof mobile phones, and

can read data normally when using

Applicable medium	gasoline, diesel, kerosene, ethanol gasoline and other oil products
LCD screen	English interface, 7 digits display
Size	3 inches (DN80)
Accuracy	± 0.1%
Repeatability accuracy	Repeatability accuracy ± 0.02%
Product weight	6kgs
Body material	aluminum
minimum	scale 1L
Explosion-proof grade	Ex ia ll BT4 Ga
Protection grade	IP67f
Temperature range	-25 ℃-+ 55 ℃
Maximum pressure	0.5MPA
viscosity range	≤13m m2 / s
Power supply	2 3.6V lithium batteries (battery life is about 2 years)
