Products Description

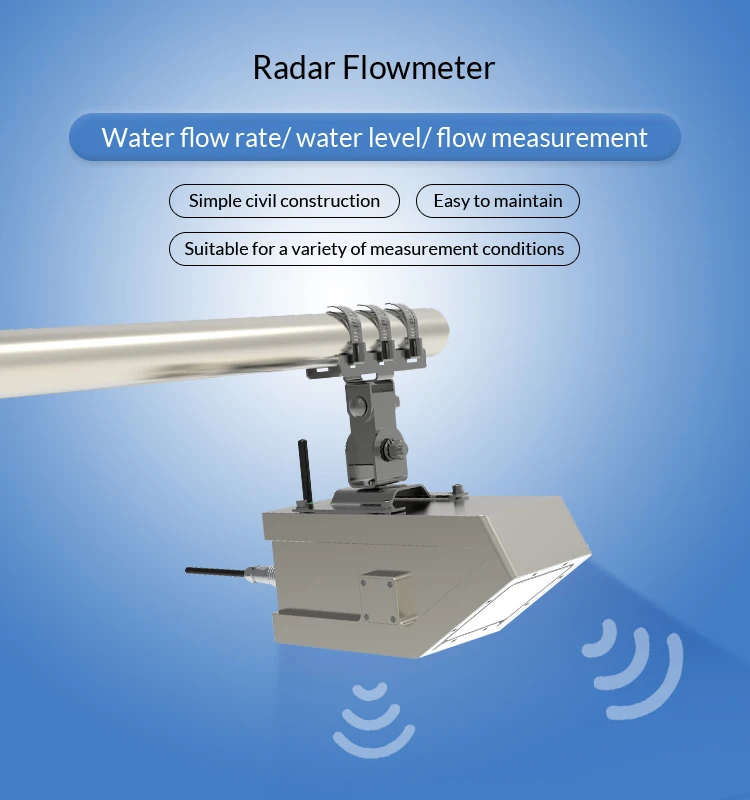

HRF-600 is a fully automatic flow meter based on microwave technology. It uses advanced K-band planar radar technology to measure the flow velocity and water level of the water body in a non-contact manner. According to the built-in software model and algorithm, it calculates and outputs real-time cross-section instantaneous flow and cumulative flow.

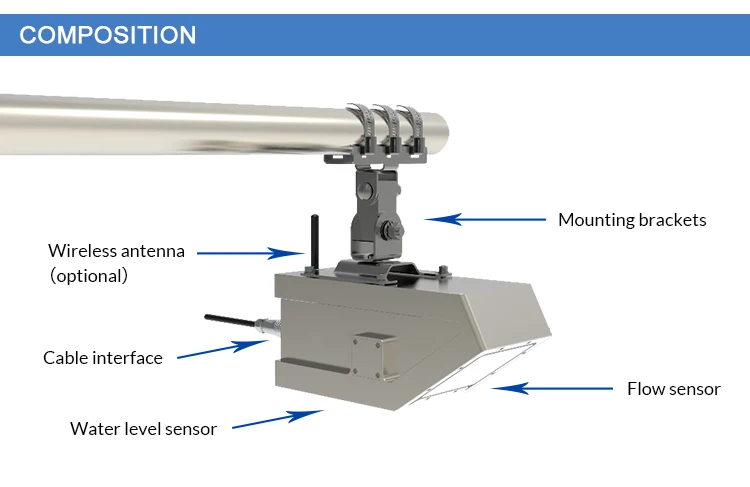

The components of the radar flowmeter include: radar flow rate sensor, radar water level sensor, flow calculation unit, data transmission unit, and mounting bracket. lt can be digital (RS485/RS232) or analog (4-20mA). Transmission of measurement results; wireless data transmission can also be achieved through NB-IOT or Lora technology.


Product Parameter


Item
HRF-600/HRF-600-R
Versions
HRF-600(Stanard version)
HRF-600-R(RTU version): Support parameter adjustment by bluetooth; wireless configuration and maintenance by mobile phone; equipment remote upgrade
Velocity Measurement System
Measuring Principle
Planar microstrip array antenna CW+FMCW
Operating Mode
Manual, automatic, telemetry
Applicable environment
24-hour, rainy days
Operating temperature
-30~80℃
Operating Voltage
7-32VDC;5.5-32VDC(Optional)
Working current
For 12VDC input, operating mode: <150mA, Standby mode: <1mA
Ambient temperature output
Temperature resolution 0.1℃; temperature measurement accuracy ±1℃
IP Rating
IP68
Radar Wave Velocity Meter
Radar power
100mW
Radar frequency
24GHz
Max measuring range
40m
Velocity range
0.03~20m/s
Velocity measurement accuracy
±0.01m/s;±1%FS
Antenna angle
12°
Measuring direction
Automatic recognition of water flow direction, built-in vertical angle correction
Radar Water Level Sensor
Radar power
100mW
Radar frequency
24GHz
Measuring range
40 meters
Measurement accuracy
±3mm
Antenna angle
11°
Data transmission system
Data transmission
RS485 (default), RS232 (reserved), 4~20mA, 433MHz (optional), 4G (optional), NB-IoT (optional)




Product Feature


1. Non-contact measurement, combined with section parameters to calculate the flow rate, not affected by wind, temperature, haze, sediment, and floating objects. With rainproof mode;
2. It is suitable for a variety of measurement conditions, and can output measurement data of flow rate, water level and flow;
3. Expandable array type multi-point flow measurement, equipped with a set of flow meters and multiple sets of flow meters, through the internal algorithm fitting of the flow meters, to achieve flow measurement of a wide section;
4. It is suitable for multiple cross-sections such as trapezoid, circular, U-shaped, etc., and the setting of cross-section parameters is simple and convenient;
5. Convenient configuration software, which can conveniently configure parameters according to actual needs to adapt to different conditions of use.

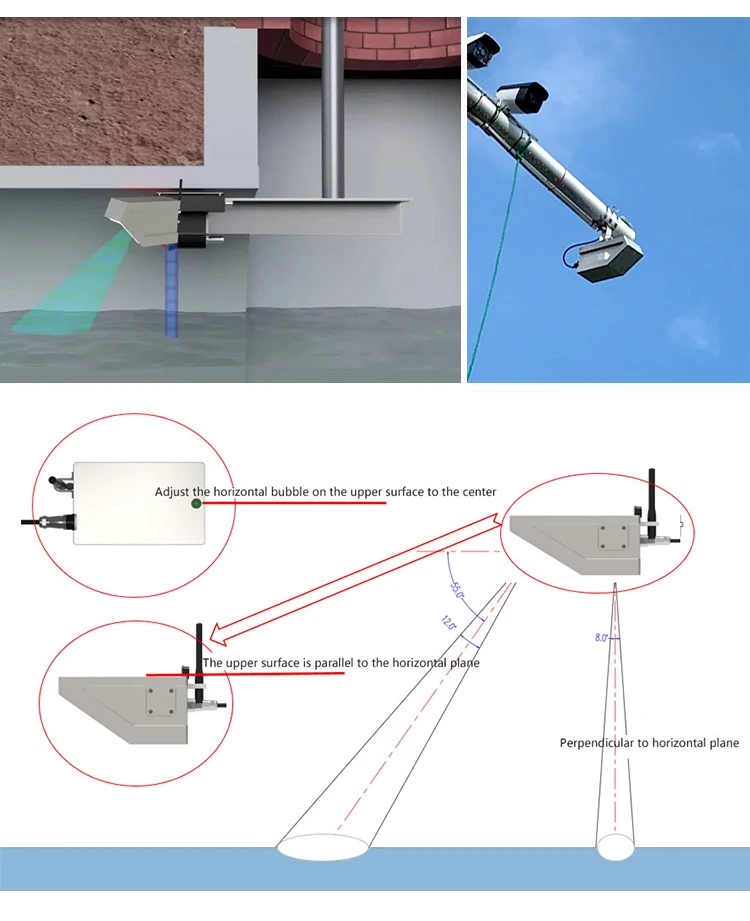

Product Installation


The radar flowmeter consists of an electronic unit, a housing, and a transmitting antenna.

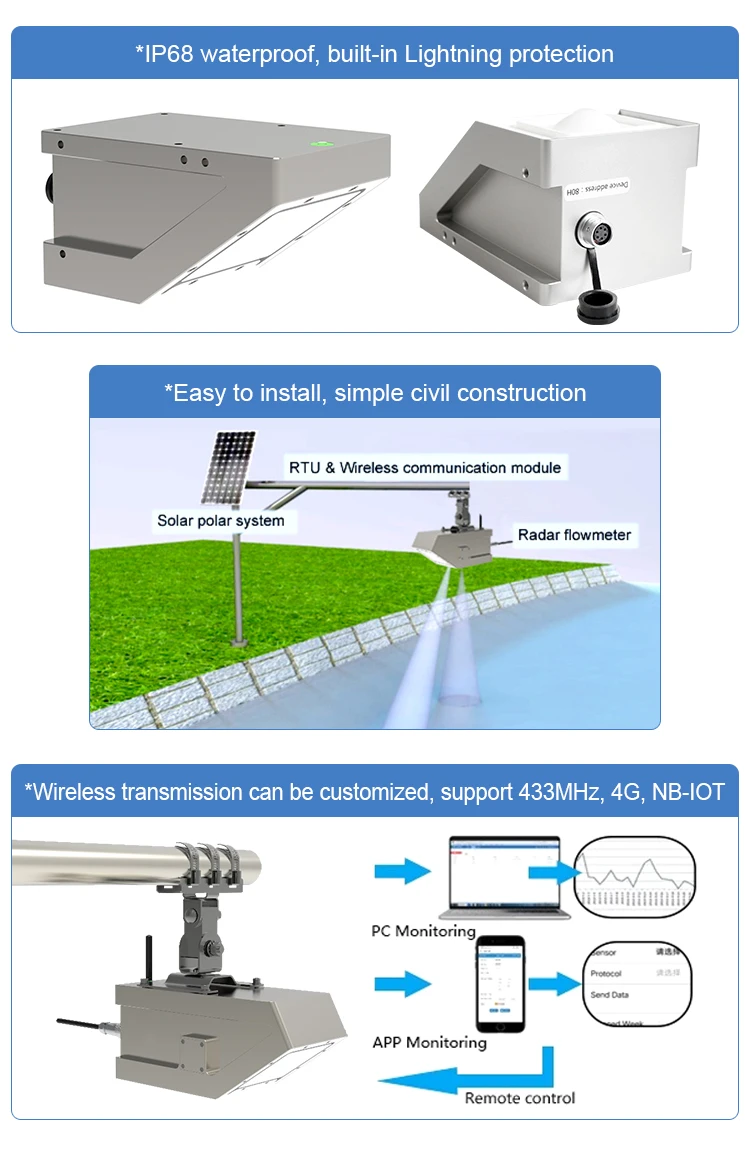

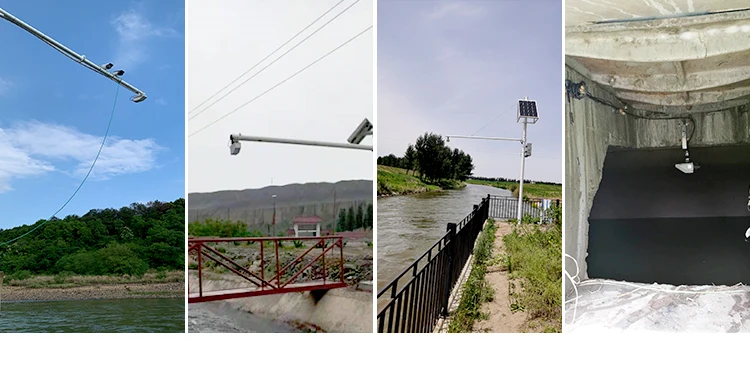

Application: The radar flow meter can be installed on the side or top of the river or channel to be measured as required, and the installation method can be set according to the site conditions. It can realize non-contact unmanned site monitoring in the fields of hydrology , water conservancy , drainage and irrigation, etc.




Product Application


1. Flow rate, water level or flow measurement of rivers, lakes, tides, reservoir gates, ecological discharge flow, underground pipe networks, irrigation channels, etc.;
2. Auxiliary water treatment operations, such as urban water supply, sewage monitoring,
etc.;
3. Flow calculation, water inlet and drainage flow monitoring, etc.

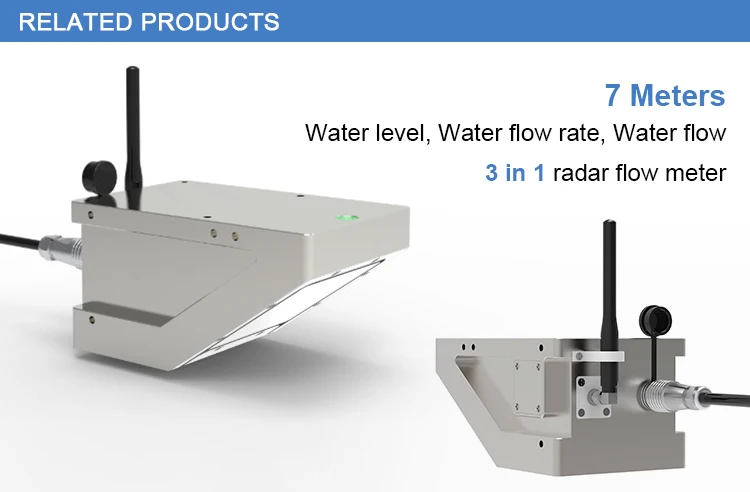

Related Product


HRF-600S/ HRF-600S-R product details
*Its measure level can be 7 meters
*Measuring principle: Radar Planar microstrip array antenna CW + PCR
*Water level Radar frequency: 60GHz
*It can integrate all kinds wireless modules including 4G/NB-IOT/433MHz
*Specially used for flow velocity, water level and flow measurement in open channels, irrigation canals, underground pipe networks, etc
