Product Description
NAME OF GOODS:Maquina para estructural metalico en forma de c
PROFILE:NORMAL SHEET
MODEL:C80-C300 purlin ROLL FORMING MACHINE
THICKNESS:1.5-3.0mm
PROFILE:NORMAL SHEET
MODEL:C80-C300 purlin ROLL FORMING MACHINE
THICKNESS:1.5-3.0mm
Specification
Name: | Maquina para estructural metalico en forma de c |
Suitable to process | Galvanized steel strips |
Roller | 16-18Rows |
Dimensions | 10500*1500*1600mm |
Motor Power | 11Kw*2 |
Pump Station Motor | 5.5Kw.Lichao Brand |
Thickness of the plate | 1.0mm-3.0mm |
Productivity | 10-15m/min |
Material of the cutting blade | Cr12MoV,Quenched treatment 58ºC-60ºC |
Diameter of the roller | 85mm |
Weight | About 8500Kgs |
Main structure of the machine | 450 H Beams |
Processing precision | Within 1.0mm |
Side panel of machine | 20mm |
Side panel of machine | 2 Inch |
Voltage | 380V 50Hz 3phases or as customer's need |
Control system | PLC control (Delta) or as customer's need |
Frequency system | Delta or as customer's need |
Drive mode | Motor driver |
Touch screen | Delta or as customer's need |
Rolling materials | 45# forging steel with chromium plate |
Length Tolerance | ±2mm |
Type of cutting | Length-set cutting Guiding pipe Hydraulic cutter Each side one Oil cylinder Main body:steel panel welding |
Production Flow

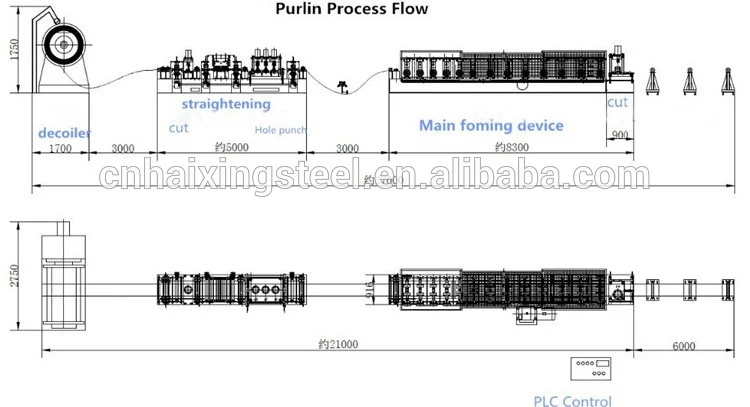

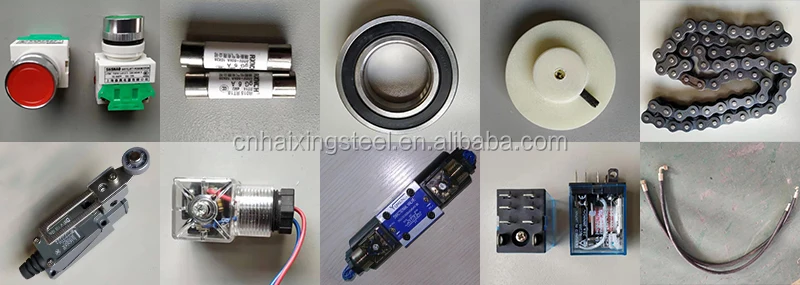

Maquina para estructural metalico en forma de c working flow showing and Spare parts
Packing & Delivery

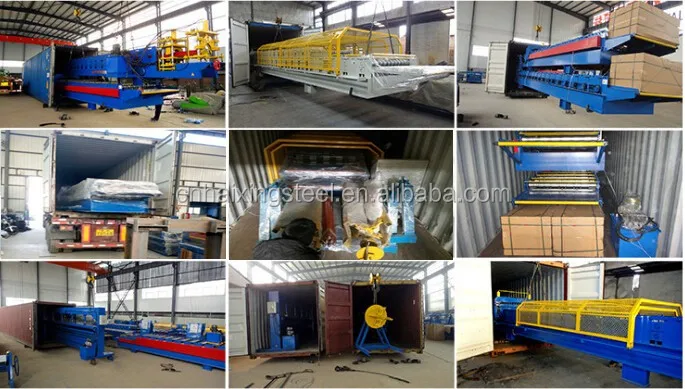

About the maquina para estructural metalico en forma de c package and shipment details
a.The main body of machine with water-proof plastic, then fixed to container by 8mm diameter steel wire and angle iron.b.Rollers and shafts are covered with anti-rust oil.
c.PLC control system and motor pump are packed with waterproof paper and plastic film.
d.Spare parts in a carton box.
e.Manual decoiler was nude packing.
f.The output-table put into a carton box.
g.If the machine is too long, we will divide it into two parts and pack them in one package with steel wire.
h.Fit for ocean shipping.
Company Profie
Tianjin Haixing Imp & Exp Co., Ltd. Is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and associated enterprises, concerning with the design, development and production of cold roll forming machines,material of machines. It is located in northwest of Tianjin, China .
As a long history of cold roll forming machine production base. For example :color steel roofing sheet roll forming machines, C&Z Purlin machine, steel roof tile roll forming machines, floor deck forming machines, EPS sandwich panel roll forming machine, highway guardrail forming machine, shearing machine, bending machine, slitting machine.All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.
Based on our advanced research and commercial team, we are able to research and development, manufacturing and sale of standard and non-standard cold roll forming equipment for our clients world widely. We would like to invite you come and join us to build our mutual benefit !

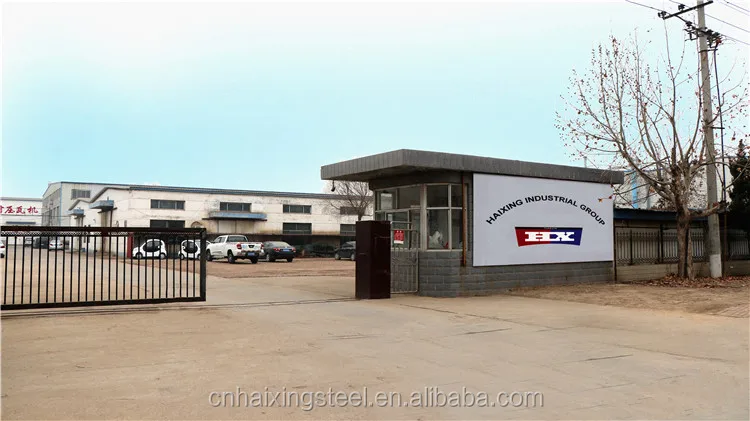

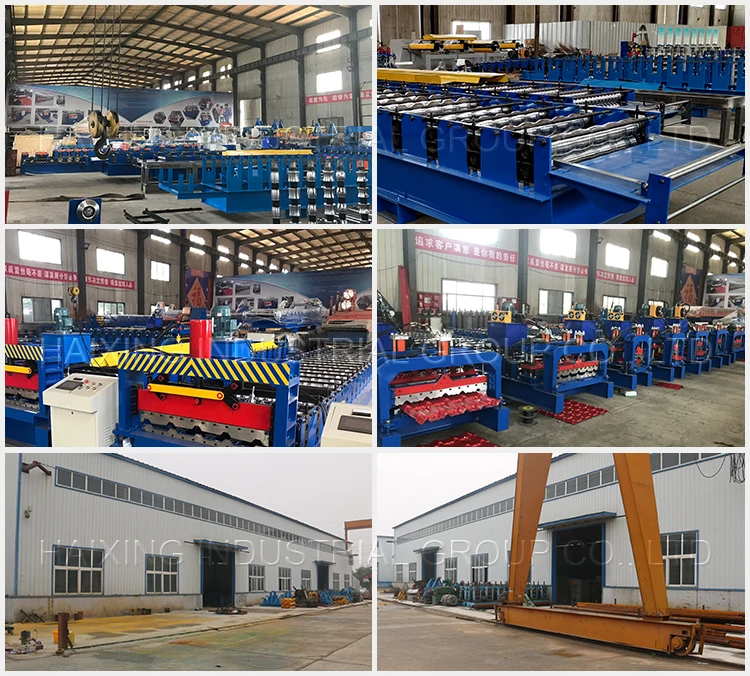

Visit Our Factory :
1.By airplane to Beijing Airport ,then from Beijing airport to Cangzhou West station or Tianjin station ;
2.By airplane to Tianjin Airport ,we can directly to airport pick up you .
3.If you don't know the way how coming ,you can call Ms Sunny in any time (Mob/whatsApp/Wechat:0086-13512059072)
2.By airplane to Tianjin Airport ,we can directly to airport pick up you .
3.If you don't know the way how coming ,you can call Ms Sunny in any time (Mob/whatsApp/Wechat:0086-13512059072)
Our Services
About automatic C purline roll forming machine after sales services :
1. Warranty :One year,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 25 days after deposit receipt your payment
3. Guarantee period: 24months free service/ pay service all the machine life
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your
workers/technician face to face.
1. Warranty :One year,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 25 days after deposit receipt your payment
3. Guarantee period: 24months free service/ pay service all the machine life
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your
workers/technician face to face.
FAQ
Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.
Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.
Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.
Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.
Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.
Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.
Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.
