Telpo F6T is an access control terminal integrated with high accuracy temperature measurement. It can quickly measure skin-surface temperature and notify the user about abnormal readings through the three-color indicator lights(Green/Red/White). This product is perfect for many applications, including office buildings, public transportation hubs, border controls, education centers, and many other scenarios.
OS | Android 9.0 or above |
Processor | Octa-Core 1.8GHz |
Memory | 2GB DDR, 16GB eMMC 1GB DDR, 8GB eMMC (Optional) |
Display | 7-inch, 600*1024 |
Keys | 1 Reset Key |
Face Camera | Dual-lens Camera (RGB+IR) Single-lens Camera (RGB) (Optional) |
Light | White/Red/Green LED |
Communications | Ethernet/WiFi/BT LTE (Optional) |
Temperature Measurement | Resolution: 16*12 (Optional: 32*32 or 32*24) Distance : 50 ~ 70cm Accuracy : ± 0.3 ℃ |
Contactless Card Reader (Optional) | ISO14443 Type A/B, Mifare, ISO18092 compliant |
Fingerprint Scanner(Optional) | ANSI/INCITS 378, ISO/IEC 19794-2, ISO/IEC 19794-4 |
Audio | Digital Audio Speaker, Microphone |
Peripheral Interface | 1 DC Port, 1 RJ45, 1 Micro USB, 1 Wiegand, 1 RS485, 2 Relay, 2 I/O |
Tamper Protection | Support |
Power Supply | 12V/2A |
Bracket | Wall Mount Bracket, Turnstile Mount Bracket |
MDM (Optional) | Mobile Device Management |
Certification | CE, FCC |
Face Verification + Infrared temperature check
Integrated binocular live face recognition(LFR), mask detection with temperature measurement, F6T allows visitors to pass in a safer way, reducing the rate of cross-infection.
Error range:±0.3℃
Thermometry distance: 0.5-0.7m
Recognition rate: >99.5%
Black Body Calibration
Voice broadcast and high-temperature warning
F6T has a voice prompt. Once the passers without wearing a mask, F6T can do a face mask alert, forced mask-wearing alert;
High-temperature alarm for the fever in the initial temperature check;
Three-color indicator lights(Green/Red/White)

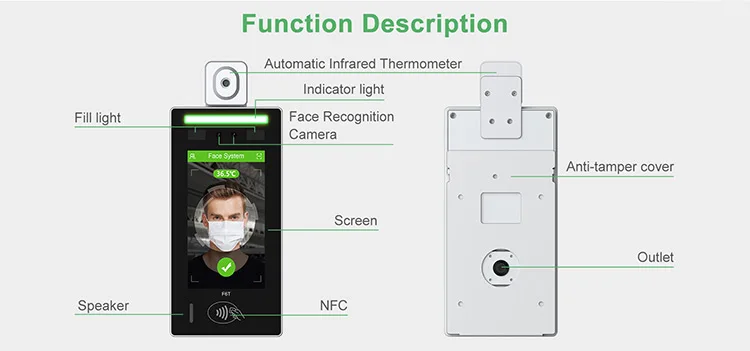

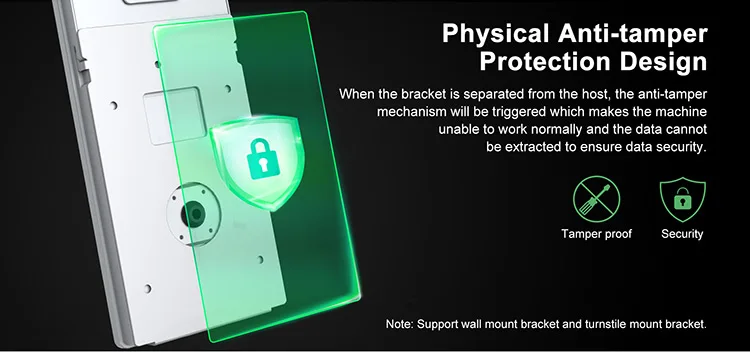

Physical Anti-tamper Protection Design
When the bracket is separated from the host, the anti-tamper mechanism will be triggered which makes the machine unable to work normally and the data cannot be extracted to ensure data security.
Note: Support wall mount bracket and turnstile mount bracket.
Support Multiple Language Display and Backstage Management System
This temperature measuring device is already compatible with 26 languages, including English, Russian, French, Italian, Portuguese, Spanish, Japanese, Korean, etc.

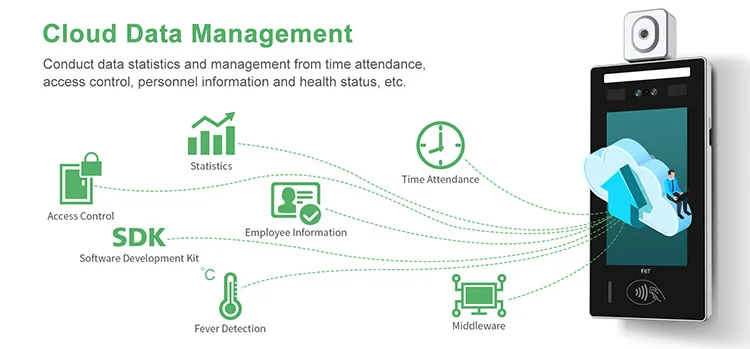

5. Cloud Data Management
Conduct data statistics and management from attendance, access control, personnel information and health status, etc.

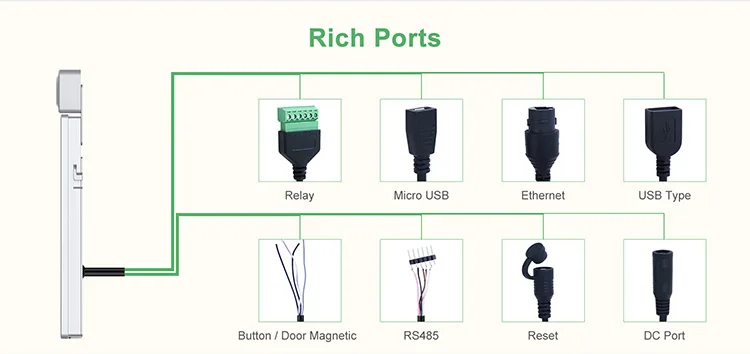

Rich Ports
External ports enable terminal to connect other peripherals and expand its application, including RS232, Wiegand, and POE patch cord.
It can be connected to the doorbell, router, tripod, turnstile gate, door lock, and other related security equipment.
