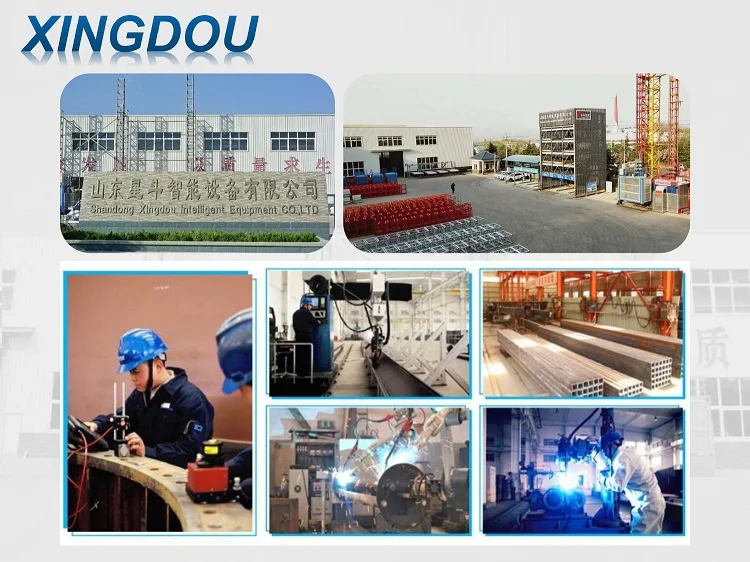

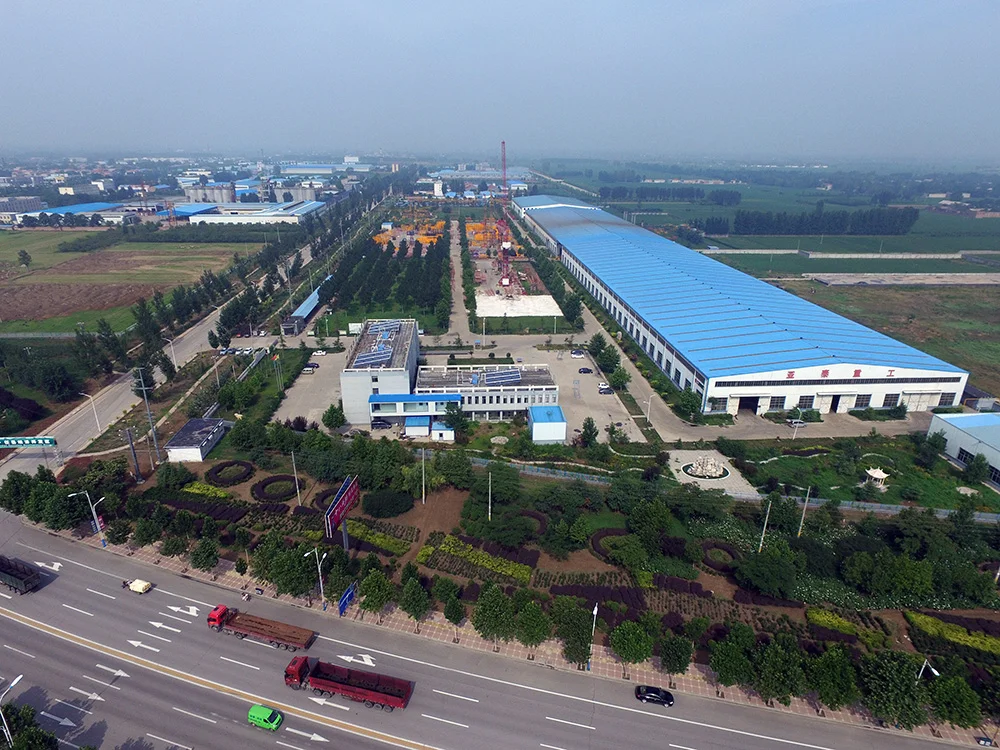

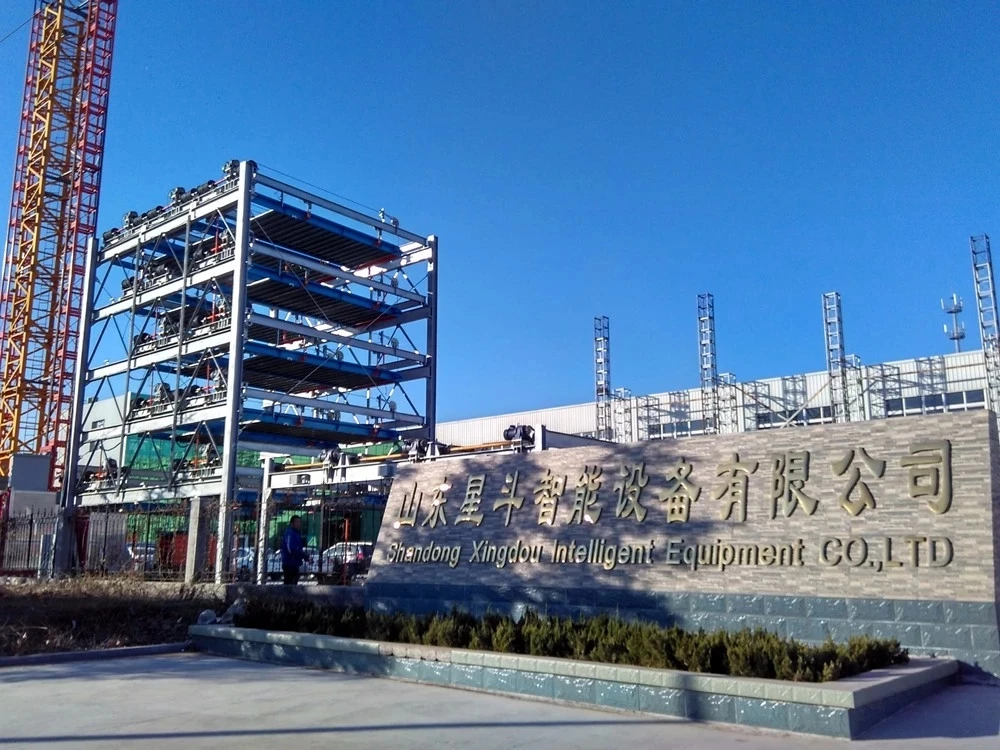

Company Introduction
Shandong Xingdou Equipment is focus on all kinds of rack and pinion driving vertical access machinery and Supply design,
solutionand OEM to all customers all over the world!
SOLUTIONS PROVIDER, TECHNOLOGY PROVIDER, MANUFACTURER !
1.15 years professional manufacturing experience and 10 Years exporting experiences.
2. Great technician Team with designation,innovation and improvement abilities.
3. Zero accident record, Safety first.
4. The product is easy to maintain and less wearing parts. It turns to be that no wearing parts need to be replaced for 3-4
years if the hoist were kept in good and regular maintenance by the plenty of practice from customers.
5. Fast response from sales and after-sale service. Emergency solution given within 0.5-12 hours after receiving the
customer'scomplaint.
6. Provide OEM for customers, turn customers' ideas into drawing design and into actual products, support improvement,modificationand suggestions Patiently.
7. Our products serve over 100 regions in more than 30 countries, and the market practice effect is very good.
8. We provide technical guide person to go to the construction site for installation guidance if necessary.
9. Following market practice reaction, we are always on the way for product improvement and innovation!
solutionand OEM to all customers all over the world!
SOLUTIONS PROVIDER, TECHNOLOGY PROVIDER, MANUFACTURER !
1.15 years professional manufacturing experience and 10 Years exporting experiences.
2. Great technician Team with designation,innovation and improvement abilities.
3. Zero accident record, Safety first.
4. The product is easy to maintain and less wearing parts. It turns to be that no wearing parts need to be replaced for 3-4
years if the hoist were kept in good and regular maintenance by the plenty of practice from customers.
5. Fast response from sales and after-sale service. Emergency solution given within 0.5-12 hours after receiving the
customer'scomplaint.
6. Provide OEM for customers, turn customers' ideas into drawing design and into actual products, support improvement,modificationand suggestions Patiently.
7. Our products serve over 100 regions in more than 30 countries, and the market practice effect is very good.
8. We provide technical guide person to go to the construction site for installation guidance if necessary.
9. Following market practice reaction, we are always on the way for product improvement and innovation!
Product description
Common PLC control direct speed Building hoist :
Specification | Type | Lifting Capacity | Lifting Speed | Motor Power | Safety Device |
Single cage without counter weight | SC100 | 1000Kg | 33m/min | 2*11Kw | SAJ 30-1.2 |
SC150 | 1500Kg | 2×13Kw | SAJ 40-1.2 | ||
SC200 | 2000Kg | 3×11Kw | SAJ 40-1.2 | ||
Twin cages without counter weight | SC100/100 | 1000Kg×2EA | 2×11Kw×2EA | SAJ 30-1.2 | |
SC150/150 | 1500Kg×2EA | 2×13Kw×2EA | SAJ 40-1.2 | ||
SC200/200 | 2000Kg×2EA | 3×11Kw×2EA | SAJ 40-1.2 |
Low speed inverter control building hoist :
Specification | Type | Lifting Capacity | Lifting Speed | Motor Power | VFD | Safety Device |
SC100L | 1000Kg | 0~33m/min 0~40m/min | 2×11Kw | 30Kw | SAJ 30-1.2 | |
SC150L | 1500Kg | 0~36m/min 0~46m/min | 2×13Kw 2×15Kw | 30Kw 37Kw | SAJ 40-1.2 | |
SC200L | 2000Kg | 0~40m/min 0~46m/min | 2×15Kw 3×11Kw | 37Kw | SAJ 40-1.2 | |
Twin cages without counter weight | SC100/100L | 1000Kg×2EA | 0~40m/min | 2×11Kw×2EA | 30Kw×2EA | SAJ 30-1.2 |
SC150/150L | 1500Kg×2EA | 0~36m/min 0~46m/min | 2×13Kw×2EA2×15Kw×2EA | 30Kw×2EA37Kw×2EA | SAJ 40-1.2 | |
SC200/200L | 2000Kg×2EA | 0~40m/min 0~46m/min | 2×15Kw×2EA2×11Kw×2EA | 37Kw×2EA | SAJ 40-1.2 |
Mediaum speed inverter control building hoist:
Specification | Type | Lifting Capacity | Lifiting Speed | Motor Power | VFD | Safety device |
Single cage without counter weight | SC 100 M | 1000Kg | 0~60m/min | 3×13Kw | 45Kw | SAJ 30-1.4 |
SC 150 M | 1500Kg | 0~63m/min 0~60m/min | 3×15Kw 2x19Kw(87Hz) | 45Kw 55Kw | SAJ 40-1.4 | |
SC 200 M | 2000Kg | 0~60m/min 0~63m/min 0~70m/min 0~75m/min | 2×23Kw(87Hz) 3×15Kw 3×19Kw(87Hz) 3×23Kw(87Hz) | 55Kw 55Kw 75Kw 75Kw | SAJ 40-1.4 SAJ50-1.6 SAJ50-1.6 SAJ50-1.6 | |
Twin cages without counter weight | SC 100/100 M | 1000Kg×2EA | 0~60m/min | 3×13Kw×2EA | 45Kw | SAJ 30-1.4 |
SC 150/150 M | 1500Kg×2EA | 0~63m/min 0~60m/min | 3×15Kw×2EA 2x19Kwx2EA | 45Kw 55Kw | SAJ 40-1.4 | |
SC 200/200 M | 2000Kg×2EA | 0~60m/min 0~63m/min 0~70m/min 0~75m/min | 2×23Kw×2EA(87Hz)3×15Kw×2EA 3×19Kw×2EA(87Hz)3×23Kw×2EA(87Hz) | 55Kw 55Kw 75Kw 75Kw | SAJ 40-1.4 SAJ50-1.6 SAJ50-1.6 SAJ50-2.0 |
Hight speed inverter control building hoist:
Specification | Type | Lifting Capacity | Lifiting Speed | Motor Power | VFD | Safety device |
Single cage without counter weight | SC 200 H | 2000Kg | 0~80m/min 0~96m/min | 3×26(87Hz) 3×18.5(87Hz) | 90Kw 110Kw | SAJ 50-2.0 |
Twin cage without counter weight | SC 200/200 H | 2000Kg×2EA | 0~80m/min 0~96m/min | 2×3×26(87Hz) 2×3×18.5(87Hz) | 90Kw×2EA 110Kw×2EA | SAJ 50-2.0 |
Remarks:
1. The above data 87Hz means VFD motor.
2. Frequency Inverter (VFD) Schneider, Siemens, Yaskawa or Chinese domestic high quality brandcan be chosen by customer.
3. All the technical datas will be changed following with our innovation. Before placing an order,Please contact us for final confirmation.
SC100/100 1ton Construction equipment Lift Material and passenger Hoist elevatorfor Building
Product Details
A .Production process:
Strict material selection— blanking— inspection — welding— inspection— Blasting — inspection —Baking finishedor galvanized— inspection — Finished Product
B.OEM ORDER:
The product can be customized according to customers' requirements (drawing, specifications and so on).
Adhering to the service philosophy of “a strong customer focus and creating value for customers” and focusing on
customerrequirements, we has been striving to achieve the service goal of “surpassing customer expectations and industrial
standards” withits first-rate speed, techniques and attitude”.
The product can be customized according to customers' requirements (drawing, specifications and so on).
Adhering to the service philosophy of “a strong customer focus and creating value for customers” and focusing on
customerrequirements, we has been striving to achieve the service goal of “surpassing customer expectations and industrial
standards” withits first-rate speed, techniques and attitude”.
SC100/100 1ton Construction equipment Lift Material and passenger Hoist elevatorfor Building

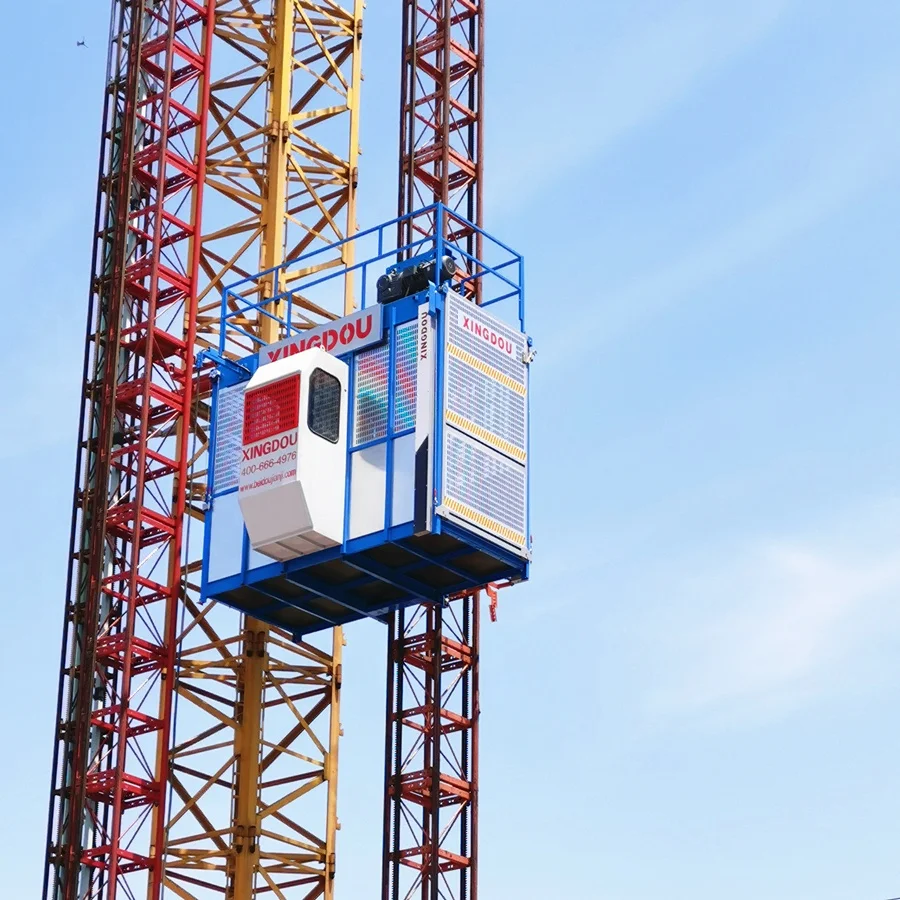

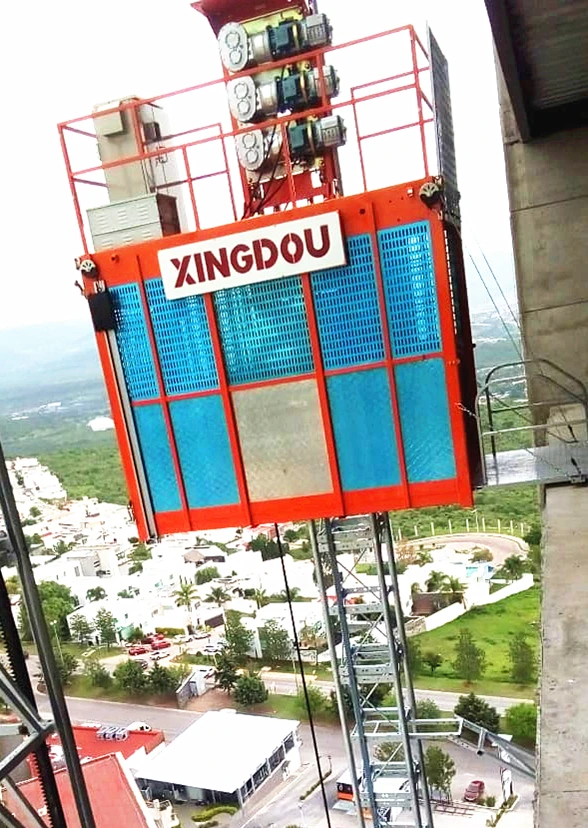

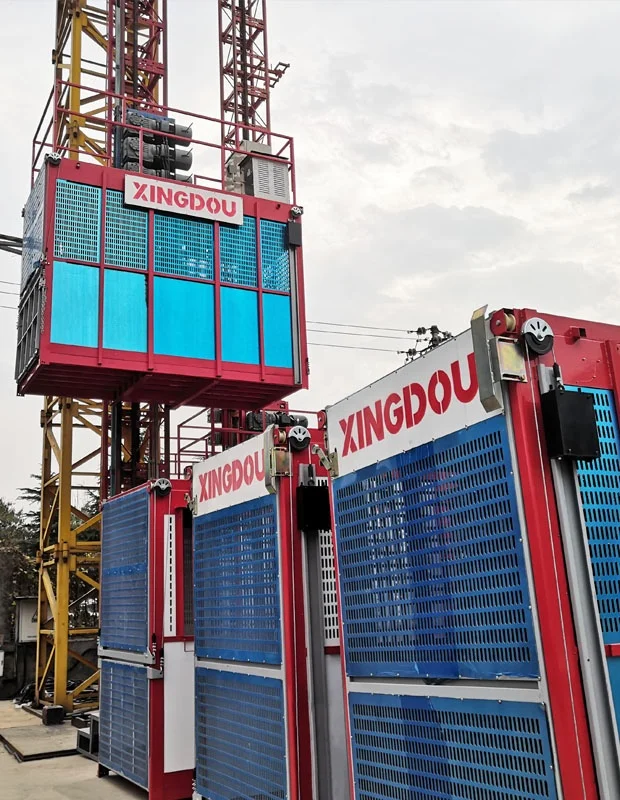

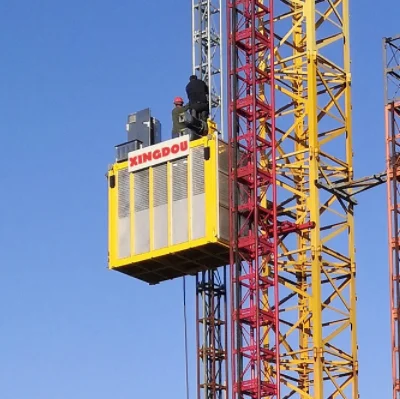

Cage& Cabin.
The cage can be made according to customers requirement. small or big type all ok for us.
The cage can be made according to customers requirement. small or big type all ok for us.
The cage is boarded up by all punched aluminum sheet ,Sidewall of Wire Mesh for cage is also available. The size can be arranged
to your requirement.
to your requirement.

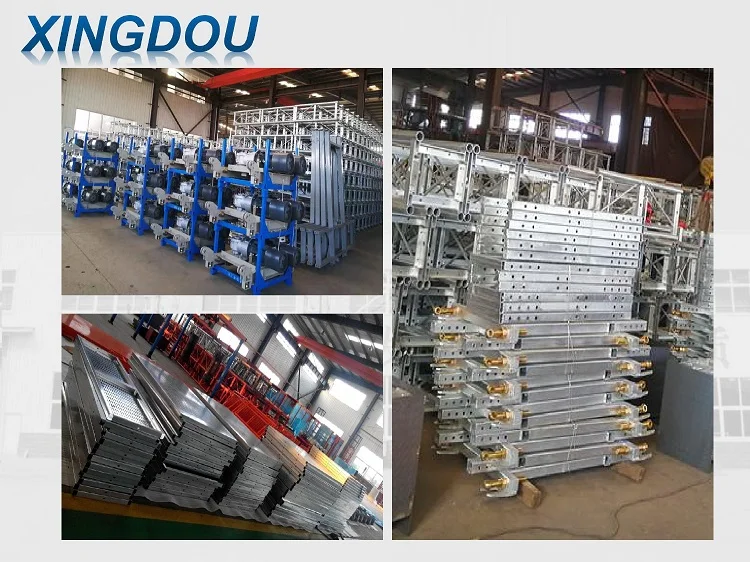

Mast section.
Different type of mast section we can provide, like 650*650*1508mm, 650*200*1508mm, 650*1508 flat type, 650*900*1508mm,
450*450*1508mm, 800*800*1508mm type and so on.
Different type of mast section we can provide, like 650*650*1508mm, 650*200*1508mm, 650*1508 flat type, 650*900*1508mm,
450*450*1508mm, 800*800*1508mm type and so on.
Cage steel frame.
All steel frames are welding fixed inside Jig to keep each product according to technique requirement
All steel frames are welding fixed inside Jig to keep each product according to technique requirement
Enclosure
different type can be chosen like wire mesh materials, steel punched type, ex-metal plate type...
Driving machinery
Driving machinery is very important , it will influence the smoothly and steady running, we pay much more attention to each
details.
details.
Electrical part
must be taken before loading.

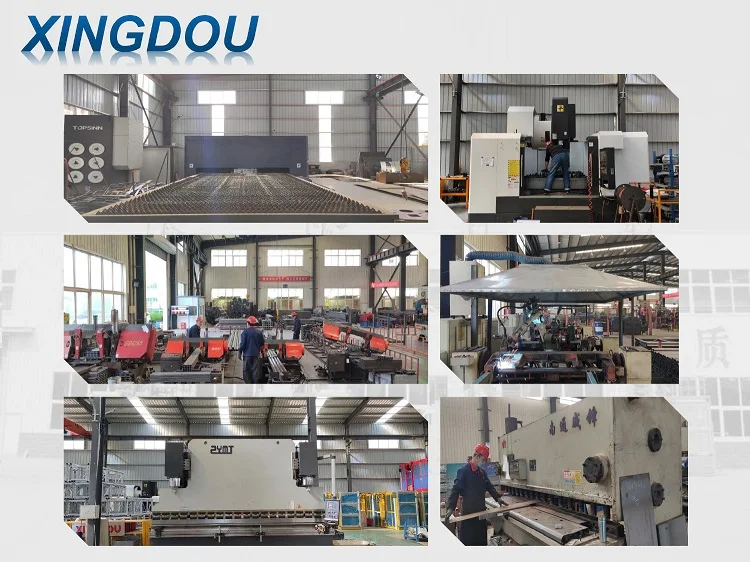

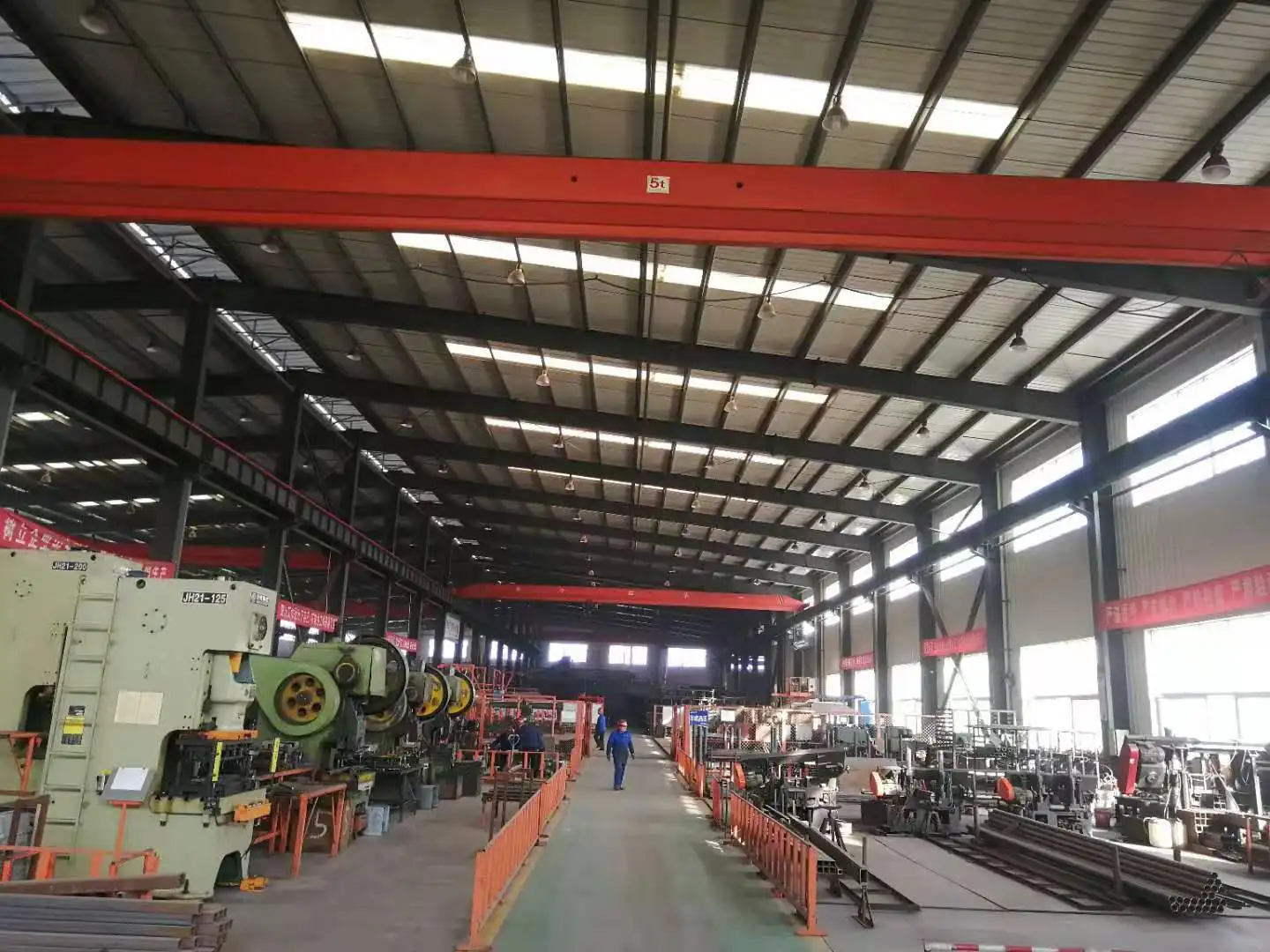

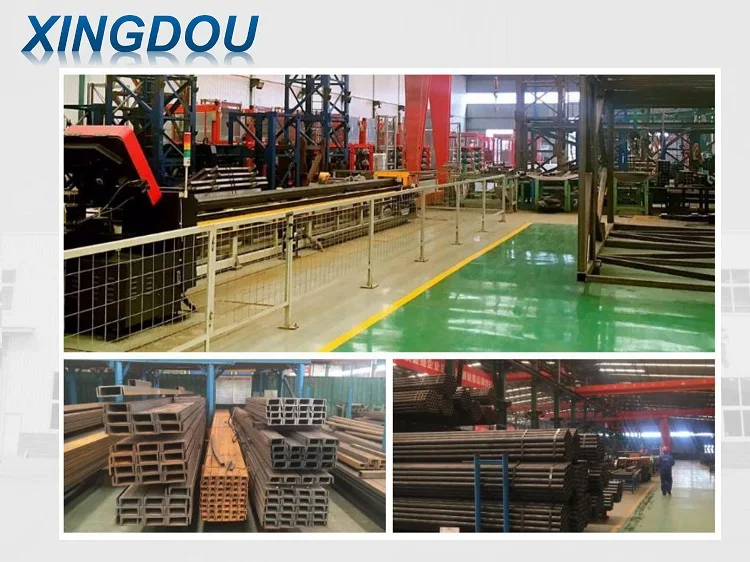

Working shop
Proffessional Manufacturer of Parking Replacement Automated Car Smart Parking Lift System
1. -All Production Line adopt special fixture, mould, gauge made by us to ensure all detailed size.
2.- Select high quality raw material from China Bao Steel Group, other like motors ,reducers, gearbox, safety device with low noise, electrics is schneider or Korea repute brand with reliable quality
3.- Special design,compact and reasonable structure,easy to installation and adjustment.
4.- Each equipment should be test and make record in Factory, all details will be adjust like motor brake, safety device operation, all limit switch operation, dropping test, loading test, and mast section erection test to ensure the completed equipment run well when take into use.
SC100/100 1ton Construction equipment Lift Material and passenger Hoist elevatorfor Building
Team Culture & Customer Relationship
Certifications

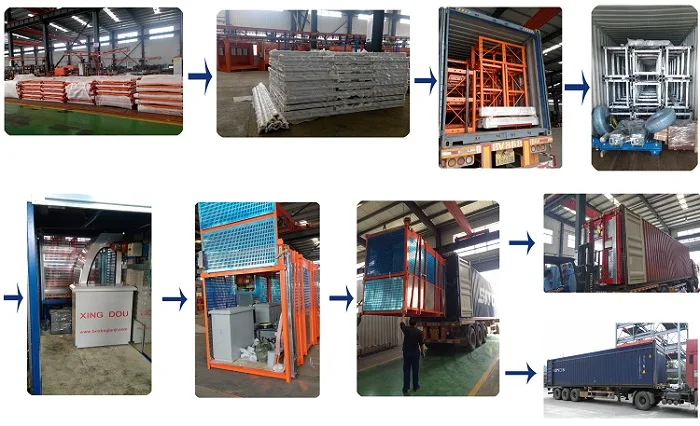

Packing&Shinping
SC100/100 1ton Construction equipment Lift Material and passenger Hoist elevatorfor Building is the most important matter, but we can not ignore the importance of package. Well package can protect the product from crash, rust ,mess and so on. It is easy for our clients to identify different spare parts, easy loading and unloading. We pay much more attention to the details...
