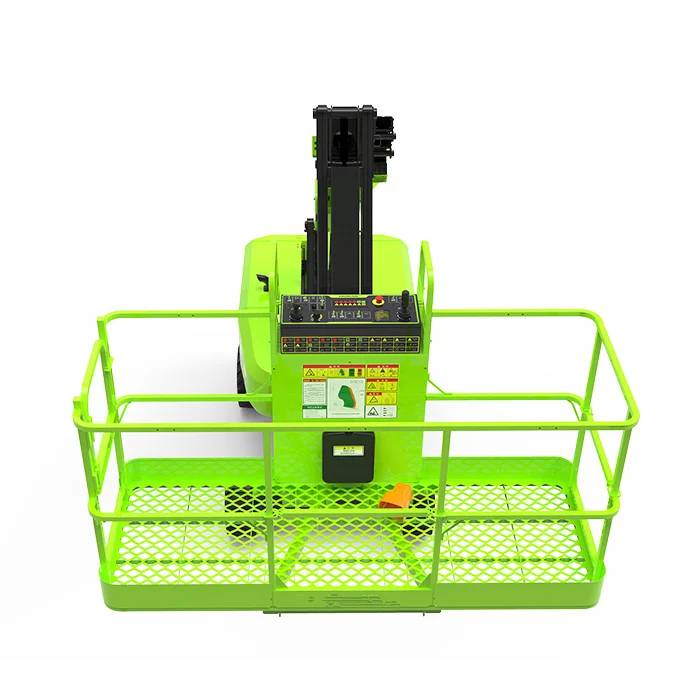

Телескопические подъемники ZT38J 38 метров рабочая высота подъемная платформа прямой

model

ZT38J

size

Working height

40.2m

Maximum platform height

38.2m

Maximum operating range

25m

storage length

12.26m

storage width

2.49m

storage height

3m

length of working platform

2.44m

Working platform width

0.91m

wheelbase

3.81m

Wheelbase

2.05/3.41m

minimum ground clearance

0.41m

performance

Rated load (unrestricted/restricted)

300/454kg

Driving speed (collected state)

5km/h

Maximum climbing ability

45%(24°)

Inner turning radius

3.3/7.7m

Outer turning radius

8.2/10.8m

Turntable rotation angle

360° continuous

Platform swing angle

±90°

Tail swing

1.48m

Fly boom swing angle

135°(-60°~75°)

Maximum working wind speed

12.5m/s

power

engine model

Cus QSF2.8

Fuel tank capacity

200L

Control voltage

12V DC

Hydraulic oil tank capacity

250L

Drive way

Four-wheel drive

Steering method

Four-wheel coordination/front wheel/crab line

tire

Tyre model

IN445/50D710 foam filled tire

weight

Total Weight

20700kg
