Products Description
Introduction:

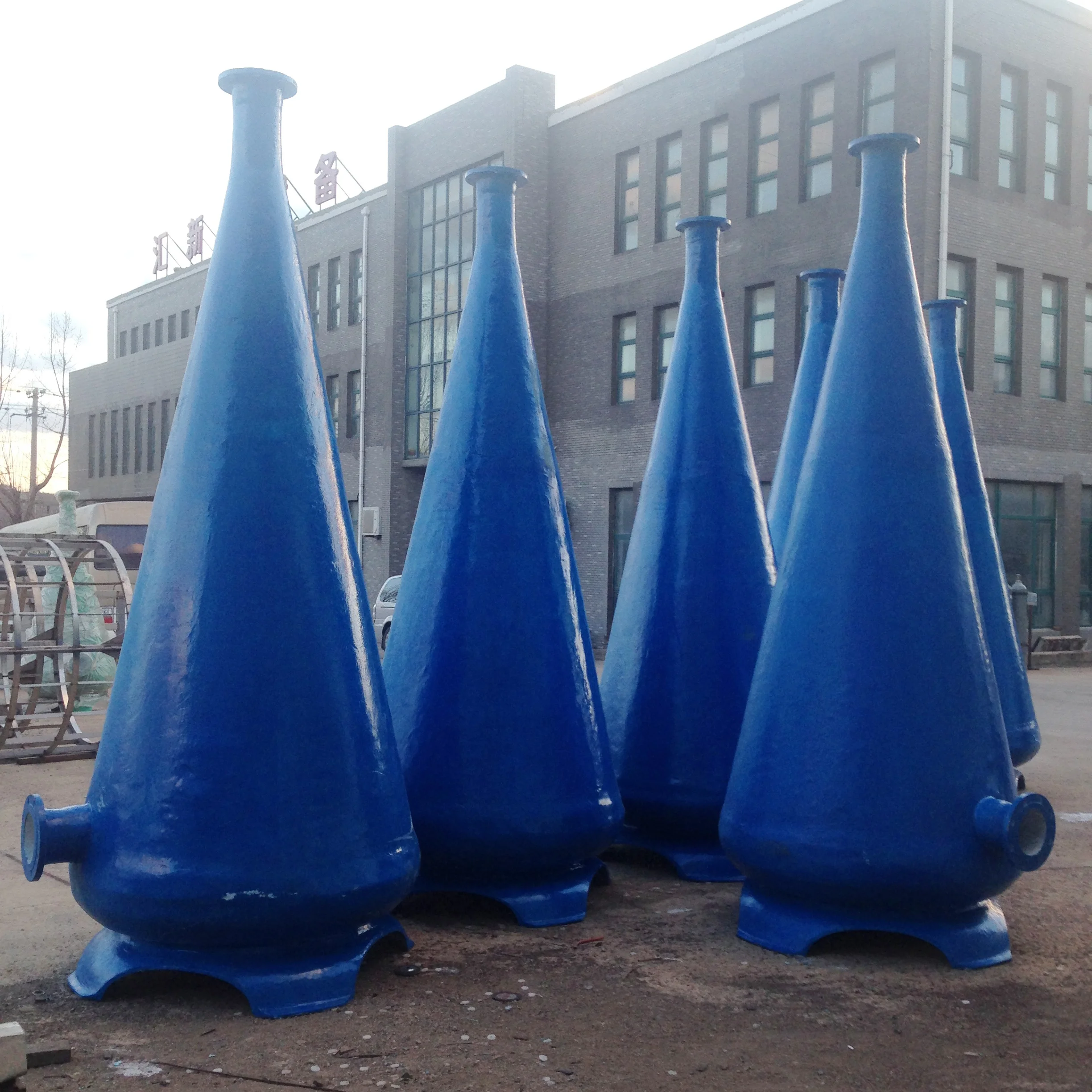

Our oxygen cones are used for mixing oxygen or ozone in the water.Their shape makes the saturation efficiency very high , up to 95%. Water and oxygen enter at the top of the cone at relatively high speed. The stream of water pushes the oxygen bubbles down and the velocity reduces as the cone widens until bubbles completely dissolve.
Our oxygen cones are used for mixing oxygen or ozone in the water.Their shape makes the saturation efficiency very high , up to 95%. Water and oxygen enter at the top of the cone at relatively high speed. The stream of water pushes the oxygen bubbles down and the velocity reduces as the cone widens until bubbles completely dissolve.
Features:
1).High saturation efficiency 95%
2).Robust construction
3).Easy installation
4).Endurance
1).High saturation efficiency 95%
2).Robust construction
3).Easy installation
4).Endurance
Product Parameters
Name | Specification | Brand | Material |
HXYZ-30 | 30 tons per hour | HUIXIN | FRP |
HXYZ-60 | 60 tons per hour | HUIXIN | FRP |
HXYZ-110 | 110 tons per hour | HUIXIN | FRP |
Oxygen Capacity at Maximum Flow rates, Various Temperatures and pressures, Salinity 0, Sea Level, Inflow Sat.100%, Contactors Sat.60%.
Model No. | Gauge pressure | Temp 20°C | D.O.mg/l |
HXYZ-30 | 10psi/0.7bars 15psi /1bars 20psi /1.4bars | 1.2kg/hr 1.4kg/hr 1.6kg/hr | 49 56 64 |
HXYZ-60 | 10psi/0.7bars 15psi /1bars 20psi /1.4bars | 2.4kg/hr 2.8kg/hr 3.2kg/hr | 50 57 65 |
HXYZ-110 | 10psi/0.7bars 15psi /1bars 20psi /1.4bars | 4.5kg/hr 5.3kg/hr 6.1kg/hr | 50 58 65 |
Note: Weights are based on 20psi design thickness.Weights will change at other design pressure.All weights and loadings are estimated.Actual may vary slightly.

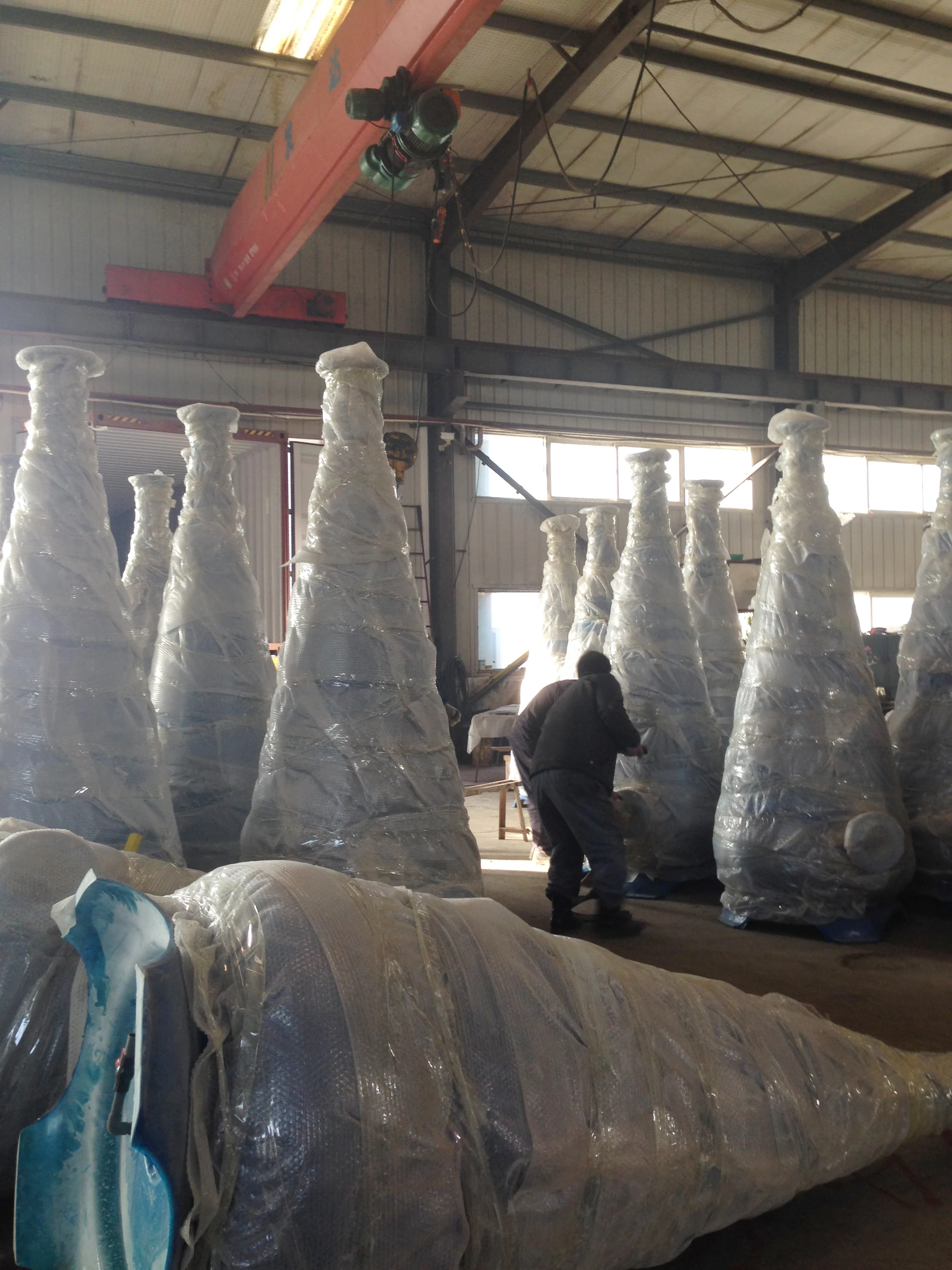

Packing & Delivery
Related Products
250 tons per hour fish farm drum filter, drum filter for the recirculating aquaculture system,drum filter for koi pond
Sea water Fish Protein Skimmer for RAS aquaculture recirculating system
High Quality Manufacturer FRP Oxygen Cone For Fish Farm
Chlorella, micro algae,algae culture, algae culture system for indoor cultivation
Fish Farm UV Sterilizer for recirculating aquaculture system
High quality aquaculture fish farming system RAS water treatment 100t/hour rotary drum filter
Our Company
Dalian Huixin Titanium Equipment Dev. Co., Ltd founded in 1993, is a leading industrial aquaculture facility manufacture in China.It is also the enterprise of engineering technique research center in Liaoning area. Our company had been certificated withISO9001-2008, named as National High-Tech Enterprise. It is also the member of Chinese Society for Ocean Enterprise Science, ChinaSociety of fisheries, Chinese Society of Agricultural Engineering. It had been honored with “Abiding by Contract and Being Trustworthy”, “Environment Protection and Resources Saving Growing Private Enterprise in Dalian”, “Top 10 Technological Enterprise in Dalian”, “Excellent Invention” etc.
35 patents, including 16 invention patents.
