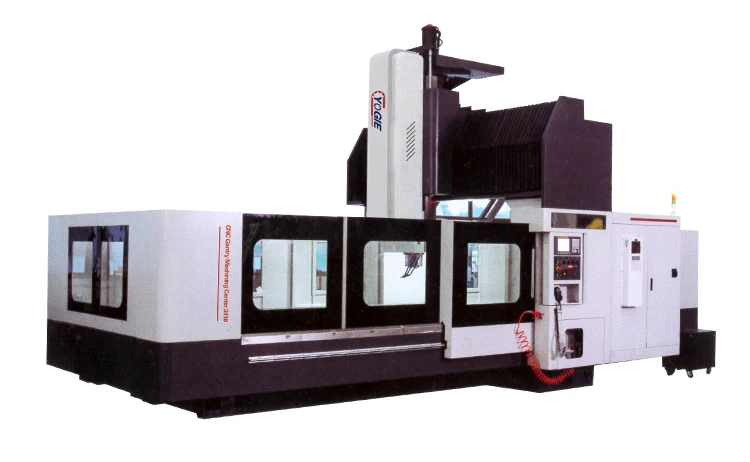

Мощный 6035 станок с ЧПУ для козлового фрезерования и Расточного
- Категории: CNC Milling Machines >>>
- Поставщик: Luoyang,Yujie,Industry,&,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Why Choose Us
Performance | YJGM-2217 | YJGM-3018 | YJGM-4022 | YJGM-6035 | ||||||
Travel | ||||||||||
Work table travel(X/Y/Z) | mm | 2200/1700/1000 | 3000/1800/1000 | 4000/2200/1000 | 6000/3500/1200 | |||||
Distance from spindle surface to worktable | mm | 0-1200 | 0-1200 | 0-1400 | 0-1600 | |||||
Rail way | Two linear guide rail, one hardened rail | |||||||||
Work table | ||||||||||
Table size | mm | 2200x1300 | 3000x1500 | 4000x1800 | 6000x2500 | |||||
The maximum load capacity of the workbench | T | 5 | 7 | 12 | 20 | |||||
Splindle | ||||||||||
The spindle taper(model sleeve diameter) | mm | BT50/155 | BT50/155 | BT50/190 | BT50/190 | |||||
The spindle motor power | kw | 18 | 22 | 26 | 30 | |||||
Splindle speed | rpm | 6000 | 6000 | 6000 | 6000 | |||||
Accuracy | ||||||||||
Position Precision | mm | 0.01/1000 | 0.01/1000 | 0.01/1000 | 0.01/1000 | |||||
Repeated position precision | mm | ±0.01 | ±0.01 | ±0.01 | ±0.01 | |||||
Size | ||||||||||
Net weight | T | 23 | 30 | 40 | 75 | |||||
STANDARD CONFIGURATION
1, CNC control system standard function 2, Spindle constant temperature system
3, automatic power off device 4, hydraulic unit system
5, cutting fluid unit 6, automatic lubrication system
7, three-color warning light
8, working light
9, hand wheel control box
10, RS-232 interface
11, heat exchanger configuration
12, chip remover and chip bucket
13, Foundation bolts and level adjustment pads
14, controller operation manual and circuit diagram
15, Mechanical Safety Operation Manual
16, precision test table
17, splash protection andmanualdoor
18, a set of mechanical adjustment tools

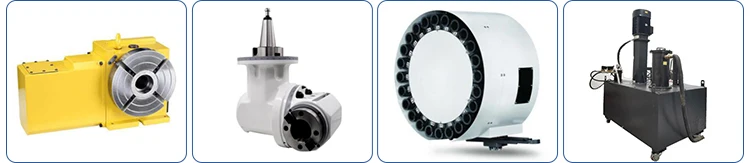

OPTIONAL
CNC system simens/Mutsubishi/Fanuc/KND
Each axis grating device Disc magazine /chain magazine
Spindle center water output 2-7MPa
12000-15000 mechanical spindle
Four-axis function Right-angle milling Head
Product Features:
1. High rigidity and long-term accuracy retention, high precision and high dynamic response.2. High precision and dynamic response.
3. High efficiency
4. Large processing range
5. Customize service according to customer special requirements.

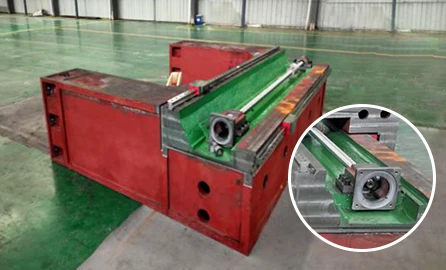

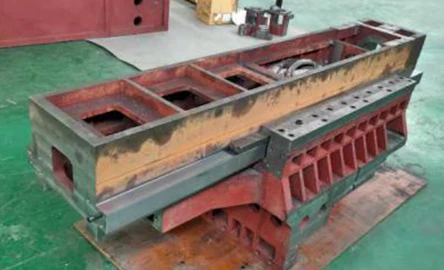

Ram (Patent structure)
Using the best rectangular lead rail, it has stable structure and strong rigidity!

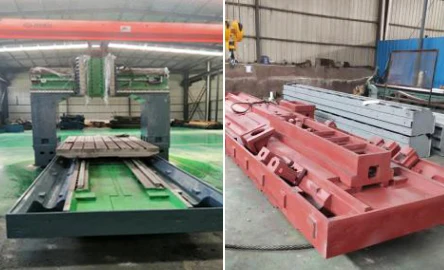

Beam (Patent structure)
"Door" casting design ensures rigidity and stability.
Using the overall ship structure, and double wall is integrated with the ribs, it ensure rock- solid foundation for maximum load seismic resistance.

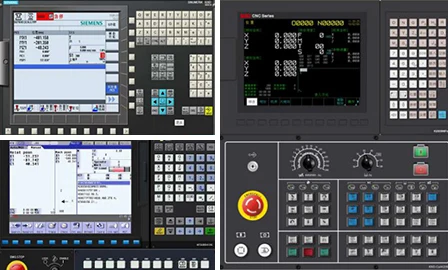

CNC System
Siemens system, KND, Frank and Mitsubishi system can be selected according to customer requirements.

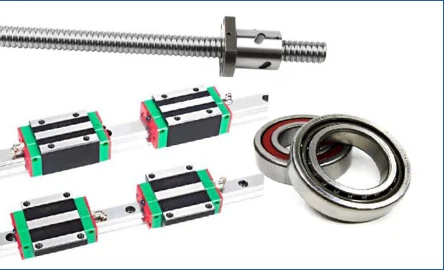

Screw And Rail Way
Taiwan brand screw and rail way and Japanese brand bearing to guarantee the rigidity and precision of machine.
Option
Customer can choose the fourth axle, side milling head, Spindle central water discharge and tool changer according to machining requirements.
Q1: Are you factory or Trade company？
A1: We are factory. Our factory have more than 20 years experience in production various CNC machine.We provide final solution for machining manufacturing industry.
Q2: How to choose the suitable machine？
A2: Tell us your max workpiece size(such as max length,max width, max height and weight) and photo. We can recommend the suitable machine for you.
Q3: Can you supply customized service?
A3: We can customized according to customer’s special requirements.
Q4: How to intall and operate of the machine?
A4: Enough photoes, video and operation manual will be supplied.It will show how to operate the machine. Our engineers also provide online technical support
Q5: What is the payment item?
A5: 50% T/T in advance , 50% balance will be paid before machine leave the seller’s factory.
A1: We are factory. Our factory have more than 20 years experience in production various CNC machine.We provide final solution for machining manufacturing industry.
Q2: How to choose the suitable machine？
A2: Tell us your max workpiece size(such as max length,max width, max height and weight) and photo. We can recommend the suitable machine for you.
Q3: Can you supply customized service?
A3: We can customized according to customer’s special requirements.
Q4: How to intall and operate of the machine?
A4: Enough photoes, video and operation manual will be supplied.It will show how to operate the machine. Our engineers also provide online technical support
Q5: What is the payment item?
A5: 50% T/T in advance , 50% balance will be paid before machine leave the seller’s factory.
Customer Photos

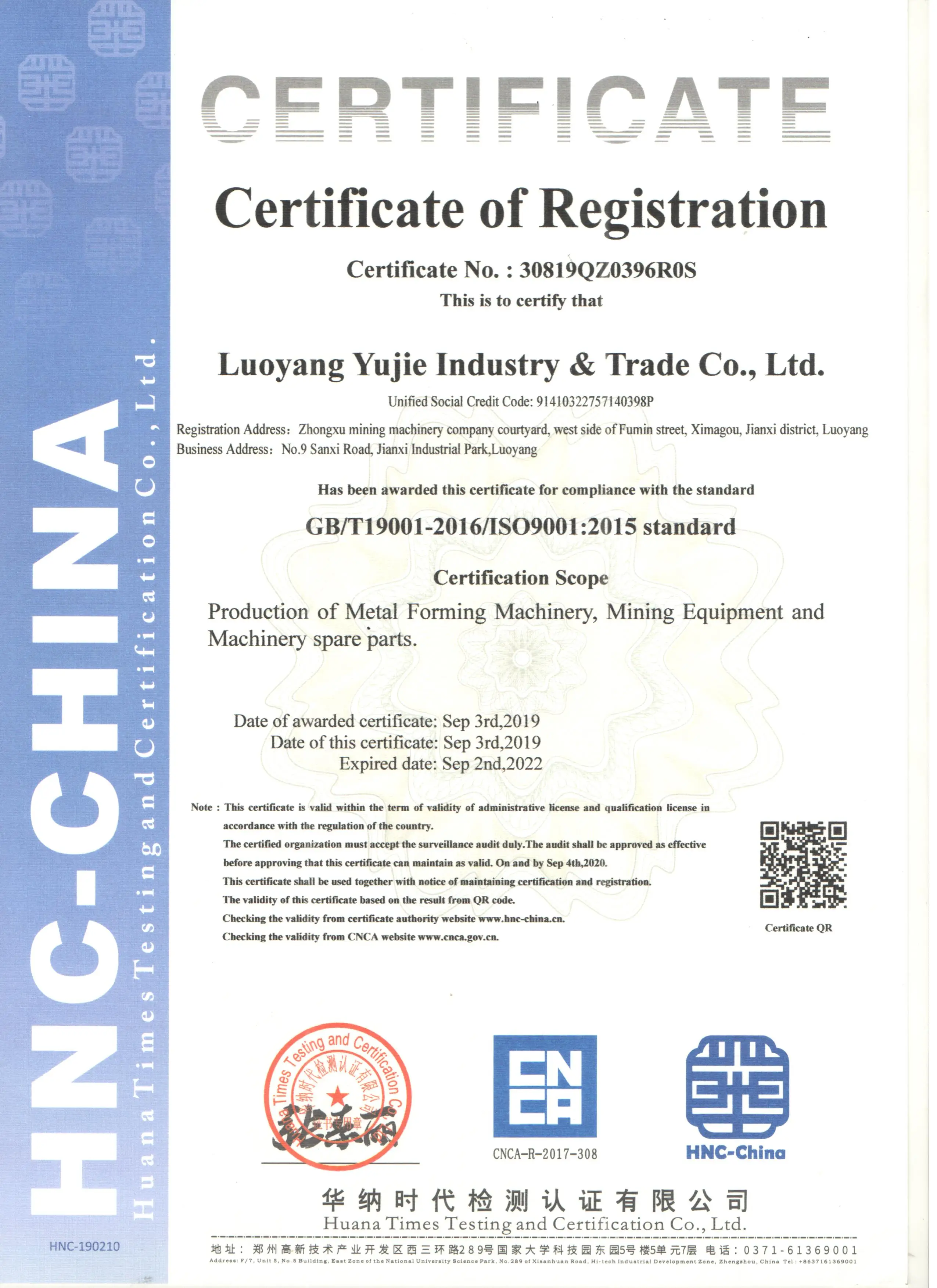

Certifications
