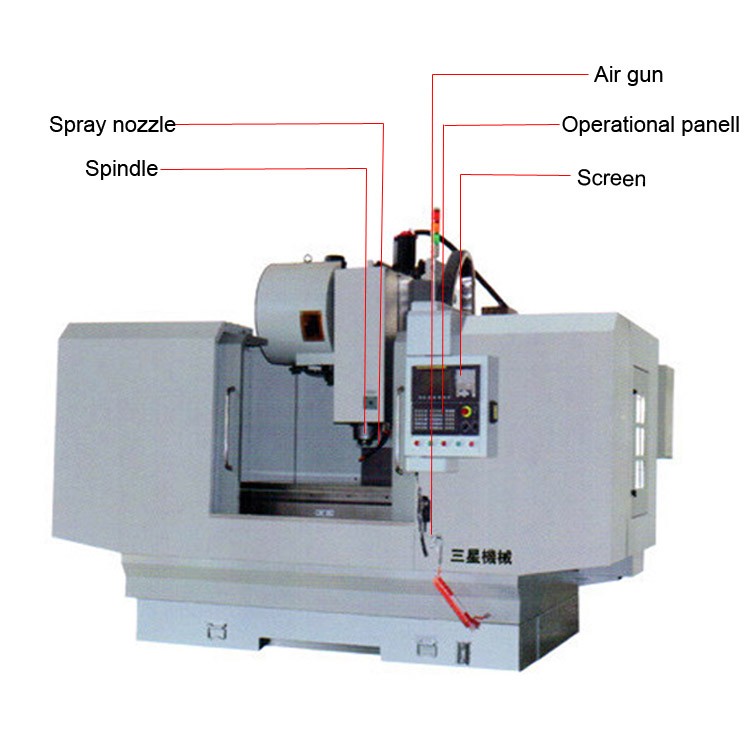

Professional supplier metal milling machine with cnc from Jiangsu Sanxing
Product Description
Type | Unit | 715(850) |
X-axis travel | mm | 800 |
Y-axis travel | mm | 500 |
Z-axis travel | mm | 500 |
Travel between spindle nose to worktable | mm | 105-650 |
Travel between spindle center to worktable | mm | 550 |
Length of work table | mm | 950×460 |
Max.loading capacity of worktable | kg | 600 |
Table T-solt | mm | 5-18 |
Spindle taper |
| BT40 |
Spindle speed | r/min | 60-8000 |
Power of motor(spindle) | kw | 5.5/7.5 |
Motor of motor(three axises) | kw | 1.5 |
Max.moving speed of X | m/min | 16 |
Max.moving speed of Y | m/min | 16 |
Max.moving speed of Z | m/min | 12 |
Style of handle |
| BT40 |
CNC system | FANUC 0i MD | |
Position accuracy | mm | 0.01/500 |
Repeatability position accuracy | mm | 0.005 |
Net weight | kg | 5000 |
Pressure requirement | kg/cm² | 6 |
Power supply | kg | 15 |
Machine dimensions(L×W×H) | mm | 2600×2200×2800 |
♦ Difference
1, CNC milling machine and machining center for the completion of a larger amount of milling of the product processing;
2, CNC engraving machine for a smaller amount of milling or light metal processing.
From the perspective of CNC machine tools used by the machine:
1, CNC milling machine and machining center of the CNC system requirements: stable and reliable, operation, easy maintenance;
2, CNC engraving machine most of the use of enterprise independent research and development or outsourcing of industrial controllers.
From the axis of the machine power and spindle speed point of view:
1, CNC milling machine and machining center of the shaft power is relatively large, the spindle power is relatively large.
2, CNC engraving machine most of the use of low-power motor.
Packaging
| ♦ Packaging details: inner plastic, outer plywood case |
| ♦ Delivery detail: 15-20 days afterpayment |
| Minimum order quality: 1 set |
Port: Shanghai or any Chinese port |
| Payment Method: L/C, T/T, Western Union, MoneyGram |
| Supply Ability: 200 sets/month |
| Warranty period: 12 months |

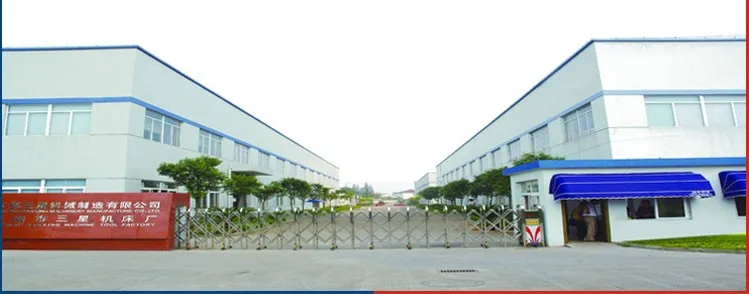

Company profile
Jiangsu Sanxing Machinery Manufacture Co.,Itd was founded in 1993. The company is a high-tech enterprise integrating research and development, production and sales. Our company has been awarded IS09001-2008 international quality certificate CE certificated for Europe, and also honored with "enterprise of high-tech". Our many products are titled “high—tech products” and “provincial famous trademark”, get the Machinery Industrial Science And Technology Award and theSmall&Medium Enterprises Innovation Award of the Ministry of Science and Technology, meanwhile, the products own 3 invention patents, 27 New practical patents, 3 designing patents and 7 patents during application. |
FAQ
| 1. What’s your MOQ ? |
| Our MOQ is one set for each machine. |
| 2. Could we use our own brand on your machine ? |
| Yes, we would love to accept. |
| 3. Could your engineers go to our factory to install the machine and train our workers? |
| Yes, our engineers could go to your factory and assist you. |
| 4. Whats your fast delivery time ? |
| According to machine, our production time is from 7 days to 30 days, and some machines are in stock. |
| 5. Could I visit your factory ? |
| Yes, sure, welcome. |
