NanoVNA-H4 4 дюймовыйсенсорный экран 50 кГц ~ 1 5 ГГц nanovna вектор сетевой анализатор HF VHF UHF

Specifications:

·    ABS case: 75mm x 133mm x 18mm (excluding protrusions)

·    Measuring frequency: 50KHz -1.5GHz

·    RF output: 0dbm (±2dbm)

·    Measurement range: 70dB (50KHz-300MHz), 60dB (300M-900MHz), 40dB(0.9G-1.5GHz); There may be errors caused by nonlinear transformation of fundamental wave when using harmonic measurement

·    Port SWR: < 1.1

·    Displayer: 3.95 inch TFT (320 x 480)

·    USB interface: USB type-C, Communication mode: CDC (serial)

·    Power: USB 5V 200mA, built-in 1950mAh battery, maximum charging current 1A

·    Number of scanning points: 101 (fixed)

·    Display Tracking: 4, Marking: 4, Setting Save: 5

·    Frequency Tolerance: <2.5ppm

·    Frequency Stability: <0.5ppm

NanoVNA-H4 Upgarding:

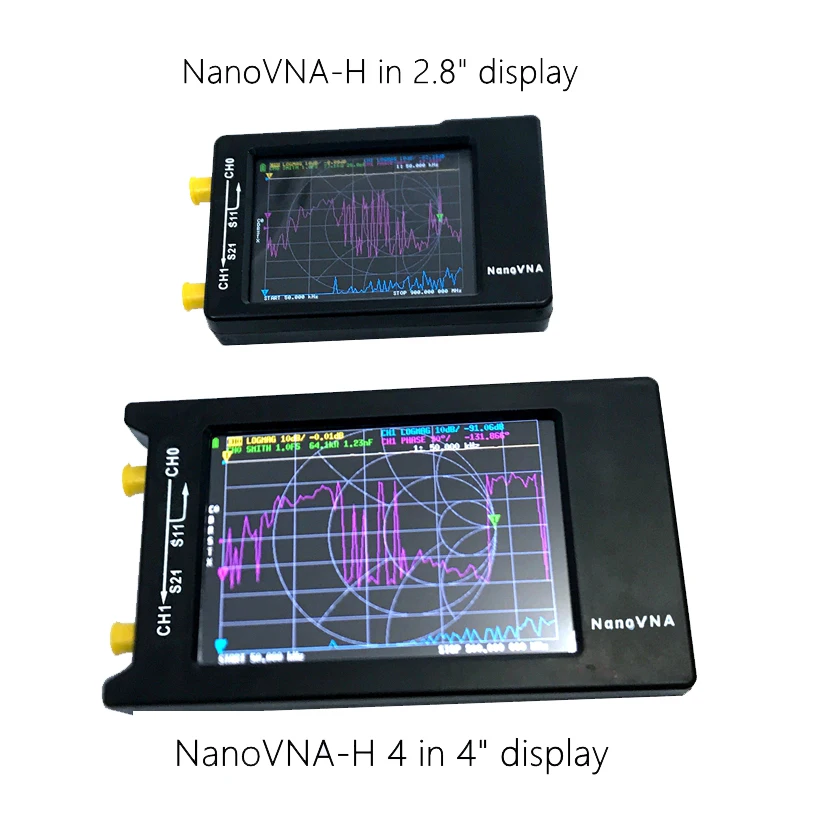

·    4-inch full-angle LCD screen, with DC dimming added, can be seen more clearly when using outdoors, and it is more comfortable to use indoors

·    Optimized the bridge to make full use of the Si5351 harmonics, now it can be measured to 1.5Ghz when using 5 times harmonics

·    When using the fundamental wave, the CH0 output level is raised to 0dBm, and the reflection measurement is more accurate

·    Resolve previous anomalies of NanoVNA-H near 6MHz

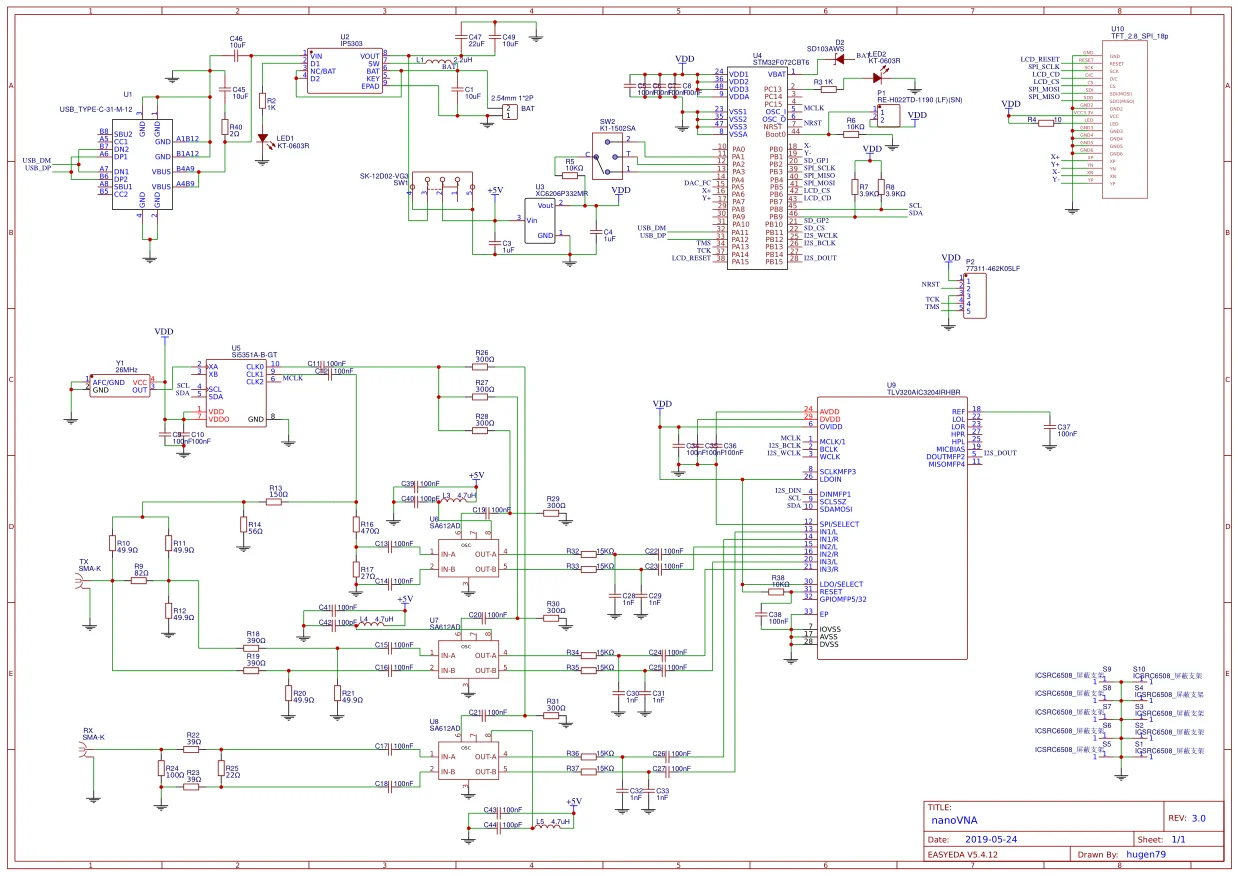

·    Reproduce the designed power management circuit to further reduce power noise, reduce USB power interference, reduce charging current, and protect the battery

·    Optimized PCB layout with capacity of 1950mAh battery for more than 8 hours using

·    Reserve UART interface for DIY extension

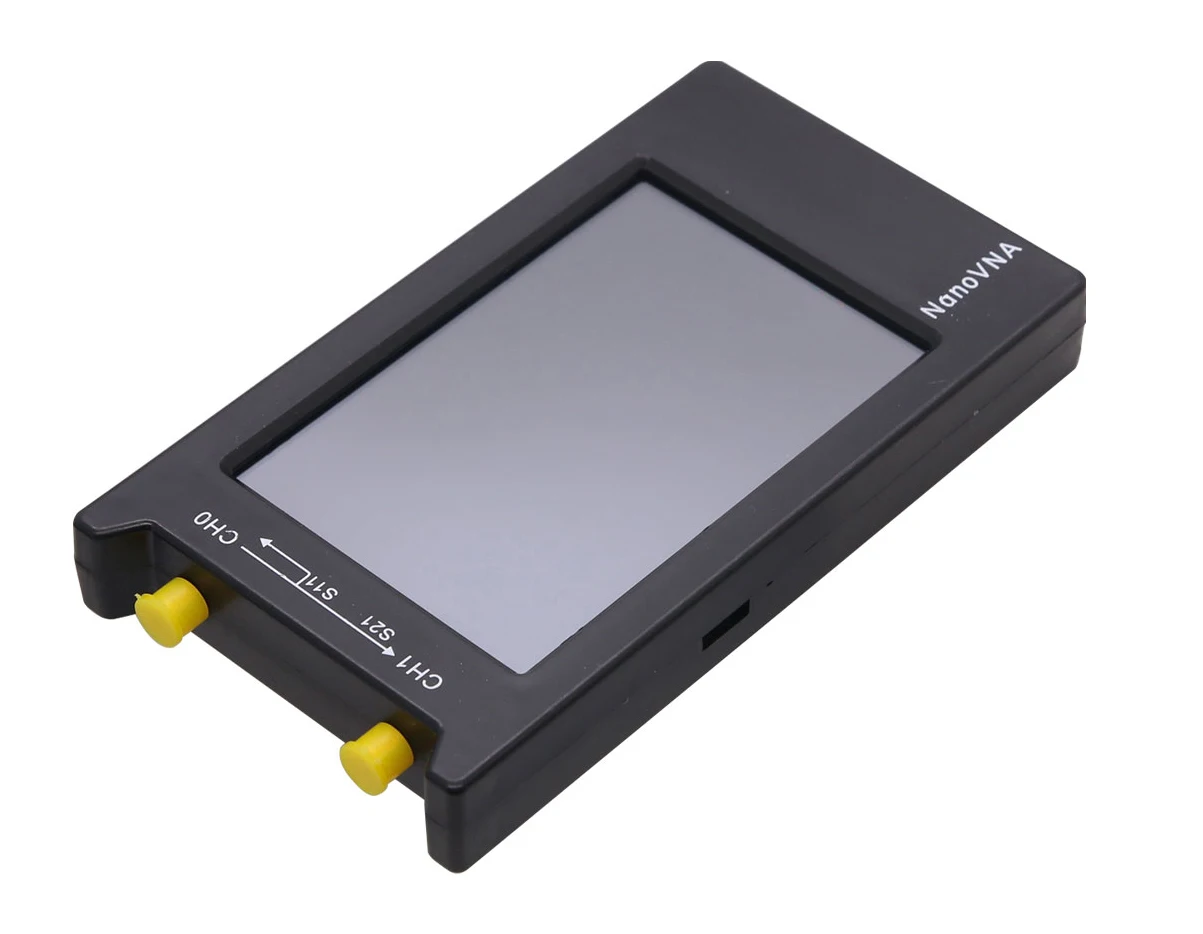

·    New ABS shell is made by mold opening, which is light and convenient and protects the machine

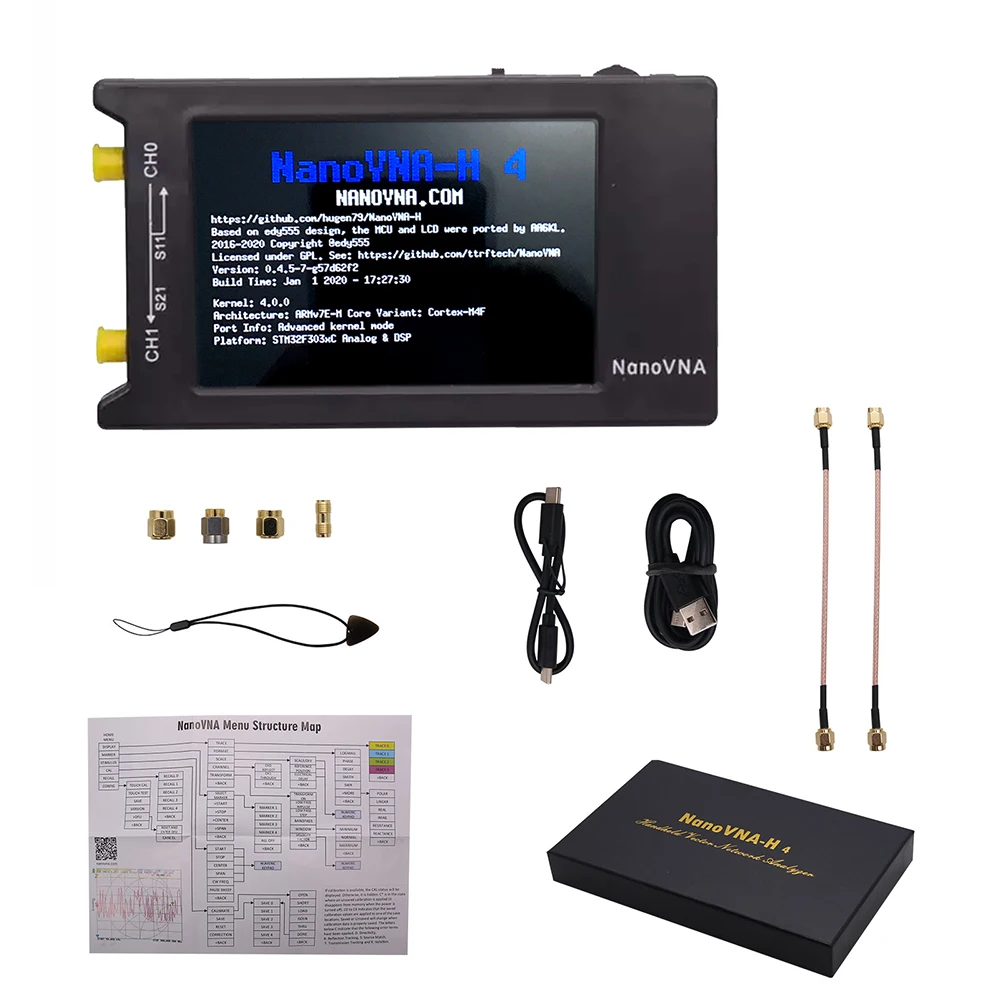

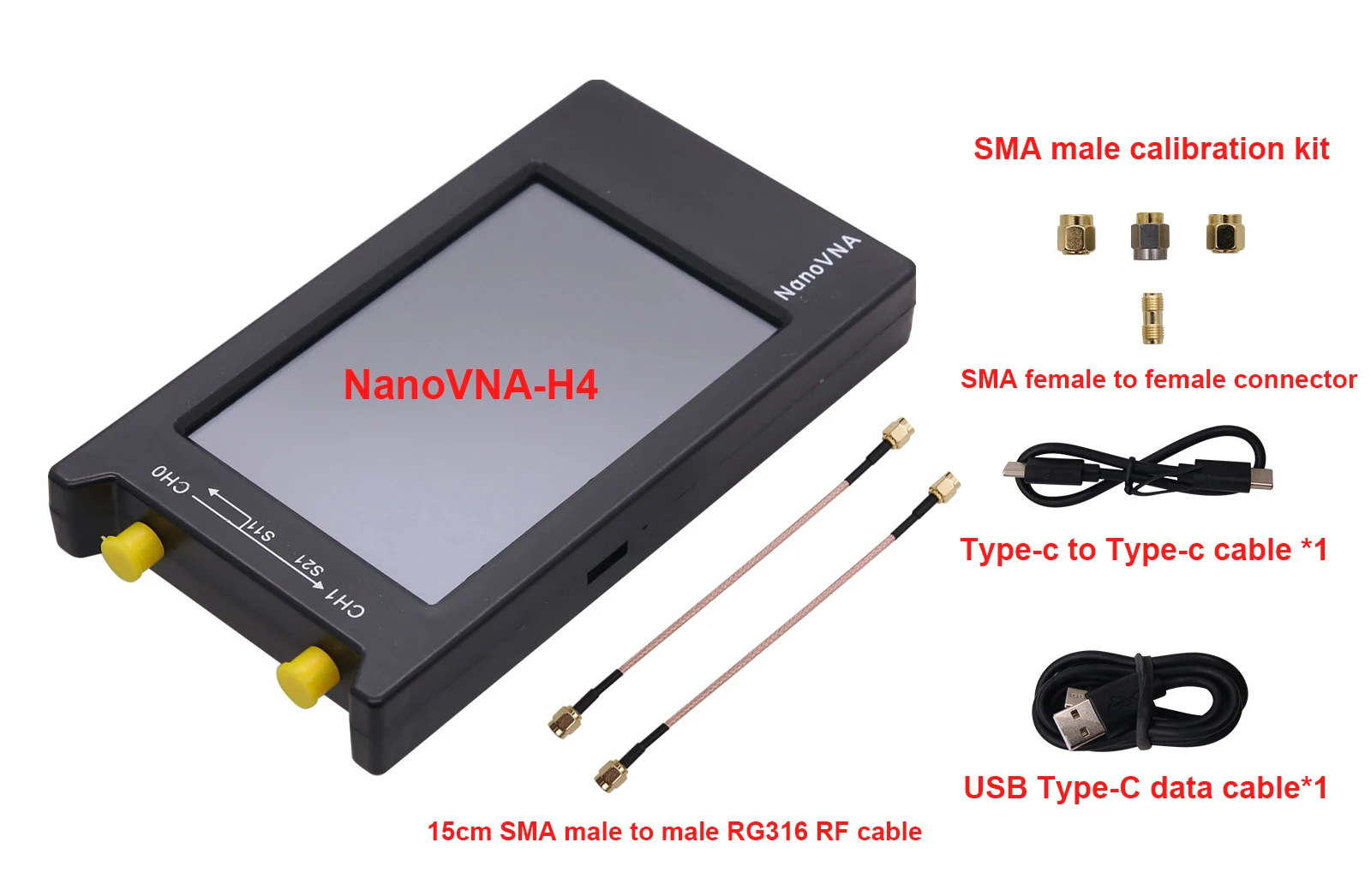

Packing List:

NanoVNA host (with 1950mAh battery) * 1

USB Type-C data cable *1

15cm SMA male to male RG316 RF cable *2

SMA male calibration kit - OPEN *1

SMA male calibration kit - SHORT *1

SMA male calibration kit - LOAD *1

SMA female to female connector *1

Type-c to Type-c cable *1

Shipping :

This NanoVNA includes a battery, If you want to order the product without battery, pls contact us in advance.

We will choose a suitable shipping based on your address. For other shipping pls feel free to contatc us.

We will continue to provide updates and technical support services for NanoVNA within 3 years after purchase.You can get the latest detail of products and software updates from the Web Store: www.nanovna.com

We will test before shipment and connect directly to the SMA port for calibration, the calibration data is stored in state 0, and the boot will load the status 0 data directly.
