Product Description


Product description：The ET43 Series handheld LCR is a portable hand-held measuring instrument for measuring the parameters of inductors, capacitors, resistors and other components. It is samll with a 5V lithium battery, suitable for table-type application. It is also portable and mobile.


Product Paramenters


Test frequency
100Hz,20Hz
1KHz,10KHz
40kHz,100KHz
100Hz,120Hz
1KHz,10KHz
100Hz,120Hz
1KHz,10KHz
40kHz,100KHz
100Hz-100KHz
Continuously adjustable，
1Hz step
Basic accuracy
0.3%
0.2%
0.2%
0.2%
Display screen
2.8 inches TFT LCD screen
Display digits
Main parameter:5 digits, Secondary parameter:5digits
Measurement parameters
Main parameter:L/C/R/Z, Secondary parameter:X/D/Q/θ/ESR
Electrolytic Capacitor Mode
√
√
√
√
DCR Mode
×
√
√
√
Measuring range
L：0.000µH～2000H,C：0.000pF～20.000mF,R：0.0001Ω～20.000MΩ
Measuring display speed
1 time/s (slow), 2 times/s (medium speed), 4 times/s (fast)
Internal bias
×
0-500mV adjustable, 1mV step
Testing level
300mVrms;600mVrms
100mVrms, 300mVrms,
600mVrms, 1Vrms
10mV-1100mV adjustable
Calibration function
Open circuit calibration, short circuit calibration
Screening function
Limit range of screening can be set to 1%-50%, and the fixed points are 1%, 5%, 10% and 20%.
Deviation measurement
Used for comparing and displaying deviation percentage of component and the set nominal value
Working temperature
0℃~40℃
Power
2600mAh
Weight/Size of gift box
900g/270*215*70mm
kit content
A handheld LCR（Built-in lithium battery）, CD, Mini-USB communication cable, Power adapter, red/black rubber plugs-alligator clip
test line, short-circuit bar, 4-terminal Kelvin test clip(optional for ET430, other models standard)


Details Images

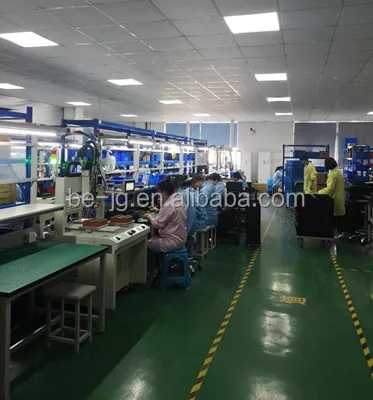

Company Profile


We are an enterprise which collection R&D, Production, Processing and Marketing. The company is
located in the Changzhou City Jiangsu Province which is very closed to cosmopolis Shanghai.
We devote into the kinds of Instruments and hardware tools, for example laser products, infrared thermometer, tile cutter, multimeter, coating thickness tester, moisture meter, sound level meter, gas detector etc.,
With the unremitting efforts of our staff and the supports of our customers, our company has enjoyed a good reputation in the eyes of customers. herein, you can get all-in-one service, welcome to our company for visiting and advising and we will be here at your service anytime.




FAQ


1.Are you a trading company or a factory?
We are a combination of design, production and trade company.
2.What is the MOQ?
Usually we have small quantity neutral products or the products with our brand in stock. We accept small order.
If you need customized products, MOQ is 500 to 2000 pcs.
3.Delivery time?
It depends on the order quantity.
4.Does your company accept customization?
Yes. OEM or ODM is available.
5.Do your products have warranty?
Yes, We offer 1 year warranty. Our Policy: If there is some quality problem, send the defective to us. we will bear the freight and resend back new one to you with new order.
6. Payment term?
Western Union, PayPal, T/T, L/C, D/P, O/A are available.
