Высокомощный edfa 8 портов 23 дБ
- Категории: Telecommunications >>>
- Поставщик: Yantai,Yatai,Photoelectricity,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
10-YEAR WARRANTY OF PUMP

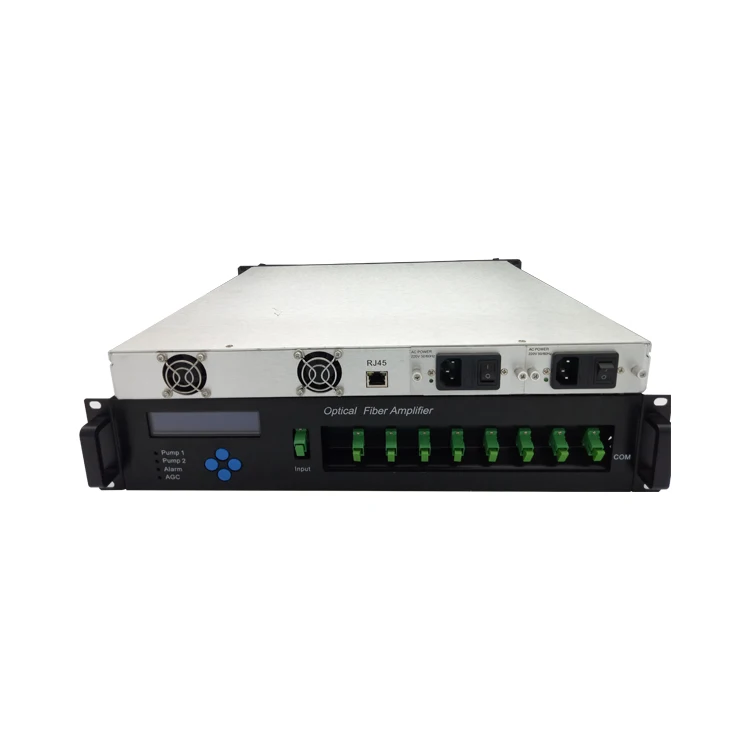

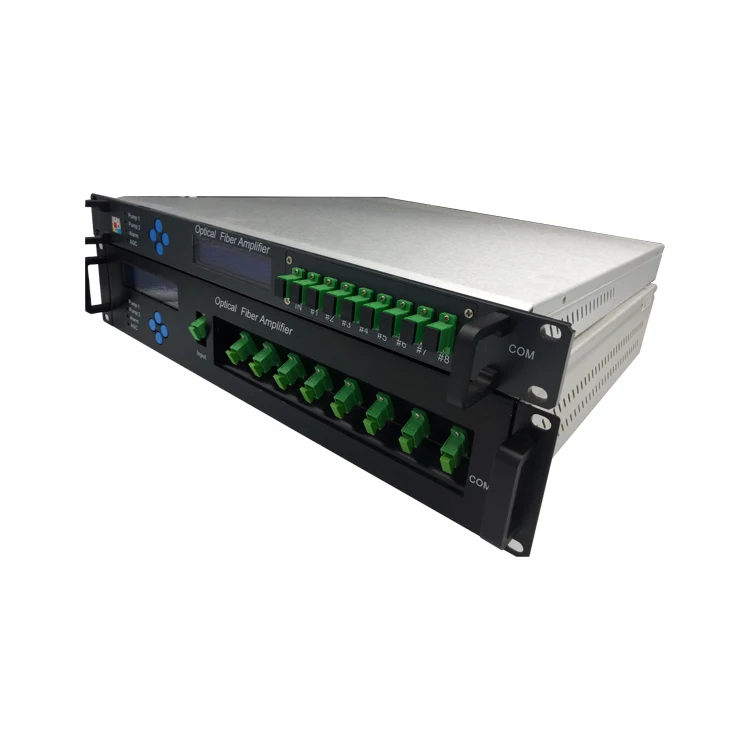

Product Display
 |  |
- Pump laser uses JDSU, Oclaro, Japan Furukaw; erbium-doped fiber chooses from well-known companies such as the United States Lucent, British Fibercore, ensuring the machine’s performance and high reliability
- With unique optical design, double-pump laser structure can ensure the machine’s high output power and low noise
- Machine’s output, input power, various operating parameters of the pump laser can be real-time displayed on the front panel, and in the line with the company’s network management software, users can use network management function in the front-end computer
- The core component uses high reliable pump laser with special APC ( Auto Power Control) and ATC ( Auto Temperature Control) circuit, so the output power is with high stability and reliability. The machine adopts high-quality switching power supply, auxiliary cooling fan and heat sink. The temperature rise is small, and can adapt to a wide voltage range, ensuring long-term stability of the whole machine.
- With independent intellectual property rights.
NF Value

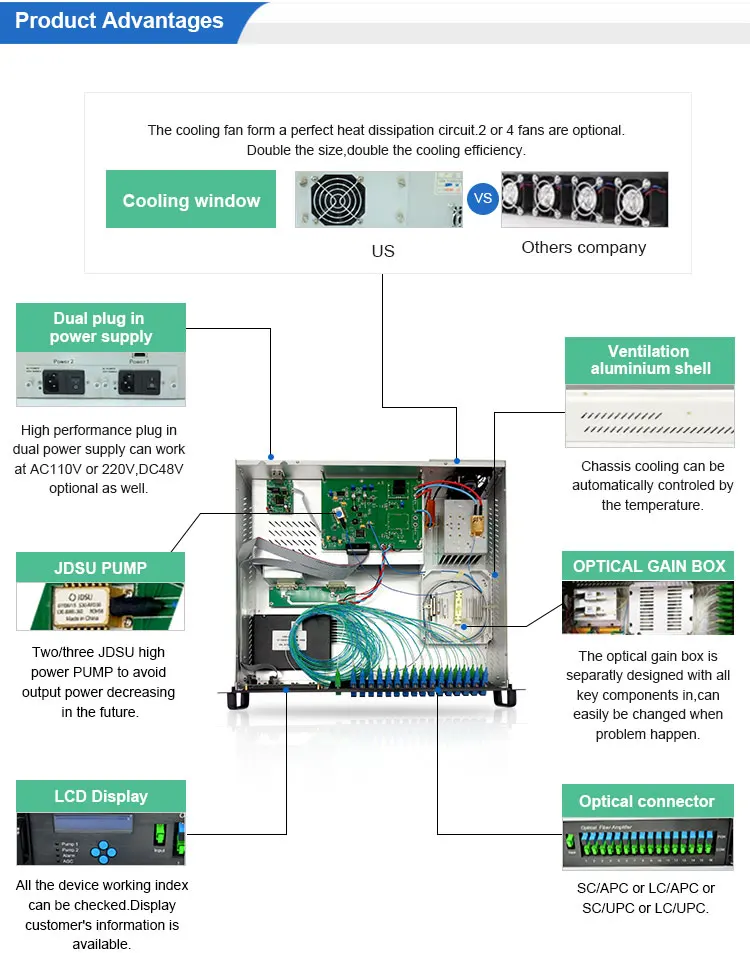

Product Advantages
Product Parameters
| Parameter | Symbol | MIN | TYP | MAX | UNITS |
| Operating wavelength | λc | 1540 | 1550 | 1565 | nm |
| Saturated | Po | 13 | ------ | 33 | dBm |
| Input Power | Pi | -3 | ------ | 10 | dBm |
| Gain | G | ------ | ------ | 30 | dB |
| Noise Figure Note2 | NF | ------ | ------ | 6 | dB |
| Output Power Stability | ΔPo | ------ | ±0.05 | ±0.2 | dB |
| Input Isolator | ISOi | 30 | ------ | ------ | dB |
| Output Isolator | ISOo | 30 | ------ | ------ | dB |
| Input Pump Leakage | PLi | ------ | ------ | -35 | dBm |
| Output Pump Leakage | PLo | ------ | ------ | -45 | dBm |
| Return Loss | RL | ------ | ------ | -45 | dB |
| Polarization Dependent Gain | PDG | ------ | ------ | 0.3 | dB |
| Polarization Mode Dispersion | PMD | ------ | ------ | 0.5 | ps |
Production Process
Packaging & Delivery
Related Products
Company Information
| Q | What is the MOQ? |
| Our MOQ is one piece. | A |
| Q | Can I print my logo or drawings? |
| Absolutely!Send us your drawing sign,we will print it for you. | A |
| Q | How about the warranty? |
| 1-5 Year. | A |
| Q | Can I have my own customized products? |
| Yes,OEM and ODM orders are very welcomed. | A |
| Q | Terms of payment? |
| 1.30%. 2.100%. 3.Wesern union. 4.Credit card. | A |
