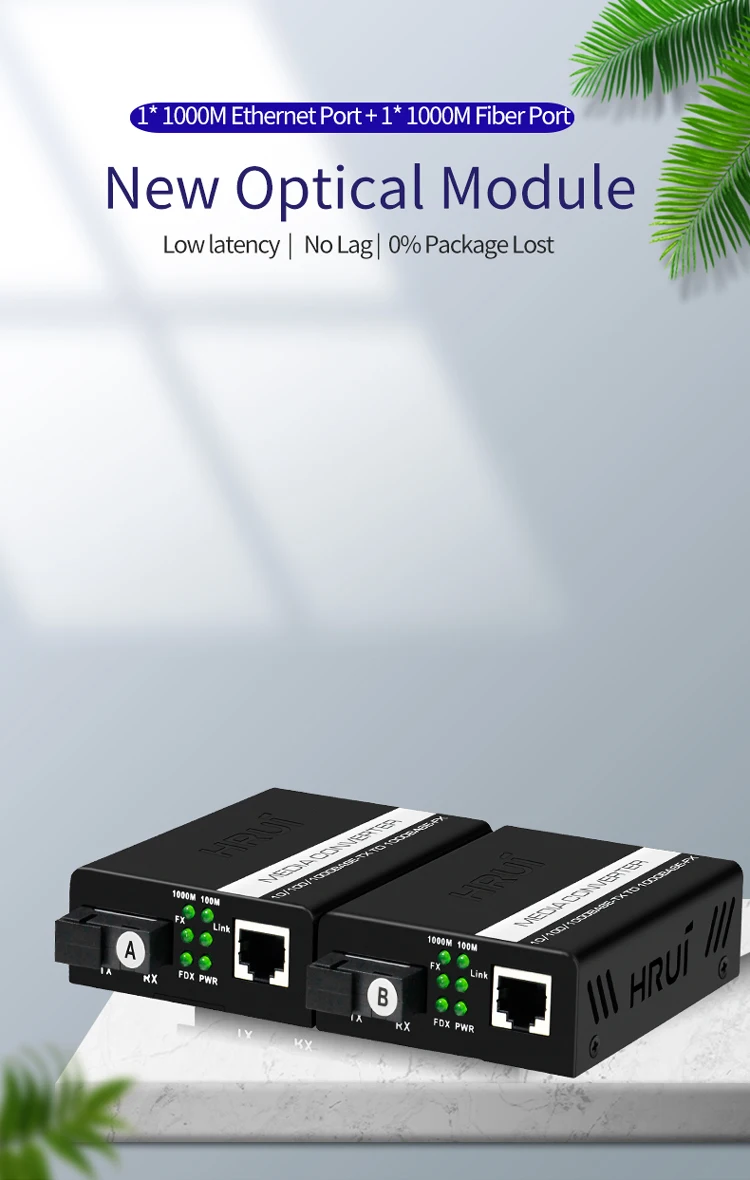

Одноволоконный медиаконвертер RJ45 SC 1550 1310 1490 100 10/1000

Specifications

I/O Interface

Power

DC  5V

Ethernet

1-Port  10/100/1000M  RJ45

1-Port  1000M fiber  ports

Performance

Switching Capacity

4Gbps

Throughput

2.976Mpps

Packet Buffer

2K

MAC Address

2K

Jumbo Frame

9216bytes

Transfer Mode

Store and forward

MTBF

100000  hour

Standard

Network protocol

IEEE802.3 (10Base-T)

IEEE802.3u (100Base-TX/FX)

IEEE802.3ab (1000Base-TX/FX)

IEEE802.3x (Flow control)

optical characteristics

multi mode:850/1310nm (0-2KM)

Single mode:1310/1550/1490nm(0-120KM)

Industry Standard

EMI: FCC Part 15 CISPR (EN55032) class A

EMS: EN61000-4-2 (ESD),EN61000-4-4 (EFT)

Shock: IEC 60068-2-27

Free Fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Network Medium

10Base-T : Cat3,4,5 or above UTP(≤100m)

100Base-TX : Cat5  or above UTP(≤100m)

1000Base-TX : Cat5  or above UTP(≤100m)

Optical Media

Multimode fiber  : 50/125,62.5/125,100/140um

Single mode fiber : 8/125,8.7/125,9/125,10/125um

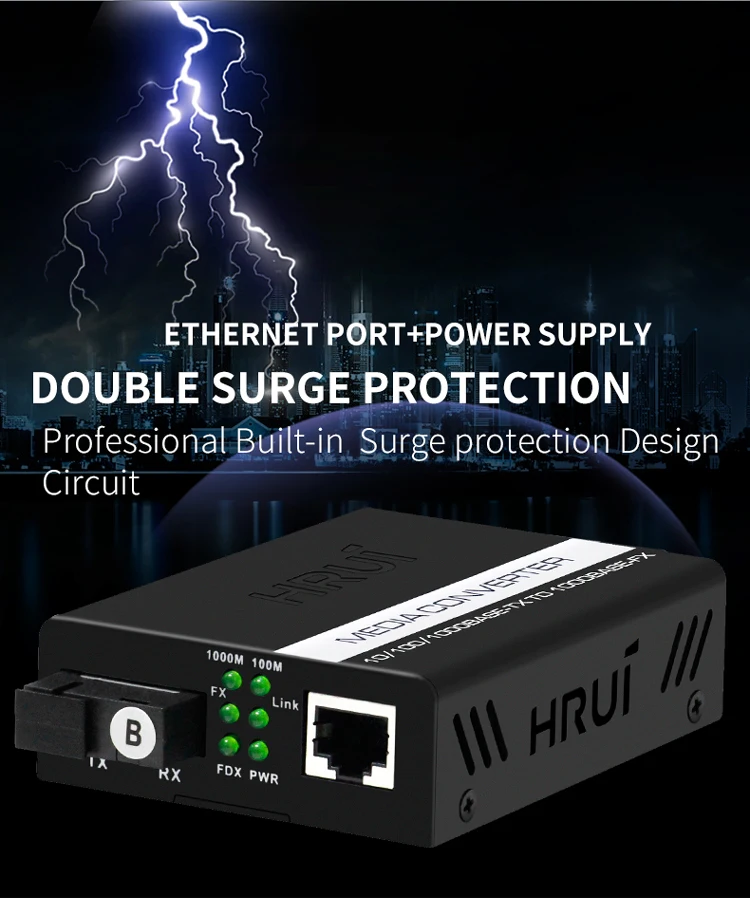

Protection

Security Certificae

CE,FCC,RoHS

Environment

Working Environment

Working Temperature:-20~50°C

Storage Temperature:-40~70°C

Working Humidity :10%~90%,non-condensing

Storage Temperature:5%~90%,non-condensing

Working Height:Maximum10,000 feet

Storage heigh:Maximum 10,000 feet

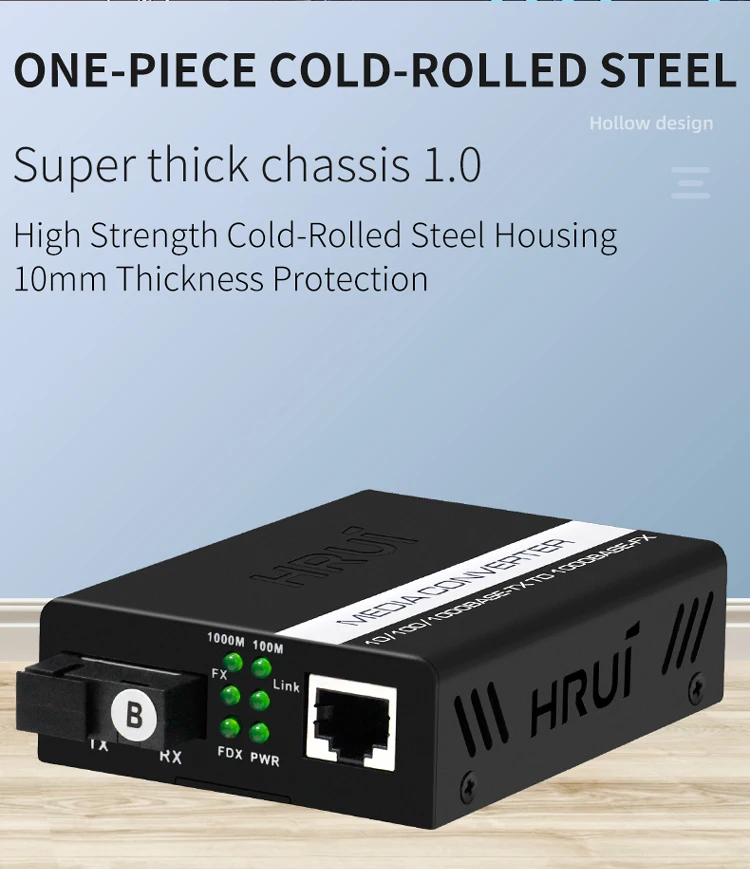

Mechanical

Structure Size

Product Size:94*70*26mm

Package Size:245*190*60mm

Product Net-Weight:0.2*2kg

Product Gross-Weight:0.7kg

Packing Info

MEAS:505*320*400mm

Packing Qty:20 Pair

Packing weight:15 KG

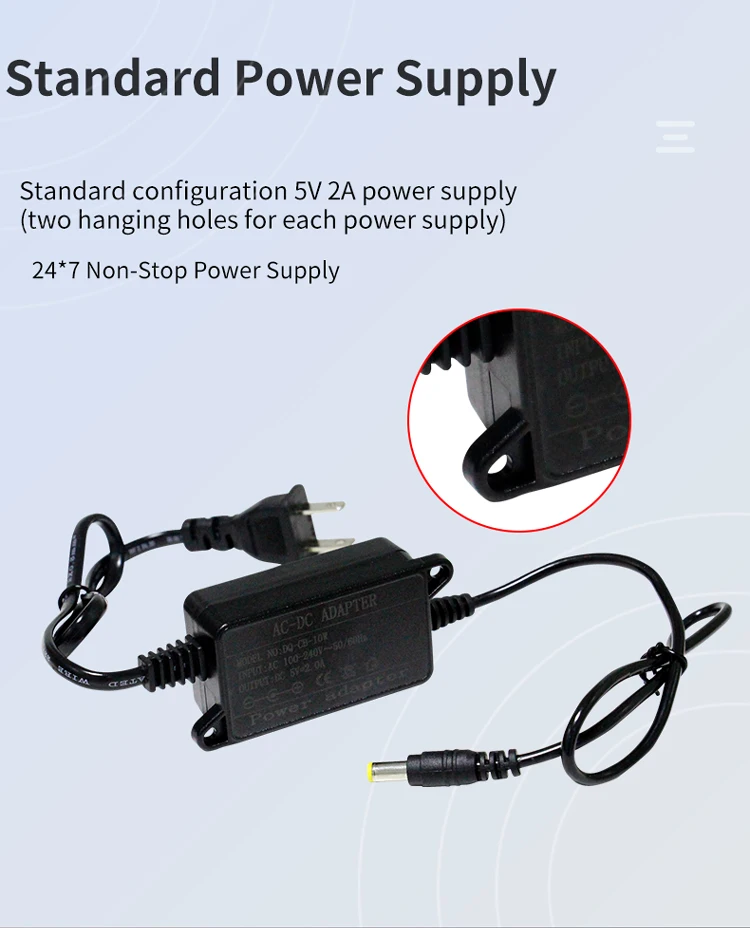

Power Voltage

Adapter input voltage : AC  100-240 V

 Media Converter input voltage:DC  5V

Package List

Media Converter 2 pcs, Power Adapter 2 pcs, User manual 1 pcs, Qualification Card 1 pc

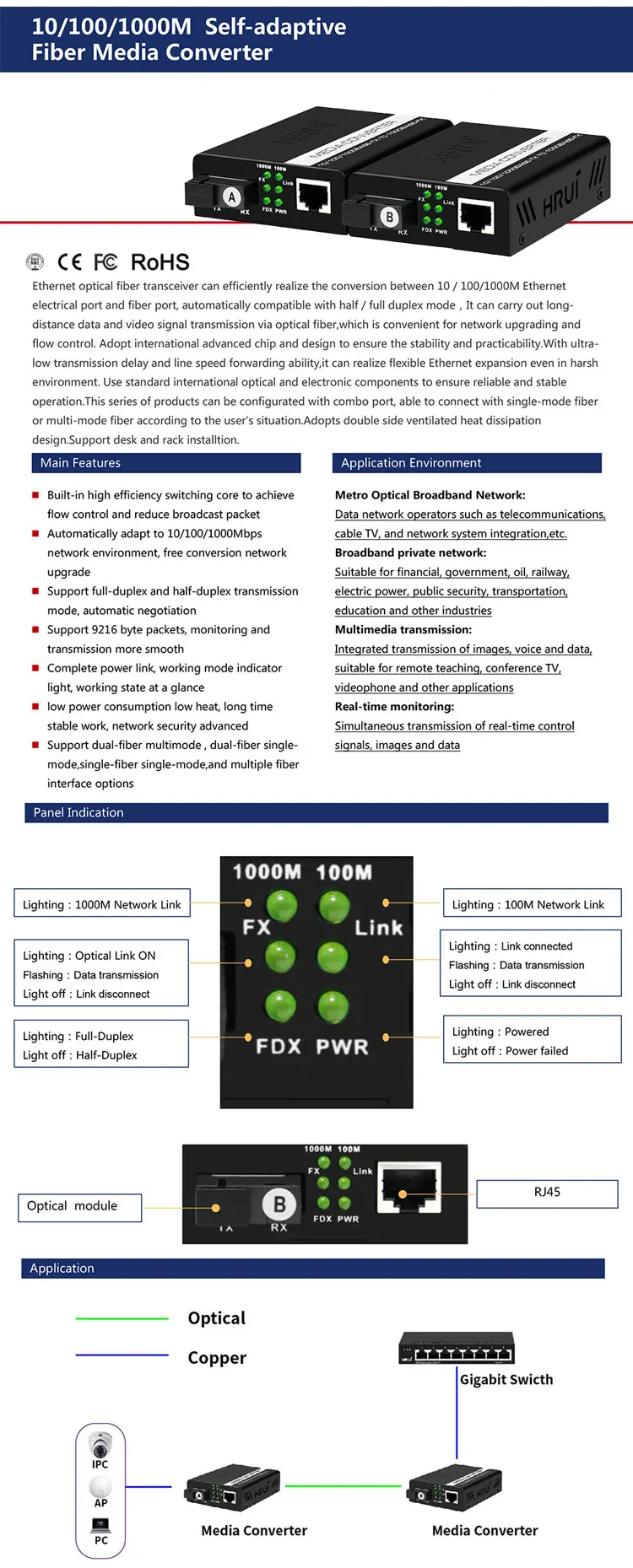

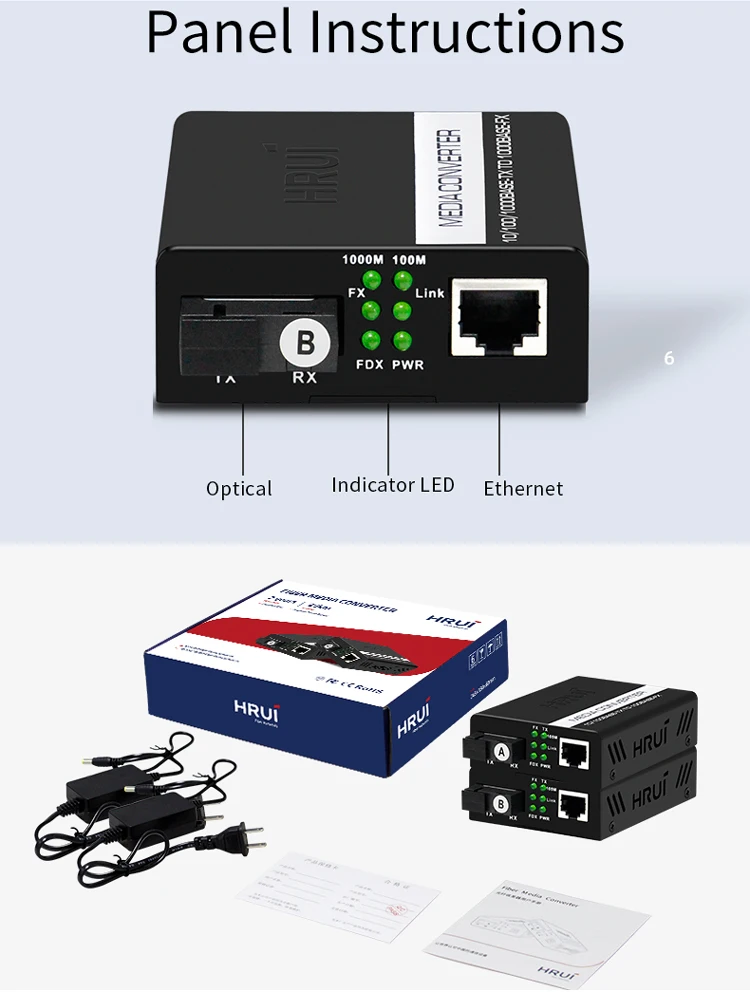

Indication

LED Indicators

PWR(Power indicator)

FDX(Network  mode)

FX  Link(Optical data)

TX  Link(Network data)

FX  100M(Optical  Link)

TX  100M(Network Link)

Ordering Info

HR100W-GE-550

1000M Fiber Media Converter-dual-fiber multimode 550m  TX/RX 850

HR100W-GE-2

1000M Fiber Media Converter-dual-fiber multimode 2KM   TX/RX 1310

HR100W-GE-3-T

1000M Fiber Media Converter-single-fiber single mode 3KM  TX1310/RX1550

HR100W-GE-3-R

1000M Fiber Media Converter-single-fiber single mode 3KM  TX1550/RX1310

HR100W-GE-25-T

1000M Fiber Media Converter-single-fiber single mode 25KM  TX1310/RX1550

HR100W-GE-25-R

1000M Fiber Media Converter-single-fiber single mode 25KM  TX1550/RX1310
