Product Name

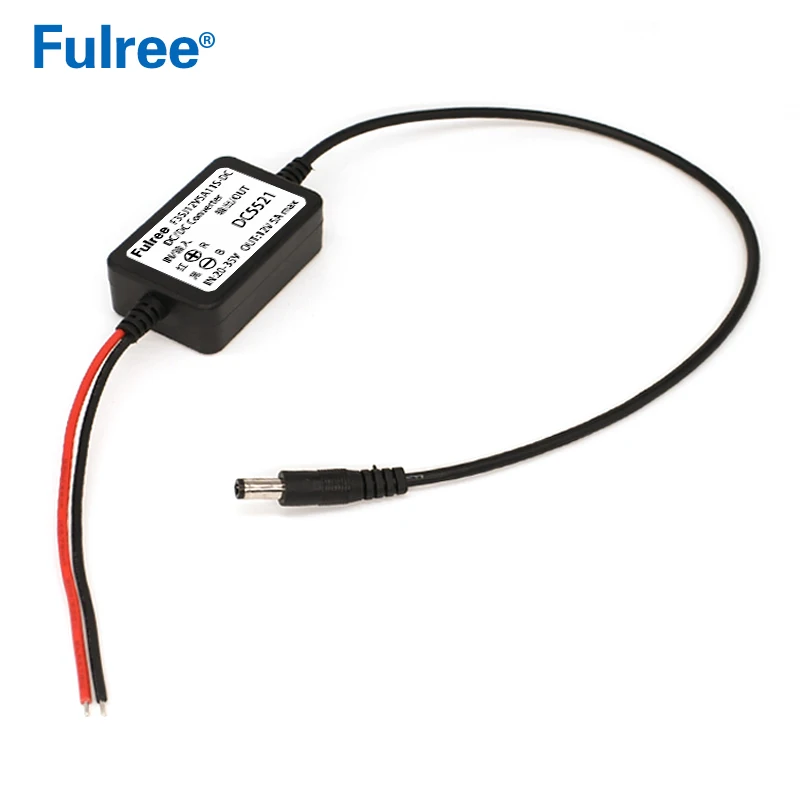

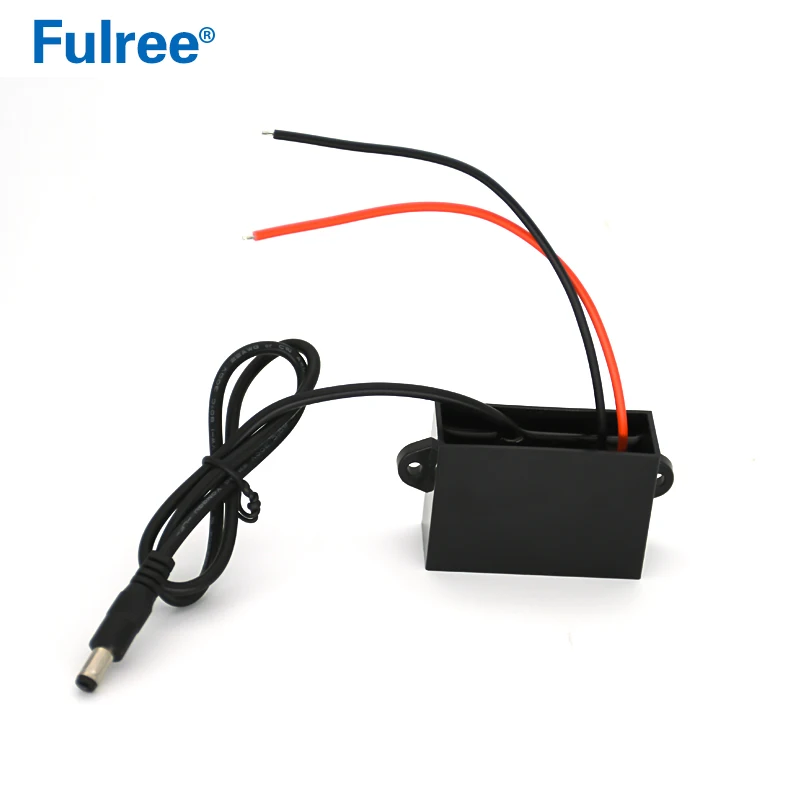

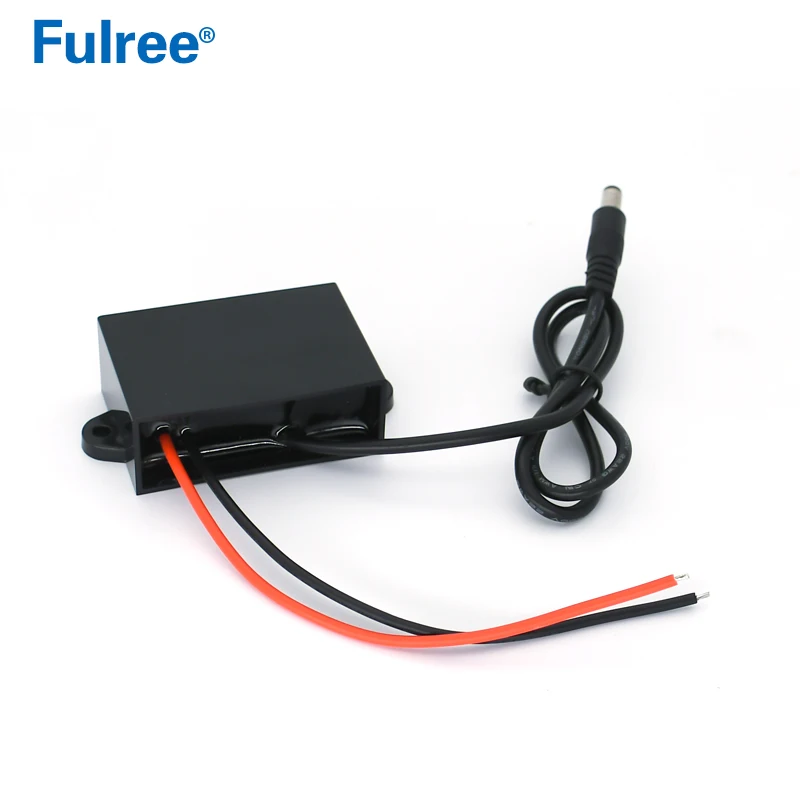

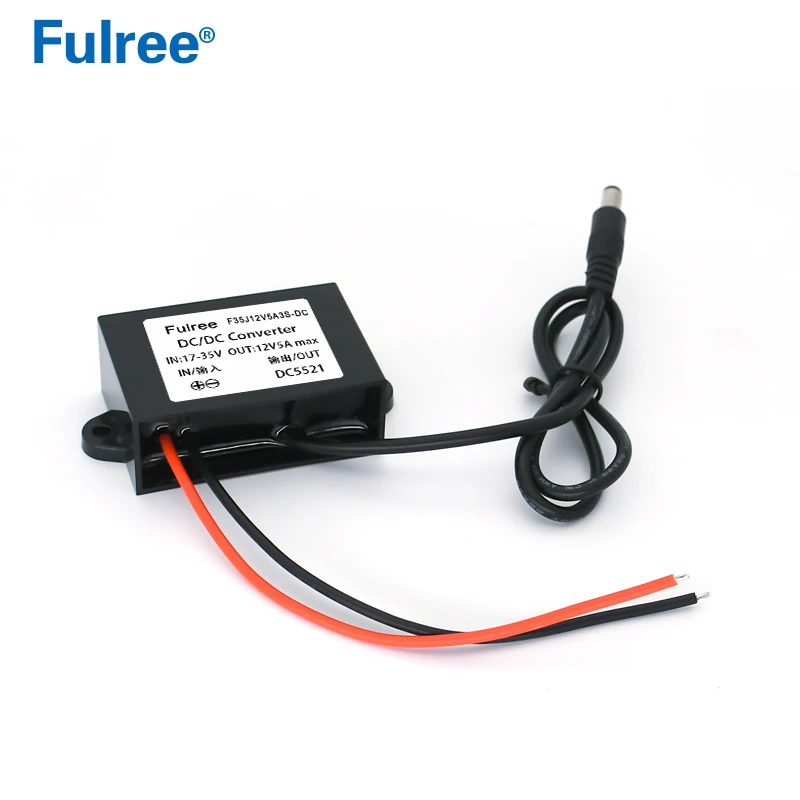

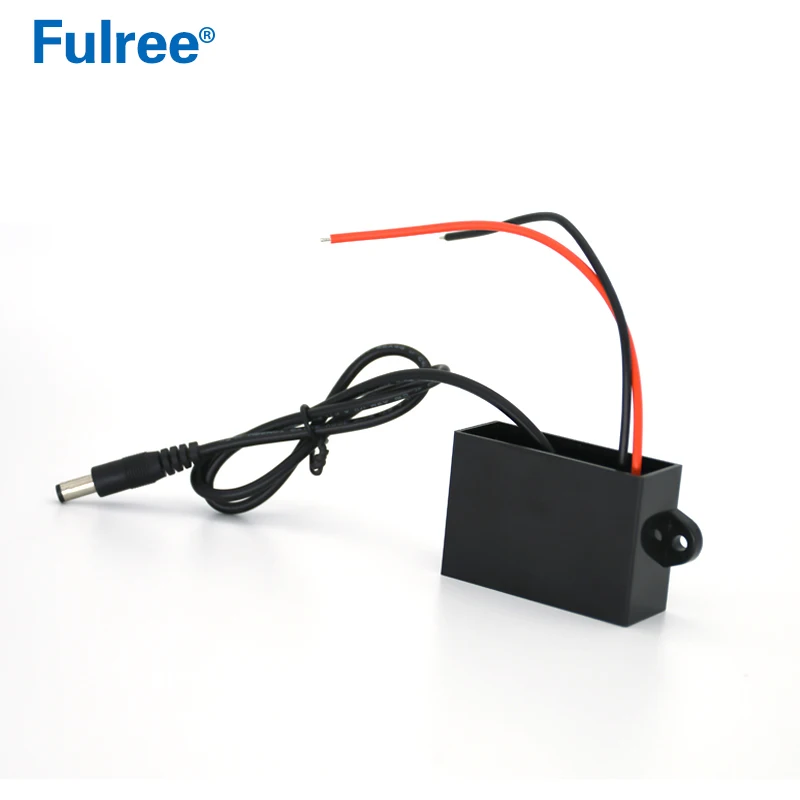

Fulree 24V DC TO 12V DC Converter Module

Brand

Fulree

Model No.

F35J12V*A3S-DC / F35J12V*A11S-DC

Module Properties

non-isolated buck module

Rectification

synchronous rectification

Input

Input Voltage

DC 24V

Input Voltage Range

DC 20-35V

Output

Output Voltage

DC 12V

Output Current

3A / 5A Max, auto-adaption

Output Power

 36W / 60W Max

Conversion Efficiency

92%

Voltage regulation

±1%

Load regulation

± 2%

Ripple (Full load test)

< 100mV

No-load current

< 100mA

Working Temperature

-20~65℃

Waterproof Rating

non-waterproof for 55*35*22mm / IP68 for 58*40*22mm

Protection

Overheat Protection

Short circuit Protection

 Input/Output Reverse Polarity Protection

No, please follow label instructions wiring strictly: red for input positive, black is negative, yellow for output positive

Application

GPS Navigation, Monitoring,

Electrical appliances, industrial equipment and so on.

Certification

CE/RoHS

  Case Material

Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on

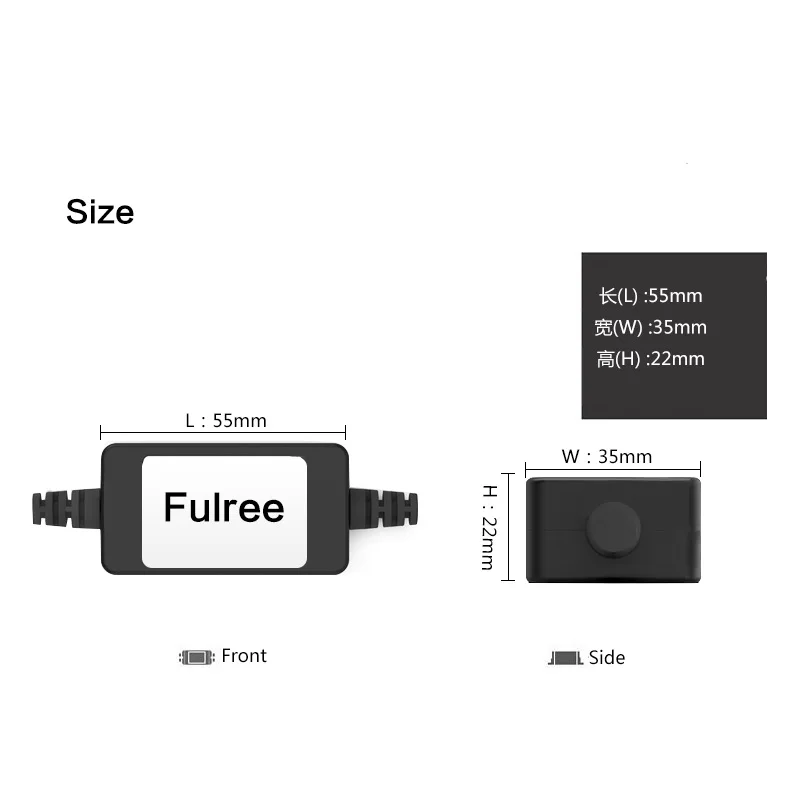

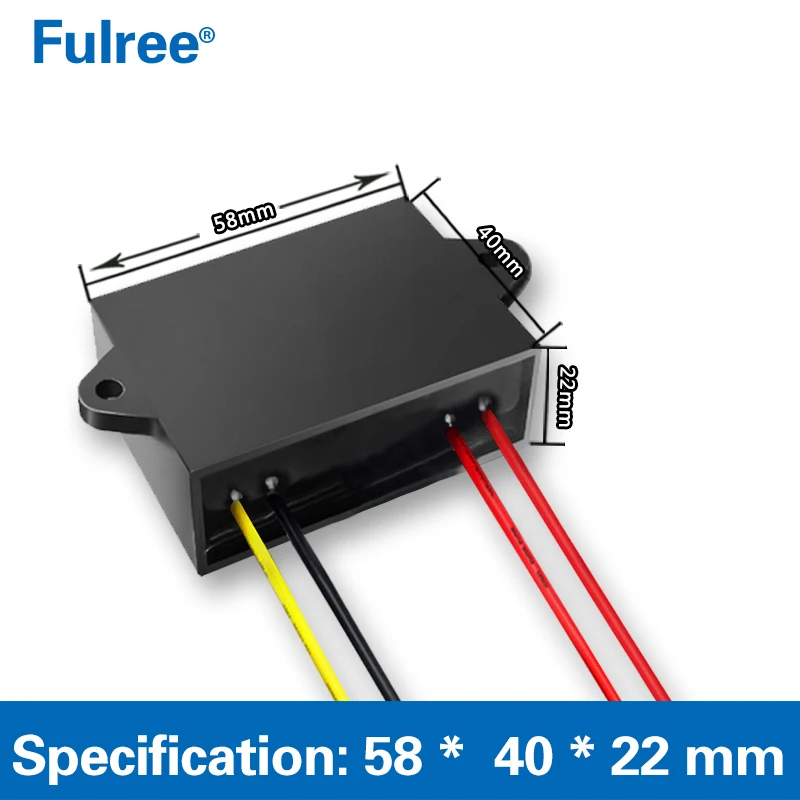

  Product Size (L x W x H)

55*35*22mm / 58*40*22mm

Installation Cable Length

 Input: 13-14CM  / Output:35CM

Product Weight

55*35*22mm---55g / 58*40*22mm---100g

Warranty

12 months, lifetime >20,000 hours

Cooling Way

Free air convection

Customized Service

Accept customized converter such as input/output voltage, cable, interface and etc, Contact Fulree Now!
