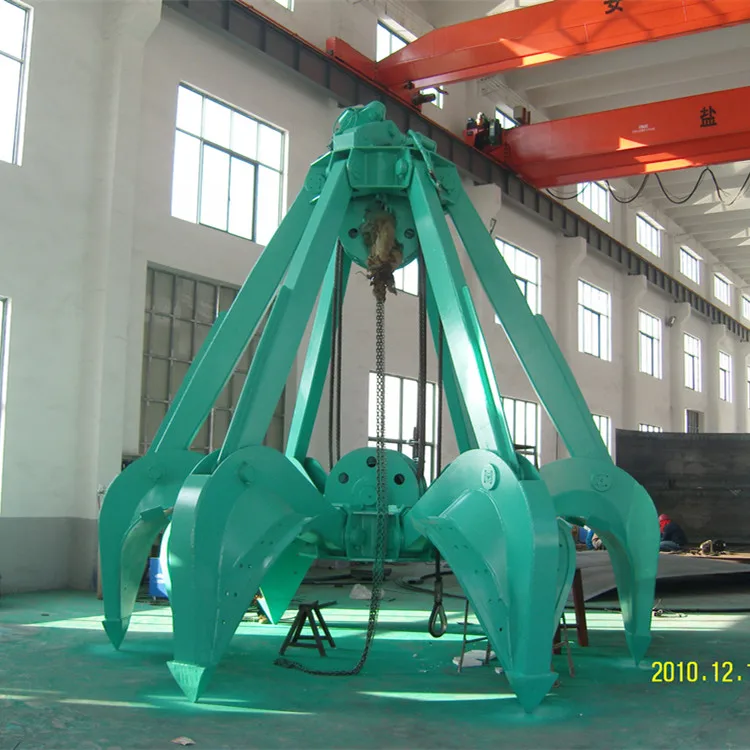

china factory mechanical 4 rope concrete metal scrap grab
Handling bulk material with density around 1.6t/m³, below data for reference~
| Crane lifting capacity | t | 5,0 | 6,3 | 8,0 | 10,0 | 12,5 | 16,0 | 20,0 | 25,0 | 40,0 | |
| Grab capacity | m³ | 1,4 | 1,85 | 2,5 | 3,2 | 4,0 | 5,0 | 6,3 | 8,0 | 13.5 | |
| Number of shells | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | ||
| Dead weight | open | t | 2.6 | 3.2 | 3.9 | 4.7 | 5.8 | 7.5 | 9.4 | 11.6 | 17.6 |
| half-open | t | 2.7 | 3.3 | 4.0 | 4.8 | 5.9 | 7.7 | 9.6 | 11.8 | 18.0 | |
| closed | t | 2.8 | 3.4 | 4.2 | 5.0 | 6.2 | 8.0 | 10.0 | 12.3 | 18.4 | |

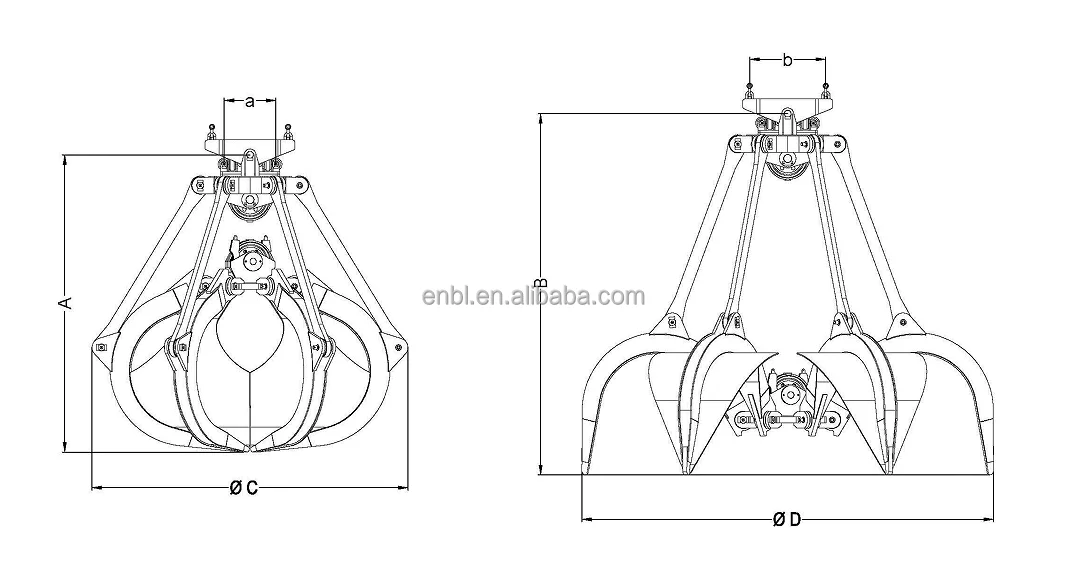

| Dimensions | A | mm | 2300 | 2470 | 2770 | 3030 | 3320 | 3490 | 3960 | 4060 | 5220 |
| B | mm | 2730 | 2920 | 3280 | 3560 | 3890 | 4120 | 4760 | 4800 | 6450 | |
| C | mm | 2350 | 2520 | 2810 | 2990 | 3270 | 3430 | 3980 | 4070 | 5180 | |
| D | mm | 3220 | 3430 | 3850 | 4140 | 4540 | 4710 | 5270 | 5550 | 6680 | |
| a | mm | 300 | 380 | 480 | 480 | 480 | 595 | 590 | 670 | 850 | |
| b | mm | 650 | 780 | 900 | 900 | 900 | 1000 | 1300 | 1300 | 1400 | |
| Closing rope stroke 4-fold | mm | 6500 | 5350 | 6400 | 7475 | 7350 | 7004 | 7560 | 8520 | 8770 | |
| Standard diameter of closing ropes | mm | 14 | 18 | 22 | 22 | 16 | 28 | 28 | 32 | 40 | |
| Closing rope-total length to operate | m | 12.5 | 11.7 | 13.5 | 13.2 | 16 | 16 | 14.5 | 18.5 | 20 | |
| Dianmeter of closing rope sheaves | mm | 280 | 355 | 450 | 450 | 450 | 560 | 560 | 630 | 800 | |
