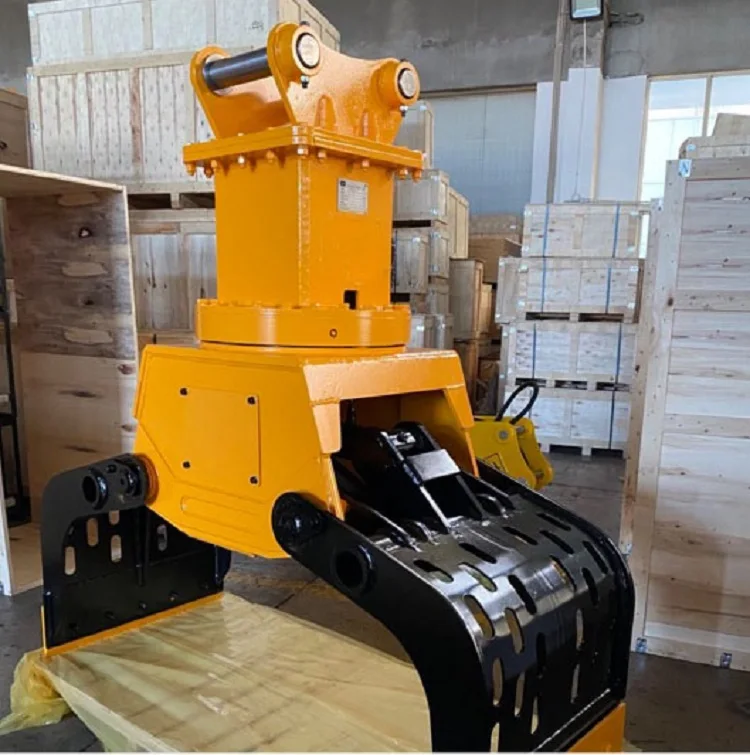

Demolition Grapple
Application Range:
The demolition grapples also known as “iron claw”, can be divided into mechanical grapples, which grab with the
most power, while hydraulic grapples offer a full 360 degrees of mobility and work with higher precision.
Bonovo rotating grapples are optimized for demolition, rock and waste handling applications.
Our strong 360° hydraulic motor rotating system and high-tensile steel result in
greater productivity and lower operating costs.
Full Arange
Demolition Grapple
- 360 degree hydraulic rotation makes it a more flexible grappling effect
- Simple structure, lightweight and high grasping force
- The built-in balancing valve of the oil cylinder makes the operation smooth and maintains clamping force
- Built with wear-proof steel to last longer and go an extra step toward maximum durability.
Details
Specification

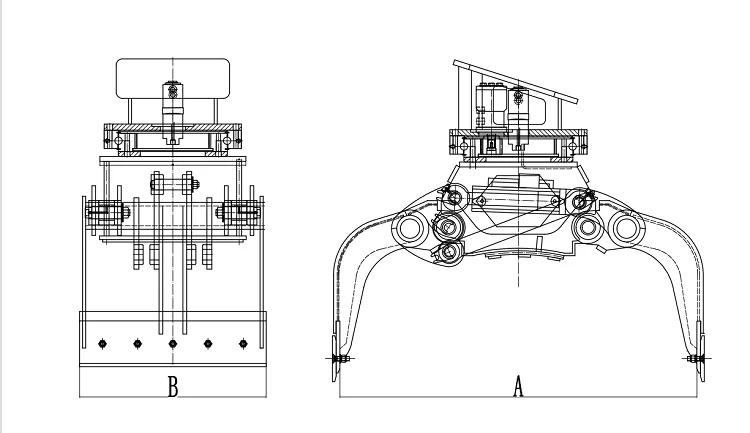

Model | Equipment | Full Open (mm) A | Width (mm) B | Operating Pressure (Mpa) | Operating Flux-cylinder (L/Min) | Operating Flux-motor (L/Min) | Rotating Speed (r/min) | Weight (kg) |
BDG30 | 3-4T | 1045 | 500 | 8-16 | 30-60 | 10-30 | 13-35 | 398 |
BDG50 | 5-6T | 1160 | 610 | 8-16 | 30-60 | 10-30 | 15-40 | 515 |
BDG80 | 8-10T | 1460 | 660 | 10-22 | 40-120 | 10-40 | 10-45 | 805 |
BDG120 | 12-16T | 1675 | 740 | 10-25 | 40-120 | 10-50 | 10-50 | 1060 |
BDG200 | 20-25T | 1880 | 1000 | 10-25 | 40-120 | 10-50 | 5-30 | 1885 |

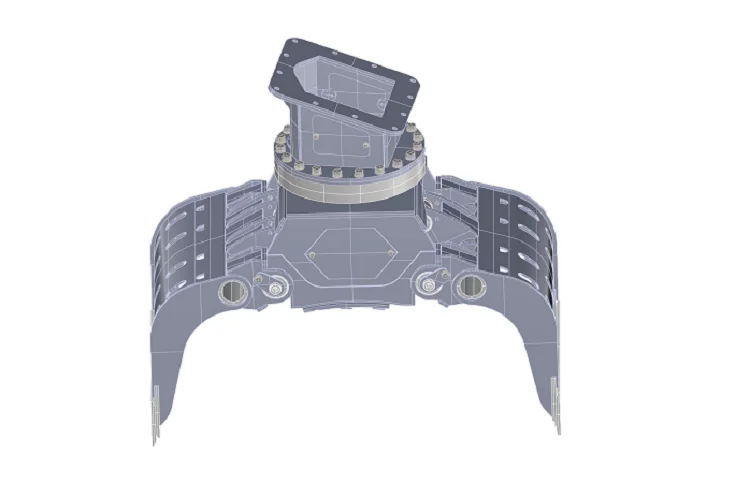

Structure
Technical Advantage

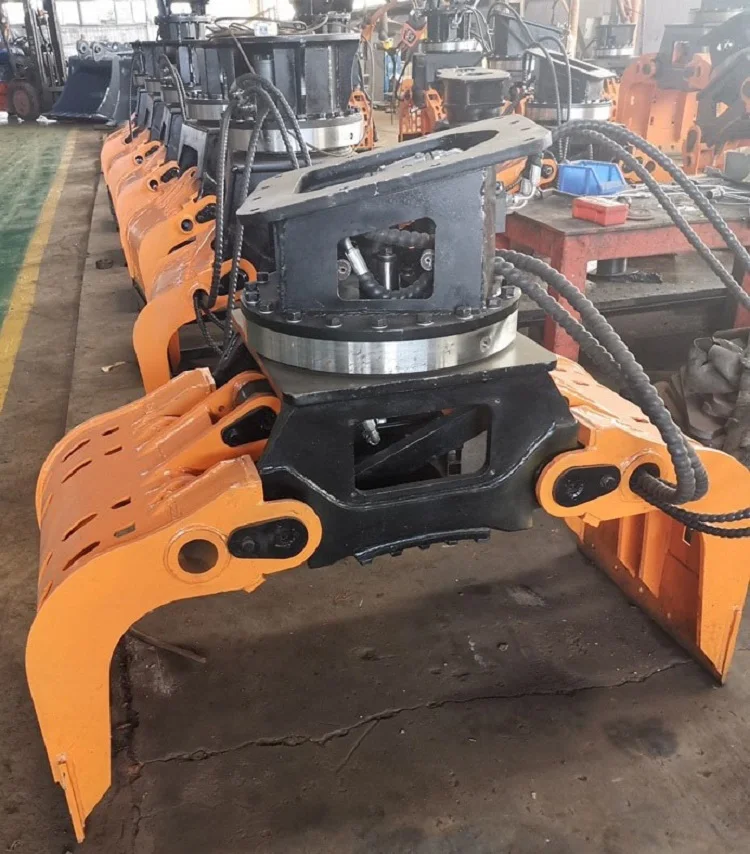

Manufacture
Certifications

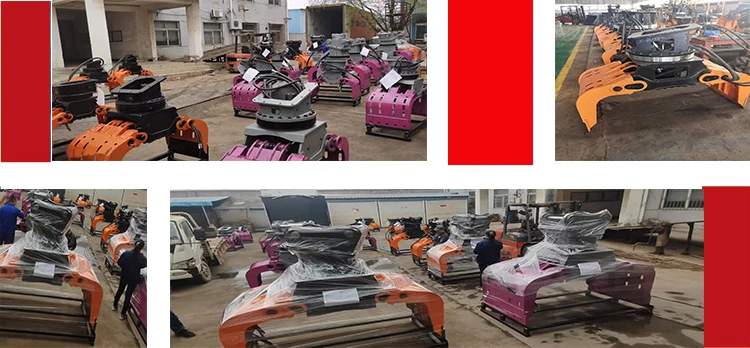

Shipping
Underground Loader Bucket
FAQ
