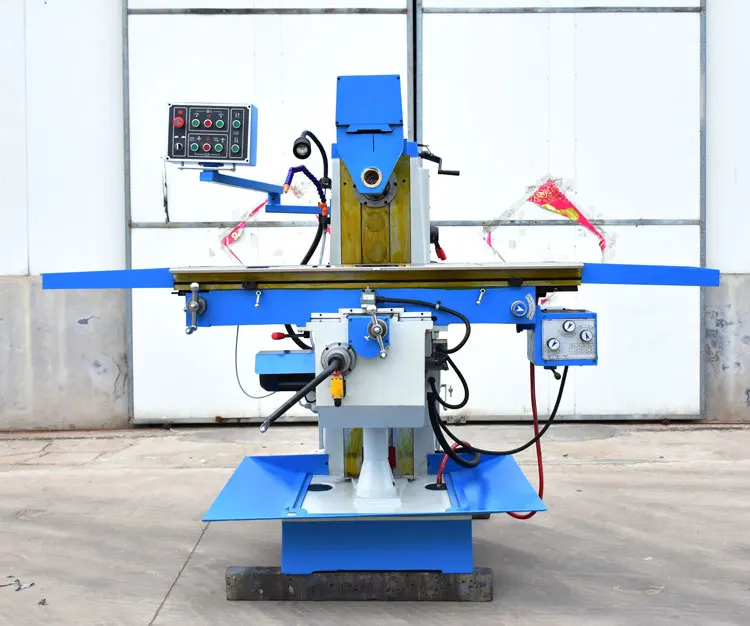

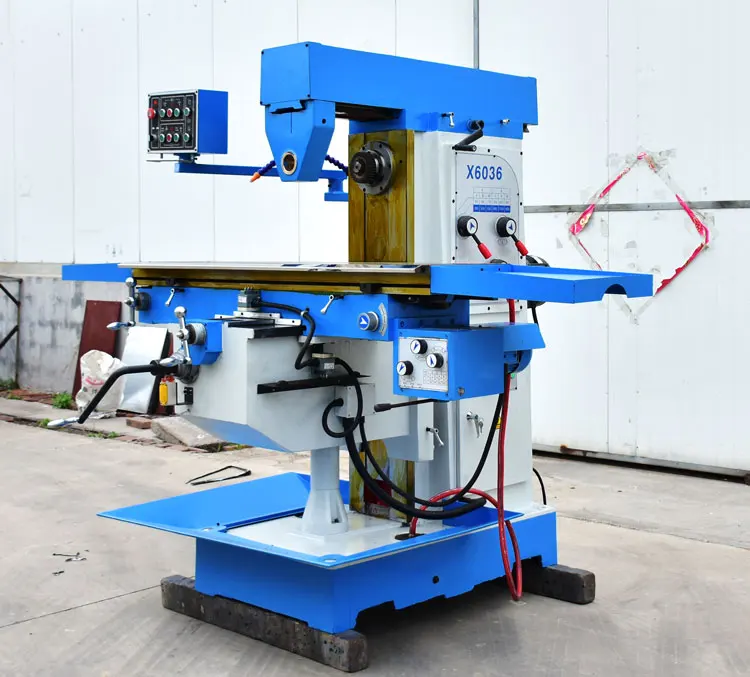

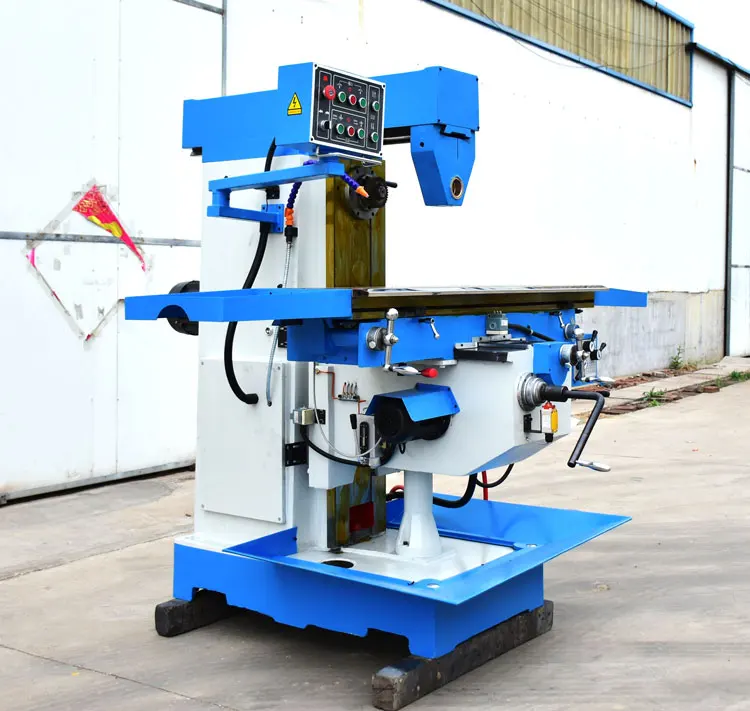

Horizontal milling machine for sale X6036 Universal milling machine price
Product Description
The main performance characteristics::
1. The main components of the base, the body, the working platform, the middle slide seat and the lifting sliding seat are made of high strength material, and the stability of the machine tool long-term use is ensured by the artificial aging treatment.
2. The spindle bearing of the machine tool is a tapered roller bearing. The main shaft adopts three supporting structure. The system has good rigidity, strong bearing capacity, and the main shaft adopts energy consumption brake, the braking torque is big,and the stop is fast and reliable.
3. The main drive part and the work table feed part adopts the gear speed change structure, the speed regulation scope is wide,the speed change is convenient, quick.
4. Table of X, y, and Z to have manual feed, mobile feed and maneuver fast forward three, different feed speed, can meet the requirements of different processing; fast feed can quickly reach the work piece, the processing position, convenient and rapid processing and shorten the processing time.
5. Table x to travel up to 1000mm, and expand the scope of the machine, y, and Z to guide for the wide rectangular guide rail and X, y, Z three direction guide rail vice via ultra audio frequency induction hardening, precision grinding and scraping treatment,with forced lubrication, improve the accuracy, prolong the service life of the machine.
6. Lubricating device for vertical, horizontal and vertical to the screw and guide rail are forced lubrication, reduce the tool
wear, which guarantees the machine to the efficient functioning of; at the same time, cooling system by adjusting the nozzle change the size of the coolant flow, to meet the needs of different processing.
7. The operating system of the machine tool is hung on the left front of the machine tool through a supporting arm, which is in accordance with the principle of human body engineering and is easy to operate. operation panel are using image symbol design, simple and intuitive.
Application:
This machine is a common metal cutting machine tools, spindle taper hole can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for machining various parts of the plane, inclined plane, grooves, holes, machinery manufacturing, mold, apparatus, instrument, automobile, motorcycle, etc. industry plane, inclined plane, grooves, holes, machinery manufacturing, mold, apparatus, instrument, automobile, motorcycle, etc. industry
2. The spindle bearing of the machine tool is a tapered roller bearing. The main shaft adopts three supporting structure. The system has good rigidity, strong bearing capacity, and the main shaft adopts energy consumption brake, the braking torque is big,and the stop is fast and reliable.
3. The main drive part and the work table feed part adopts the gear speed change structure, the speed regulation scope is wide,the speed change is convenient, quick.
4. Table of X, y, and Z to have manual feed, mobile feed and maneuver fast forward three, different feed speed, can meet the requirements of different processing; fast feed can quickly reach the work piece, the processing position, convenient and rapid processing and shorten the processing time.
5. Table x to travel up to 1000mm, and expand the scope of the machine, y, and Z to guide for the wide rectangular guide rail and X, y, Z three direction guide rail vice via ultra audio frequency induction hardening, precision grinding and scraping treatment,with forced lubrication, improve the accuracy, prolong the service life of the machine.
6. Lubricating device for vertical, horizontal and vertical to the screw and guide rail are forced lubrication, reduce the tool
wear, which guarantees the machine to the efficient functioning of; at the same time, cooling system by adjusting the nozzle change the size of the coolant flow, to meet the needs of different processing.
7. The operating system of the machine tool is hung on the left front of the machine tool through a supporting arm, which is in accordance with the principle of human body engineering and is easy to operate. operation panel are using image symbol design, simple and intuitive.
Application:
This machine is a common metal cutting machine tools, spindle taper hole can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for machining various parts of the plane, inclined plane, grooves, holes, machinery manufacturing, mold, apparatus, instrument, automobile, motorcycle, etc. industry plane, inclined plane, grooves, holes, machinery manufacturing, mold, apparatus, instrument, automobile, motorcycle, etc. industry
Product main technical parameters:
Specifications | Units | X6036A | ||
Table size | mm | 1500x360 | ||
Table travel (X.Y.Z) | mm | 1000/320/400 | ||
T-type slot numbers / width /space | mm | 3/18/80 | ||
Max. load working table | kg | 320 | ||
Distance from spindle axis to table | mm | 0-400 | ||
Spindle hole center to the sliding pillow plane distance | mm | 175 | ||
vertical and horizontal motor feed speed | mm/min | 8 steps22—555 (Fast forward 830) | ||
Vertical lift speed of working table | mm/min | 11/275 | ||
Ram stroke | mm | 500 | ||
Spindle taper | ISO50(7:24) | |||
Spindle speed range | rpm | 60-1800(12steps) | ||
Spindle motor power | KW | 5.5 | ||
Table motor feed motor power | W | 750 | ||
Motor power of elevating motor | KW | 1.1 | ||
Cooling pump motor power | W | 90 | ||
Cooling pump flow | L./min | 25 | ||
Max. spindle torque | N. m | |||
Overall dimensions(Lx W x H) | mm | 2360x1790x1860 | ||
Machine weight | Kg | 2300 | ||
Configuration of vertical milling head parameters | ||||
Vertical Milling head spindle taper | ISO40 (7:24) | |||
Distance from spindle center to column surface | mm | 320 | ||
Spindle end face to table face dimensions | mm | 0-290 | ||

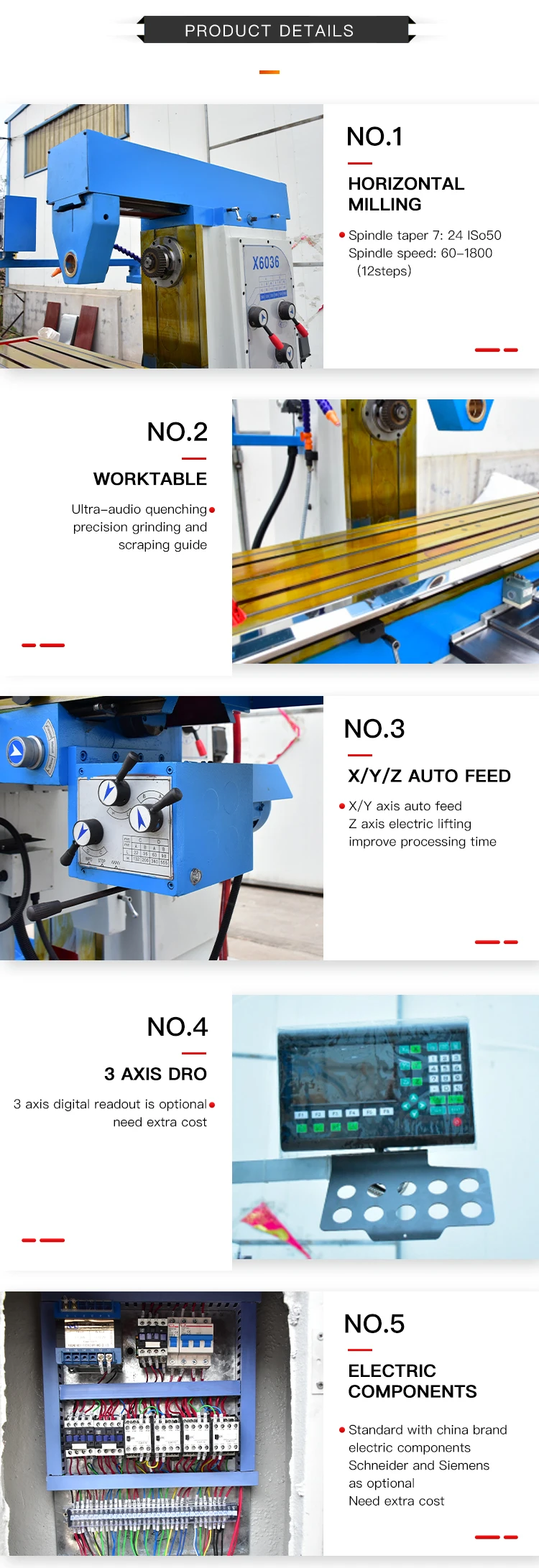

Details Display
