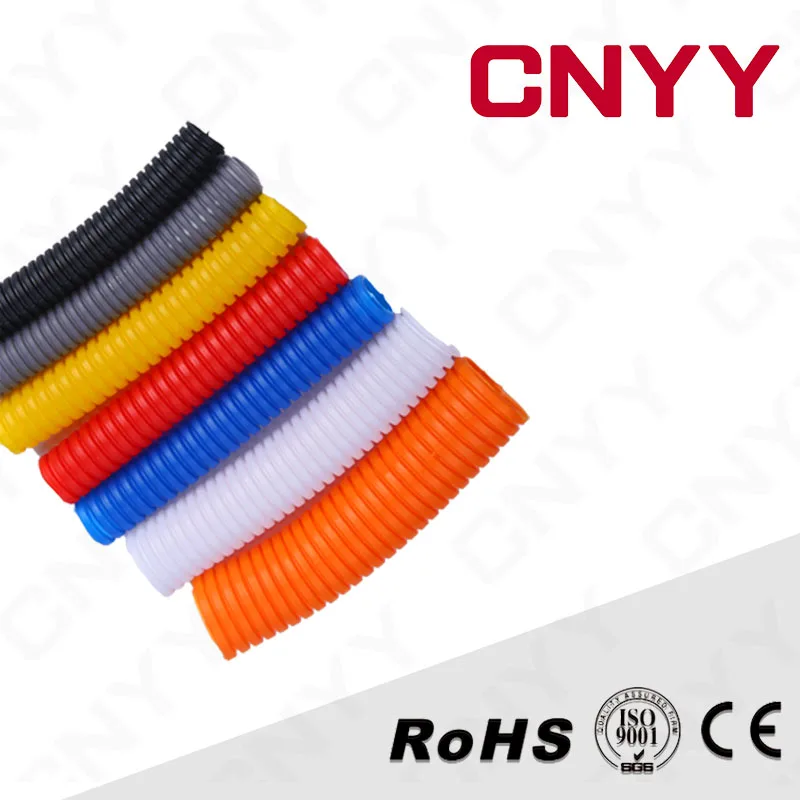

Product Description
Product material: PP(polypropylene)
Working temperature: -30℃~+100℃,+120℃ can be reached but kept only for a short time
Structure : Wavy shaoe both interiorly and exteriorly

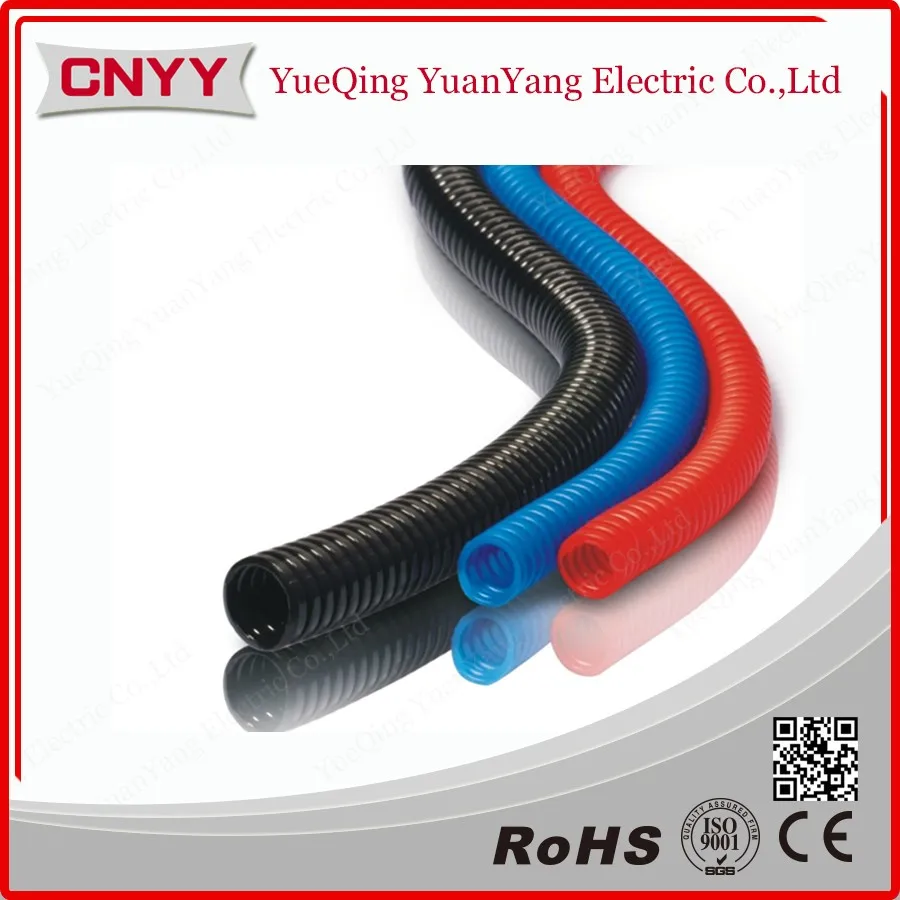

Color : Black .Other colors are customizable upon requirements
Property : Good flexibility,smooth and bright surface,chemical corrosion resistant
Variety available: fire retardant,FV-O
Application : Mainly used in automobiles wiring. But it can also be used in machineries, automatic meters andd gauges, motors, protecting the cables form abrasion and providing insulation to the wires and cables.

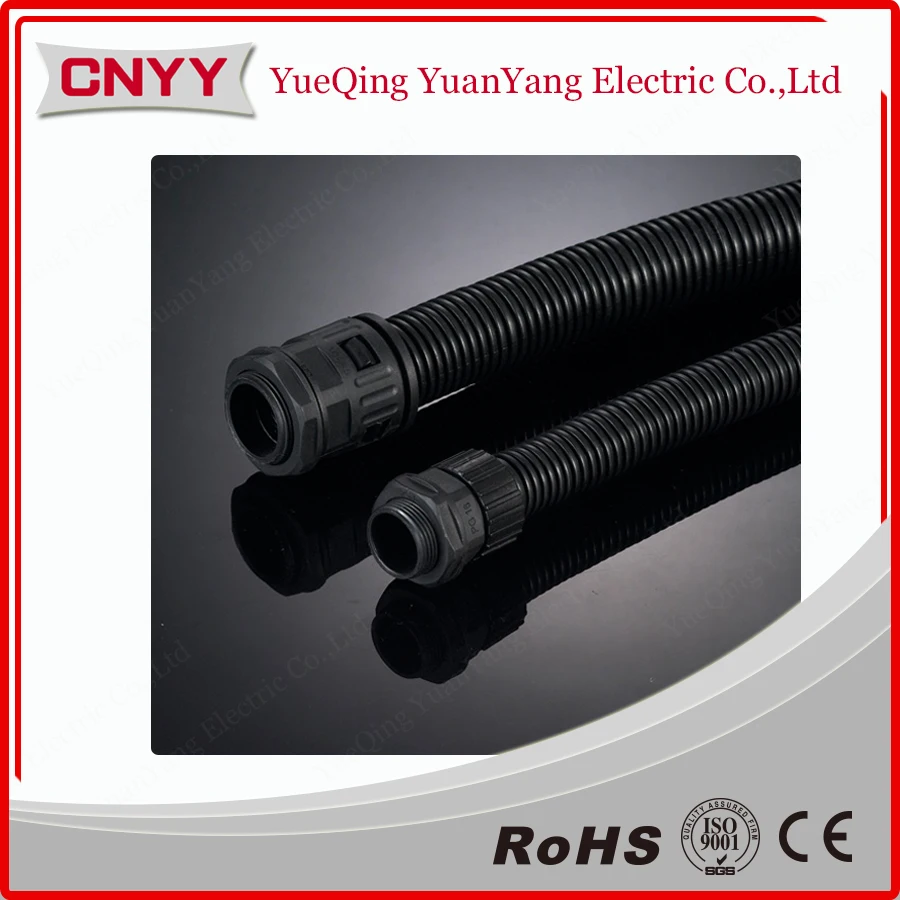

How to use : Insert the wires and cables into the pipe and fit respective types of CNYY-PP : SM-G、SM and SM-F series flexible joints before using

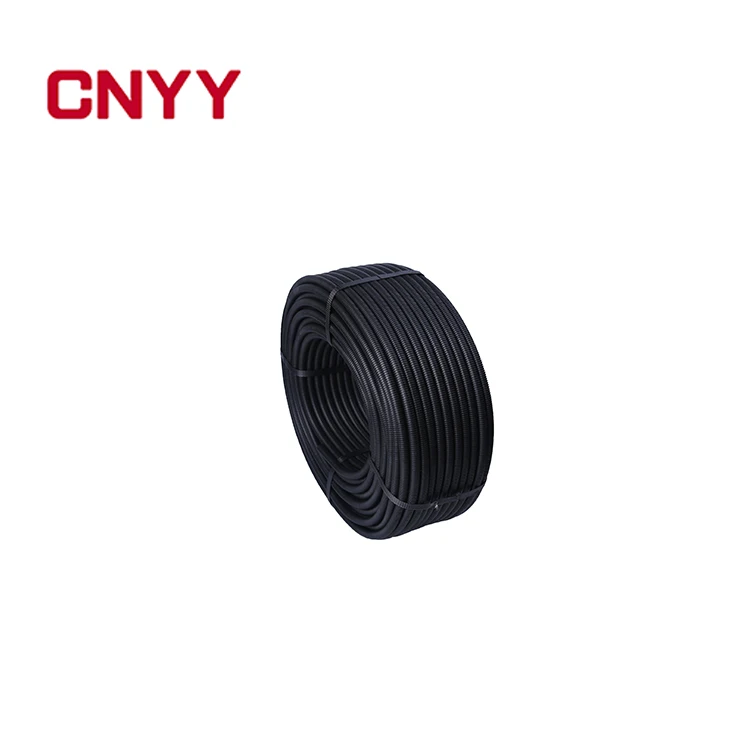

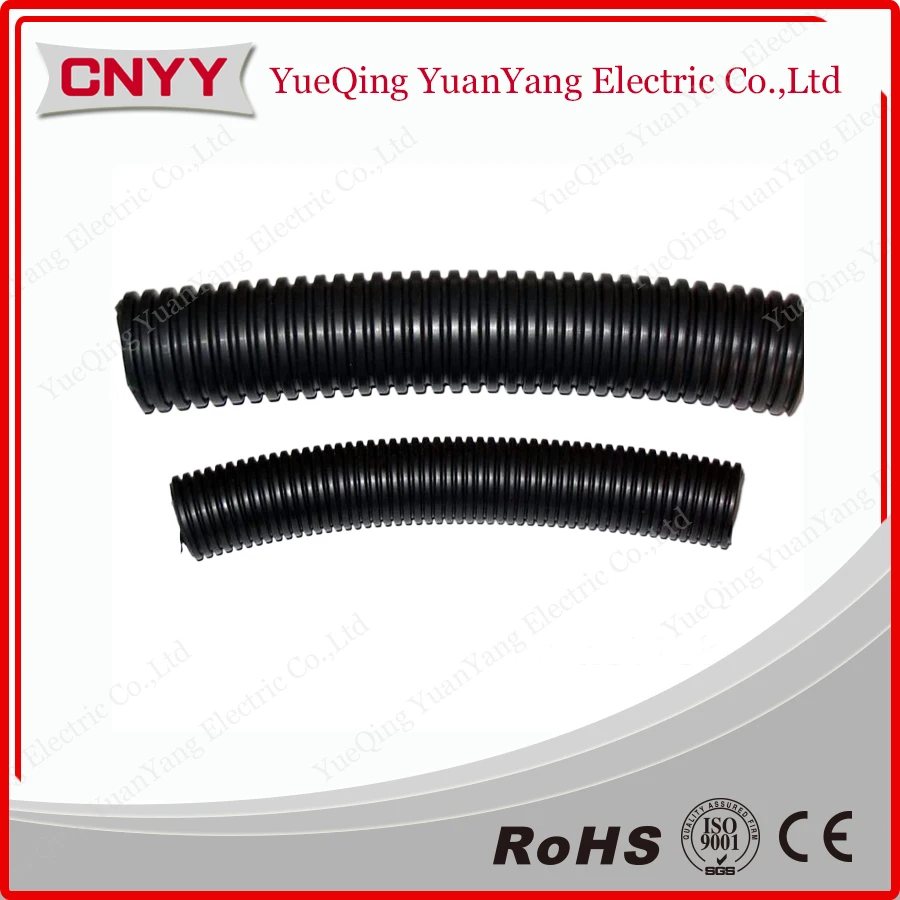

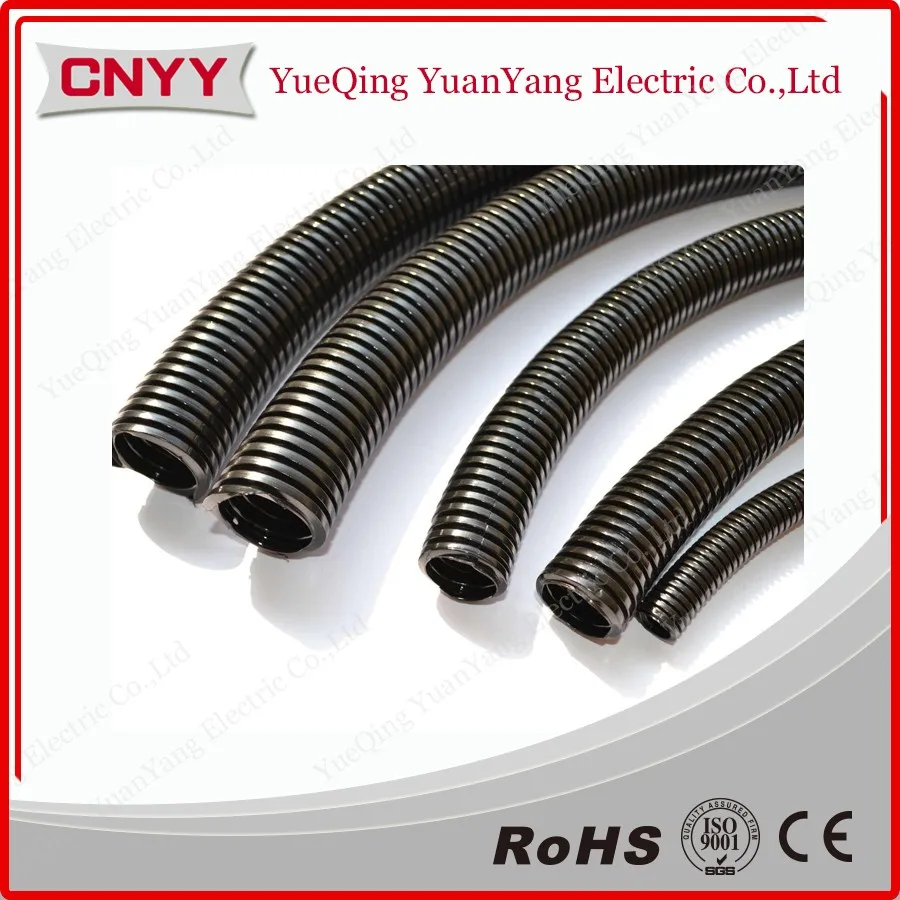

Detailed Images
Size Information
Item | Specifications For Flexible pipe | Inner Diameter | Outer Diameter | Curved Radius | Packaging Unit(M) |
YY-PP-7.0 | AD7.0 1/4" | 4.5mm | 7.0mm | 16mm | 200 |
YY-PP-10.0 | AD10.0 | 6.5mm | 10.0mm | 16mm | 100 |
YY-PP-11.6 | AD11.6 5/16" | 8.0mm | 11.6mm | 16mm | 100 |
YY-PP-13.0 | AD13.0 3/8" | 10.0mm | 13.0mm | 20mm | 100 |
YY-PP-15.8 | AD15.8 | 12.0mm | 15.8mm | 30mm | 100 |
YY-PP-18.5 | AD18.5 1/2" | 14.3mm | 18.5mm | 40mm | 100 |
YY-PP-21.2 | AD21.2 | 17.0mm | 21.2mm | 45mm | 100 |
YY-PP-25.0 | AD25.0 | 20.0mm | 25mm | 45mm | 50 |
YY-PP-28.5 | AD28.5 3/4" | 23.0mm | 28.5mm | 50mm | 50 |
YY-PP-34.5 | AD34.5 1" | 29.0mm | 34.5mm | 60mm | 50 |
YY-PP-42.5 | AD42.5 1 1/4" | 36.0mm | 42.5mm | 70mm | 50 |
YY-PP-54.5 | AD54.5 2" | 48.0mm | 54.5mm | 90mm | 25 |
YY-PP-67.2 | AD67.2 2 1/2" | 56.0mm | 67.2mm | 130mm | 25 |
YY-PP-80 | AD80.0 3" | 69.0mm | 80mm | 170mm | 25 |
YY-PP-106 | AD106.0 4" | 91.0mm | 106mm | 225mm | 25 |

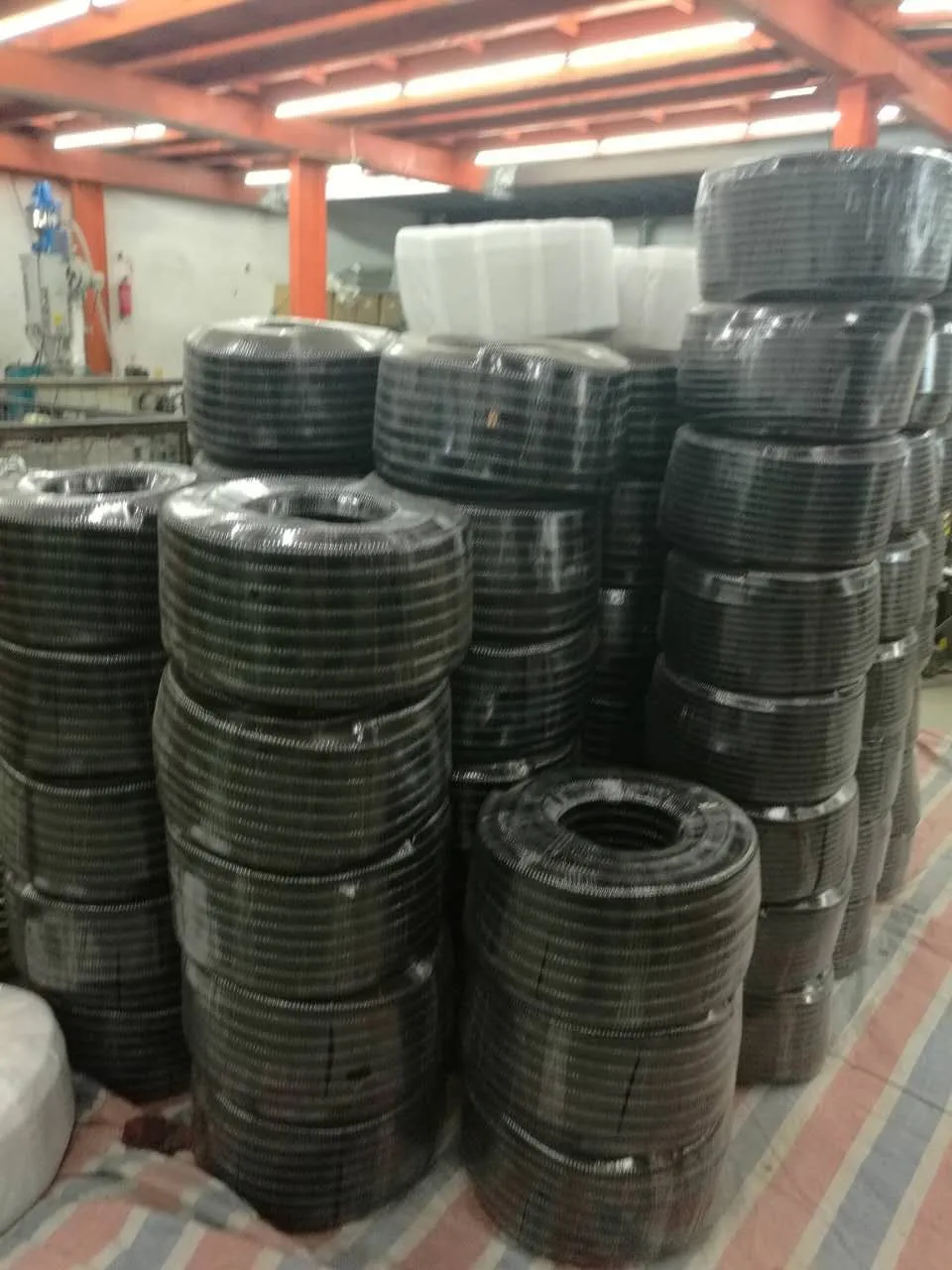

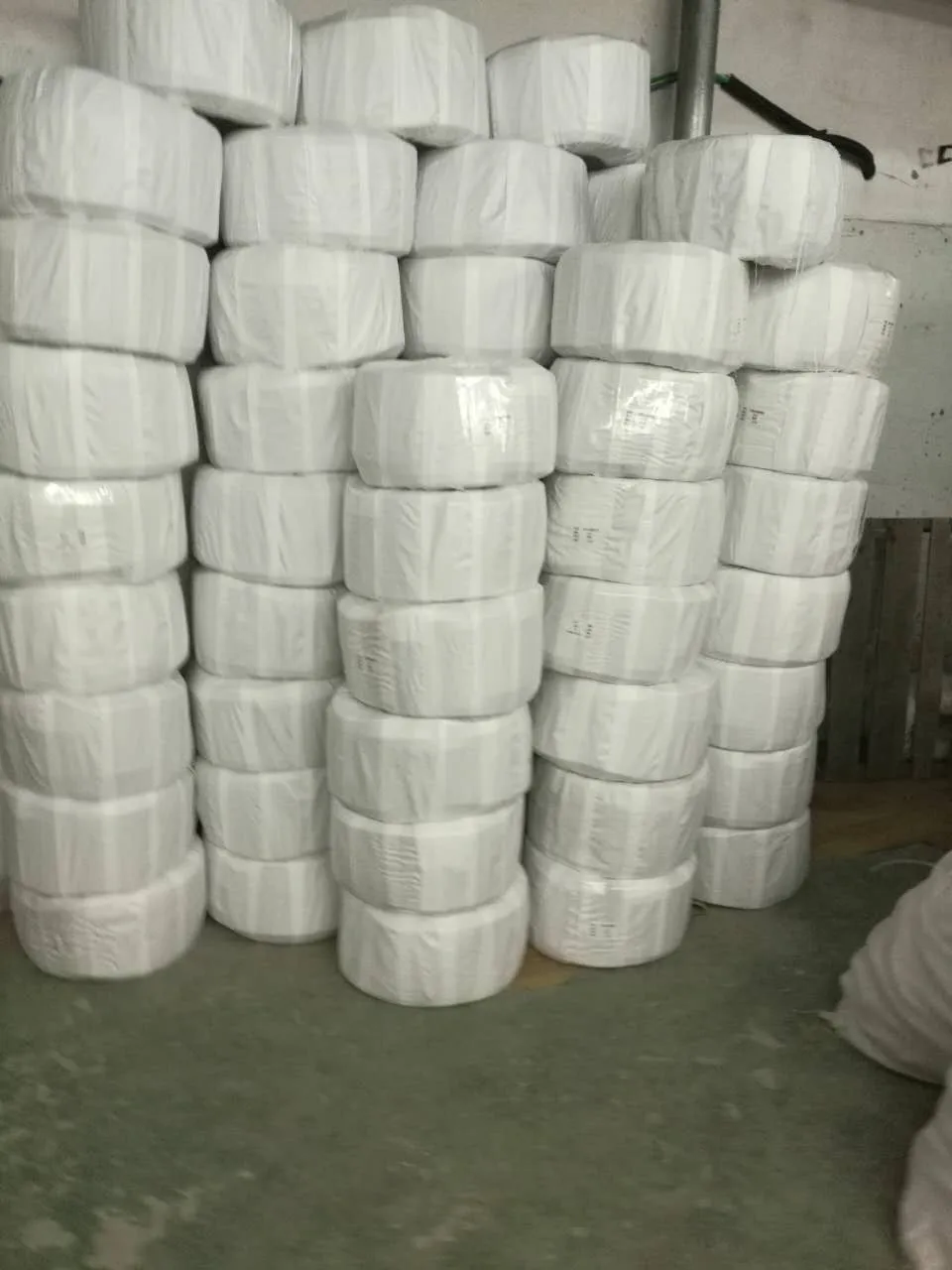

Packing&Shipping
Company Instruction
Zhejiang Yuanyang Electric co.,ltd located in the famous electric market city of China-Liushi.
Near Ningbo,Shnaghai,Yiwu ectprosperous market and port.
Zhejiang Yuanyang Electric co.,ltd are professional manufacture of electric protection
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.And produce the goods by ourself.
Q: How long is your delivery time?
A: About the production time :Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
And the delivery time : Generally about 30days. It is according to your location.
And the delivery time : Generally about 30days. It is according to your location.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
