Products Description

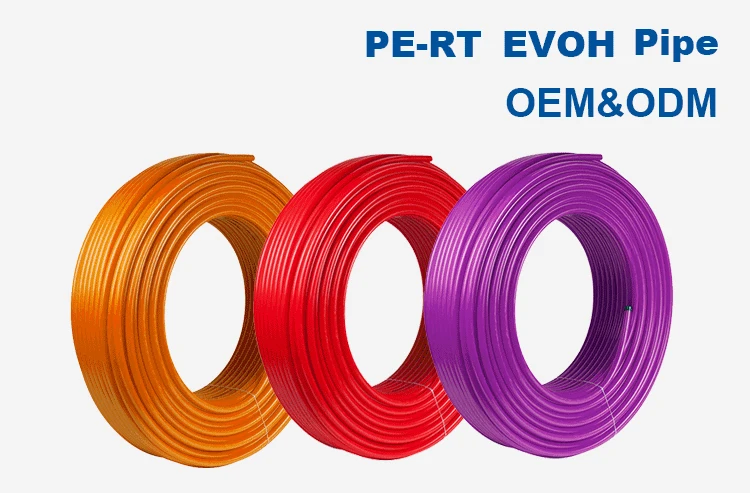

PERT EVOH Pipe 3 layers
Huilide PERT-EVOH pipe is lightweight , ultraflexible pipe that can be used in all types of warm water underfloor heating installations . Our ultra flexible 16mm EVOH pert pipe is manufactured to ISO 9001 standards ensuring ourstanding performance & reliability .
PE-RT pipe consists of 3 layers which is made up of an oxygen barrier (EVOH ) , a layer of adhesive , and an inner layer of pert pipe .
The oxygen diffusion barrier encases the inner layer of PE-RT pipe completely to prevent the entry of oxygen into the heating system through the pipe . The tough outer layer is designed to withstand the demands of a worksite ensuring the oxygen barrier remains intact , which reduces the risk of corrosion within the heating system .
Huilide PERT-EVOH pipe is lightweight , ultraflexible pipe that can be used in all types of warm water underfloor heating installations . Our ultra flexible 16mm EVOH pert pipe is manufactured to ISO 9001 standards ensuring ourstanding performance & reliability .
PE-RT pipe consists of 3 layers which is made up of an oxygen barrier (EVOH ) , a layer of adhesive , and an inner layer of pert pipe .
The oxygen diffusion barrier encases the inner layer of PE-RT pipe completely to prevent the entry of oxygen into the heating system through the pipe . The tough outer layer is designed to withstand the demands of a worksite ensuring the oxygen barrier remains intact , which reduces the risk of corrosion within the heating system .
Specifications:
CODE | S SERIES | SIZE |
HDRTE101 | S5 | 16X1.8MM |
HDRTE102 | S5 | 20X2.0MM |
HDRTE103 | S5 | 25X2.3MM |
HDRTE104 | S5 | 32X2.9MM |
HDRTE105 | S5 | 16X2.0MM |
HDRTE106 | S5 | 20X2.3MM |
HDRTE107 | S4 | 25X2.8MM |
HDRTE108 | S4 | 32X3.6MM |
HDRTE109 | S3.2 | 16X2.2MM |
HDRTE110 | S3.2 | 20X2.8MM |
HDRTE111 | S3.2 | 25X3.5MM |
HDRTE112 | S3.2 | 32X4.4MM |
Basic Resin of raw material: LG (Grade SP980I / SP988II)
Adhesive:LyondellBasell (PX3060)
Oxygen barrier:Soarnol (A4412B)
Production Standard: ISO 22391-2:2009, GB/T 28799.2-2012
Package: DN16-32 100m/200m/300m per roll
DN16-32 3m/4m/5m per length
Roll length can be customized according to requirements.
Color:Natural color,gray,orange,red,other color can be customized
Advantages
1 Corrosion free
2 Chemical-resistant
3 Low weight
4 Flexible an move-friendly
5 High throughput thanks to smooth inner layer
6 good impact resistance
1 Corrosion free
2 Chemical-resistant
3 Low weight
4 Flexible an move-friendly
5 High throughput thanks to smooth inner layer
6 good impact resistance
Physical and chemical characteristics of pert evoh pipe:
Item | Requirements | Test Time | Test Temperature | Hoop Stress |
Longitudinal Reversion | ≤2% | 1h (en≤8mm) | 110℃ | / |

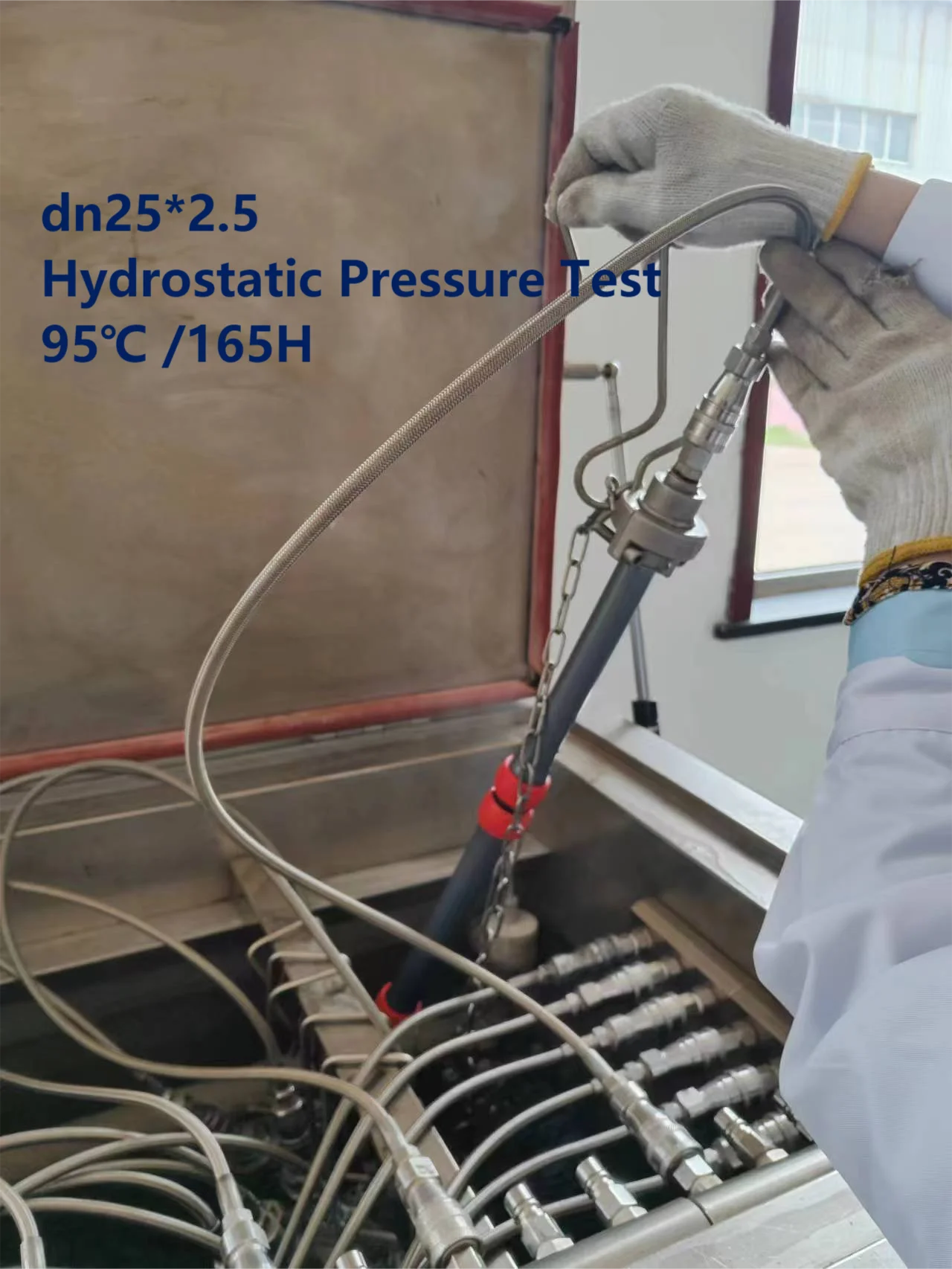

Hydrostatic Stress Test | No Bursting No Leakage | 22h 165h 1000h | 95℃ 95℃ 95℃ | 3.8Mpa 3.6Mpa 3.4Mpa |
Thermal Stability | No Bursting No Leakage | 8760h | 110℃ | 1.9Mpa |
Melt Mass Flow Rate (5KG) | Max 30% difference | 10min | 190℃ | / |
Product Application
Applications:
1 Hot and cold water plumbing Distribution 2 Radiant heating and cooling systems(floors , walls , ceilings)
3 Outdoor snow and ice melting
4 Hydronic piping and distribution (radiators, fan coils) etc
Radiant heating system
Ceiling
Snow and ice melting

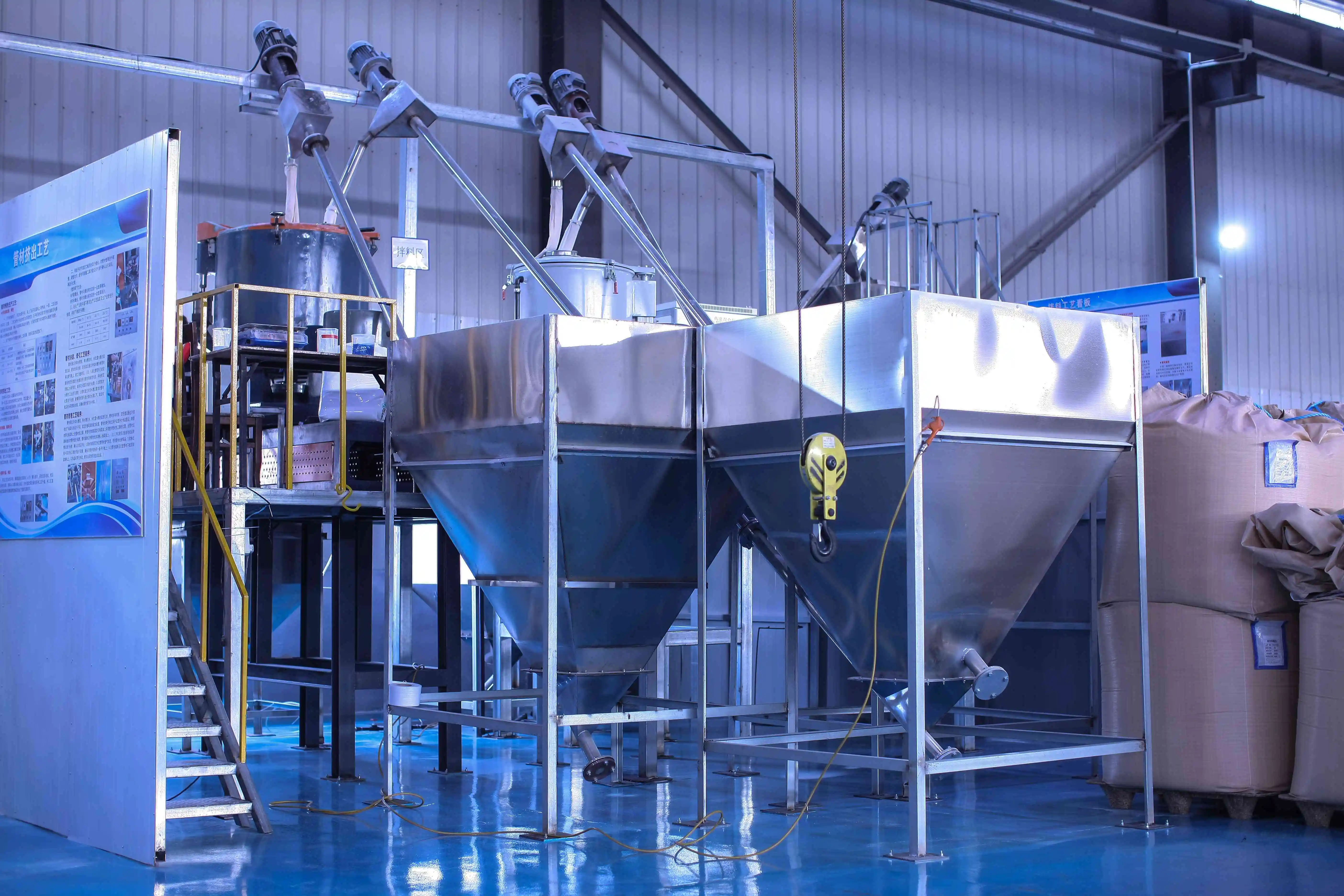

Raw Materials

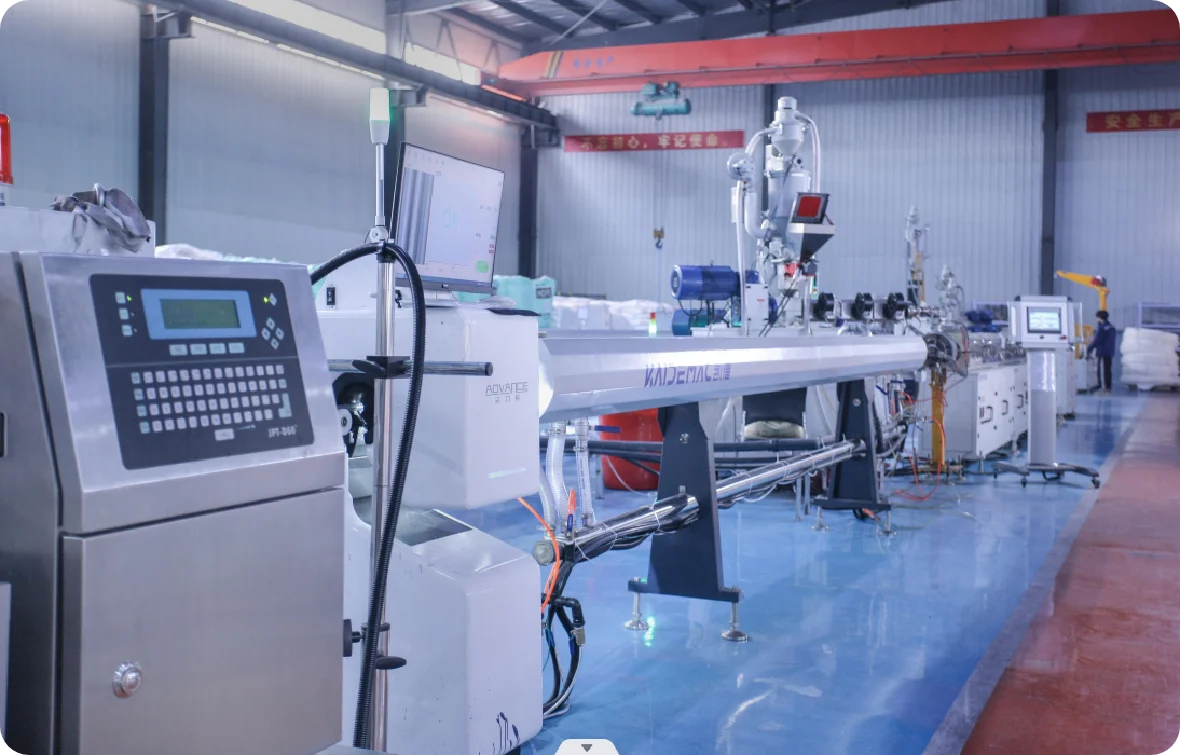

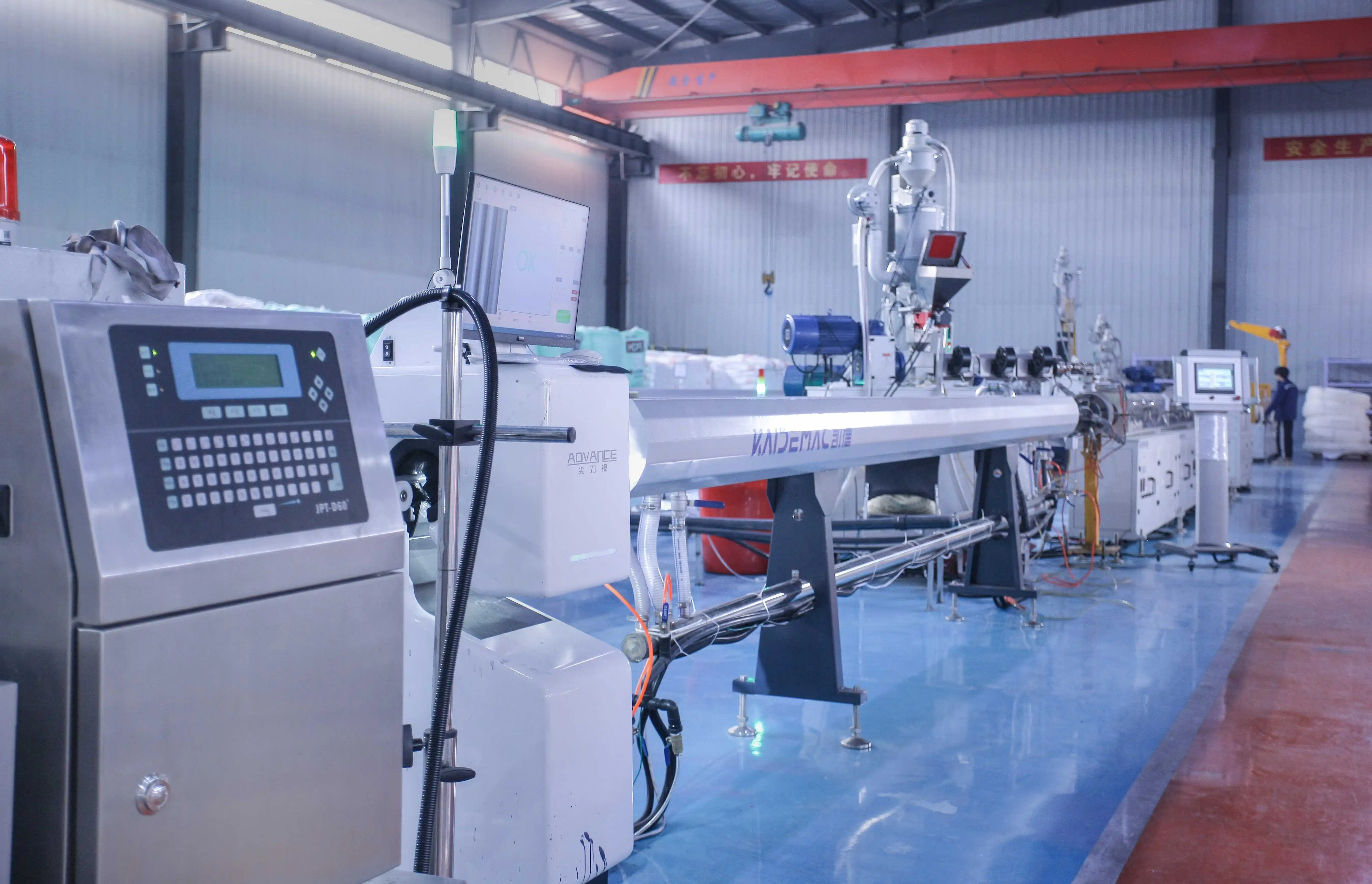

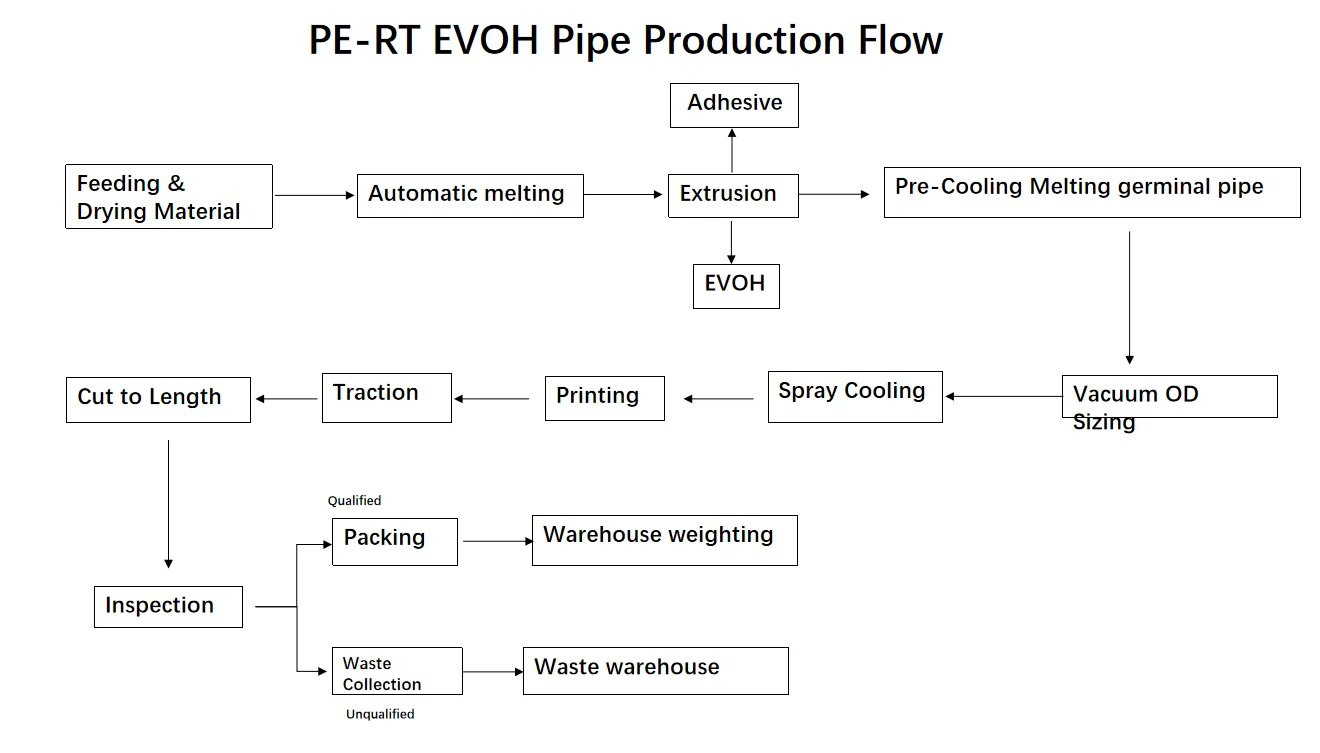

Manufacturing Technique

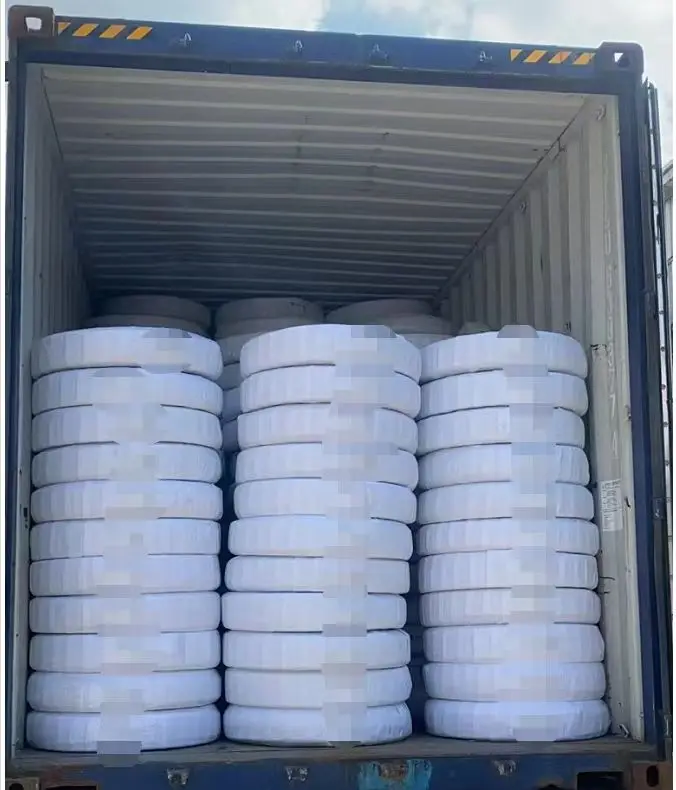

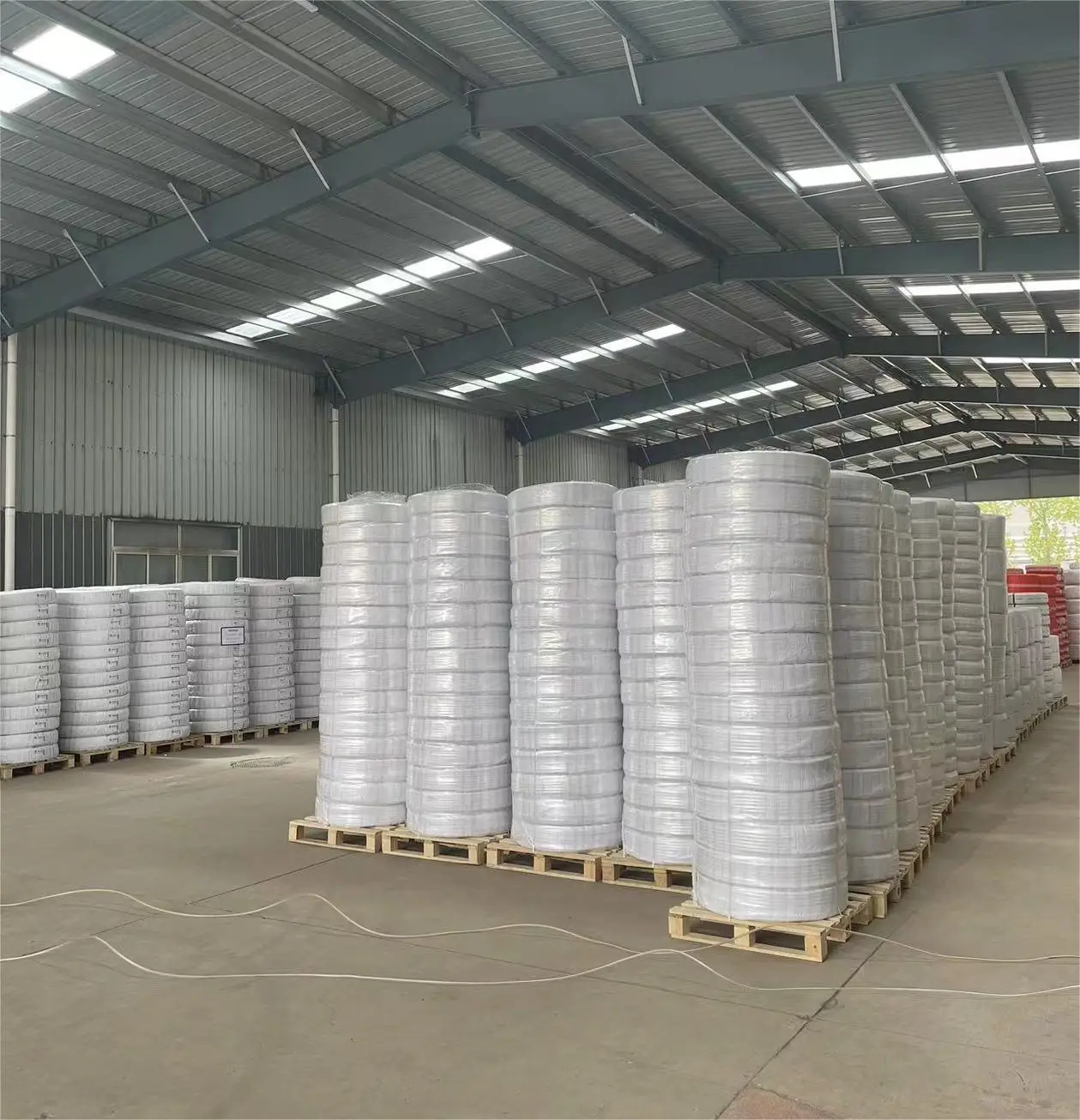

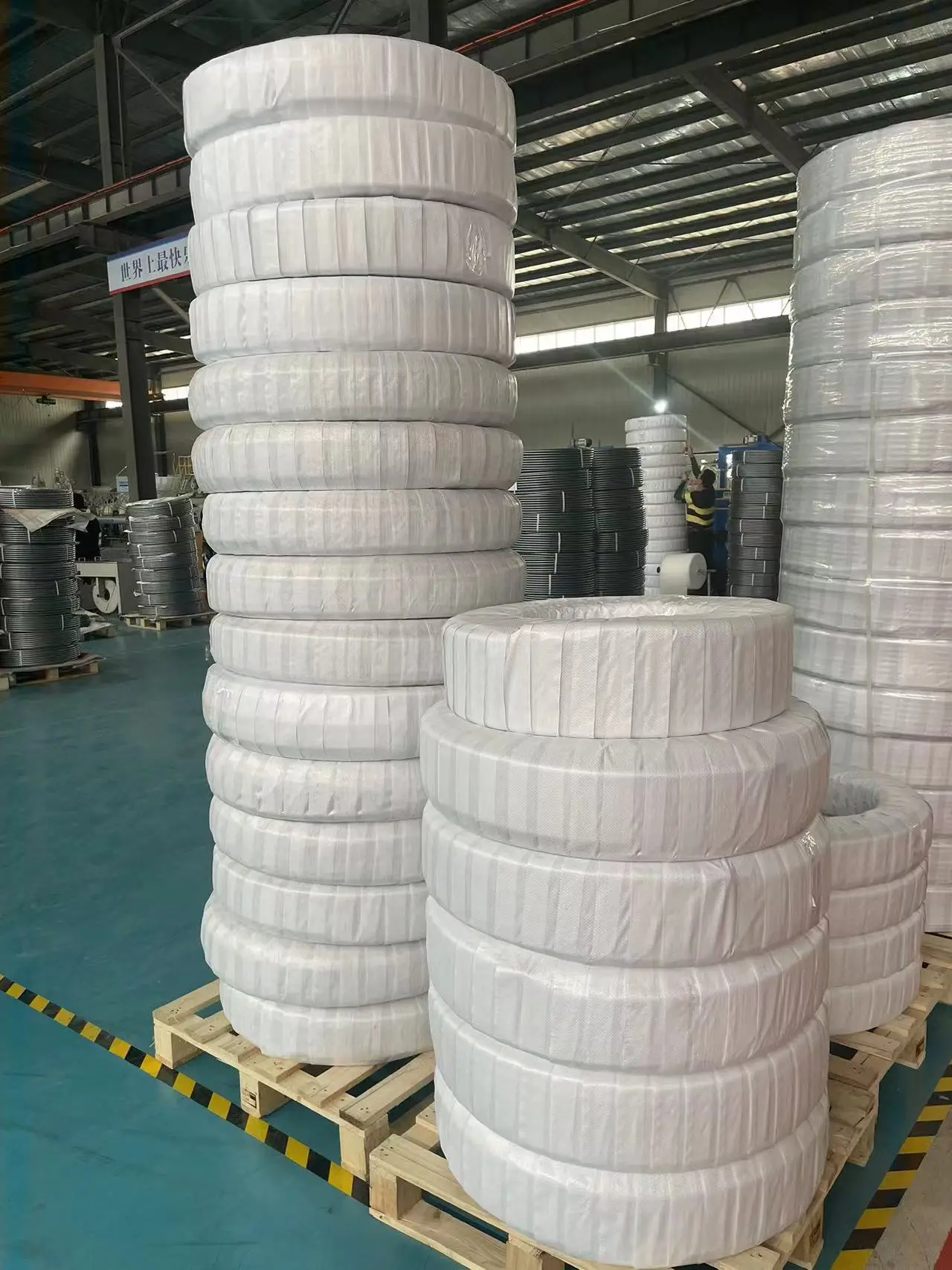

Product packaging
Company Profile
Tianjin Huilide New Materials Co., Ltd is located in the beautiful coastal city of Tianjin.Covering an area of 10,000 square meters, it has 92 advanced PEXa pipe production lines, 5 PEXa oxygen barrier production lines, 2 PERT pipe production lines, 2 PEX-Al-PERT pipe production lines, and 10 injection molding pipe fittings equipment, with an annual output of 100 million meters tube production capacity.
All raw materials produced by Tianjin Huilide are imported raw materials. For example, the raw materials of PEXa pipes come from LG SL188 or Lotte 8100GX. The raw material of PERT pipe is LG SP980. The oxygen barrier pipe adhesive layer is selected from Sonarnol’s A4412B, the oxygen barrier layer is selected from Lyondell Basell 3060 in Germany, and the aluminum-plastic pipe aluminum plate is selected from China Southwest Aluminum Industry. We use the best materials to ensure the safety of our products and pipes.
At present, all pipes of our company have been exported to Russia, Australia, Brazil, the United States and other parts of the world, and have obtained access certificates such as Russian GOST , Australian watermark and US NSF certification etc .
All raw materials produced by Tianjin Huilide are imported raw materials. For example, the raw materials of PEXa pipes come from LG SL188 or Lotte 8100GX. The raw material of PERT pipe is LG SP980. The oxygen barrier pipe adhesive layer is selected from Sonarnol’s A4412B, the oxygen barrier layer is selected from Lyondell Basell 3060 in Germany, and the aluminum-plastic pipe aluminum plate is selected from China Southwest Aluminum Industry. We use the best materials to ensure the safety of our products and pipes.
At present, all pipes of our company have been exported to Russia, Australia, Brazil, the United States and other parts of the world, and have obtained access certificates such as Russian GOST , Australian watermark and US NSF certification etc .
Why Choose Us
1 Material:
The raw materials are all well-known imported brand raw materials, such as: LGSL188, Lotte8100GX, Basell 3060, Soarnol’s A4412B, which guarantee the product stability and safety of the pipe to the greatest extent.
2 Production :
2 Production :
Among China's floor heating pipe production enterprises, the number of equipment is the top 3 , and all of them are advanced production equipment, some of which are independently developed technologies
3 Service:
3 Service:
Only focus on OEM and ODM services of the world's top brands
4 Certificate :
4 Certificate :

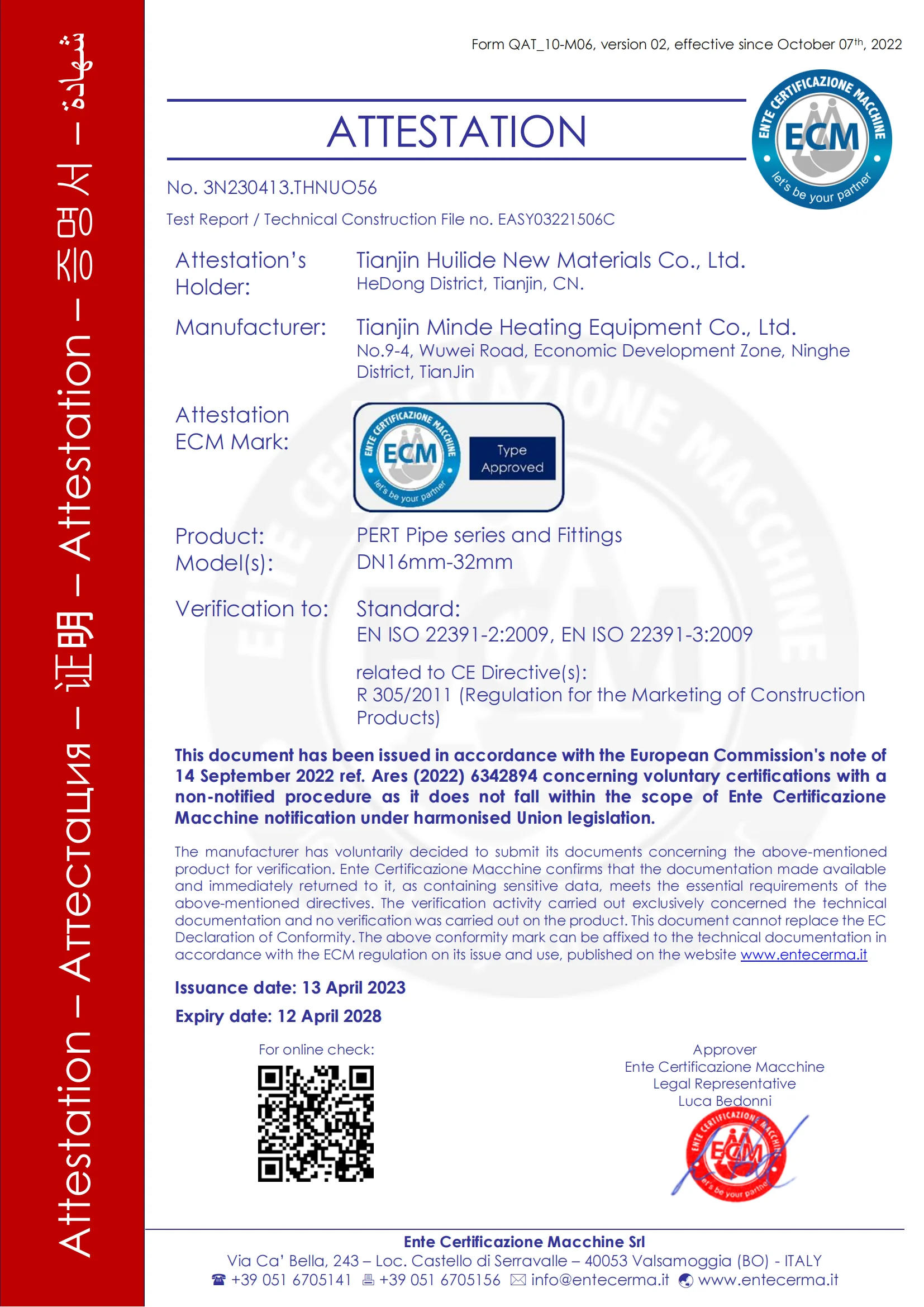

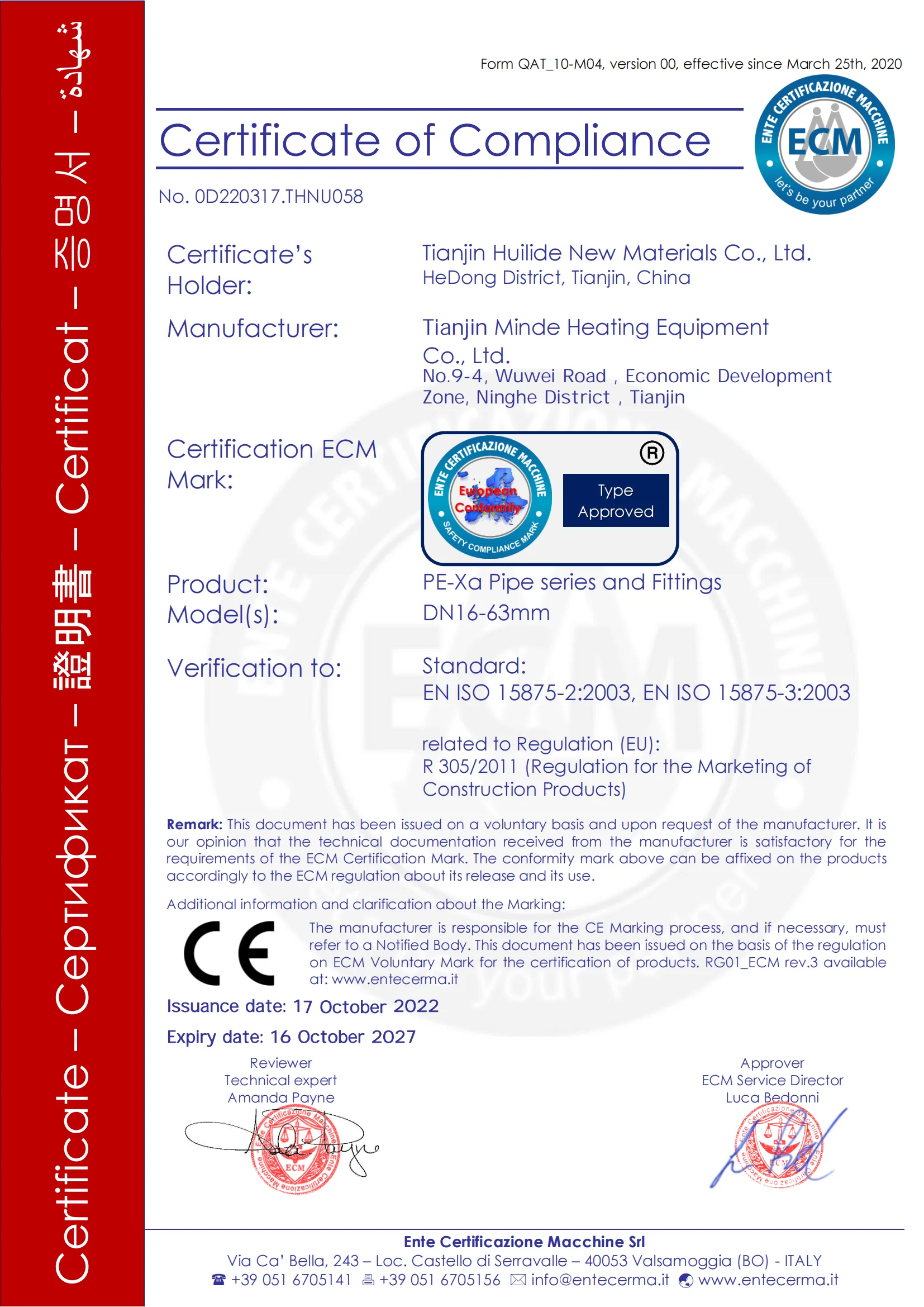

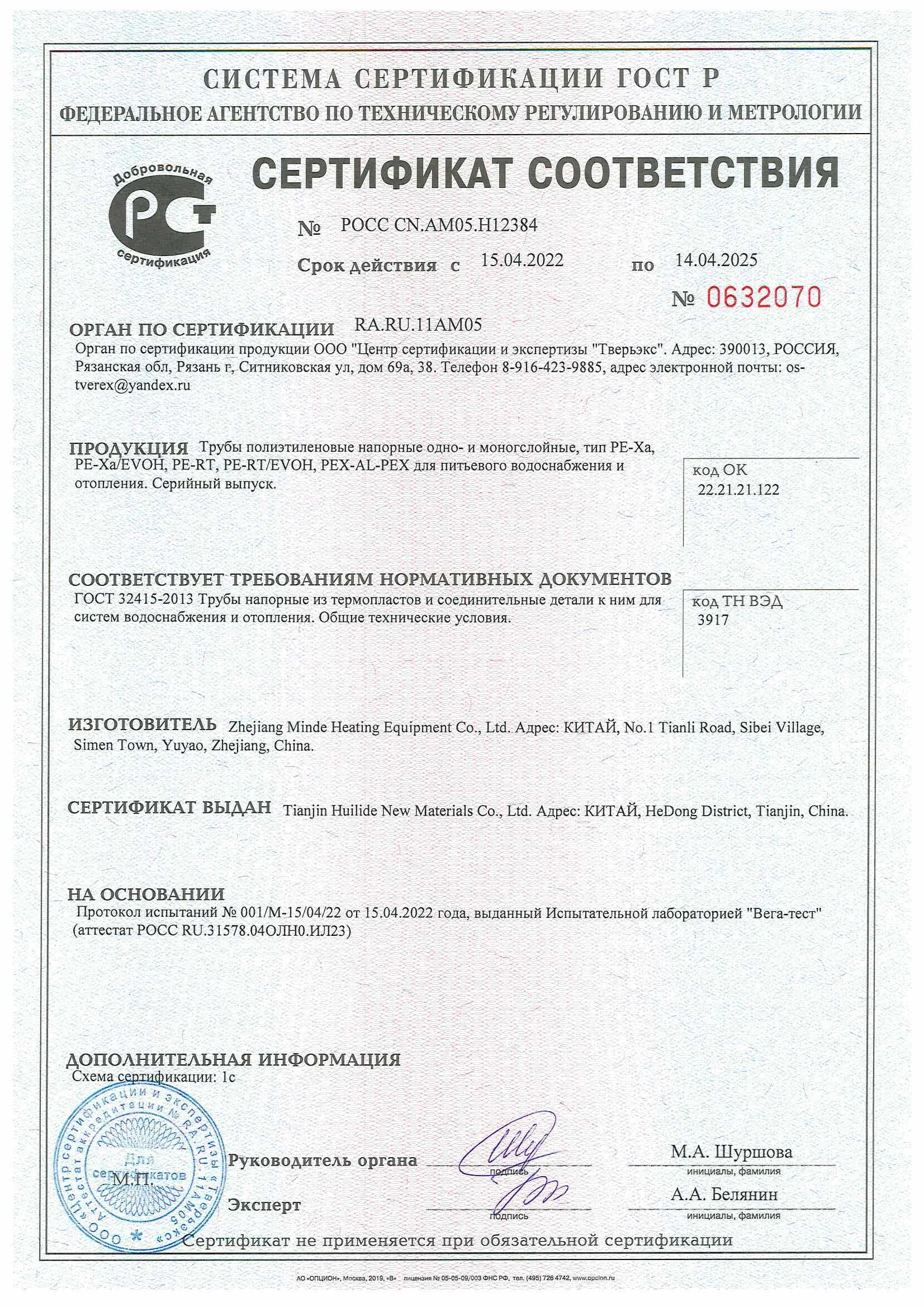

CE / GOST / Watermark / NSF / Aenor etc
FAQ
1.Are you a factory or a trading company?
Manufacturer with more than 20 years experience and loading port Tianjin.
2. How does your factory do regarding the quality control?
Quality is priority.
Manufacturer with more than 20 years experience and loading port Tianjin.
2. How does your factory do regarding the quality control?
Quality is priority.
Material :100% imported LG 188 / SP980 / Lotte 8100GX / Basel 3060 / Soarnol 4412B
3. Do you do OEM/ODM service please ?
We do OEM / ODM service. At present, we have provided OEM services for global top brands
4. Can I get some samples?
Yes, free sample is available for quality check.
5. What's your payment terms?
T/T or L/C at sight as the main payment terms, and other payments can also be negotiated.
6. How long is your lead time?
7-10 days for 40HQ
7. Is the small order acceptable for you, how about your MOQ?
10000Meters for 1 dimension .
8. Is there a warranty?
Yes. All pipes and fittings come with a 24-month warranty.
9. Do you have your own brand?
Yes, Our Brand is Huilide / Minde

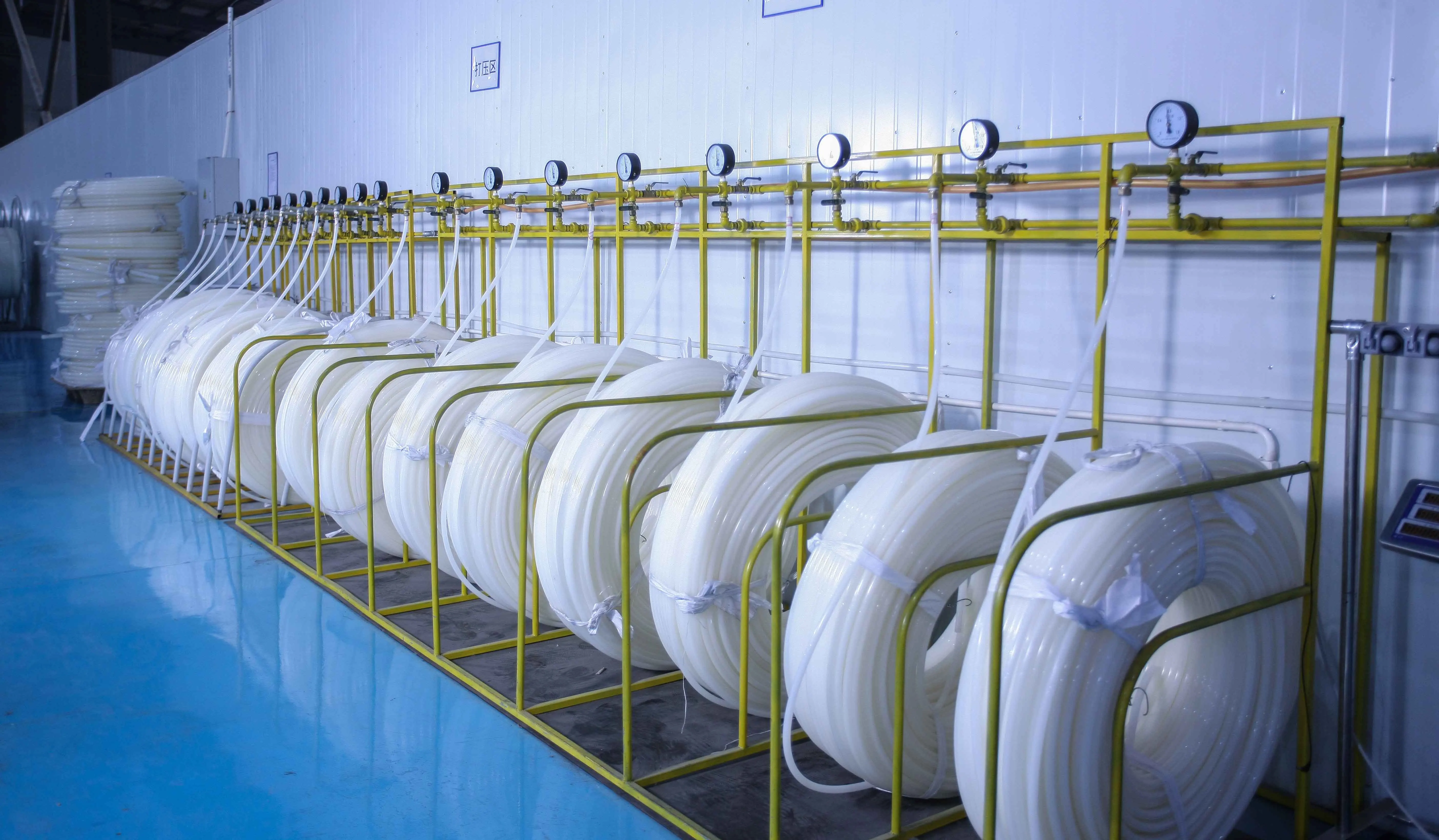

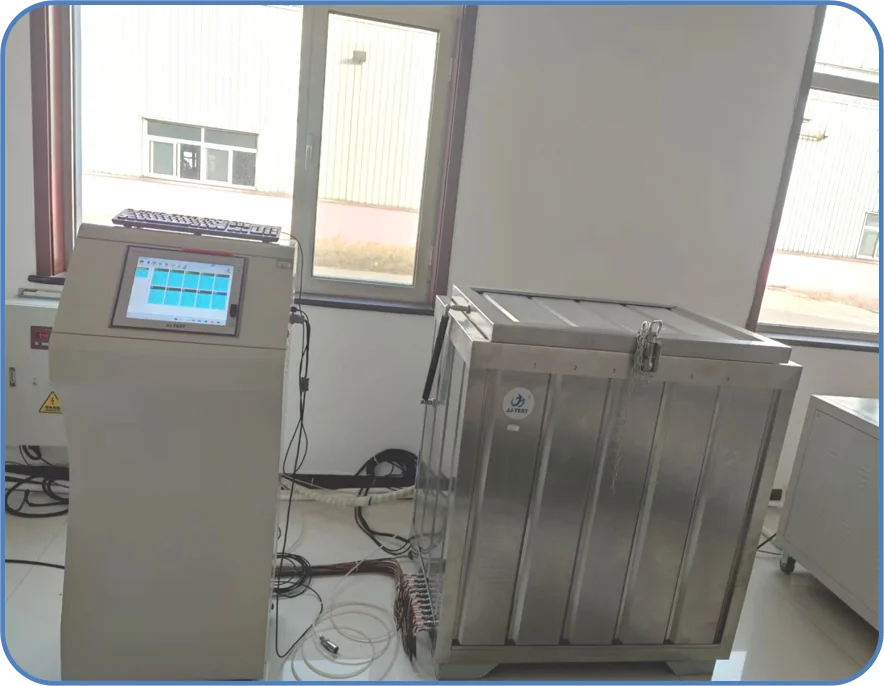

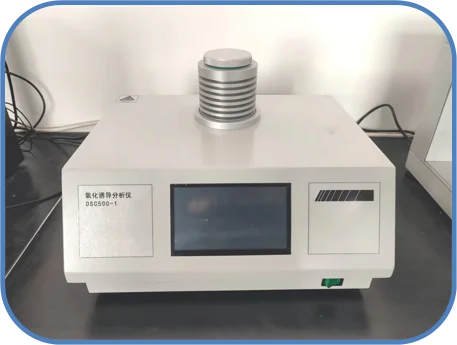

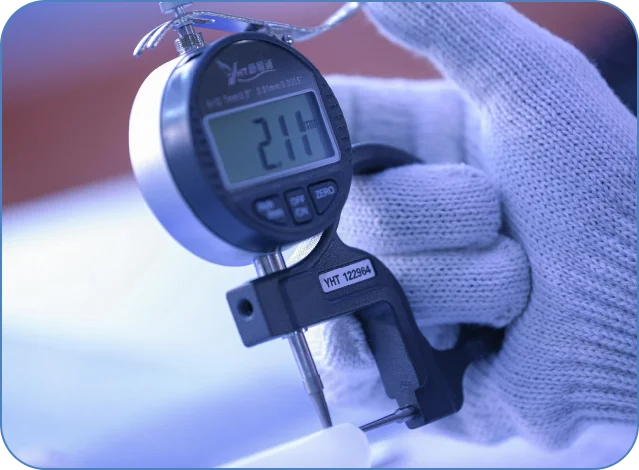

Test : 100% Pressure test / Online inspection / Batch sampling of hydrostatic and other pipe professional experiments / The third party test
Production : Workers with more than 10 years of experience in the industry,all molds are individually designed and accurate3. Do you do OEM/ODM service please ?
We do OEM / ODM service. At present, we have provided OEM services for global top brands
4. Can I get some samples?
Yes, free sample is available for quality check.
5. What's your payment terms?
T/T or L/C at sight as the main payment terms, and other payments can also be negotiated.
6. How long is your lead time?
7-10 days for 40HQ
7. Is the small order acceptable for you, how about your MOQ?
10000Meters for 1 dimension .
8. Is there a warranty?
Yes. All pipes and fittings come with a 24-month warranty.
9. Do you have your own brand?
Yes, Our Brand is Huilide / Minde
