1600C Топ Seeded раствор роста (TSSG) печи Компактный кристалл
- Категории: Laboratory Heating Equipments >>>
- Поставщик: Zhengzhou,CY,Scientific,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

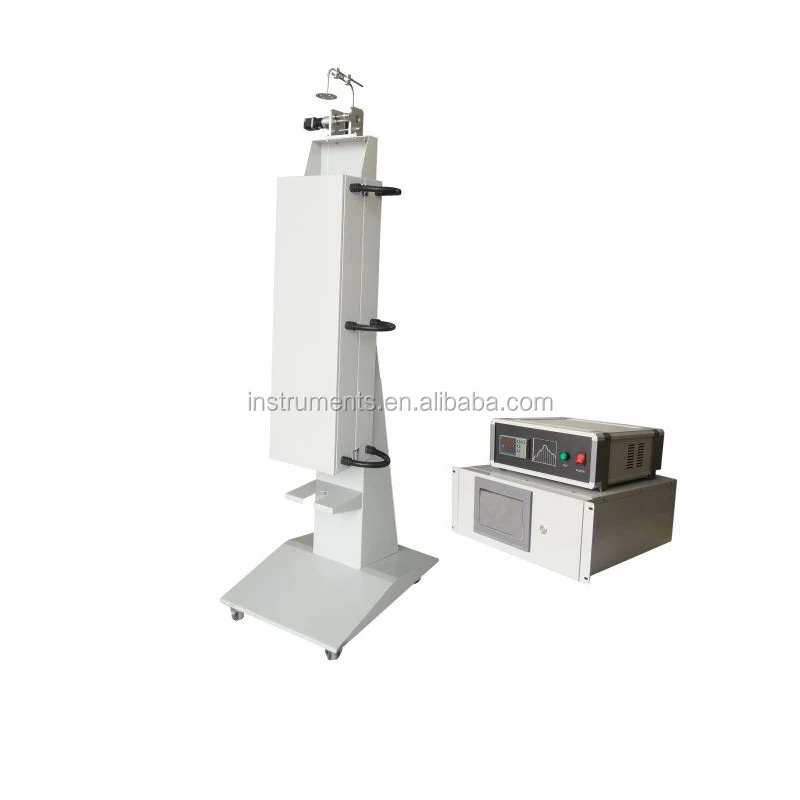

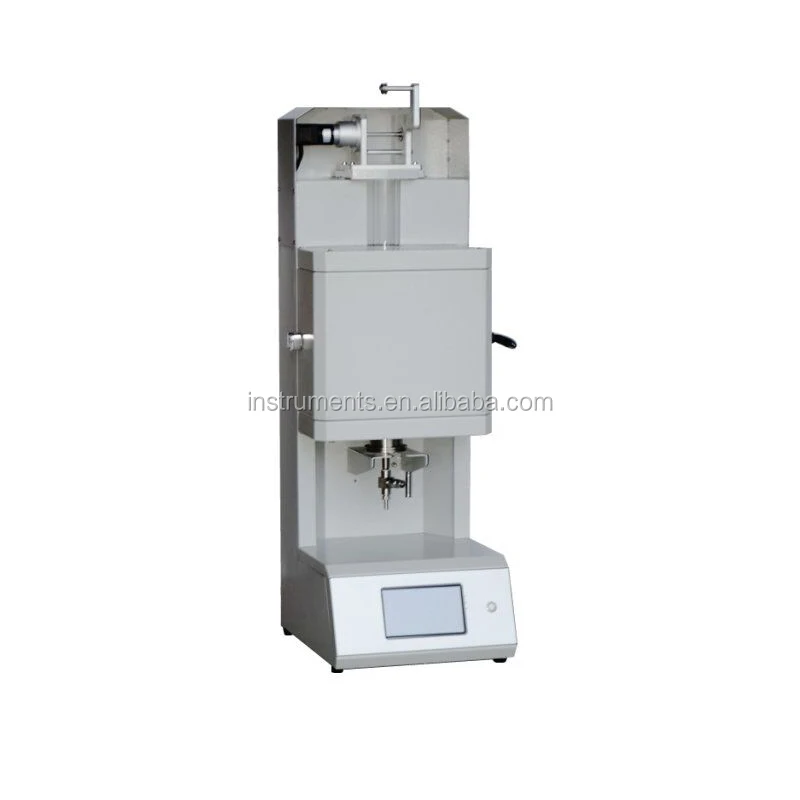

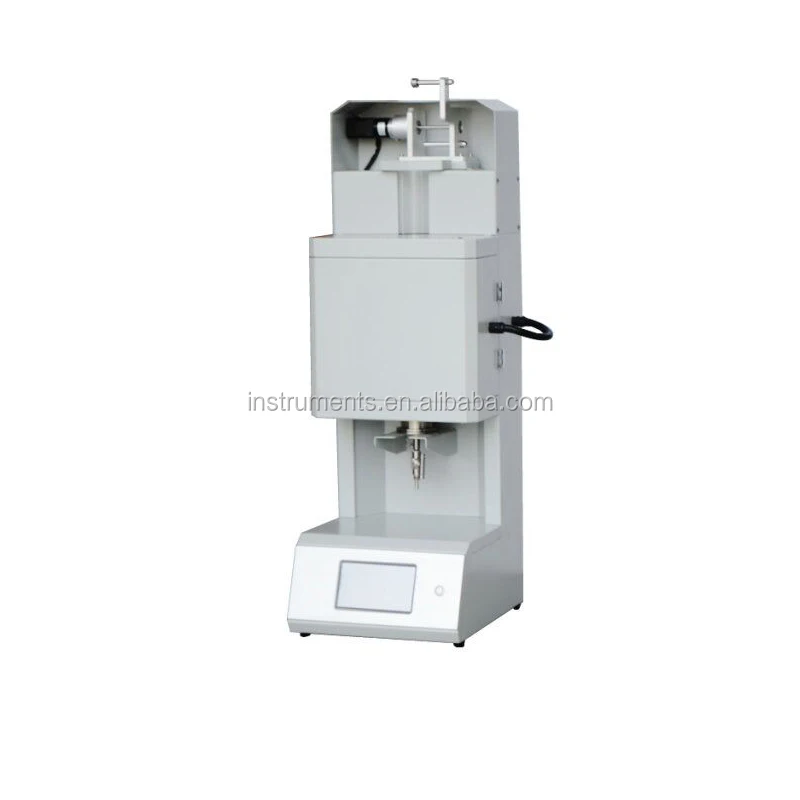

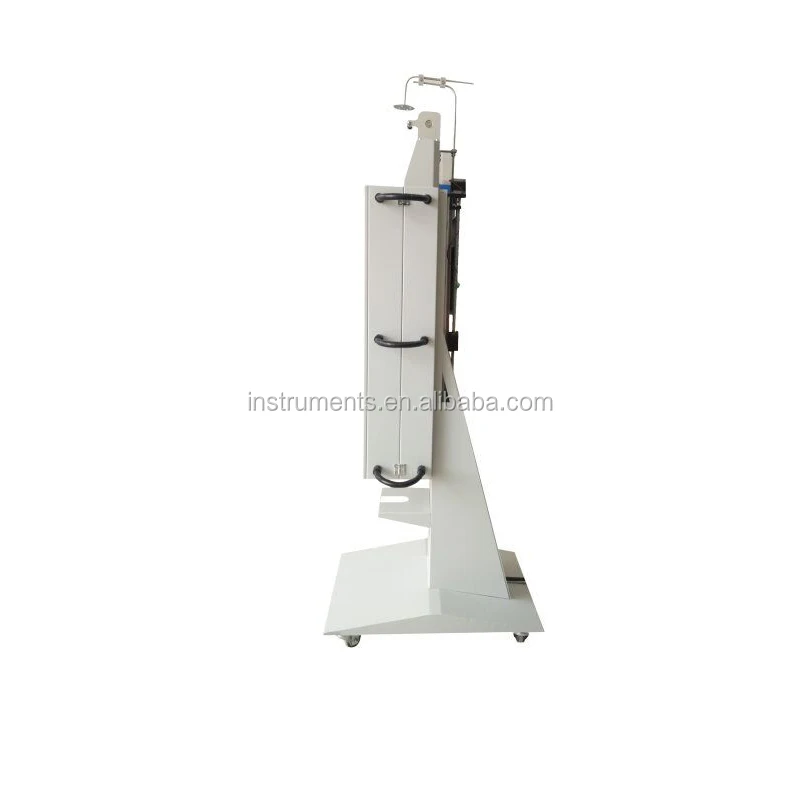

3-Zone Top Seeded Solution Growth (TSSG) Furnace(1200°C Max.) -

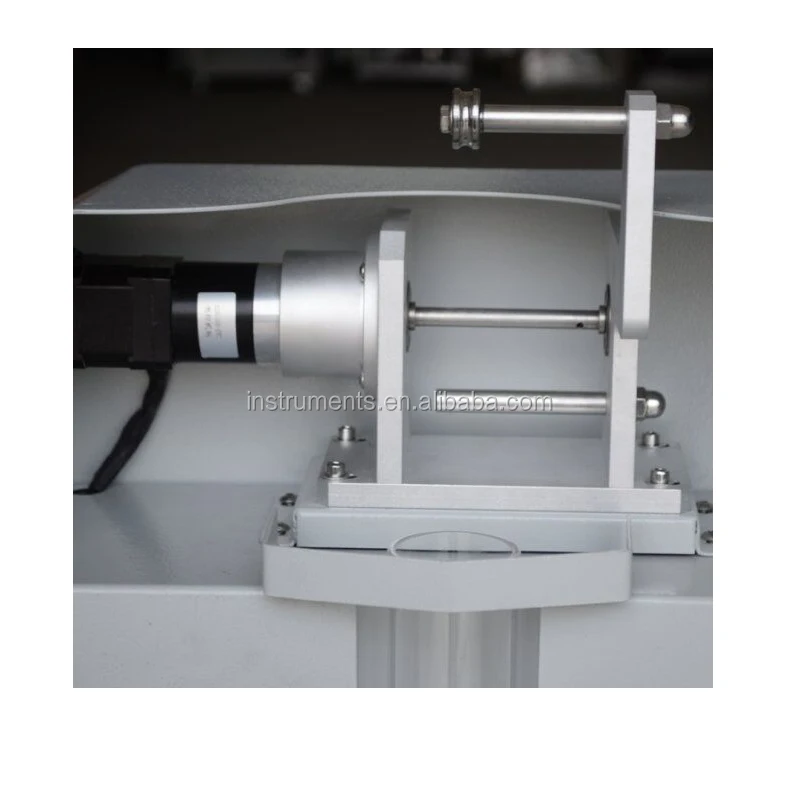

is a 3-zone top seed solution growth (TSSG) furnace for growing various crystals via flux solution. The furnace consists of three heating zone with chamber of 5" Diameter x 24" high up to 1200º C. The Precision digital temperature controller with 28 segments programmable is built in the furnace with +/- 0.1ºC accuracy, as well as precision, pulling and rotation mechanism with speed range from 0.1 - 50 mm/hour.
Furnace
| Three heating zone: 150mm+300mm+150mm with independent temperature control, which is easy to create the theraml gradient. Max. Working Temperature: 1200ºC (< 60 minute) Standard Working Temperature: 1100ºC (continuous) Power: 208V- 240V AC, 50/50Hz, Single phase 5000W Max. |
Control Panel | PLC touch screen control panel for controlling temperature, pulling speed, rapid downward speed and rotation speed of pulling rod Temp. Controller: 8 steps programmable and auto PID control with +/- 0.1ºC accuracy Heating Rate 0~10ºC / min (suggestion at =< 5ºC) Pulling Speed: 0.8-50mm/h adjustable Downward speed: 40 mm/minute fixed The rotation speed of Pulling rod: 0.1-23 RPM adjustable |
Pulling Range | 300 mm Max. |

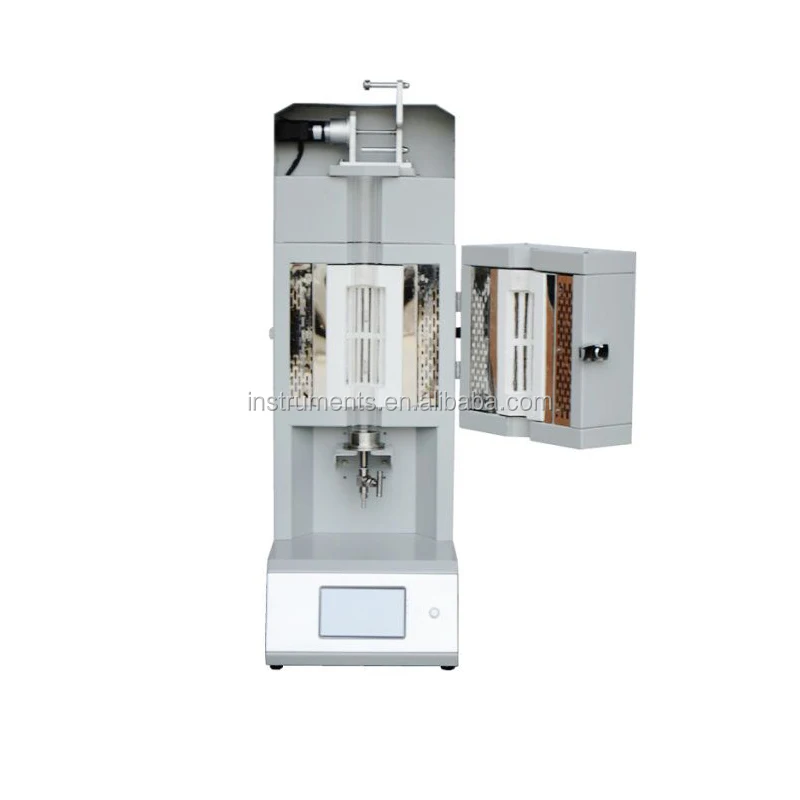

Heating Chamber | 135 m Dia Splittable with max. 80 mm crucible without sealed tube 600 mm in Height Optional vacuum-sealed quartz tube up to 5" OD is available at the extra cost |
Warranty | One-year limited warranty |
Our Services
1. Factory prices with the best quality.
2. One year free-of-charge maintenance for all the dental equipment
3. Customized service for special demand
4. Fast and flexible delivery, by sea, by air, by express
5. Quick response within 24 hours
How to order
1. If you are interested in our products, please tell us the model number and quantity.
2. We will make a proforma invoice for your order.
3. We will deliver the product ASAP on receipt of the payment
Guarantee
1. Guarantee for one year after shipment.
Payment
1. Western Union
2. PayPal
3. Secure Payment through Alibaba
4. Telegraphic transfer
5. L/C
Company Information
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design,
manufacturing and sales of equipment used in scientific researches. Independence and innovation is the
company's tenet.Our main products include: tube furnace, muffle furnace, plasma cleaner, vacuum furnace,
atmosphere furnace,CVD system and customized lab equipment.Welcome you come to visit us.
FAQ
1. Are you a manufacturer or trade company ?
Yes,you can assured that we are a professional manufacturer with full experience, and
doing business in domestic and oversea for many years.
2. We are not professional for operation and installation of your machine?
While this is not difficult to solve,our machine is easy to operate,no need to
professional training,and the instruction manual and vedio we make can teach you step by step.
What’s more,we have professional engineers , if needed we can send them to your side to solve the problem.
Also we supply online service at any time.
3. How about packaging ? if machine damaged,what should I do ?
Usually machine is packed with wooden case and standard export carton,
plywood carton or as your requirement. Before delivery we will also send you the packing photos of the goods to confirm with you. After agreed, we will deliver it.
Damage haven’t happened before, if happen,we will arrange replacement.
4. We haven’t do business before,how can I trust your company and machine ?
We have been GOLD supplier with no complaints on Alibaba.and our machine have exported to many countries all over the world
