Product Description

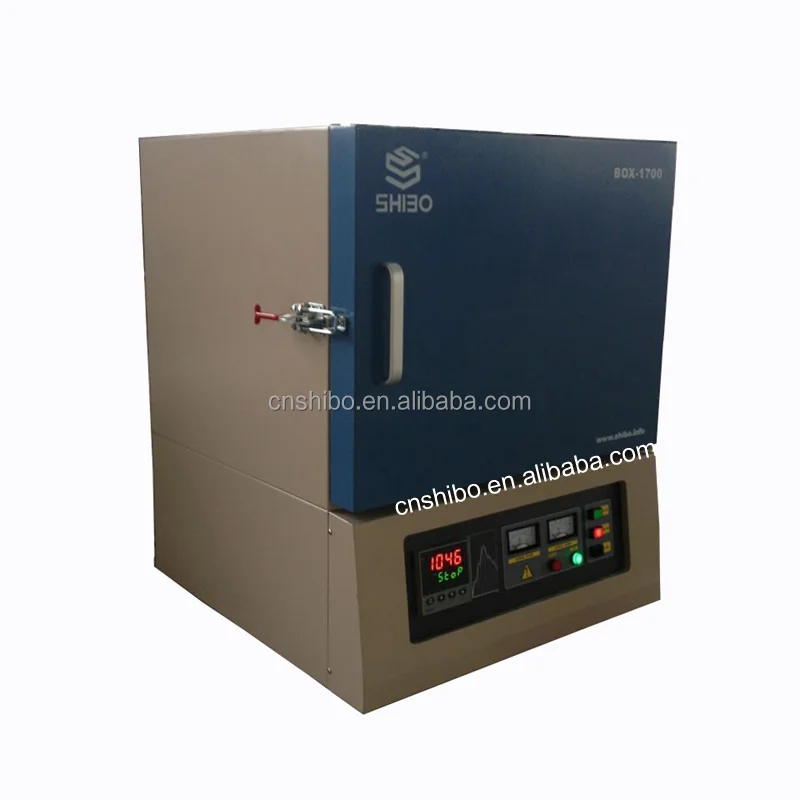

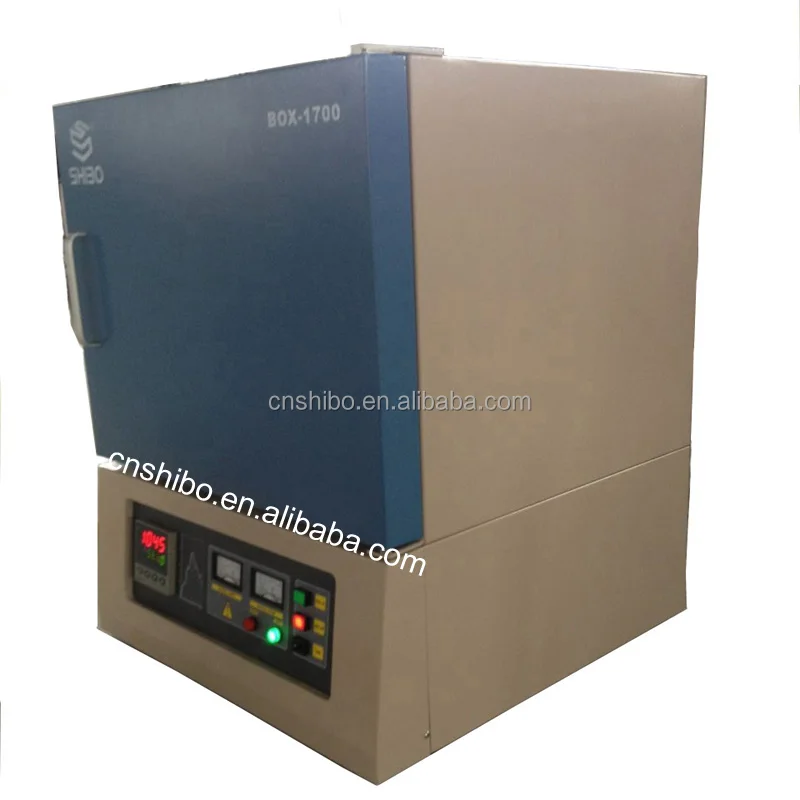

1700 digital controlled box muffle furnaces:
BOX-1700 box muffle furnace is used MoSi2 as heating element, rated working temperature is 1600°C, Max 1700°C. The temperature of furnace is controlled by high precision SCR digital controller and 51 segment programmable. Double layer structure with cooling fan. It is an excellent product for university, science research institution,etc for chemical analysis, physical testing,and metal,ceramic anneal and sintering.
Products character:
1) Chamber: high purity ceramic fiber, clean, light weight, good thermal insulation, faster heating, saving energy.

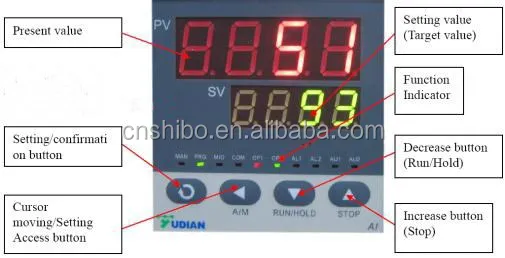

2) Temperature control: PID automatic control with 51 programmable segments for precise control
3) Heating rate: 0-20℃/min(suggestion:≤10℃)
4) Over current protection and temperature alarm.
| Mainly Specification for the BOX-1700 muffle furnaces | |
| Furnace structure: | Double shell steel case with fan cooling |
| High purity alumina fiber insulation for max. energy saving | |
| Chameber Size: | 200(W)*200(H)*200(D)mm (8*8*8inch) |
| Max. temperature | 1700C |
| Wok temperature: | 1600C |
| Temperature control: | 51 segments programmable and PID auto control |
| Heating elements: | High performance MoSi2 heating elements |
| Thermocouple: | Long Life B Type Thermocouple |
| Heating rate: | 0~15°C / min (suggestion =< 10°C) |
| Temperature accuracy: | +/-1 °C |
| Wok voltage: | AC220V, 50/60HZ single phase or as your requirement |
| Max power: | 7KW |
| Net weight: | 150kgs |
| Warranty: | 1 year warranty |
| Certificate: | CE certified |
| Optional items: | PC data recorder, Exhauster port, Quartz observation widow, Over temperature controller |
Our standard sizes for the BOX-1700 muffle furnaces:
Model | Chamber size(W× H× D mm) | Max. Temperature |
BOX-1700 | 150x150x150mm (6" x6" x6" ) | 1700. C |
BOX -1700 | 150x150x200mm (6" x6" x8" ) | 1700. C |
BOX-1700 | 200x200x200mm (8" x8" x8" ) | 1700. C |
BOX-1700 | 200x200x300mm (8" x8" x12" ) | 1700. C |
BOX-1700 | 250x250x300mm (10" x10" x12" ) | 1700. C |
BOX-1700 | 300x300x400mm (12" x12" x16" ) | 1700. C |
BOX-1700 | 350x350x400mm (14" x14" x16" ) | 1700. C |
BOX-1700 | 400x400x400mm (16" x16" x16" ) | 1700. C |
BOX-1700 | 500x500x500mm (20" x20" x20" ) | 1700. C |
For other sizes, we can make as your requirement.
Usage: Sintering ceramic samples, University labs, science and research Institute, annealing, etc
Company Information
Zhengzhou Shibo Nonferrous Metals Products Co., Ltd, as a high technology enterprise was established in 2005, located in Zhengzhou City, Henan Province, China, with registered capital of RMB 20 million, covered an area of more than 6000 square meters and employee more than 100 peoples, we specialized in tungsten&molybdenum ( powder, sheets, rods wires, parts, etc ), MoSi2&SiC heating elements, high temperature lab muffle furnaces, tungsten copper alloy, including the development, production, and sales, we always provide our customers top quality products and best service.
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: Generally it is 7 days if the goods are in stock. or it is 30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could privide free samples, but do not pay the cost of freight.
Q: What is your terms of payment ?
A: T/T, L/C, or Western Union.
If you have other question, please contact us as following:
