Индивидуальная настольная автоматическая машина для затяжки

Цена:2 500,00 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Product Description

Product Name	Customized auto robotic screw driving system with screw inspection
Material	Metal; plastic
Function	automatic fasten screw
Package	Wooden case or customized

Product specification

Automatic Screw feeding machine,simple table screw tightening machine,XYZ screwdriver robot, robotic screw fastening machine.

Machine construction	The gross weight	About 150KG
		Dimension	1556580cm
		Voltage	AC 100V 230V50~60HZ
		Power	1000W
		Ambient Temperature	-20~40℃
Control instructions	Host program control	Autonomous dedicated control system
		Hand-held teaching box	Hand-held teaching box (touch screen)
		The program input	Direct coordinate input or computer connection
		The I/O signals	8 INPUT / 8 OUTPUTS
Speed and accuracy	Positioning accuracy	X,Y:+/-0.08mm; Z: +/-0.01mm
Speed and accuracy		Running speed	600mm/sec(X-Y)
Screw feeding machine	Automatic motor for screw machine	Standard equipment
Range of application	X &Y Working Range	Customized
Range of application		Z Working Range	Customized

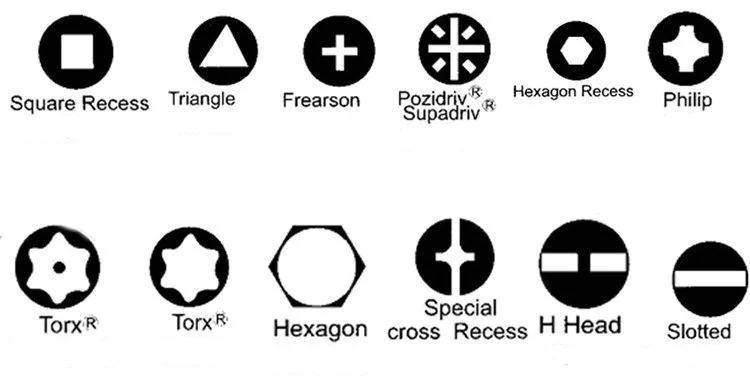

Application screw
