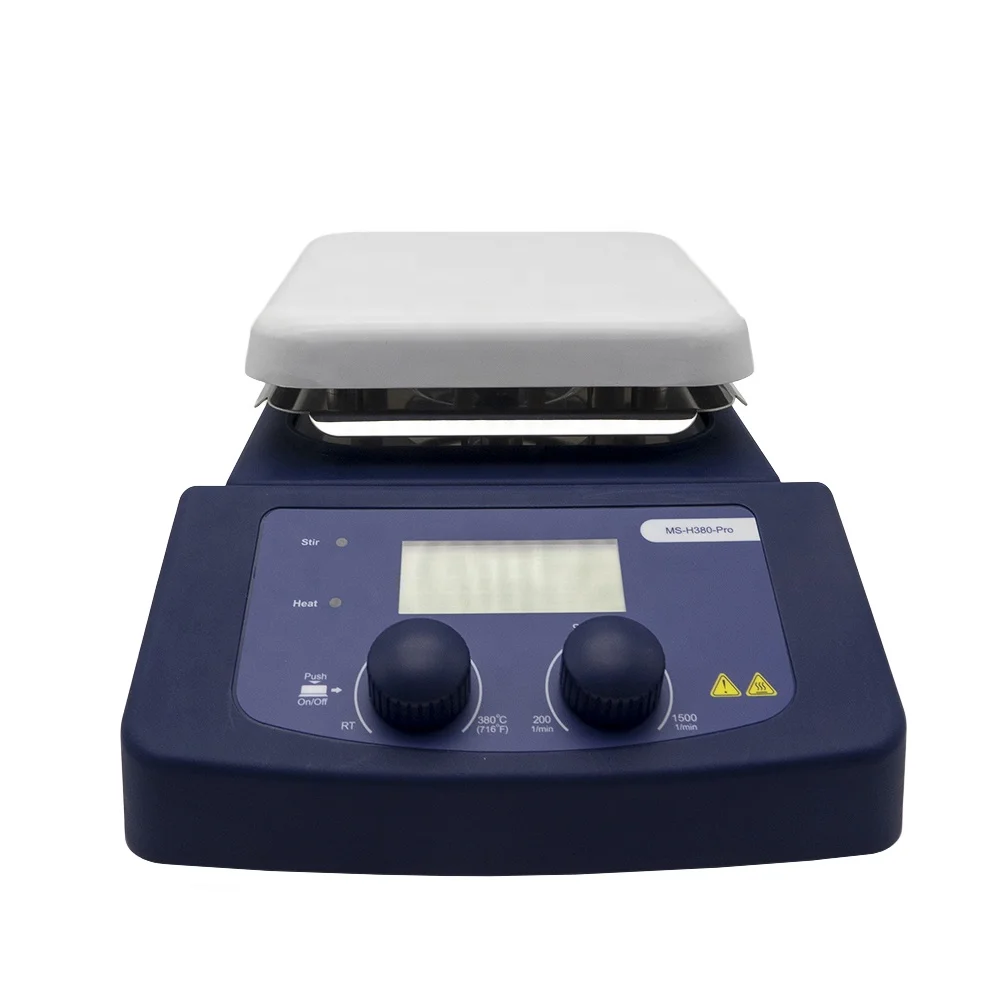

Западная Мелодия MS-H380-Pro плита ЖК-цифровой химический высокой точности мини Магнитная мешалка лаборатория Magnatic
- Категории: Laboratory Heating Equipments >>>
- Поставщик: Hangzhou,West,Tune,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Features
• Max. heating temperature is 380°C
• High resolution LCD displays actual temperature and speed
• Brushless DC motor is maintenance free
• Aluminum cover with ceramic work plate, allows for immediate heat transfer
• External temperature control is possible with temperature sensor PT1000
• Digital temperature control with max. temperature at 380°C
• Digital speed control with max. speed up to 1500rpm
• Max. stirring quantity of H2O at 5L
• High resolution LCD displays actual temperature and speed
• Brushless DC motor is maintenance free
• Aluminum cover with ceramic work plate, allows for immediate heat transfer
• External temperature control is possible with temperature sensor PT1000
• Digital temperature control with max. temperature at 380°C
• Digital speed control with max. speed up to 1500rpm
• Max. stirring quantity of H2O at 5L
Specifications
Work plate Dimension | 140x140mm |
Work plate material | Aluminum cover with ceramic coating |
Motor type | Brushless DC motor |
Motor rating input | 2.4W |
Motor rating output | 1.8W |
Power | 510W |
Heating output | 500W |
Voltage | 100-120V 60Hz |
Stirring positions | 1 |
Max. stirring quantity[H2O] | 5L |
Max. magnetic bar[length] | 50mm |
Speed range | 200-1500rpm |
Speed display | LCD |
Temperature display | LCD |
Heating temperature range | Room temp.+5°C - 380°C |
Over heat Protection | 420°C |
Temperature display accuracy | ±1°C |
External temperature sensor | PT1000 (accuracy ±0.5°C) |
Control accuracy of sensor | ±20rpm |
Protection class | IP21 |
Dimension [W x D x H] | 320x180×108mm |
Weight | 2.2kg |
Permissible ambient temperature and humidity | 5-40°C 80%RH |
Weight | 5.3kg |
Permissible ambient temperature and humidity | 5-40°C, 80%RH |
Packing List
Part description | Qty |
MS-H380-Pro LCD Digital Magnetic Hotplate Stirrer | 1 set |
Support clamp of PT1000 | 1 pc |
High temperature warming label | 1 pc |
User's Manual | 1 pc |
Cable | 1 pc |
Fuse | 1 pc |
Magnetic Core | 1 pc |
Desiccant | 1 pk |
High temperature warming label | 1 pc |
