Обработка воды с обратным осмосом для удаления

Описание и отзывы

Характеристики







1.Introduction:



Professional Factory Supply RO Automatic REverse Osmosis Water Treatment Suitable for such industries as cosmetics, pharmacy has been deeply favored by users for its stable water quality and simple operation.



The system solves the troubles of frequent regeneration and cleaning during the use of ion exchanging water purifier. By adopting physical principle, it enables the water to pass the reverse osmosis film with a diameter of one ten-thousandth of a micron and separates impurities, ion, microbes and colloids in the water, so as to meet the water requirements in cosmetics industries.



2.Working process:

Water source ----pressure pump----manganic sand filter-----active carbon filter ----security filter

---- high pressure pump ----anti-penetration film element(RO membrane) ----purifying water







3.Technical parameter



Type	Productivity(T/H)	Power(KW)	Recycle Rate(%)	Outlet Water Inductivity(μs/cm)	Raw Water Inductivity(μs/cm)
0.5T/H	0.5	2.2	55-75	3-8	≤300
1T/H	1.0	2.2	55-75	3-8	≤300
2T/H	2.0	4.0	55-75	3-8	≤300
3T/H	3.0	5.5	55-75	3-8	≤300
5T/H	5.0	7.5	55-75	3-8	≤300









4.Assembles:

1.  USA Imported DOW-4040 RO membrane 8pcs, glass fiber seamless pipe 8pcs;

2. High-pressure pump QDL4-160 vertical multi-stage pump;

3. SS 304 bracket, pipe U-PVC engineering plastic pipes, pressure 25KG/CM2;

4. Insturment Control Cabinet;

5. Automatic flushing system, imported solenoid valve actuatora

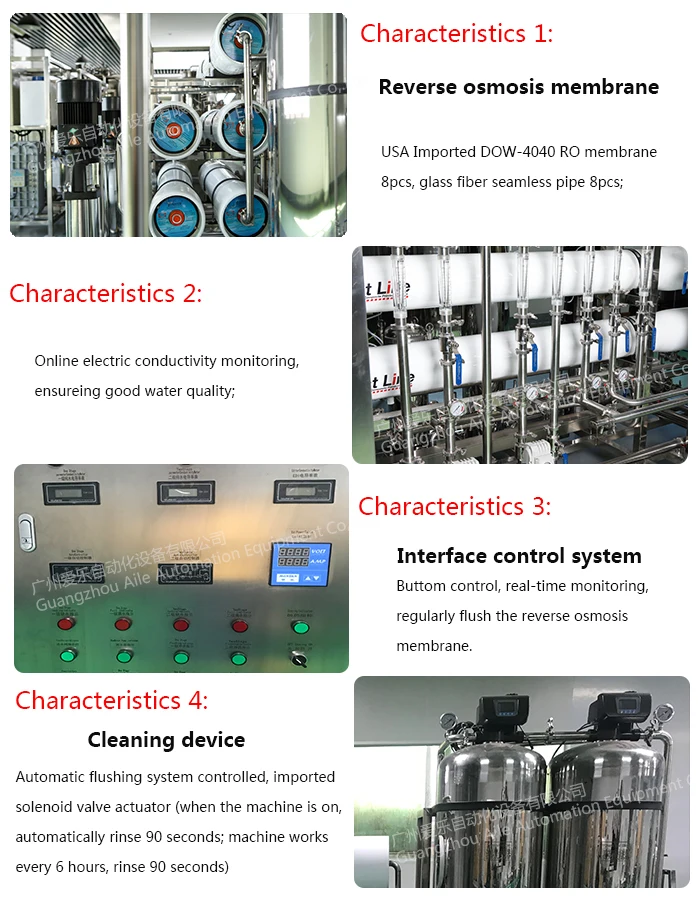

5.Detailed images:
