Высокое качество очищенной питьевой воды при помощи обратного осмоса завод

Reverse osmosis water purification machine to treat fresh water for pure, drinking, mineral water. Our plant could make drinking water, mineral water, pure water and potable water from the water sources: Ground, spring, well, river, brackish, lake water and etc.
Raw water source: Bore whole, river, well, mountain spring, lake, etc
Raw water pump/multi pump: Nanfang, Grundfos
Filter media: Quartz sand filter, active carbon filter, security filter
RO Membrane: Filmtec Dow, Hydranautics

Working process
1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
2. Quartz sand filter--get rid of turbidity, suspended matter, organic matter, colloid, etc.
3. Active carbon filter--Remove the color, free chloride, organic matter, harmful matter, etc.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5μm.
6. High pressure pump--Provide the high pressure to RO membrane.
7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.

Source water tank

Capacity: 1-10T

Material: Stainless steel 304

Thickness: 0.8-3mm

Water pump

Capacity: 1000L/H-20000L/H

Power: 380V 50HZ (Customized)

Model: CHL

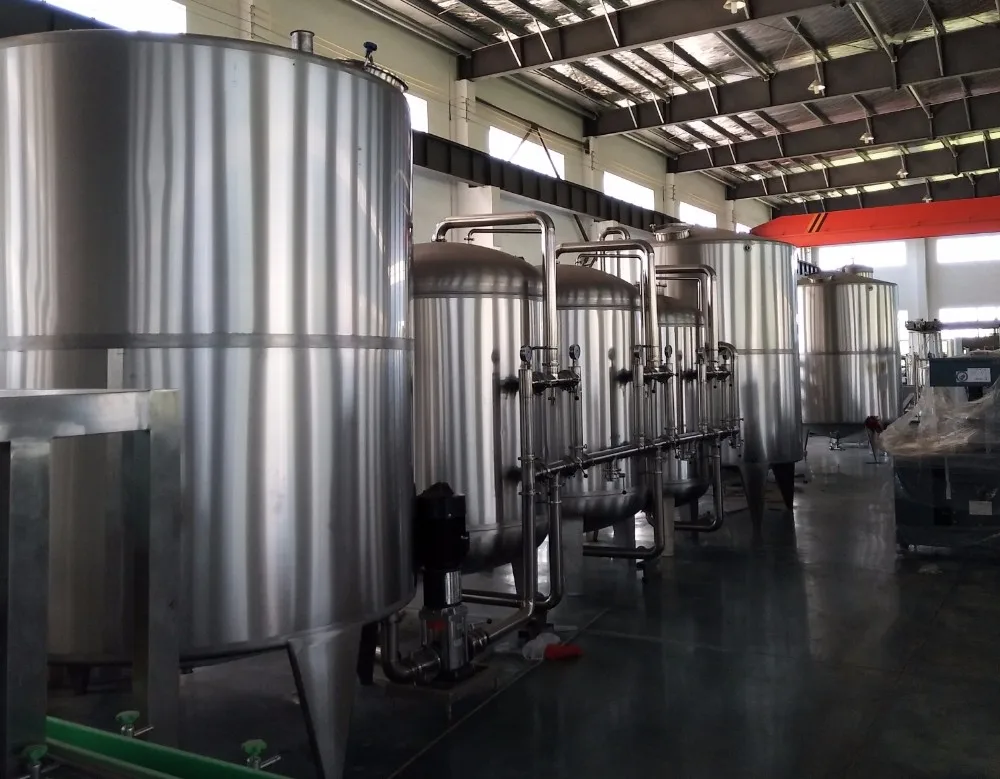

Filter

Capacity: 1-50m³/h

Material: Stainless steel 304

Thickness: 2.5mm

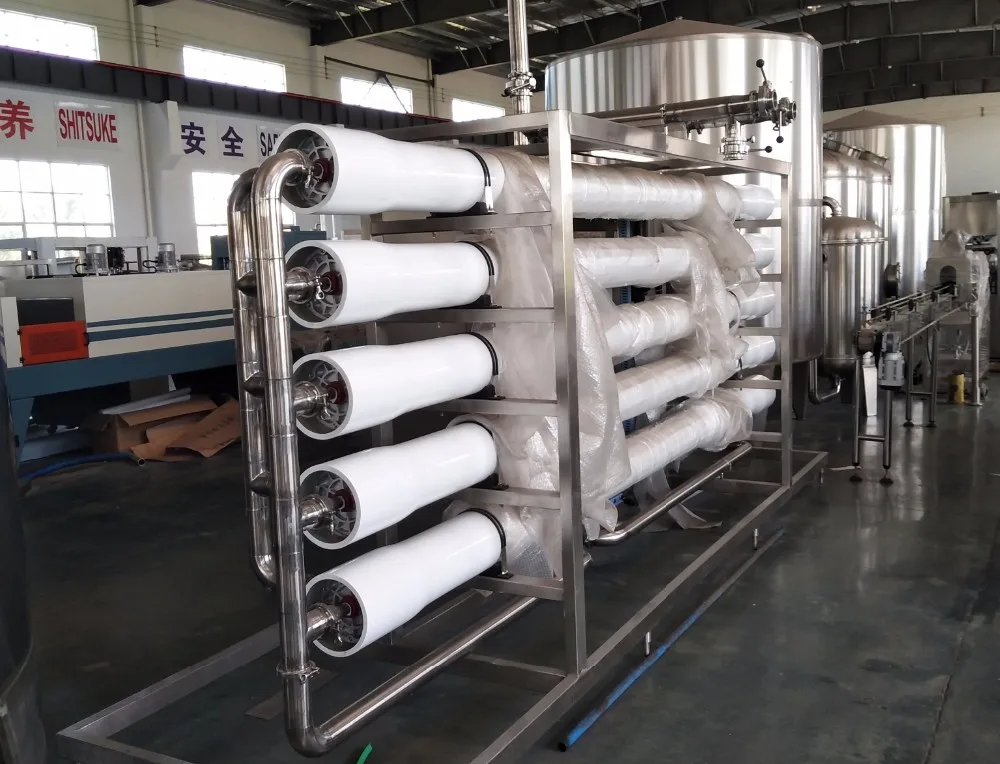

Reverse osmosis

Capacity: 1000L/H-20000L/H

Recycle rate: 65-80%

Power: 380V 50HZ (Customized)

Hollow ultrafiltration

Capacity: 1000L/H-20000L/H

Recycle rate: 99.99%

Power: 380V 50HZ (Customized)

Ozone generator

Capacity: 1000L/H-20000L/H

Sterilizing rate: 99%-99.9%

Power: 380V 50HZ (Customized)

Semi-automatic bottle washer

5 gallon bottle blowing machine

Automatic blow molding machine

Crown cap sealing machine

co2 beverage mixer

Juice filling machine

Carbonated beverage filling machine

3 in 1 Water filling machine

1.Sample service
We can send you a working video of the machine.
You are very welcome to visit our company and inspect the operation of the machine on site. We will send people to the airport to pick you up.

2. Customized service
We can customize the machine according to all the customers(such as material, power, filling type, bottle size, and so on), at the same time, our engineers will also give professional advice to help customers better establish the ideal factory.

3. After-sale service
After receiving the final payment, we will provide the bill of lading on time to ensure that the customer receives the goods as soon as possible.
When you have completed all the preparations, we will send engineers to your factory to install the machines and train your employees until they can operate the machine very well.
We can provide one year warranty with spare parts free, And free lifetime technical service.
